Lyngdorf Audio D-5 7" 2 Way In Wall Speaker - Each

Regular price $1,450.00
Sale price $1,450.00 Regular price
$0.00 Save $-1,450.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 900032177 | UPC: 5704505321770

Specifications

What's In The Box

Product Information

Model: 900032177 | UPC: 5704505321770

The D-5 is the ideal speaker for side surrounds and rears. The midrange/woofer and the tweeter are placed together as close as possible to achieve the best sound radiation into the room, so that all surround and rear speakers play together seamlessly. The D-5 has a full and balanced sound and reaches down to 80 Hz.

Features

  • Discreet In-Wall Or In-Ceiling Installation
  • Built-In MDF Enclosure Design
  • Angled Adjustable Tweeter
  • Coherent Two-Way Driver Alignment
  • 80 Hz–20 kHz Frequency Range

D Stands for Discreet

D stands for discreet – all models are designed as installation speakers for discreet in-wall or in-ceiling integration, featuring a wall-fixing mechanism with mounting legs. The models also come with their own loudspeaker enclosure, making system planning and the actual installation as easy as possible, with no after-market backbox or closed wall cavity required. This also ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.

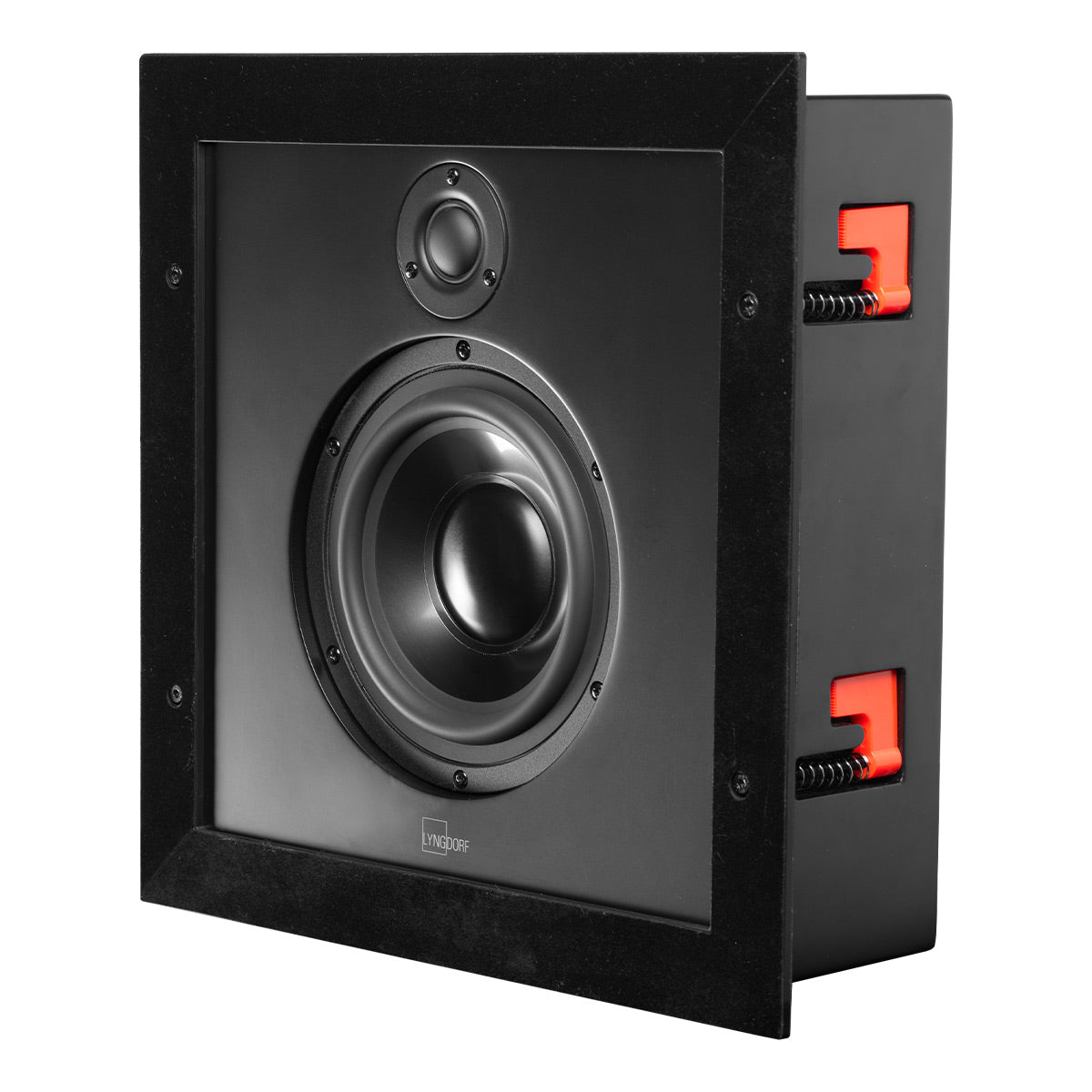

Pre-Mounted Loudspeaker Enclosure

The D-5 comes with its own pre-mounted, rigid MDF enclosure, so that no after-market backbox or closed wall cavity is required. This ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall. It also prevents resonances and sound leakage.

Lyngdorf Audio Speaker Design & Drive-Units

The midrange driver and tweeter are designed by Lyngdorf Audio and feature soft-dome tweeters, light aluminum cones, and powerful vented magnets.

Specifications

  • Model: Lyngdorf D-5
  • Description: 2 way speaker
  • Tweeter: 25 mm / 1” soft dome
  • Midrange driver: 180 mm, 35 mm voice coil, aluminum cone, vented magnet
  • Enclosure: Closed MDF cabinet
  • Frequency range: 80 – 20,000 Hz (-3 dB)
  • Nominal Impedance: 4 Ohm
  • Sensitivity: 89 dB (2.83V/1m)
  • Power handling: 100 W (IEC)
  • Maximum SPL: 106 dB
  • Crossover point: 2,2 kHz
  • Connections: Binding posts
  • Mounting: In-wall
  • Dimensions with grill (W x H x D): 14.25 x 14.25 x 4.3 inches
  • Cut-out dimensions (W x H x D): 13.2 x 13.2 x 4.1 inches
  • Weight: 14.1 lbs.

What's In The Box

  • D-5 7" 2 Way In Wall Speaker - Each
  • Installation Template
  • Grille
  • Manual
