Klipsch Reference Premiere RP-8060F II 5.0 Dolby Atmos Home Theater System (Ebony)

Regular price $3,746.00
Sale price $3,746.00 Regular price
Save $-3,746.00 (%)
OR

In Stock & Ready to Ship
Free Scheduled Delivery Ships within 24-48 hours

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: WWSRPATMEB | UPC: 720140333881

Specifications

What's In The Box

Product Information

Model: WWSRPATMEB | UPC: 720140333881

This Package Includes


RP-8060FA II Reference Premiere Floorstanding Speaker with Dolby Atmos

Take Your Movies And Music To New Heights

Klipsch's proprietary speaker technologies are ideal for delivering the most immersive, impactful 360° Dolby Atmos® listening experience. Controlled directivity and high performance ensure focus and precise aiming of high-frequency energy.

Built-In Elevation Speaker

The RP-8060FA II full-range tower speakers feature a high-performance 6.5” 2-way up-firing Dolby Atmos speaker integrated into the top for an awe-inspiring, encompassing experience. It’s a perfectly matched set up that virtually disappears. The integrated speaker terminals are placed low on the cabinet for convenience and an unobtrusive connection.

90° X 90° Silicon Composite Hybrid Tractrix Horn

Horn loading maximizes efficiency and increases detail while focusing high frequencies on the listening area. Proprietary Tractrix® geometry provides the most efficient transfer of high-frequency waves into the listening area. The phase plug and compressed molded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created. The second generation increases horn size for a larger soundstage and enhanced directivity.

Linear Travel Suspension (LTS) Titanium Diaphragm Tweeter

The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making them a core component of some of the best speakers in the world.

Vented Tweeter Design

The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high-frequency reproduction.

Cerametallic Woofers – All-New Design

A signature feature of the Reference Premiere series, Cerametallic™ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New voice coils are 70% larger in diameter resulting in improved power handling and greater cone control for greater linearity and flawless reproduction. New aluminum shorting rings reduce distortion as well as increase power handling and the new motor structure improves transit response with more control with greater speed and accuracy.

Tractrix Ports

Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies. Klipsch Tractrix ports have custom-designed inner flares that help reduce air turbulence entering the port. Less turbulent air helps reduce port noise for cleaner, more powerful bass.

Bi-Wiring / Bi-Amping Capability

Dual input terminals for bi-wiring / bi-amping capabilities. Bi-wiring separates high and low-frequency current into separate speaker cables, reducing intermodulation distortion, for a clearer midrange. Bi-amping allows for customization using outboard crossovers when using separate amplifiers.

Advanced Cabinet Design

Additional bracing and a divided cabinet have been added to minimize cabinet resonances and vibration, for the utmost transparency and clarity.

New and Improved Input Panel

Featuring audiophile-grade wire and easily accessible aluminum binding posts for any connection type.

Furniture Grade Materials and Finishes

Finishes include ebony vinyl and walnut vinyl that boast satin painted baffles with a scratch-resistant finish.

Strong, Flexible, Removeable Grille

Attaches magnetically for an elegant transition from a powerful showstopper to a discrete performance piece.

Cast Aluminum Feet

Provides a more modern look with less resonance than MDF or ABS plastic. It is mechanically designed to minimize surface area in contact with the floor, decoupling the speaker for faster, tighter low frequencies and more detail.

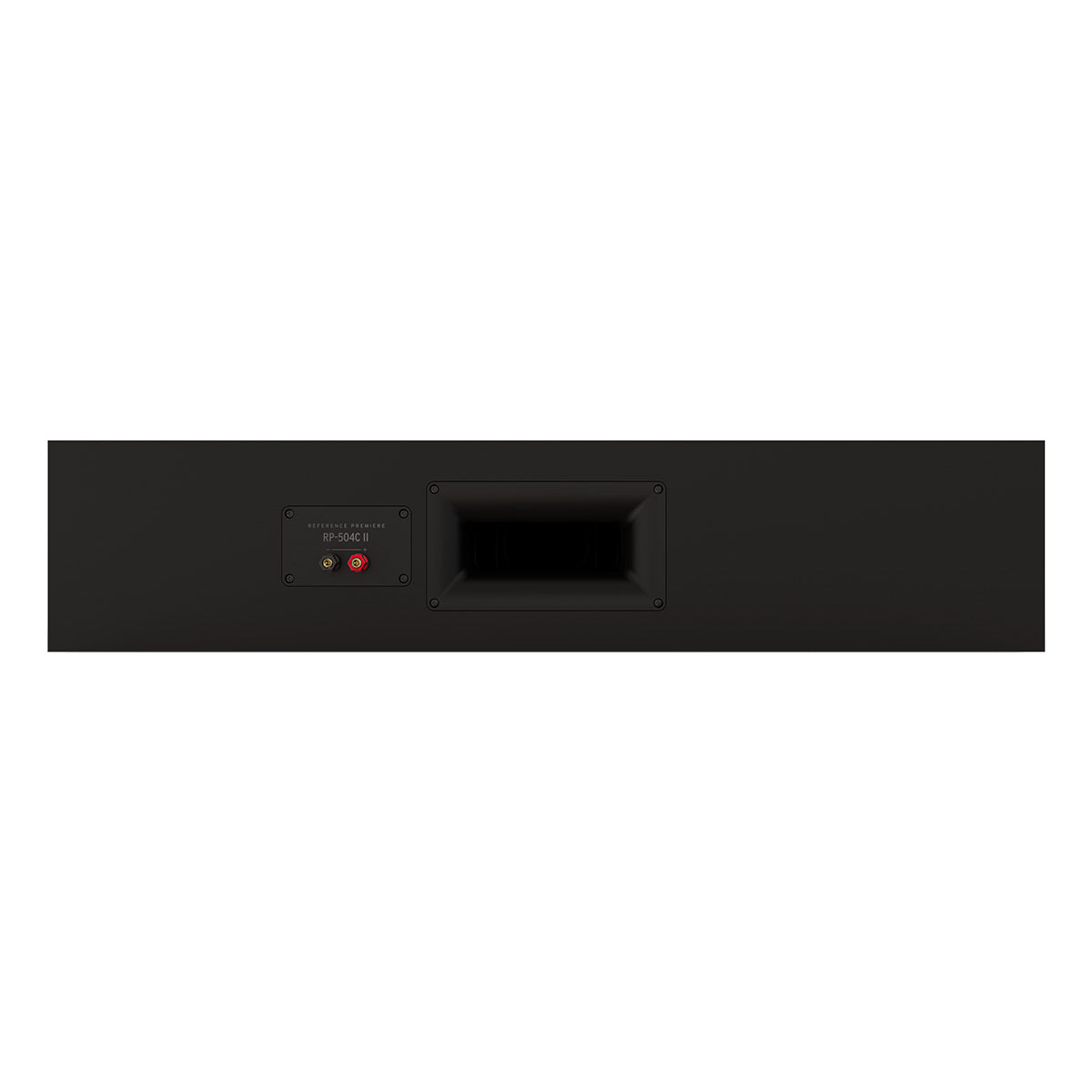

RP-504C II Reference Premiere Center Channel Speaker

90° x 90° Silicon Composite Hybrid Tractrix Horn

Horn loading maximizes efficiency and increases detail while focusing high frequencies on the listening area. Proprietary Tractrix® geometry provides the most efficient transfer of high-frequency waves into the listening area. The phase plug and compressed molded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created. The second generation increases horn size for a larger soundstage and enhanced directivity.

Linear Travel Suspension (LTS) Titanium Diaphragm Tweeter

The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making them a core component of some of the best speakers in the world.

Vented Tweeter Design

The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high-frequency reproduction.

Cerametallic Woofers – All-New Design

A signature feature of the Reference Premiere series, Cerametallic™ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New voice coils are 70% larger in diameter resulting in improved power handling and greater cone control for greater linearity and flawless reproduction. New aluminum shorting rings reduce distortion as well as increase power handling and the new motor structure improves transit response with more control, greater speed, and accuracy.

Tractrix Ports

Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies. Klipsch Tractrix ports have custom-designed inner flares that help reduce air turbulence entering the port. Less turbulent air helps reduce port noise for cleaner, more powerful bass.

New and Improved Input Panel

Featuring audiophile-grade wire and easily accessible aluminum binding posts for any connection type.

Furniture Grade Materials and Finishes

Finishes include ebony vinyl and walnut vinyl that boast satin painted baffles with a scratch-resistant finish.

Strong, Flexible, Removable Grille

Attaches magnetically for an elegant transition from a powerful showstopper to a discrete performance piece.

Cork Pads

Cork pads replace rubber bumpers for security on a stand or table.


RP-600M II Reference Premiere Bookshelf Speakers

90° x 90° Silicon Composite Hybrid Tractrix Horn

Horn loading maximizes efficiency and increases detail while focusing high frequencies on the listening area. Proprietary Tractrix® geometry provides the most efficient transfer of high-frequency waves into the listening area. The phase plug and compressed molded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created. The second generation increases horn size for a larger soundstage and enhanced directivity.

Linear Travel Suspension (LTS) Titanium Diaphragm Tweeter

The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making them a core component of some of the best speakers in the world.

Vented Tweeter Design

The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high-frequency reproduction.

Cerametallic Woofers - All-New Design

A signature feature of the Reference Premiere series, Cerametallic™ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New voice coils are 70% larger in diameter resulting in improved power handling and greater cone control for greater linearity and flawless reproduction. New aluminum shorting rings reduce distortion as well as increase power handling and the new motor structure improves transit response with more control with greater speed and accuracy.

Tractrix Ports

Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies. Klipsch Tractrix ports have custom-designed inner flares that help reduce air turbulence entering the port. Less turbulent air helps reduce port noise for cleaner, more powerful bass.

Bi-Wiring / Bi-Amping Capability

Dual input terminals for bi-wiring / bi-amping capabilities. Bi-wiring separates high and low-frequency current into separate speaker cables, reducing intermodulation distortion, for a clearer midrange. Bi-amping allows for customization using outboard crossovers when using separate amplifiers.

New and Improved Input Panel

Featuring audiophile-grade wire and easily accessible aluminum binding posts for any connection type.

Furniture Grade Materials and Finishes

Finishes include ebony vinyl and walnut vinyl that boast satin painted baffles with a scratch-resistant finish.

Strong, Flexible, Removeable Grille

Attaches magnetically for an elegant transition from a powerful showstopper to a discrete performance piece.

Cork Pads

Cork pads replace rubber bumpers for security on a stand or table.

Specifications

RP-8060FA II Reference Premiere Floorstanding Speaker with Dolby Atmos

  • Main Channel
    • Frequency Response: 35-25kHz +/- 3dB
    • Sensitivity: 98dB @ 2.83V / 1m
    • Power Handling: 150W / 600W
    • Nominal Impedance: 8 Ohms Compatible
    • Crossover Frequency: 1630Hz
    • High-Frequency Driver: 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn
    • Low-Frequency Driver: Dual 8" Cerametallic Cone Woofers with Faraday rings
    • Enclosure Material: MDF (Internally Braced)
    • Enclosure Type: Bass Reflex via dual-chamber rear-firing Tractrix® Ports
    • Inputs: Dual aluminum binding posts / bi-wire / bi-amp
    • Dimensions (W x H x D): 10.84" x 43.11" x 20.80"
    • Weight: 75.7lbs
    • Finish: Ebony, Walnut
  • Height Channel
    • Frequency Response: Conforms to Dolby Atmos Specifications
    • Sensitivity: Conforms to Dolby Atmos Specifications
    • Power Handling: 100W / 400W
    • Nominal Impedance: 8 Ohms Compatible
    • Crossover Frequency: 2kHz
    • High-Frequency Driver: 1" titanium LTS Tweeter with Hybrid Tractrix Horn
    • Low-Frequency Driver: 6.5" Cerametallic Cone Woofer
    • Enclosure Material: MDF
    • Enclosure Type: Acoustic Suspension
    • Inputs: Single aluminum binding posts

RP-504C II Reference Premiere Center Channel Speaker

  • Frequency Response: 50-25kHz +/- 3dB
  • Sensitivity: 96dB @ 2.83V / 1m
  • Power Handling: 150W/600W
  • Nominal Impedance: 8 Ohms Compatible
  • Crossover Frequency: 650Hz/1950Hz
  • High Frequency Driver: 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn
  • Low Frequency Driver: Quad 5.25" Cerametallic Cone Woofers with Faraday rings
  • Enclosure Material: MDF (Internally Braced)
  • Enclosure Type: Bass Reflex via rear-firing Tractrix® Port
  • Inputs: Single aluminum binding posts
  • Dimensions (W x H x D): 32.06" x 6.87" x 15.08"
  • Weight: 36.3lbs
  • Finish: Ebony, Walnut

RP-600M II Reference Premiere Bookshelf Speakers

  • Frequency Response: 44-25kHz +/- 3dB
  • Sensitivity: 94.5dB @ 2.83V/1m
  • Power Handling (Cont/Peak): 100W/400W
  • Nominal Impedance: 8 Ohms Compatible
  • Crossover Frequency: 1500Hz
  • High-Frequency Driver: 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn
  • Low-Frequency Driver: 6.5" Cerametallic Cone Woofer with Faraday rings
  • Enclosure Material: MDF (Internally Braced)
  • Enclosure Type: Bass Reflex via rear-firing Tractrix® Port
  • Inputs: Dual aluminum binding posts/bi-wire/bi-amp
  • Product Dimensions (W x H x D) (per speaker): 7.95" x 15.75" x 13.00"
  • Product Weight (per speaker): 18.1 lb
  • Finish: Ebony, Walnut

What's In The Box

RP-8060FA II Reference Premiere Floorstanding Speaker with Dolby Atmos

  • 2x RP-8060FA II
  • Injection molded feet & screws
  • Manual

RP-504C II Reference Premiere Center Channel Speaker

  • RP-504C II
  • Angle Screw
  • Manual

RP-600M II Reference Premiere Bookshelf Speakers

  • 2x RP-600M II Bookshelf Speakers
  • 8x Cork Pads
  • Manual
