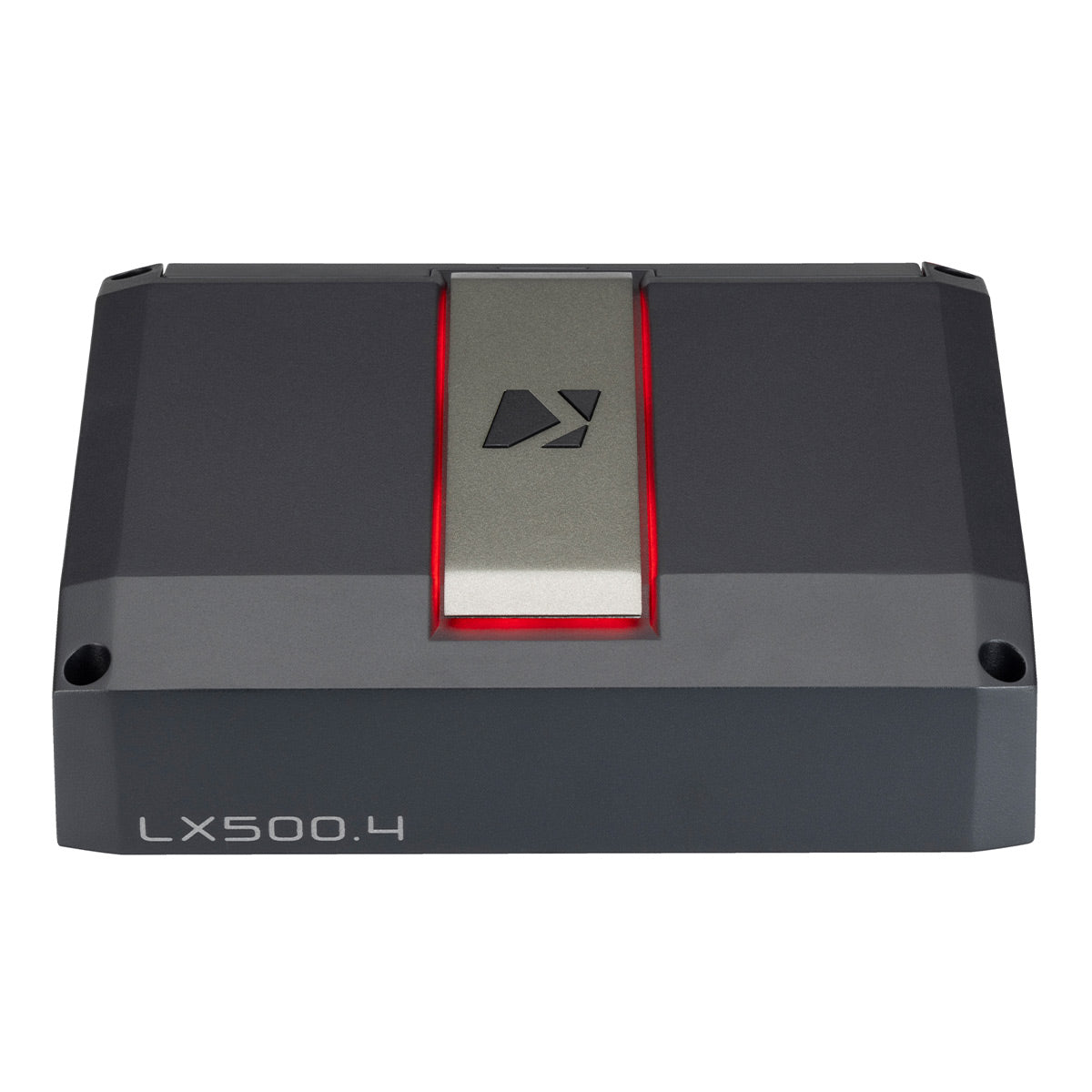

Kicker LX500.4 4-Channel Full Range Class D Amplifier

Regular price $599.99
Sale price $599.99 Regular price
Save $-599.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Kicker LX500.4 Overview

Product Information

Model: 51LX5004 | UPC: 713034020301

Specifications

What's In The Box

Product Information

Model: 51LX5004 | UPC: 713034020301
The Kicker LX500.4 is a high-performance 4-channel amplifier designed for audio enthusiasts seeking superior sound quality and power. Engineered from the ground up, this amplifier offers precision control and flexibility, making it a valuable addition to any car audio system.

Features

  • High-Powered Output
  • Advanced Class-D Design
  • Customizable RGB Aesthetics
  • LX Control Center (LXCC)
  • FIT+™ Noise Elimination Technology
  • Compact and Versatile Design

High-Powered Performance

Delivering 225 watts per channel at 2 ohms and 125 watts per channel at 4 ohms, the LX500.4 ensures robust and clear audio output. Its dynamic power reaches up to 1100 watts, providing ample headroom for dynamic musical passages.

Advanced Design & Efficiency

Utilizing a Class-D design, this amplifier boasts lower current draw, extended playtimes, and reduced operating temperatures. The inclusion of gain-match LEDs allows for precise gain setting, ensuring optimal signal performance.

Customizable Aesthetics

The LX500.4 features a reversible center panel and offers a choice of 11 RGB LED accent colors, allowing users to personalize the amplifier's appearance to match their vehicle's interior.

Comprehensive Control with LX Control Center

Included with the amplifier is the LX Control Center (LXCC), which provides diagnostic readouts for battery voltage, output clipping, amplifier temperature, and protection status in real-time. Users can adjust gain trim, left-channel time delay, and select crossover types, slopes, and frequencies, offering both high-pass, low-pass, or band-pass crossovers for all full-range channels.

Noise Elimination & Signal Integrity

Equipped with FIT+™ technology, the LX500.4 accepts low- and high-level signals up to 40V with full differential inputs, effectively eliminating unwanted noise and ensuring crystal-clear sound. The amplifier also offers selectable turn-on modes and comprehensive protections for thermal, circuit, and voltage stability, ensuring reliable performance.

Compact Dimensions

Measuring 2-3/8” x 8-7/16” x 9-7/16” in length, the LX500.4's compact design allows for versatile installation options within various vehicle spaces.

Specifications

  • Power (@14.4V, <1%THD+N) 4Ω Stereo: 125W x 4
  • Power (@14.4V, <1%THD+N) 2Ω Stereo: 225W x 4
  • Power (@14.4V, <1%THD+N) 4Ω Bridged: 450W x 2
  • Dynamic Power (@14.4V, <10%THD+N) 4Ω Bridged: 1100W
  • Lowest Rated Impedance: 2Ω Stereo / 4Ω Bridged
  • Signal to Noise Ratio (CEA) 1W: >-75dB
  • Signal to Noise Ratio Rated Power: >-95dB
  • Channel Seperation (Rated Power) 1000Hz: >55dB
  • CMRR 1000Hz: -40dB
  • Input Impedance: >20kΩ
  • Frequency Response: 20Hz - 20kHz
  • Variable HiPass Filter (Amp 1 & 2) 12/18/24BW 12/24LR: 20Hz - 5kHz
  • Variable LoPass Filter (Amp 1 & 2) 12/18/24BW 12/24LR: 40Hz - 5kHz
  • Variable BandPass Filter (Amp 1 & 2) 12/18/24BW 12/24LR: 20Hz - 5kHz
  • Standby Current (Remote Off): <2mA
  • Idle Current (Remote On): <3A
  • Current Draw (Rated Power): <80A
  • Low Level Input Sensitivity: 125mV - 5V
  • High Level Input Sensitivity: 1V - 40V
  • Under Voltage Protection: 6.5V (warning at 10.5V)
  • Over Voltage Protection: 16.5V (warning at 16V)
  • Active Thermal Management: >75°C

What's In The Box

  • LX500.4 4-Channel Full Range Class D Amplifier
  • LX Control Center
  • Mounting Hardware
  • 3mm Hex Key
  • High level Input Harness
  • Manual
