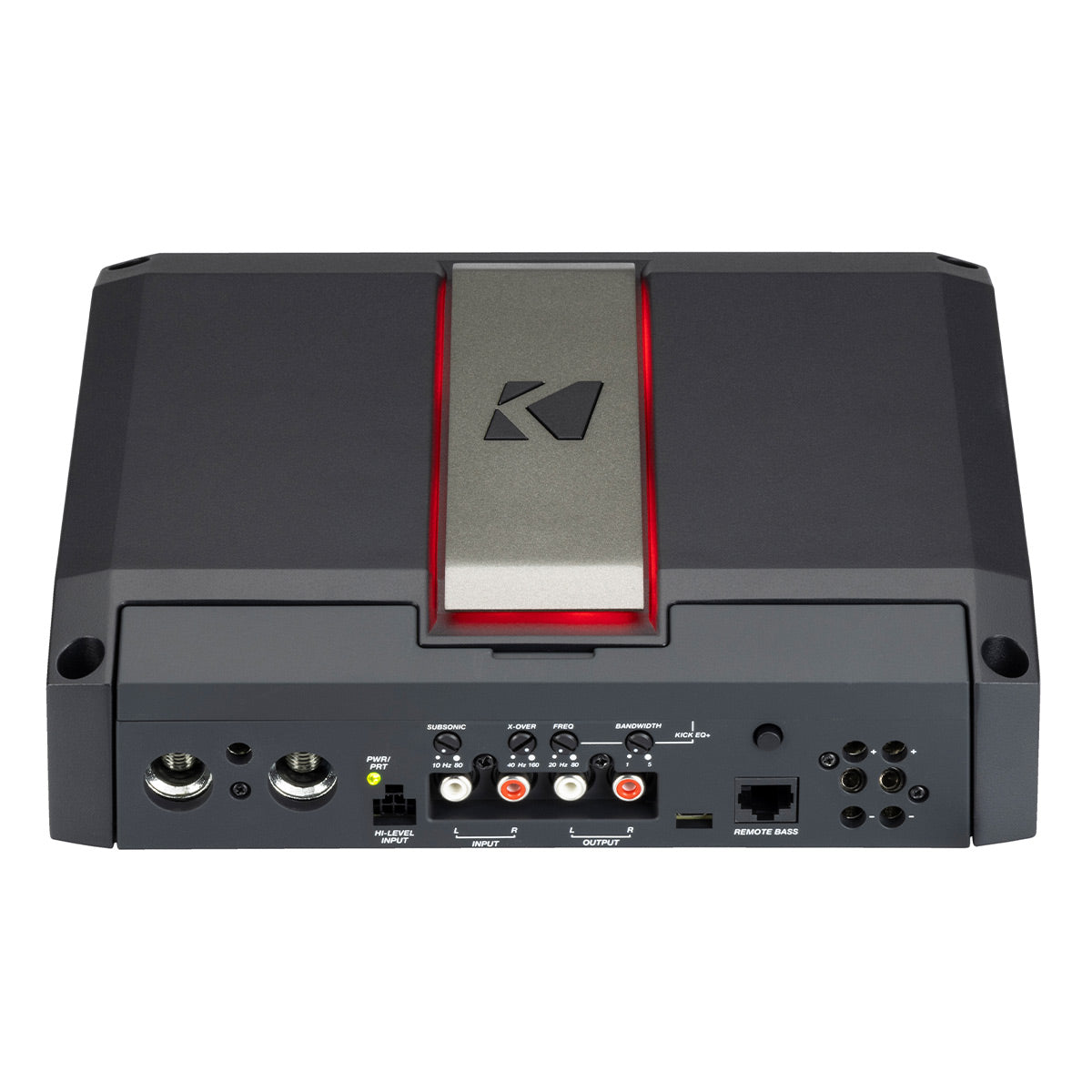

Kicker LX1650.1 Mono Class D Subwoofer Amplifier with Smart Bass

Regular price $699.99
Sale price $699.99 Regular price
Save $-699.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Kicker LX1650.1 Overview

Product Information

Model: 51LX16501 | UPC: 713034020257

Specifications

What's In The Box

Product Information

Model: 51LX16501 | UPC: 713034020257

The Kicker LX1650.1 Mono Amplifier is engineered for audio enthusiasts seeking high-powered performance and precision control in their car audio systems. This premium amplifier delivers robust power output and advanced features, ensuring an exceptional listening experience.

Features

  • SHOCwave2.0™ Restores Bass in Digital Recordings
  • 1-Ohm Stable for Ultimate Flexibility with Most Subwoofer Wiring Options
  • Active Thermal Management for All-Day Play Time
  • Customize the Appearance with Reversible Center Panel
  • KickEQ+™ Parametric Bass Boost
  • FIT+™ Differential Inputs
  • Unique RGB Dimmable Amp Top Plate and Bass Remote
  • LED Illuminated Gain Knob with Clip Indicator

High-Powered Performance

Designed in-house by KICKER, the LX1650.1 offers RMS power ratings of 1650W at 1Ω, 1000W at 2Ω, and 550W at 4Ω, with a dynamic power output of 2200W. Its Class-D design ensures efficient power consumption, extended playtimes, and reduced operating temperatures.

Precision Control & Customization

The included LX Remote Control (LXRC) provides dynamic, fingertip adjustment of bass levels. It features SHOCwave2.0™, KICKER’s second-generation digital bass restoration algorithm that recovers lost low-bass frequencies vital to your music selections. The remote also displays battery voltage in a fuel-gauge-style readout, allows control of RGB LED brightness, and includes an output clipping indicator to prevent distortion and protect your system.

Advanced Features for Superior Sound

Equipped with FIT+™ technology, the LX1650.1 accepts low- and high-level signals up to 40V, with differential inputs designed to eliminate unwanted noise for crystal-clear sound. The amplifier also offers a choice of turn-on modes and comprehensive protections for thermal, circuit, and voltage stability, ensuring reliable performance.

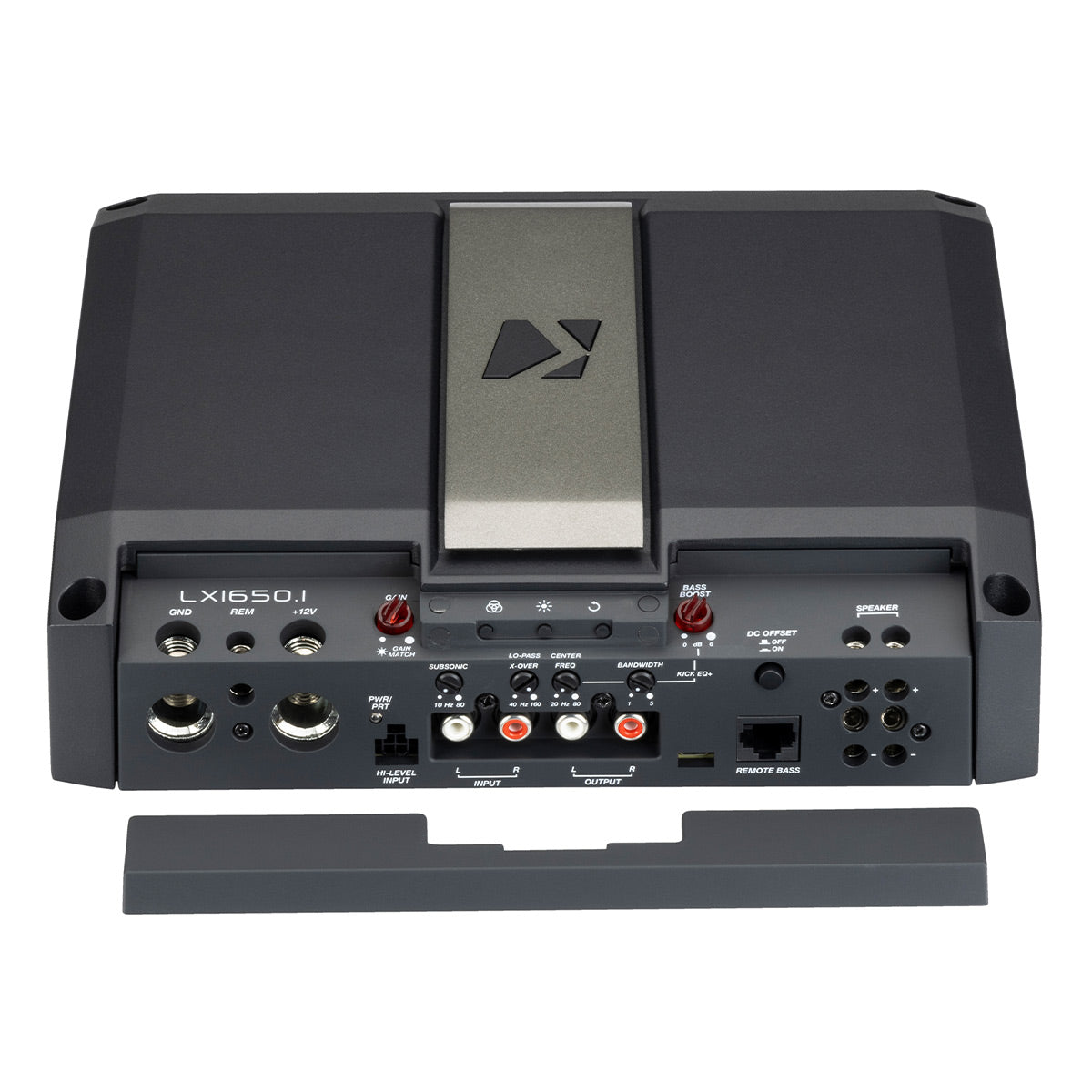

Sleek Design & Customizable Appearance

The amplifier's design includes a reversible center panel and a choice of 11 RGB LED accent colors, allowing you to personalize its appearance to match your vehicle's interior. Its compact dimensions make it suitable for various installation configurations.

Specifications

  • Power (@14.4V, <1%THD+N) 4Ω: 550W x 1
  • Power (@14.4V, <1%THD+N) 2Ω: 1000W x 1
  • Power (@14.4V, <1%THD+N) 1Ω: 1650W x 1
  • Dynamic Power (@14.4V, <10%THD+N) 1Ω: 2200W
  • Lowest Rated Impedance: 1Ω
  • Signal to Noise Ratio (CEA): 1W >-75dB
  • Signal to Noise Ratio Rated Power: >-95dB
  • CMRR: 50Hz -40dB
  • Input Impedance: >20kΩ
  • Frequency Response: 10Hz - 160Hz
  • Variable LoPass Filter 24dB / Octave LR: 40Hz - 160Hz
  • Variable Subsonic Filter 24dB / Octave LR: 10Hz - 80Hz
  • KickEQ+™ Variable Bass Boost: 0dB - 6dB
  • KickEQ+™ Variable Center Frequency: 20Hz - 80Hz
  • KickEQ+™ Variable Bandwidth: 1 - 5
  • Standby Current (Remote Off): <2mA
  • Idle Current (Remote On): <3A
  • Current Draw (Rated Power): <150A
  • Remote Gain Attenuation (LXRC Included): -26dB - 0dB
  • Low Level Input Sensitivity: 125mV - 5V
  • High Level Input Sensitivity: 1V - 40V
  • Under Voltage Protection: 6.5V (warning at 10.5V)
  • Over Voltage Protection: 16.5V (warning at 16V)
  • Active Thermal Management: >75°C

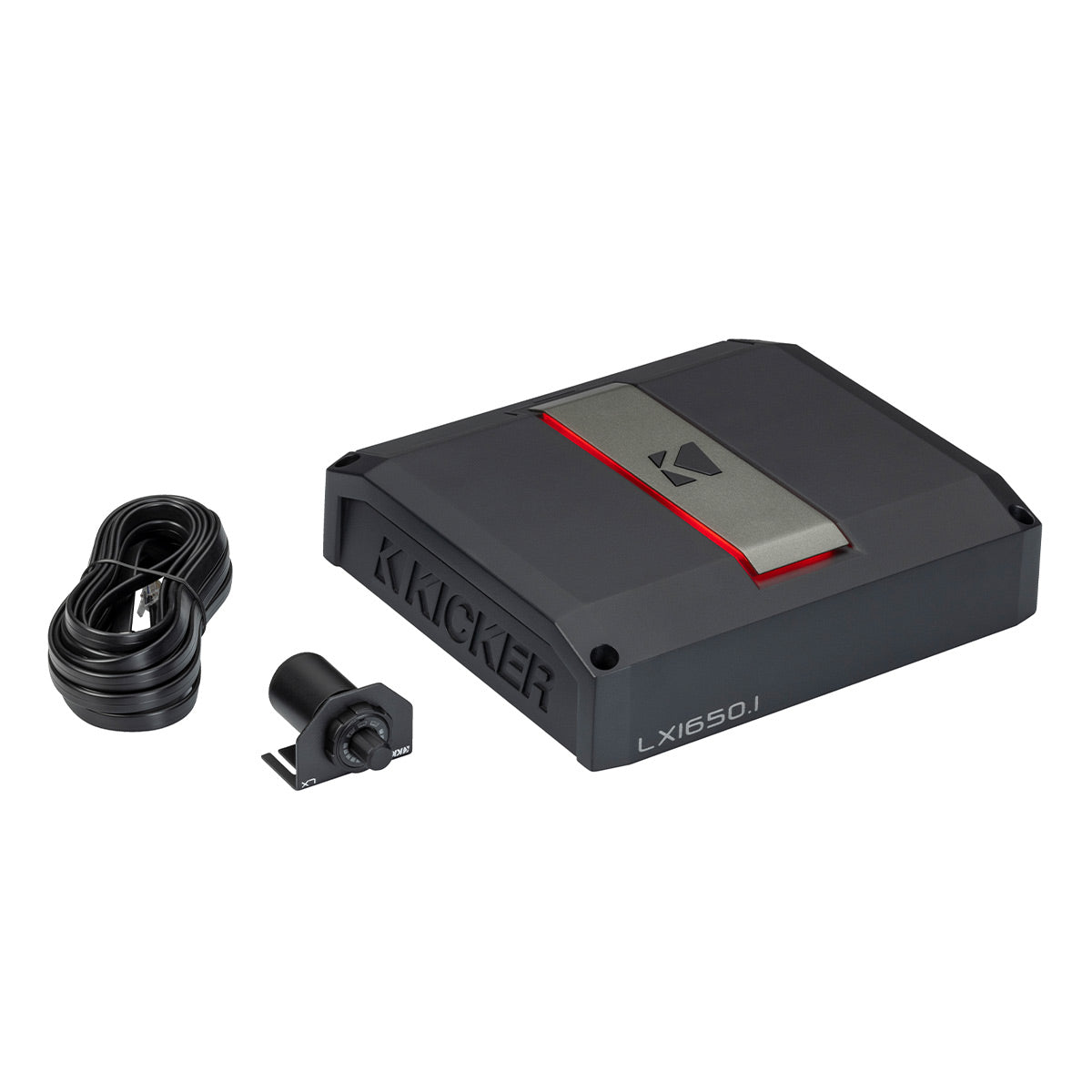

What's In The Box

  • LX1650.1 Mono Class D Subwoofer Amplifier with Smart Bass
  • High level Input Harness (CEA Color Standard)
  • LX Remote Control with Cable
  • Mounting Hardware
  • 3mm Hex Key
  • Manual
