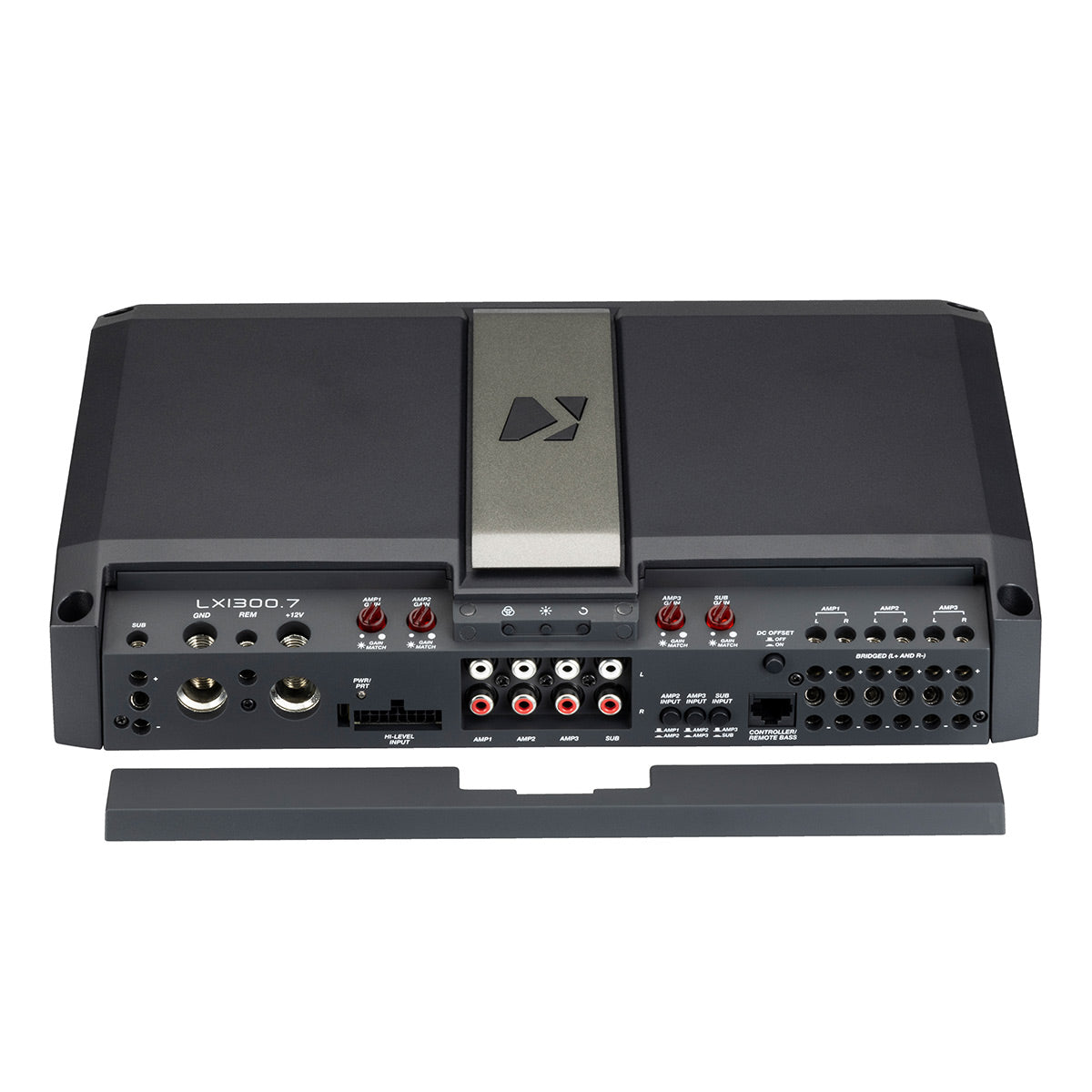

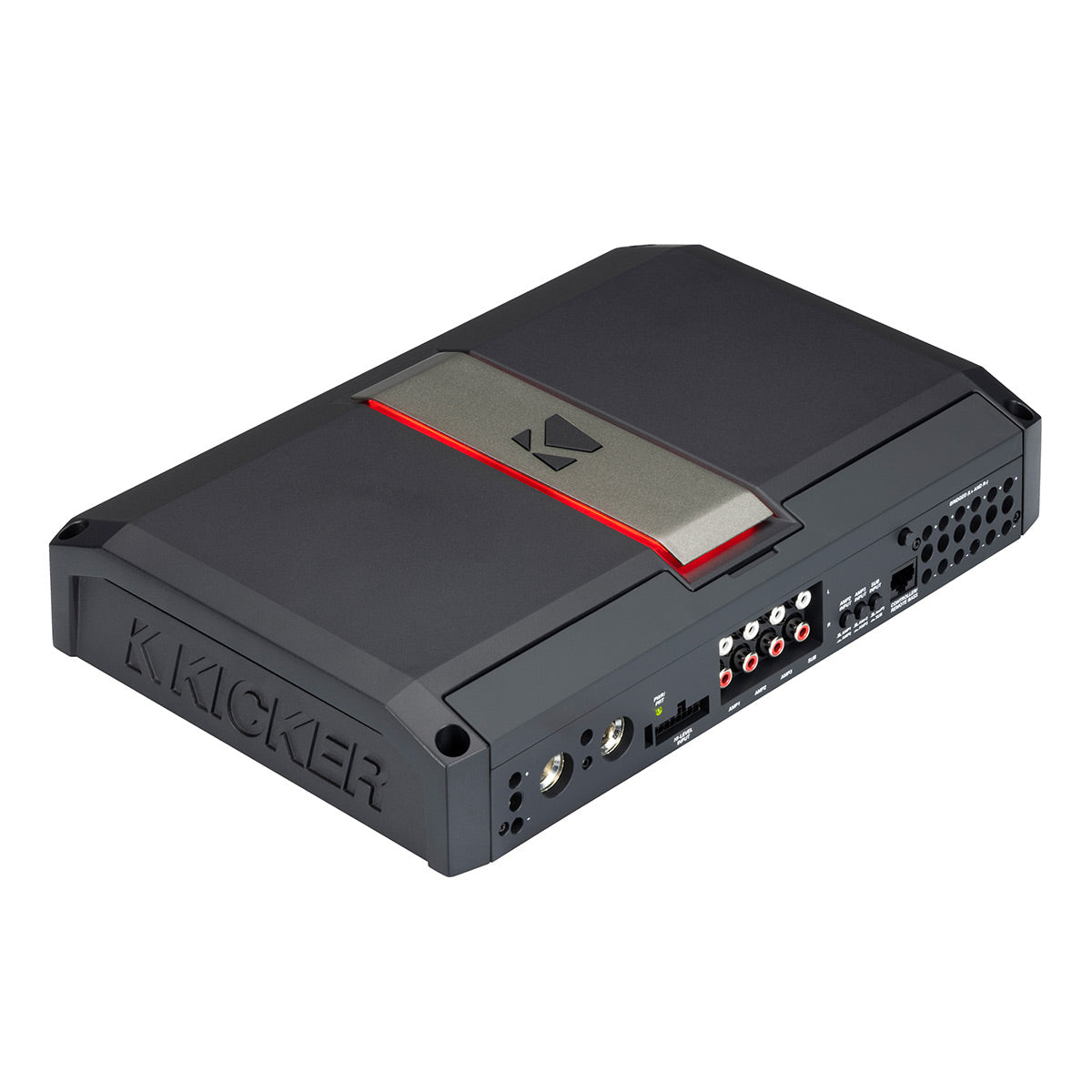

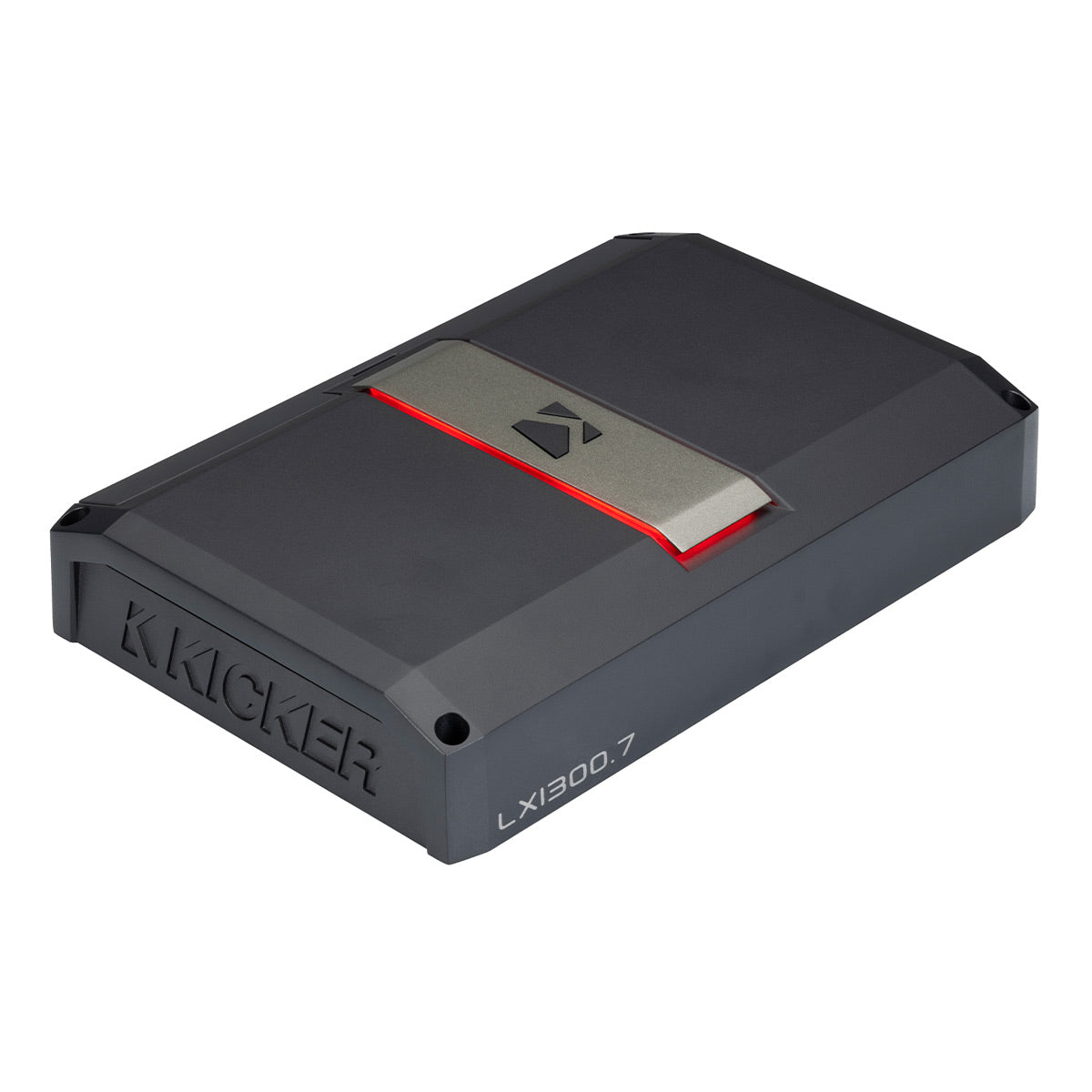

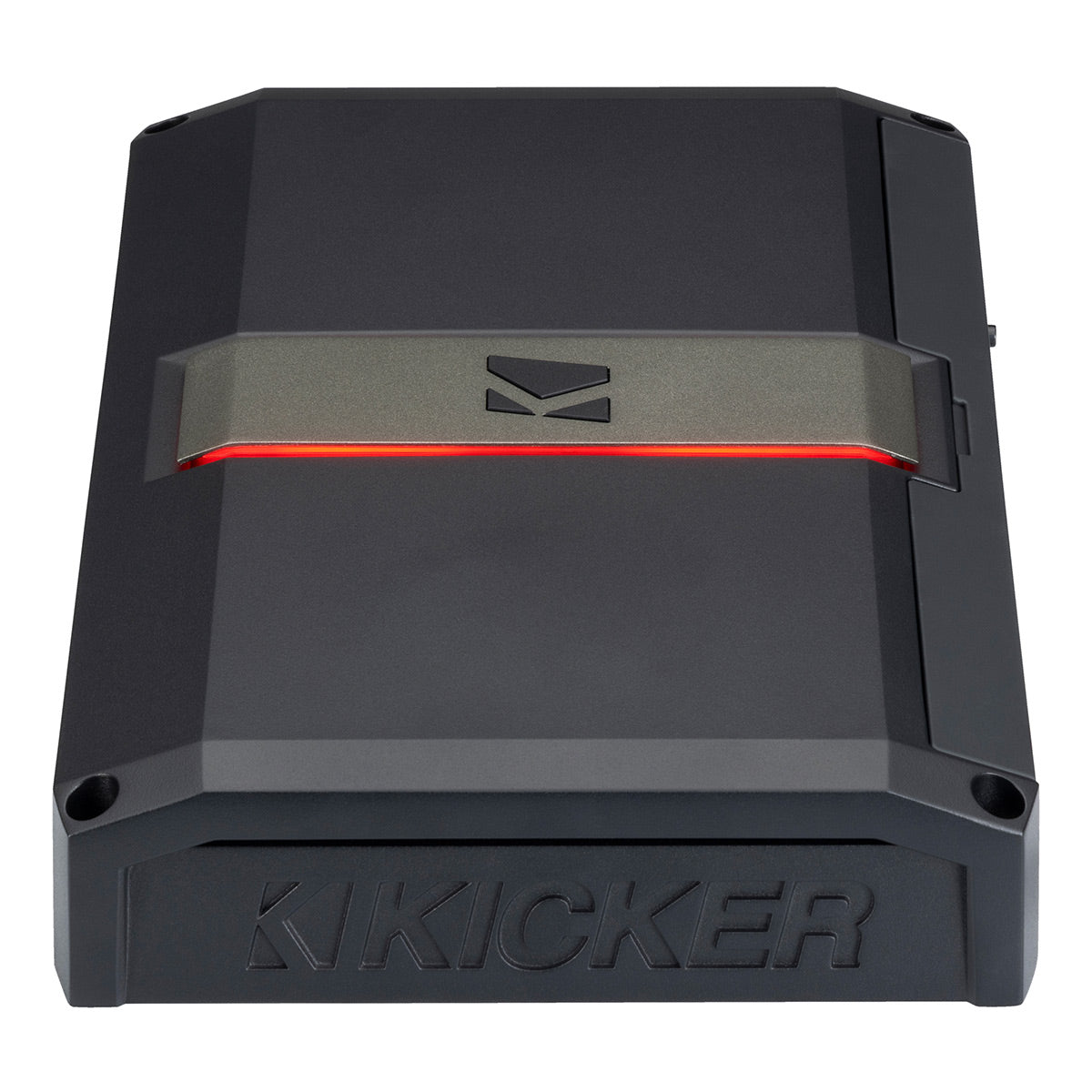

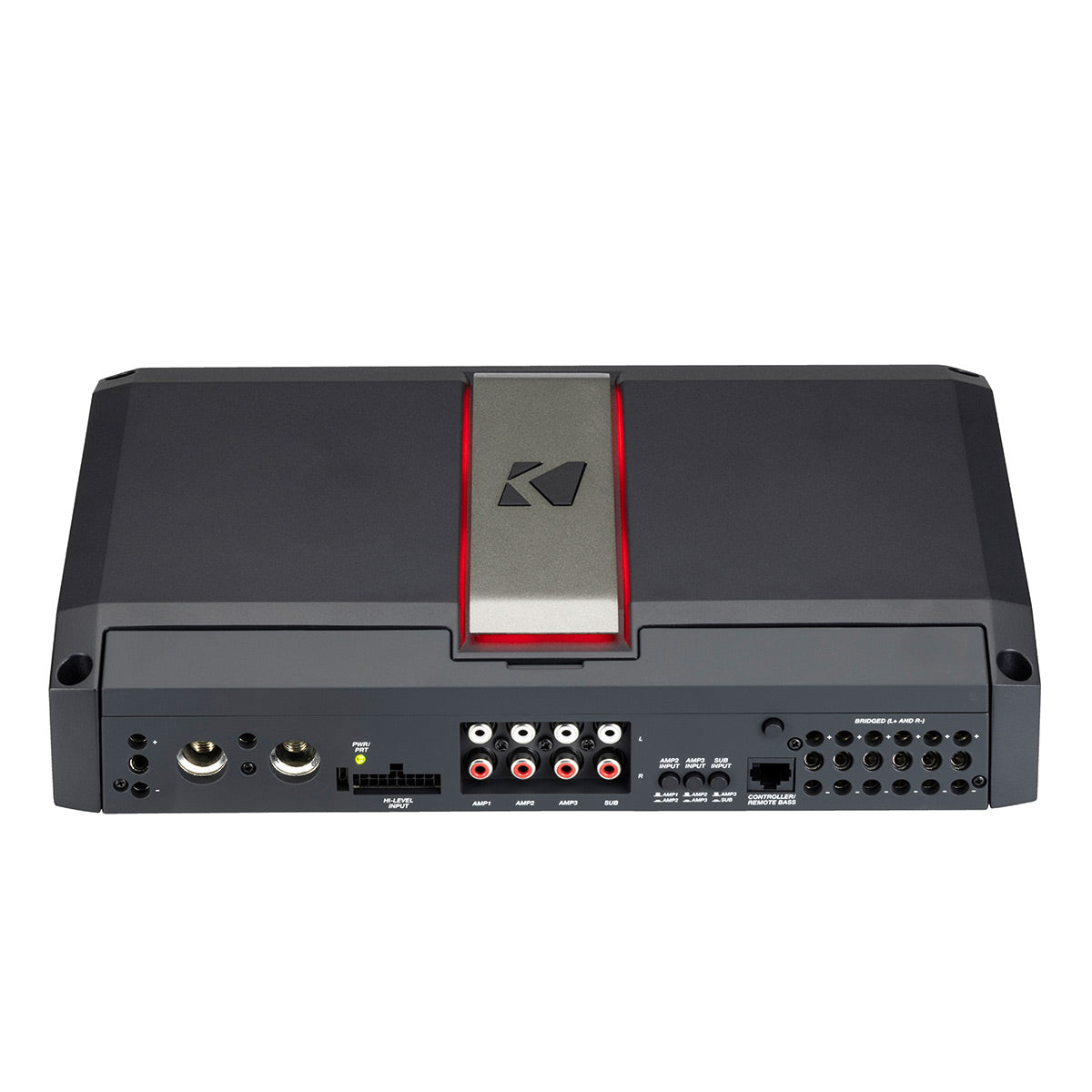

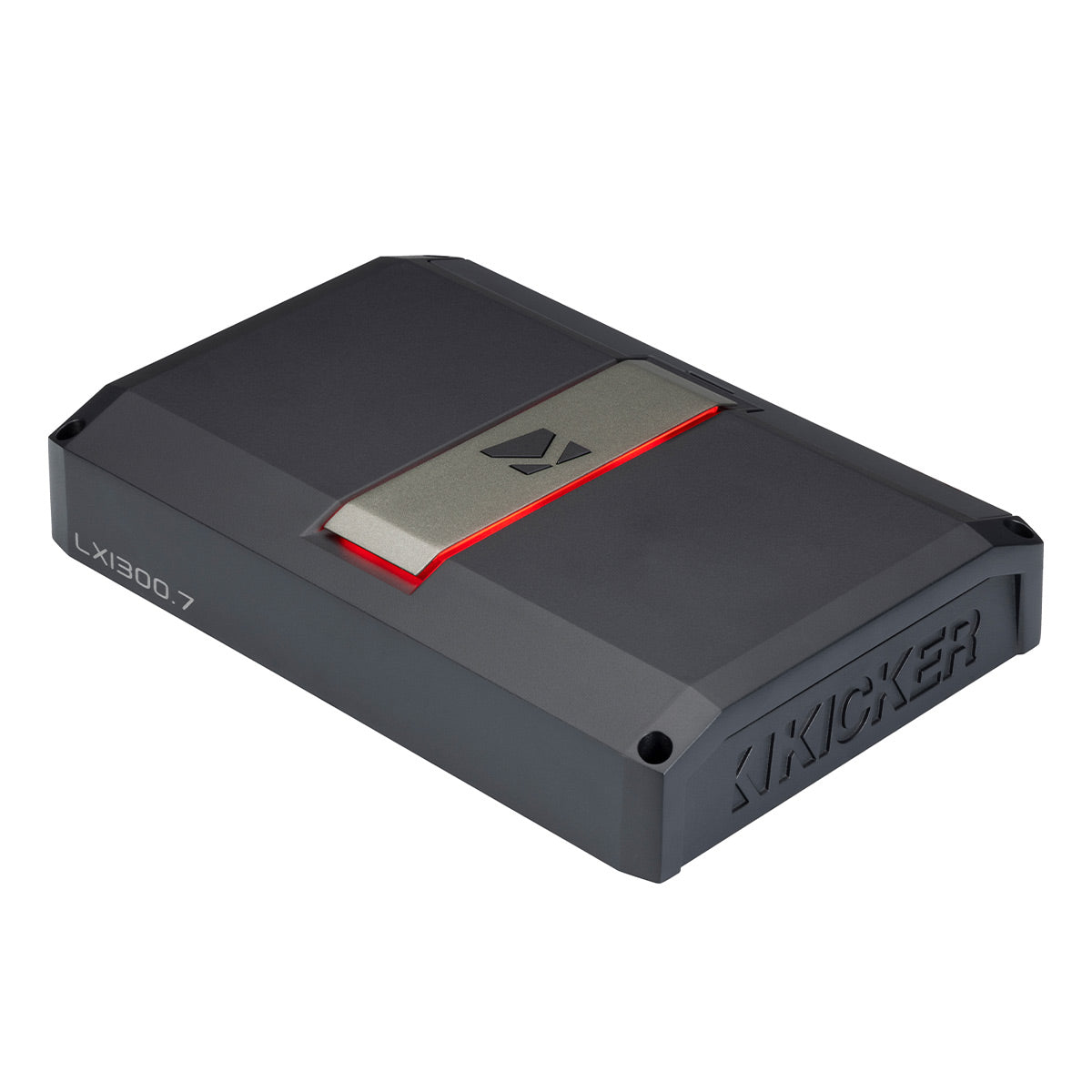

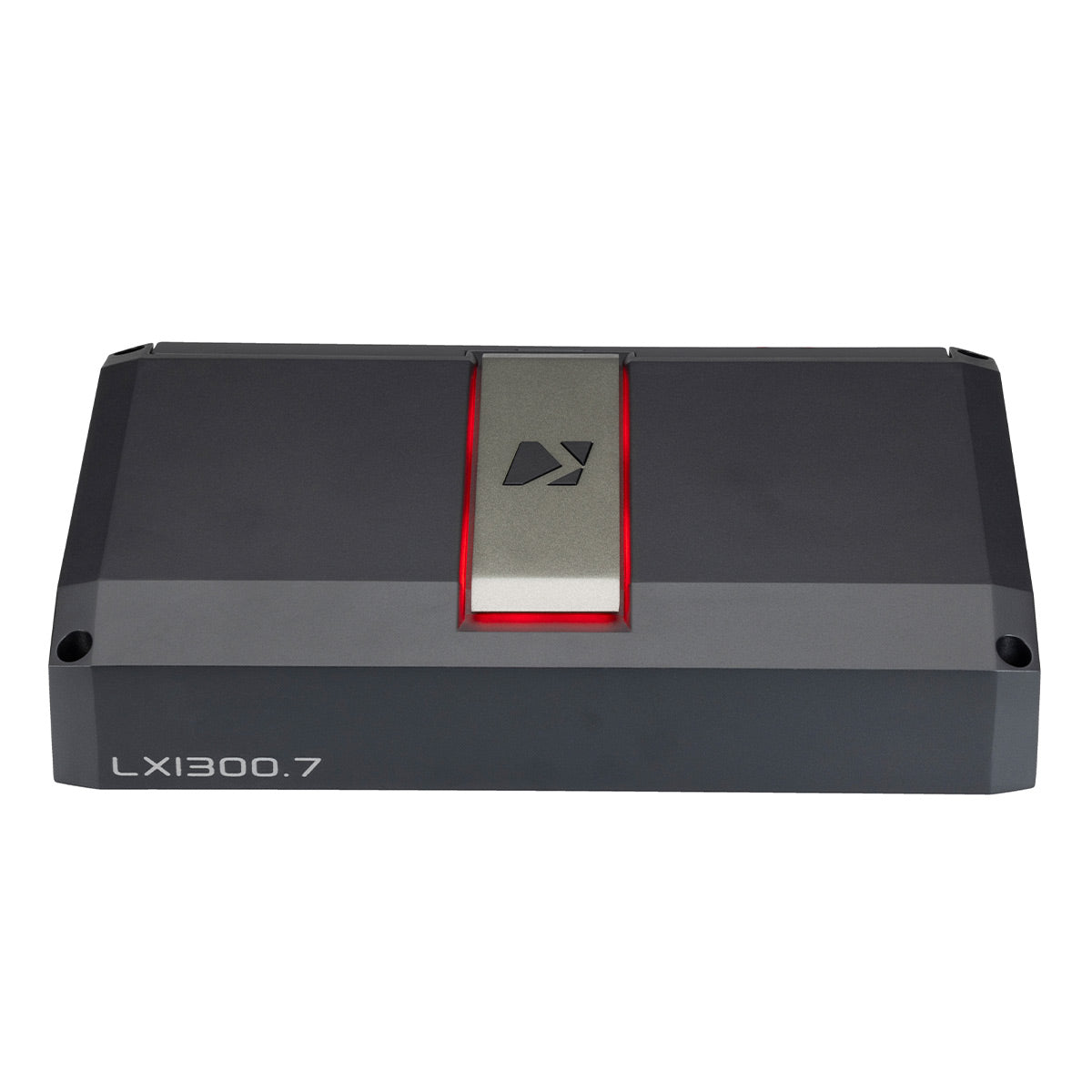

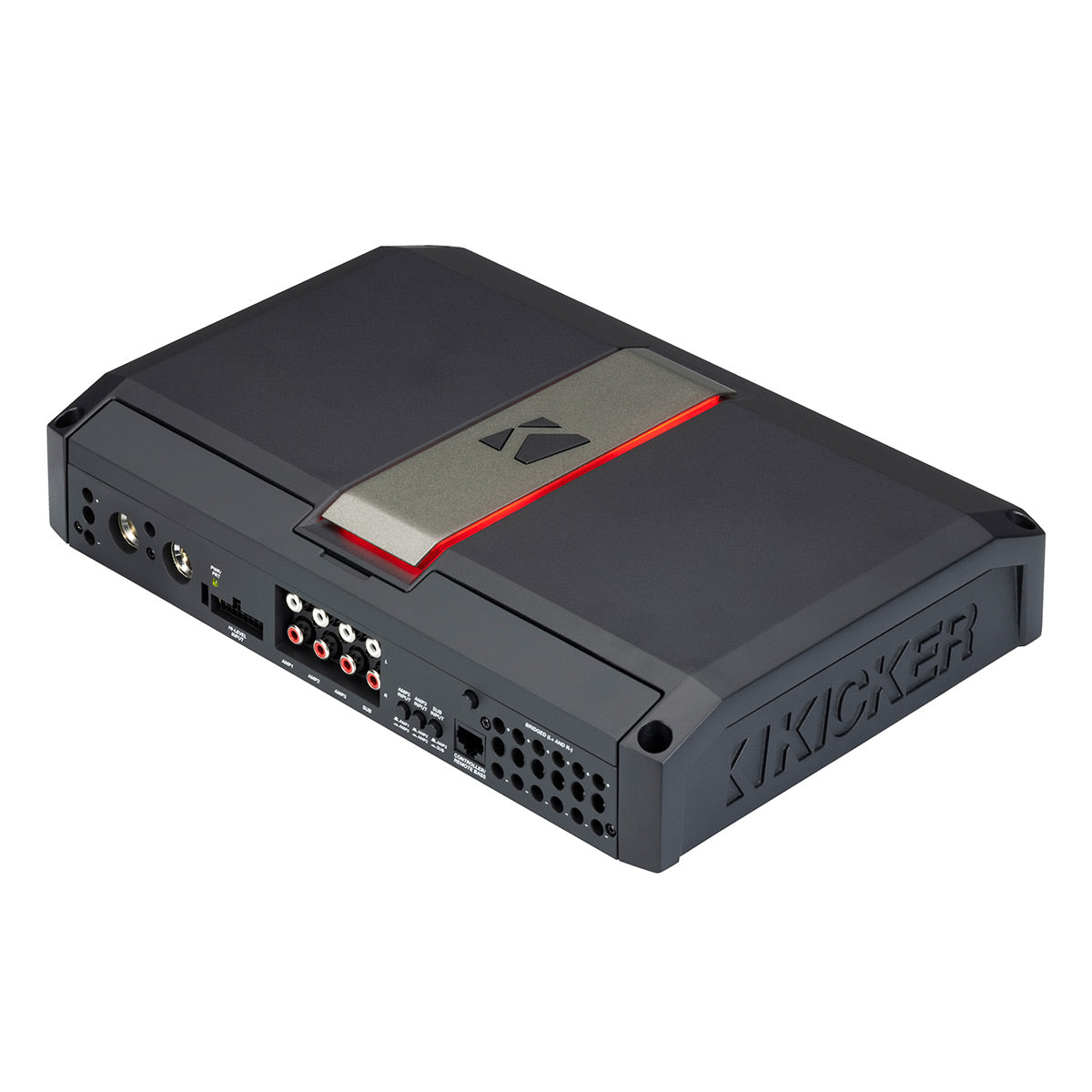

Kicker LX1300.7 7-Channel Full Range Class D Amplifier

Regular price $949.99
Sale price $949.99 Regular price
Save $-949.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Kicker LX1300.7 Overview

Product Information

Model: 51LX13007 | UPC: 713034020240

Specifications

What's In The Box

Product Information

Model: 51LX13007 | UPC: 713034020240

The Kicker LX1300.7 is a premium 7-channel car audio amplifier designed to deliver high-fidelity sound and robust power output. It's engineered for audio enthusiasts seeking precision control and exceptional performance in their vehicle's sound system.

Features

  • Powerful 7-Channel Amplification
  • Precision Audio Control
  • SHOCwave™ 2.0 Digital Bass Restoration
  • Efficient Class-D Design
  • Advanced Connectivity with FIT+™ Technology
  • Customizable Aesthetics and Lighting

High-Powered Multi-Channel Design

  • Amp 1 & Amp 2 (Stereo Channels): Delivers 125 watts per channel at 4 ohms, 150 watts per channel at 2 ohms, and 250 watts per channel when bridged at 4 ohms.
  • Amp 3 (Stereo Pair): Provides 65 watts per channel at both 4 and 2 ohms, and 130 watts when bridged at 4 ohms.
  • Sub Channel: Offers 300 watts at 4 ohms, 550 watts at 2 ohms, and 700 watts at 1 ohm, ensuring deep and powerful bass reproduction.

Sub Channel

Offers 300 watts at 4 ohms, 550 watts at 2 ohms, and 700 watts at 1 ohm, ensuring deep and powerful bass reproduction.

Advanced Control Features

The included LX Control Center (LXCC) allows users to fine-tune their audio setup with precision. It provides real-time diagnostic readouts, including battery voltage, amplifier temperature, and protection status. Users can adjust gain trim, crossover types, slopes, and frequencies for all full-range channels. Additionally, the parametric bass boost offers 0-6dB adjustment with customizable center frequency and Q factor for the sub channel.

Dynamic Bass Management

The LX Remote Control (LXRC) offers convenient dashboard access to bass level adjustments. It features SHOCwave2.0™, KICKER’s second-generation digital bass restoration technology that recovers low-bass frequencies lost in compressed audio formats. The remote also displays battery voltage, controls RGB LED brightness, and includes an output clipping indicator to prevent distortion.

Efficient and Reliable Performance

Utilizing a Class-D design, the LX1300.7 ensures lower current draw, extended playtimes, and reduced operating temperatures. Equipped with FIT+™ technology, it accepts low- and high-level signals up to 40V, with differential inputs designed to eliminate unwanted noise for crystal-clear sound. The amplifier also offers selectable turn-on modes and comprehensive protection features for thermal, circuit, and voltage stability, ensuring reliable performance.

Customizable Aesthetics

Users can personalize the amplifier's appearance with a reversible center panel and a choice of 11 RGB LED accent colors, allowing it to seamlessly integrate with any vehicle interior.

Specifications

  • Power (@14.4V, <1%THD+N) (Amp 1 & 2) 4Ω Stereo: 125W x 4
  • Power (@14.4V, <1%THD+N) (Amp 1 & 2) 2Ω Stereo: 150W x 4
  • Power (@14.4V, <1%THD+N) (Amp 1 & 2) 4Ω Bridged: 250W x 2
  • Power (@14.4V, <1%THD+N) (Amp 3) 4Ω Stereo: 65W x 2
  • Power (@14.4V, <1%THD+N) (Amp 3) 2Ω Stereo: 65W x 2
  • Power (@14.4V, <1%THD+N) (Amp 3) 4Ω Bridged: 130W x 1
  • Power (@14.4V, <1%THD+N) 4Ω Mono: 300W x 1
  • Power (@14.4V, <1%THD+N) 2Ω Mono: 550W x 1
  • Power (@14.4V, <1%THD+N) 1Ω Mono: 700W x 1
  • Dynamic Power (@14.4V, <10%THD+N) 4Ω Bridged + 1Ω Mono: 1500W
  • Lowest Rated Impedance - (Amp 1, 2 & 3): 2Ω Stereo / 4Ω Bridged
  • Lowest Rated Impedance - (Sub): 1Ω
  • Signal to Noise Ratio (CEA) 1W: >-75dB
  • Signal to Noise Ratio Rated Power: >-95dB
  • Channel Seperation (Rated Power) FR 1000Hz: >55dB
  • CMRR (Amp 1 & 2) 1000Hz: -40dB
  • CMRR (Sub) 50Hz: -40dB
  • Input Impedance: >20kΩ
  • Frequency Response (Amp 1, 2 & 3): 20Hz - 20kHz
  • Frequency Response (Sub): 10Hz - 160Hz
  • Variable HiPass Filter (Amp 1, 2 & 3) 12/18/24BW 12/24LR: 20Hz - 5kHz
  • Variable LoPass Filter (Amp 1, 2 & 3) 12/18/24BW 12/24LR: 40Hz - 5kHz
  • Variable BandPass Filter (Amp 1, 2 & 3) 12/18/24BW 12/24LR: 20Hz - 5kHz
  • Variable LoPass Filter (Sub) 12/18/24BW 12/24LR: 40Hz - 160Hz
  • Variable Subsonic Filter (Sub) 12/18/24BW 12/24LR: 10Hz - 80Hz
  • KickEQ+™ Variable Bass Boost (Sub): 0dB - 6dB
  • KickEQ+™ Variable Center Frequency (Sub): 20Hz - 80Hz
  • KickEQ+™ Variable Q (Sub): 1 - 5
  • Standby Current (Remote Off): <2mA
  • Idle Current (Remote On): <3A
  • Current Draw (Rated Power): <150A
  • Remote Gain Attenuation (LXRC Included): -26dB - 0dB
  • Low Level Input Sensitivity: 125mV - 5V
  • High Level Input Sensitivity: 1V - 40V
  • Under Voltage Protection: 6.5V (warning at 10.5V)
  • Over Voltage Protection: 16.5V (warning at 16V)
  • Active Thermal Management: >75°C

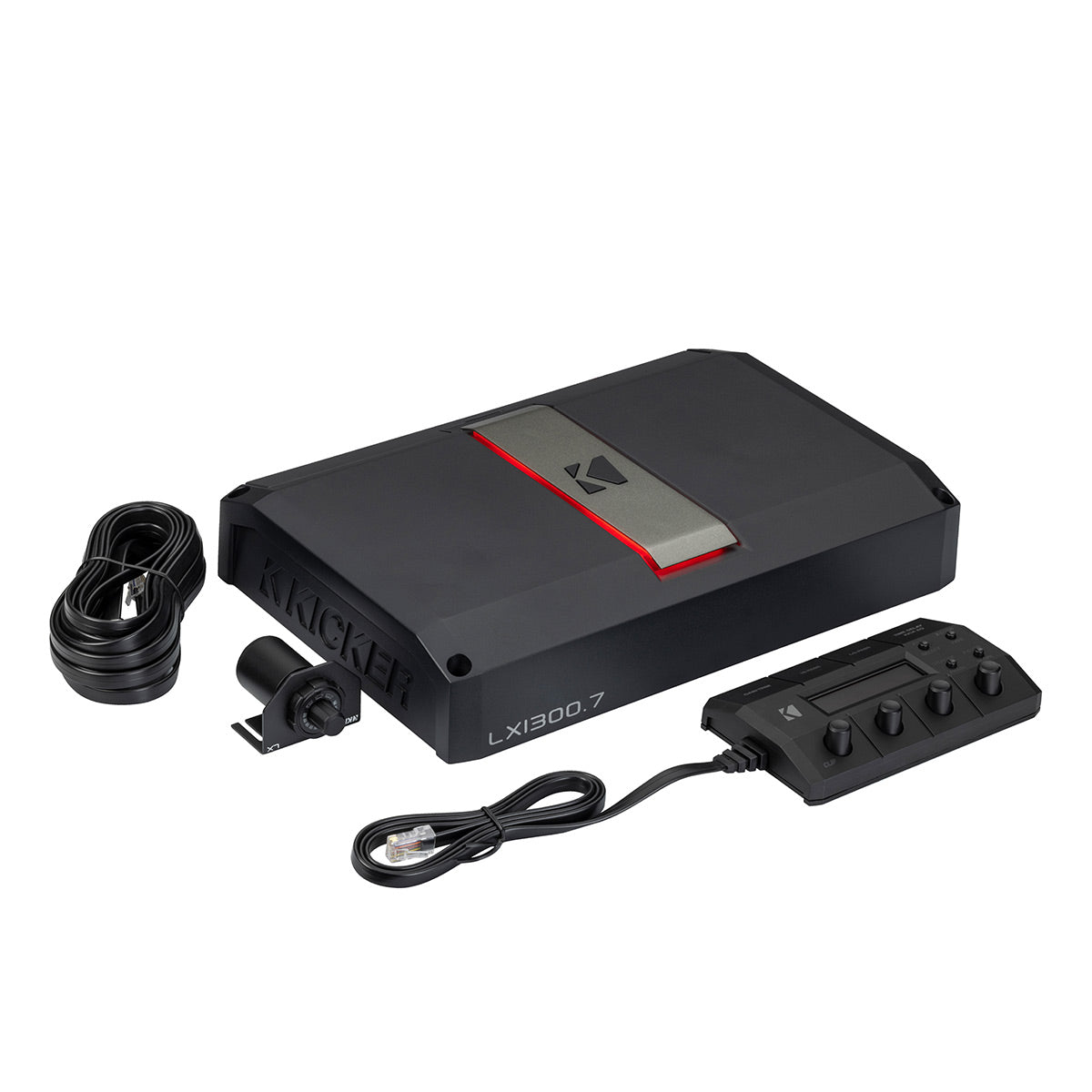

What's In The Box

  • LX1300.7 7-Channel Full Range Class D Amplifier
  • High Level Input Harness
  • LX Remote Control with Cable
  • Mounting Hardware
  • 3mm Hex Key
  • LX Control Center
  • Manual
