Kicker

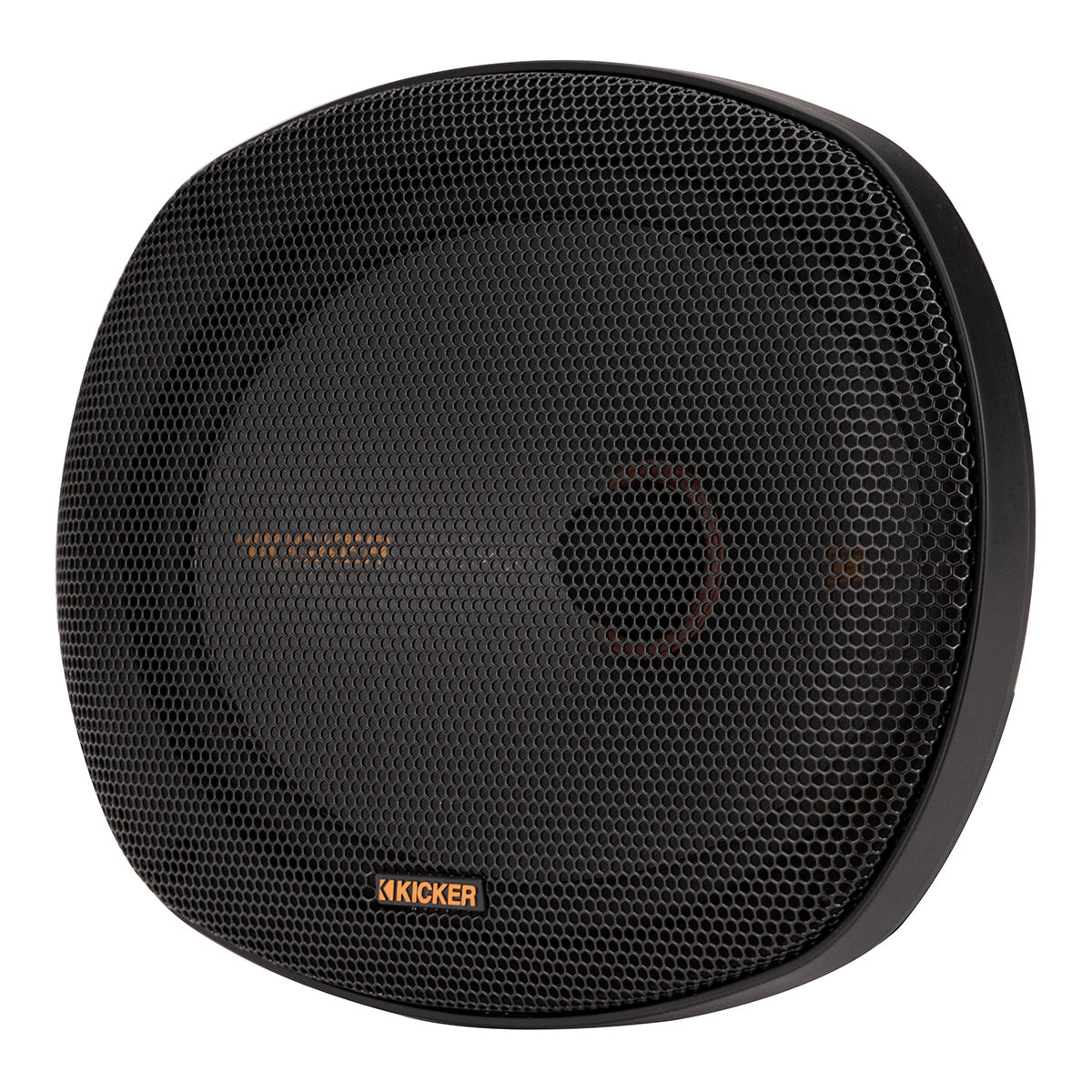

Kicker 51KSS6904 6x9" KS Series Component Speaker System

Regular price $249.99
Sale price $249.99 Regular price
Save $-249.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Kicker KSS690 Overview

Product Information

Model: 51KSS6904 | UPC: 713034045366

Specifications

What's In The Box

Product Information

Model: 51KSS6904 | UPC: 713034045366

Center Stage

KICKER KS-Series Speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. Internally dampened polypropylene cones and durable rubber surrounds assist the woofers in creating precise midrange and bass, while high-quality silk-dome tweeters deliver natural, detailed highs. Experience your music as a component system with separate tweeters, or as a high-end coaxial system. The woofers’ removable bullet-style phase plug is replaced with a special adapter, allowing the 25 millimeter, silk-dome tweeters to rotate and tilt. You get more system design options and superior off-axis performance.

Features

  • High power handling
  • Silk-dome tweeters for a smooth sound
  • Polypropylene woofer and tough rubber surrounds
  • Thin-mount design easily fits behind factory grilles
  • Four tweeter mounting options
  • Articulating tweeter pod and grilles included
  • Smaller crossover makes mounting even easier
  • Work best with 15 to 125 watts RMS

Specifications

  • Woofer (in, mm): 6x9, 160x230
  • Tweeter (in,mm): 1, 25
  • Dome Material: Silk
  • Rated Impedance (Ω): 4
  • Recommended Amplifier Power (Watts RMS): 15-150
  • Sensitivity (1W, 1m): 92
  • Frequency Response (Hz): 35-21k
  • Woofer Mounting Hole Diameter (in, mm): 5-5⁄8x8-7⁄16, 143x215
  • Woofer Top Mount Depth (in, mm): 2-15/16, 75
  • Woofer Bottom Mount Depth (in, mm): 3-3/16, 81
  • Flush Mount Tweeter Hole Diameter (in,mm): 1-¾, 45
  • Flush Mount Tweeter Depth (in,mm): 11⁄16 , 17
  • High Pass (dB), at Frequency (Hz): 12, 4,000
  • Low Pass (dB), at Frequency (Hz): none
  • High-Frequency Output Attenuation (dB): 0, 4.5, 9

What's In The Box

  • 51KSS6904 6x9" KS Series Component Speaker System
    • (2) Woofers
    • (2) Crossovers
    • (2) 1" Tweeters
  • (2) Woofer adapter brackets
  • (2) Bottom mount spacers
  • (2) Woofer grilles
  • (2) Grille mounting rings
  • (2) Upper tweeter mounting posts
  • (2) Lower tweeter mounting posts
  • (2) Tweeter housings
  • (2) Tweeter housing washers
  • (2) Flush mount rings
  • (2) Front angle rings
  • (2) Back angle rings
  • (2) Short mounting nuts
  • (2) Long mounting nuts
  • (2) Surface mount pods
  • (2) Pod nuts
  • (2) 11" Zip ties
  • (2) Adhesive backed foam pads
  • (4) Red plastic wire caps
  • (2) M4x7mm Machine screws
  • (12) 1-1/8" Screws
  • Tweeter tool
  • Grille putty
  • Template
  • Manual
