Model: 46CSS694 UPC: 713034088431

Product Information

46CSS694 CS-Series 6x9" 2-Way Component Speakers

The CS Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure featuring EVC™ (Extended Voice Coil) technology not found in stock speakers. They use polypropylene cones with tough, ribbed, UV-treated surrounds for precise linear excursion and reliability.

CS Series CSS69

CS-Series 6x9-inch Component Speakers are built for awesome sound that plays as long as the ride takes you.

CS-Series components include titanium tweeters and two-way crossovers with a smooth 12dB slope and three-position tweeter adjustment switch (0dB/+3dB/+6dB), included in each external crossover. The optimized footprint means great sound with hassle-free installation, no matter where you mount it!

These CS speakers work best with 150 watts of recommended power.

  • Fits nearly every car made
  • 12dB crossovers with a smaller footprint for easier installation
  • Three-position tweeter switch for dialing in your highs
  • EVC™ (Extended Voice Coil) technology help deliver remarkable bass response
  • Titanium tweeter construction and neodymium magnets to reveal subtle details
  • UV-treated poly-foam surround assists with precise linear excursion
  • Phase plugs in the woofer cones eliminate any distortion
  • Steel mesh grilles protect your drivers
  • Three tweeter mounting options including flush, angled and surface pods

Specifications

Specifications:

  • Woofer Size (in, mm): 6x9, 160 x 230
  • Tweeter Size (in, mm): 3/4, 20
  • Dome Material: Titanium
  • Peak Power Handling: 450 watts
  • Continuous Power Handling: 150 watts
  • Effective Frequency Range: 30Hz - 21kHz
  • Woofer Mounting Hole Diameter (in, mm): 5-5/8 x 8-7/16, 143 x 215
  • Woofer Bottom Mount Depth (in, mm): 3-3/16, 81
  • Flush Mounting Tweeter Hole Diameter (in, mm): 1-9/16, 40
  • Flush Mount Tweeter Depth (in, mm): 9/16, 14.5
  • High-Pass, dB at Frequency: 12, 4000Hz
  • Low-Pass, dB at Frequency: 12, 4000Hz
  • High Frequency Output Attenuation: 0, 3, & 6dB
  • Bolt-Thru Grilles: Yes

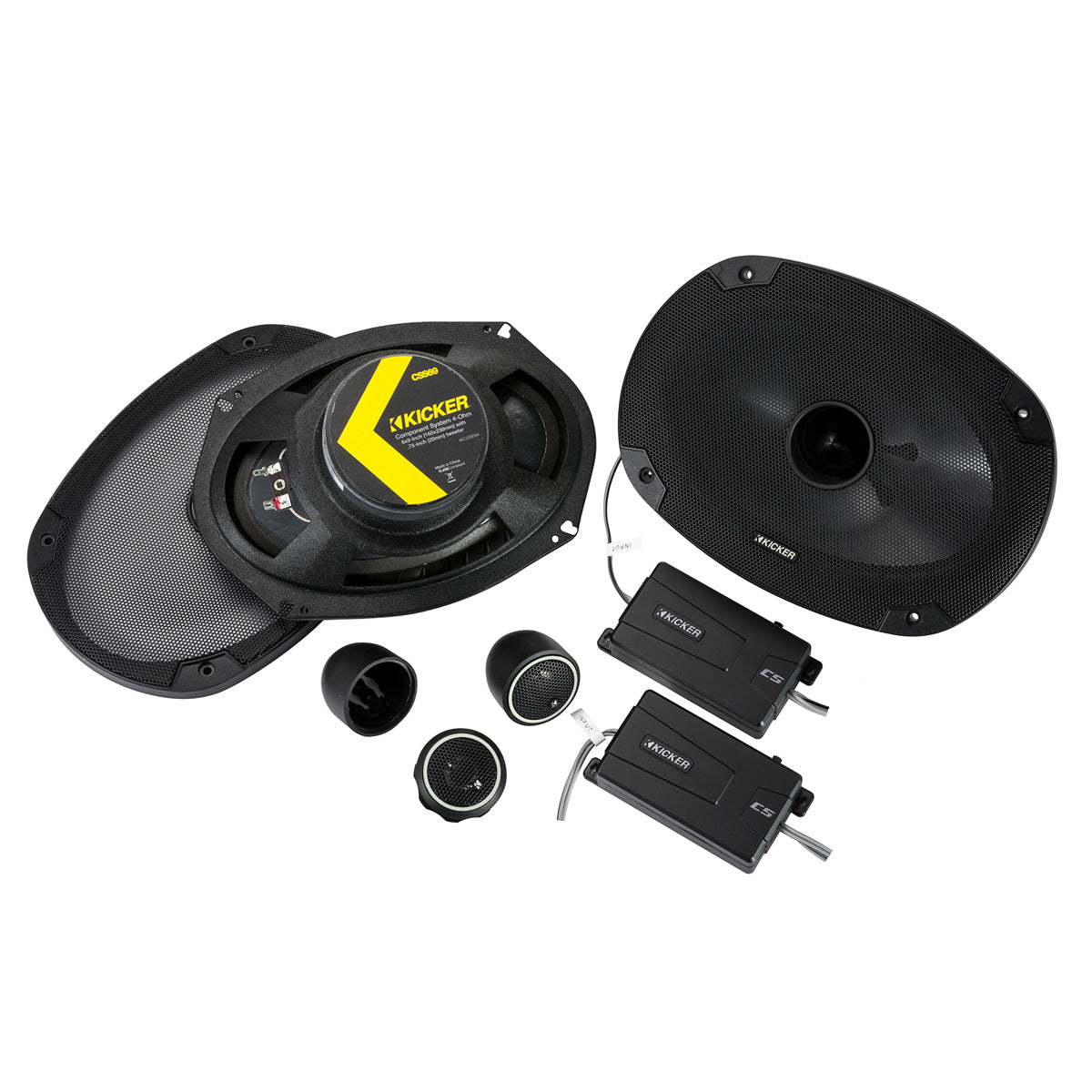

What's in the Box

What's in the Box:

  • One pair of 6x9" woofers
  • One pair of 3/4" tweeters w/ attached grilles
  • One pair of crossovers
  • 2 woofer grilles
  • 2 Flush-mount tweeter cups
  • 2 Angled-mount tweeter cups
  • 2 surface-mount tweeter cups
  • Owner's manual

Reviews

We'd love to hear your thoughts! Please leave a review.

Customer Reviews for Kicker 46CSS694 CS-Series 6x9" 2-Way Component Speakers

Powered by TurnTo
5.0 / 5.0
2 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
2
0
0
0
0
Rated 5 out of 5
Great Speakers
These fit my 2017 ram nicely. The door speakers needed spacers to clear window reg. guide though. The tweeters are super clear and are mounted above the dash grills. I was going to mount them below the grills out of site, but I'm glad I mounted them above.
June 8, 2021
Purchased
 over 2 years ago
Rated 5 out of 5
46CSS694 CS-Series 6x9 2-Way Component Speakers"
Sound great running on MB Quart x series 800. Installed front doors on 2017 Ram with the tweeters surface mounted on dash over dash grills. Stock speakers are 8 ohm and these are 4 ohm. Best to amplify. This can be done if you re-program the stock head unit with the PAC integration for Ram. Need the AP4-CH r.2.
May 28, 2021
