Home Theater Systems Buying Guide
Product Information
Specifications
Specifications:
- Woofer Size (in, mm): 6x8, 160 x 200
- Tweeter Size (in, mm): 3/4, 20
- Dome Material: Titanium
- Peak Power Handling: 225 watts
- Continuous Power Handling: 75 watts
- Effective Frequency Range: 40Hz - 21kHz
- Woofer Mounting Hole Diameter (in, mm): 5 x 7-3/16, 126 x 182
- Woofer Bottom Mount Depth (in, mm): 2-3/16, 56
- Flush Mounting Tweeter Hole Diameter (in, mm): 1-9/16, 40
- Flush Mount Tweeter Depth (in, mm): 9/16, 14.5
- High-Pass, dB at Frequency: 12, 4000Hz
- Low-Pass, dB at Frequency: 12, 4000Hz
- High Frequency Output Attenuation: 0, 3, & 6dB
- Bolt-Thru Grilles: No
What's in the Box
What's in the Box:

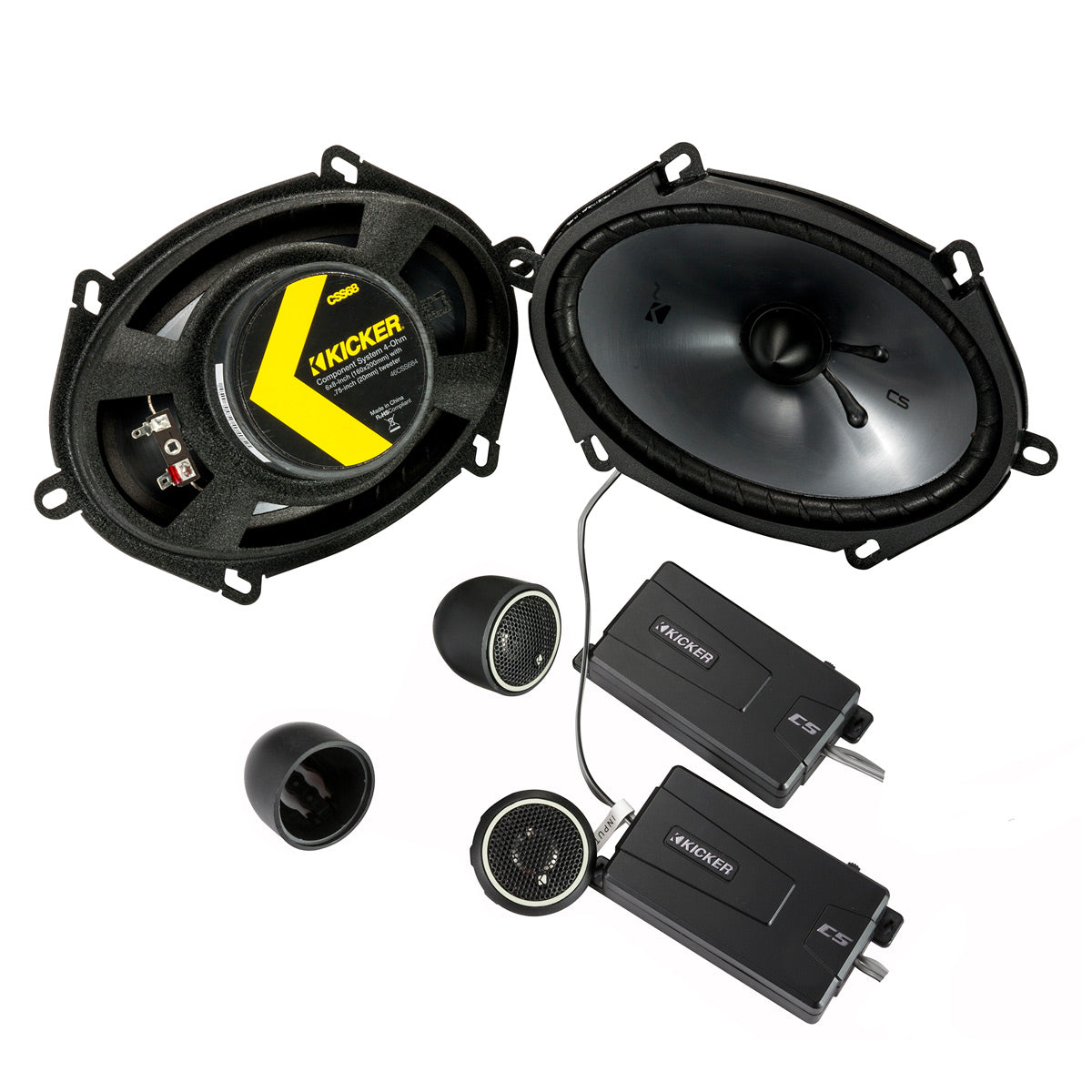

- One pair of 6x8" woofers

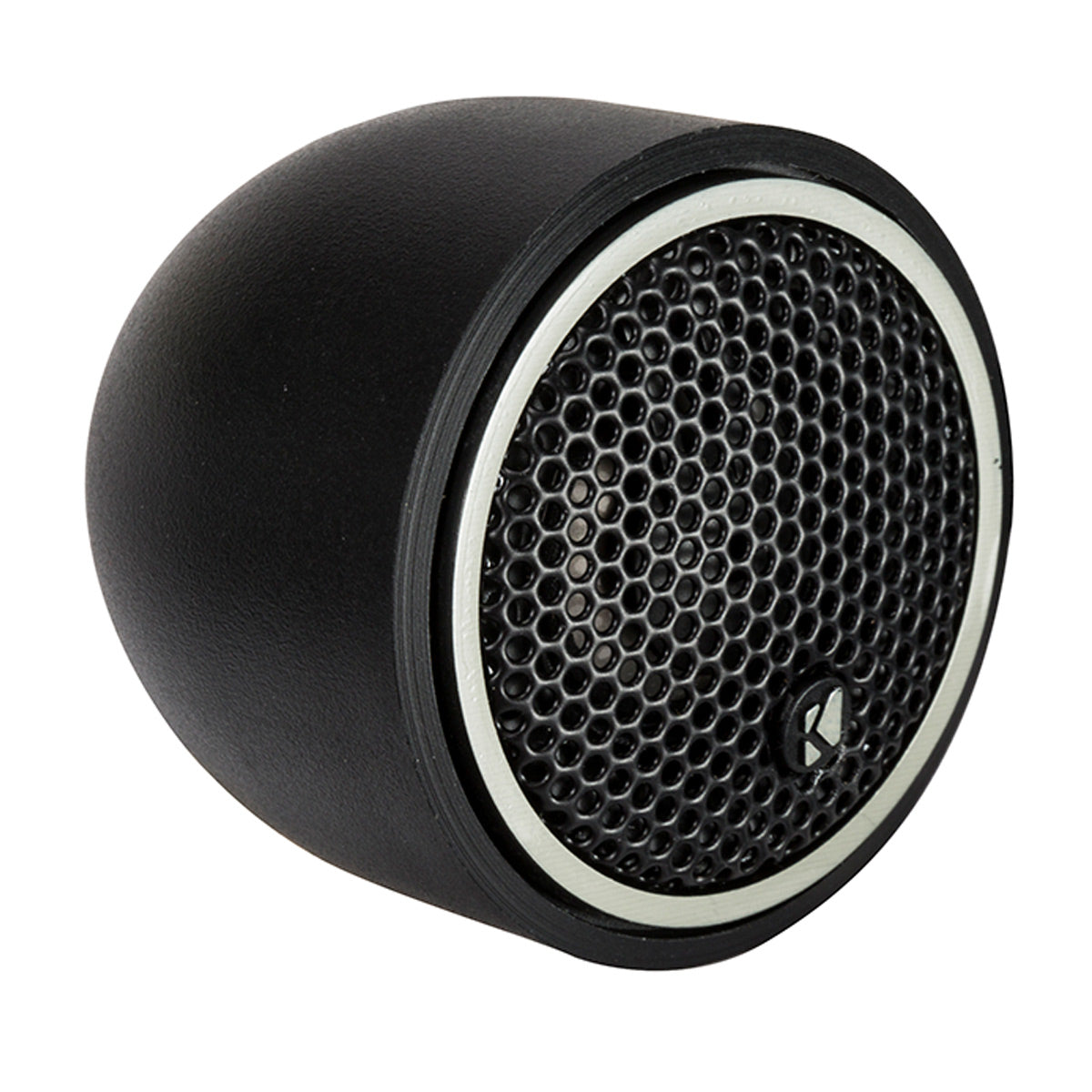

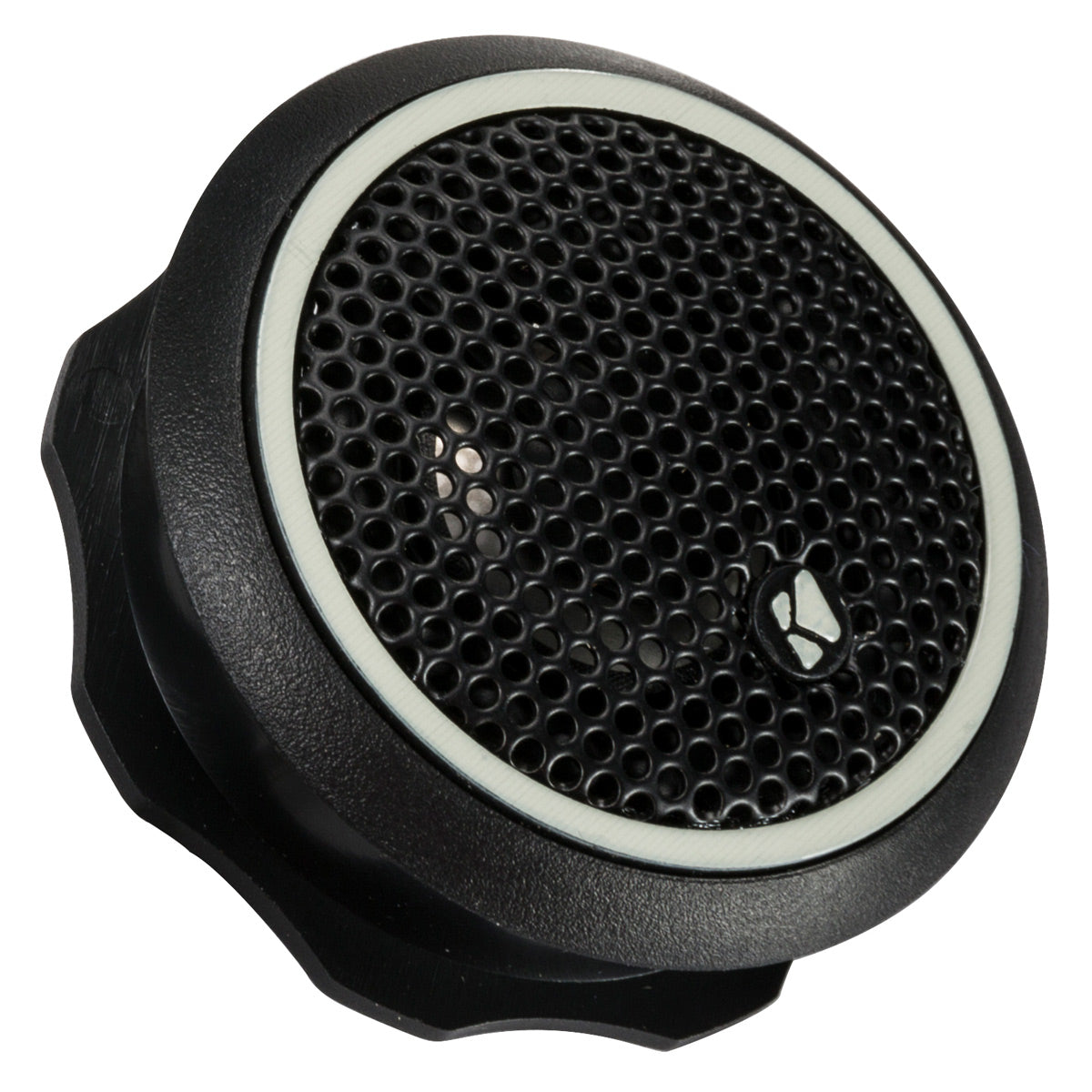

- One pair of 3/4" tweeters w/ attached grilles

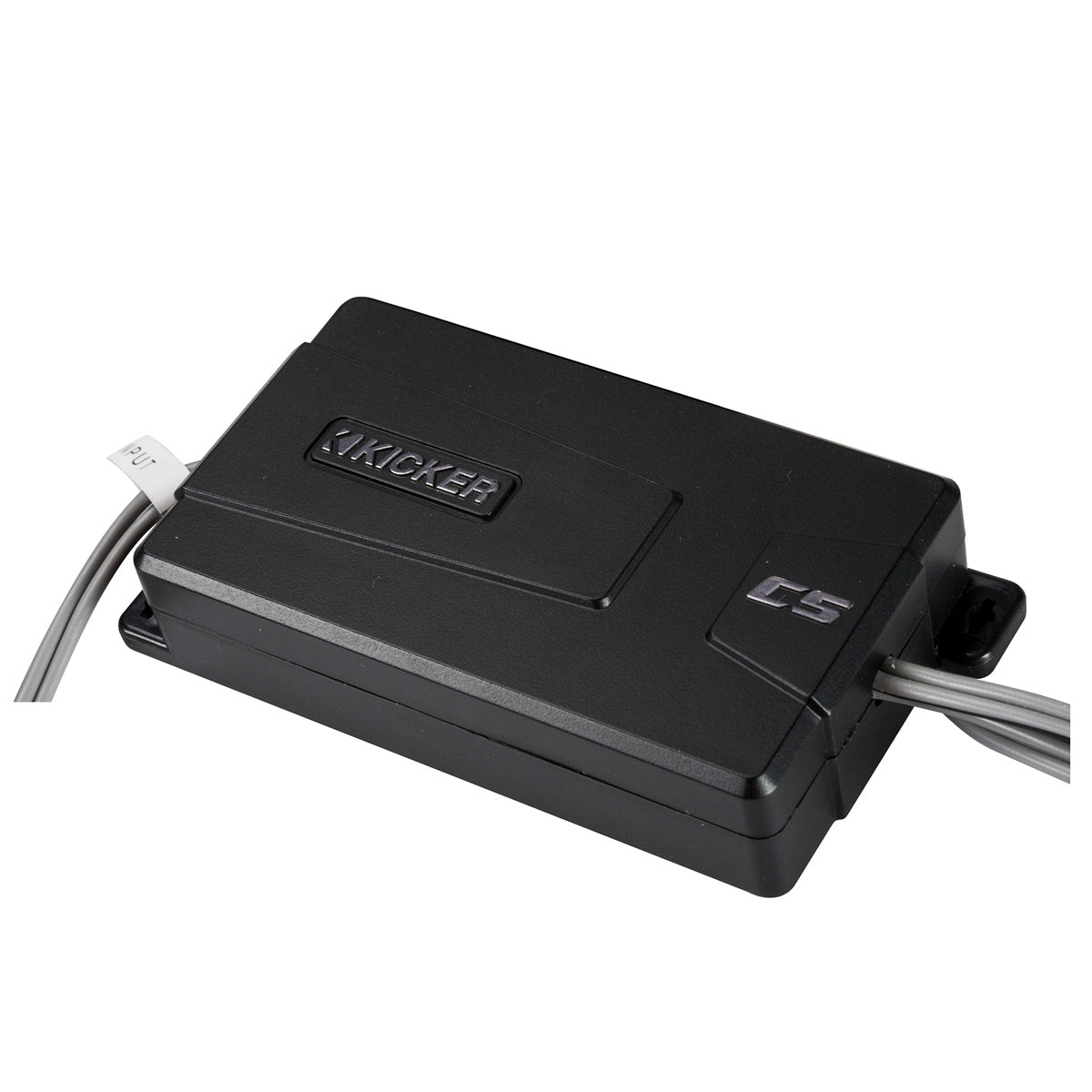

- One pair of crossovers
- 2 Flush-mount tweeter cups
- 2 Angled-mount tweeter cups
- 2 surface-mount tweeter cups
- Owner's manual
