Specifications:
CEA-2006 Standard
- 60 W x 4: RMS Watts per channel @ 4 ohms, 1% THD+N
- 400 W x 1: RMS Watts per channel @ 4 ohms, 1% THD+N
- 78dB: Signal to Noise Ratio (Reference: 1 Watt into 4 ohms)
Rated Power Output
- 14.4 V
- 60 W x 4 / 400W x 1: (4?) (20 Hz - 20 kHz, 1.0% THD) (20 Hz - 200 Hz, 1.0% THD)
- 75 W x 4 / 600W x 1: (2?) (1 kHz, 1.0% THD) (100 Hz, 1.0% THD)
General
- Frequency Response: 20-20kHz(±1dB)
- Input Sensitivity: 0.2 V - 5.0 V (MIN-MAX)
- Input Impedance: 10 k?
- Signal to Noise Ratio: 100 dB
- Low Pass Filter Frequency: (-24dB/oct)
- 50 Hz - 200 Hz (variable): Low-Pass Filter Frequency
- High Pass Filter Frequency: (-12 dB/oct.)
- 50 Hz - 200 Hz (variable): High-Pass Frequency
- Dimensions (W x H x D): 260 x 51 x 169 mm (10-1/4 x 2 x 6-5/8)
What's in the Box
What's in the Box:

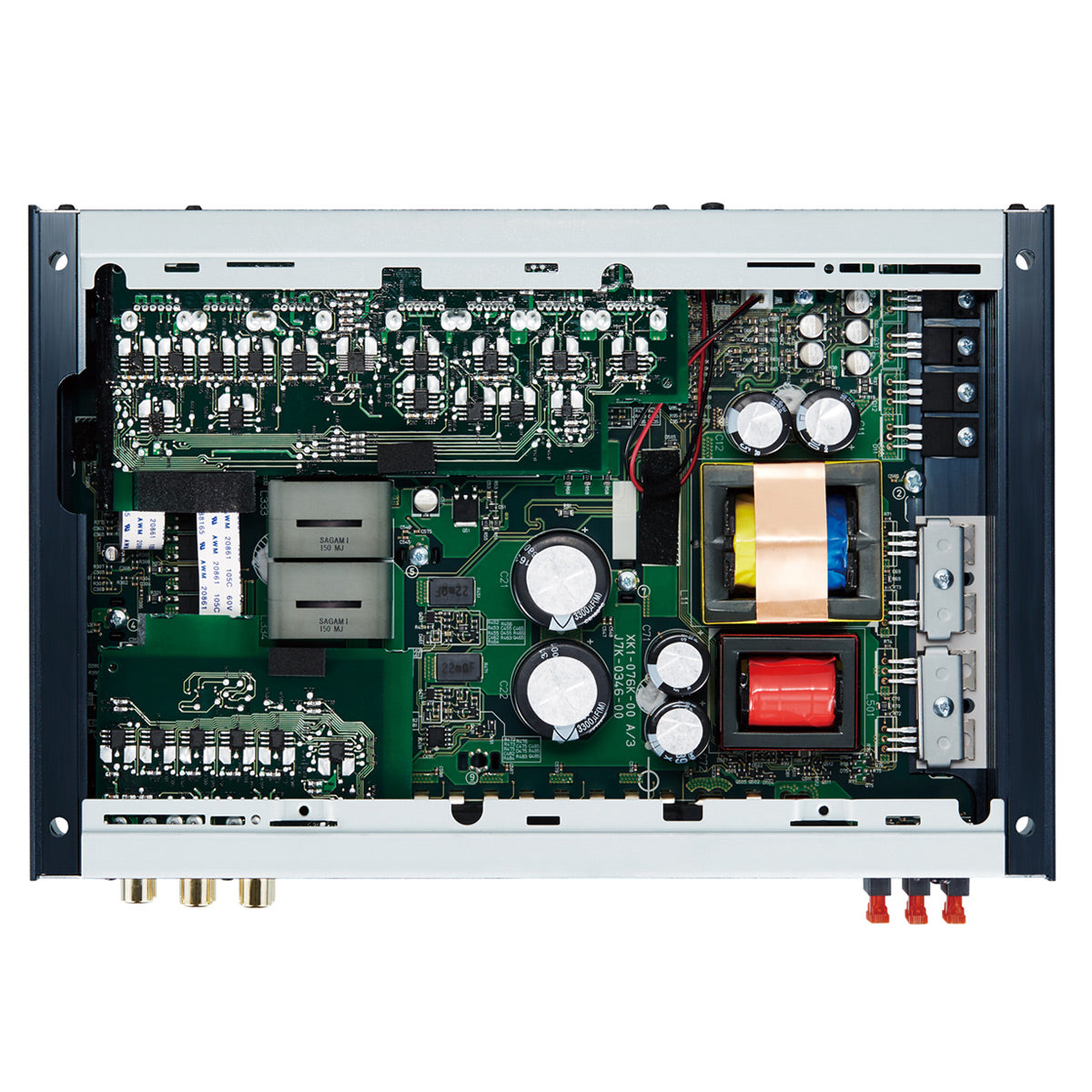

- One XR901-5 amplifier
- Mounting hardware
- Owner's manual
