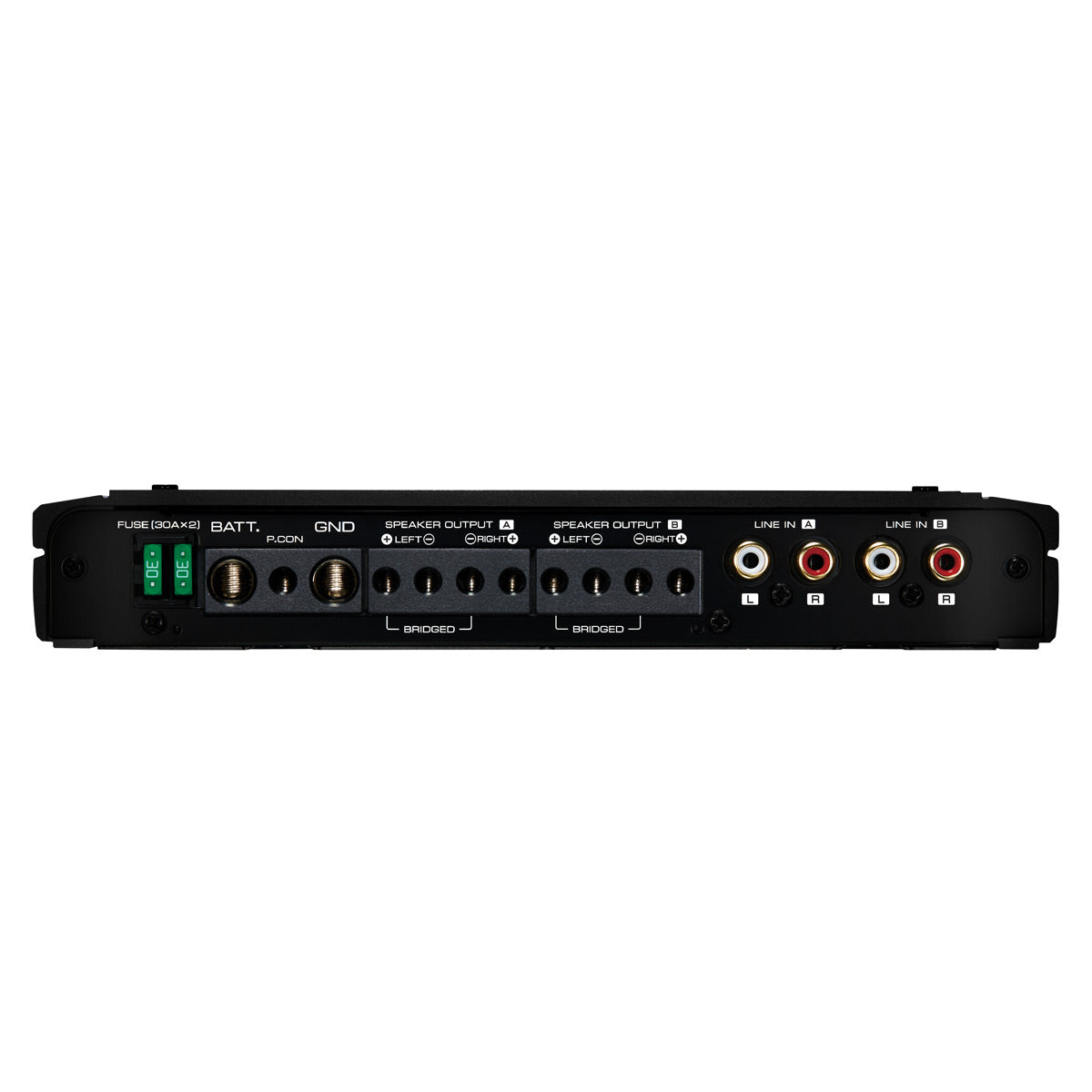

Kenwood XR401-4 eXcelon 400-Watt 4-Channel Amplifier

Model: XR401-4 UPC: 019048223296 Item: 171300


Regular Price: $450.00

Save: $101.00 (22%)

In Stock
Shipping Information
Show Store Details
754 Route 309 (Bethlehem Pike) Montgomeryville, PA 18936
  • Tues - Fri: 9AM - 5PM
  • Sat: 10AM - 5PM
(215) 368-8343
Show Store Details
38 Greenfield Avenue, Ardmore, PA 19003
  • Tues - Fri: 9AM - 5PM
  • Sat: 10AM - 5PM
(610) 649-7002
Choose a Store Location

More Product Details

Questions? We're here to help.

Product Information

XR401-4 eXcelon 400-Watt 4-Channel Amplifier

Rich and Immersive High-Resolution Audio

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

High Performance Parts

Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving high-resolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.

Deep Bass Sound

By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.

Enhanced Signal to Noise Ratio

The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.

Specialized Noise Circuit

The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.

Wired Remote Control

The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.


  • Operating Voltage: 14.4V (11 - 16 V allowable)
  • Current Consumption: 37 A
  • Dimensions (W x H x D): 220 x 35 x 169 mm (8-11/16 x 1-3/8 x 6-5/8)
  • Weight: 1.5 kg (3.3 lbs)
  • Warranty: 2-Year



CEA-2006 Standard

  • 75 W x 4: RMS Watts per channel @ 4 ohms, 1% THD+N
  • 76 dBA: Signal to Noise Ratio (Reference: 1 Watt into 4 ohms)

Max Power Output: -

Rated Power Output: 14.4 V

  • 75 W x 4: (4?) (20 Hz - 20 kHz, 1.0% THD)
  • 100 W x 4: (2?) (1 kHz, 1.0% THD)
  • 200 W x 2: Bridged (4?) (1 kHz, 1.0% THD)


  • Frequency Response: 20-20kHz(±1dB)
  • Input Sensitivity: 0.2 V - 5.0 V (MIN-MAX)
  • Input Impedance: 10 k?
  • Signal to Noise Ratio: 100 dB
  • Low Pass Filter Frequency: (-12 dB/oct.)
  • 50 Hz - 200 Hz (variable): Low-Range
  • High Pass Filter Frequency: (-12 dB/oct.)
  • 50 Hz - 200 Hz (variable): Low-Range
  • 2.5 kHz - 10 kHz (variable): High-Range
  • Dimensions (W x H x D): 220 x 35 x 169 mm (8-11/16 x 1-3/8 x 6-5/8)

What's in the Box

What's in the Box:

  • One XR401-4 amplifier
  • Mounting hardware
  • Owner's manual
