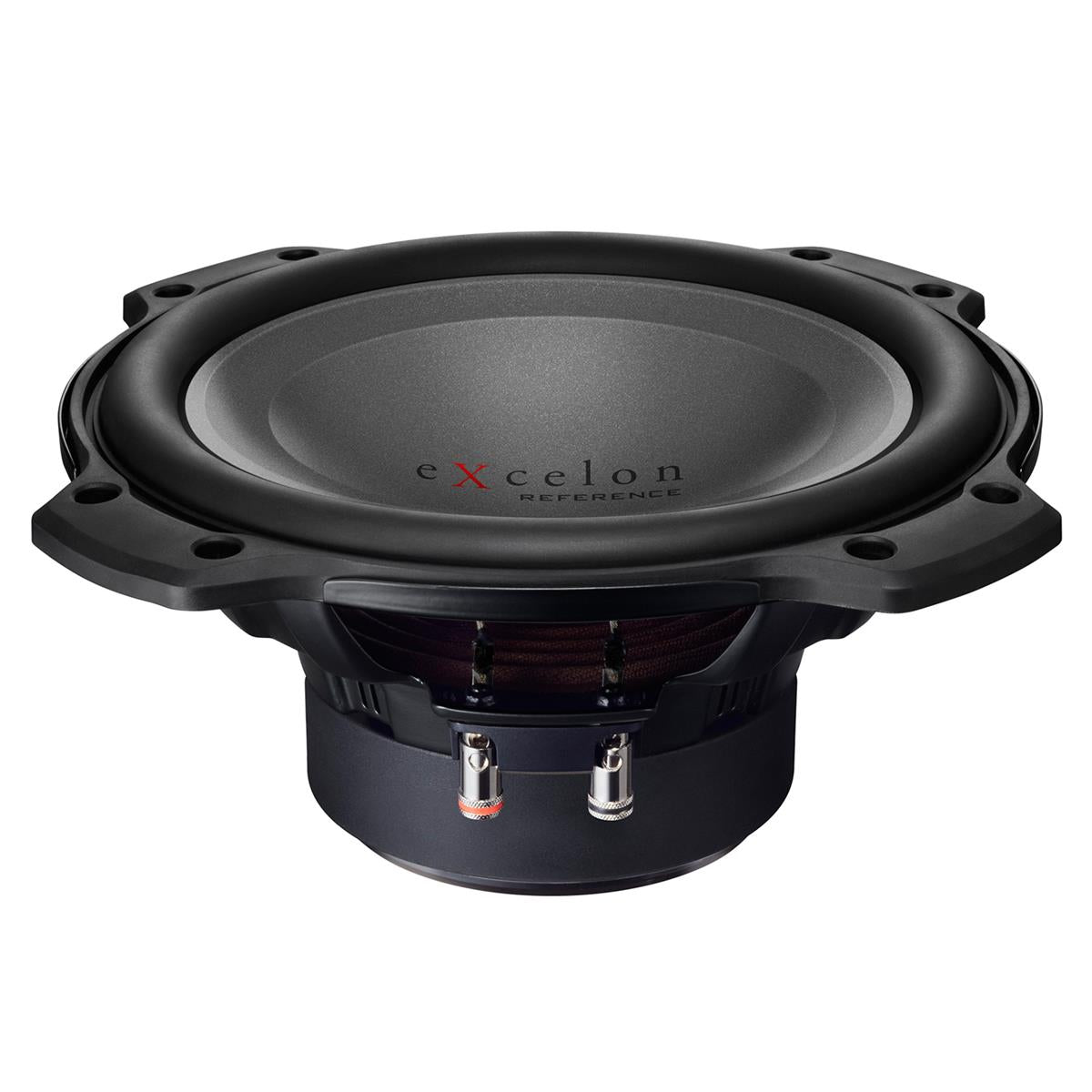

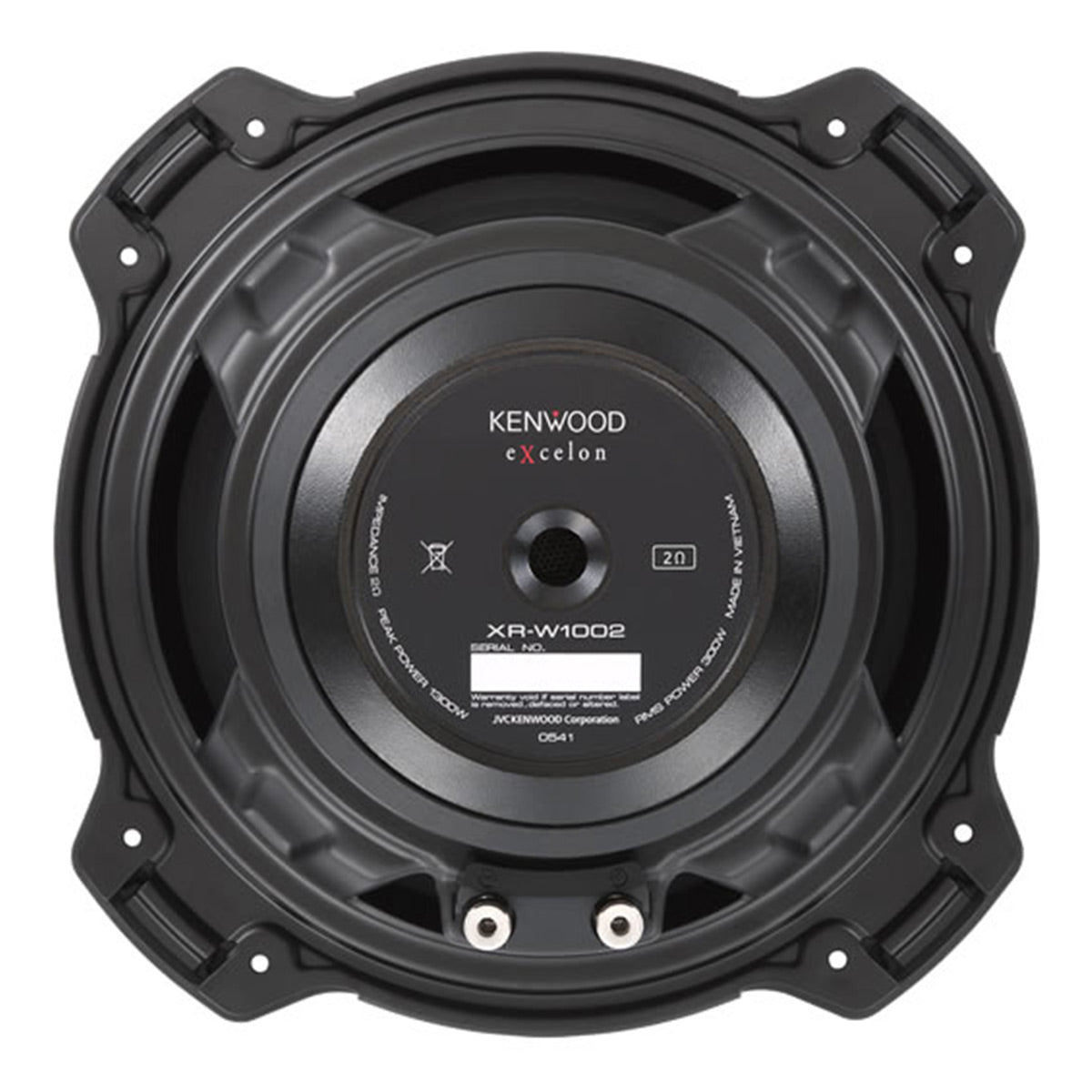

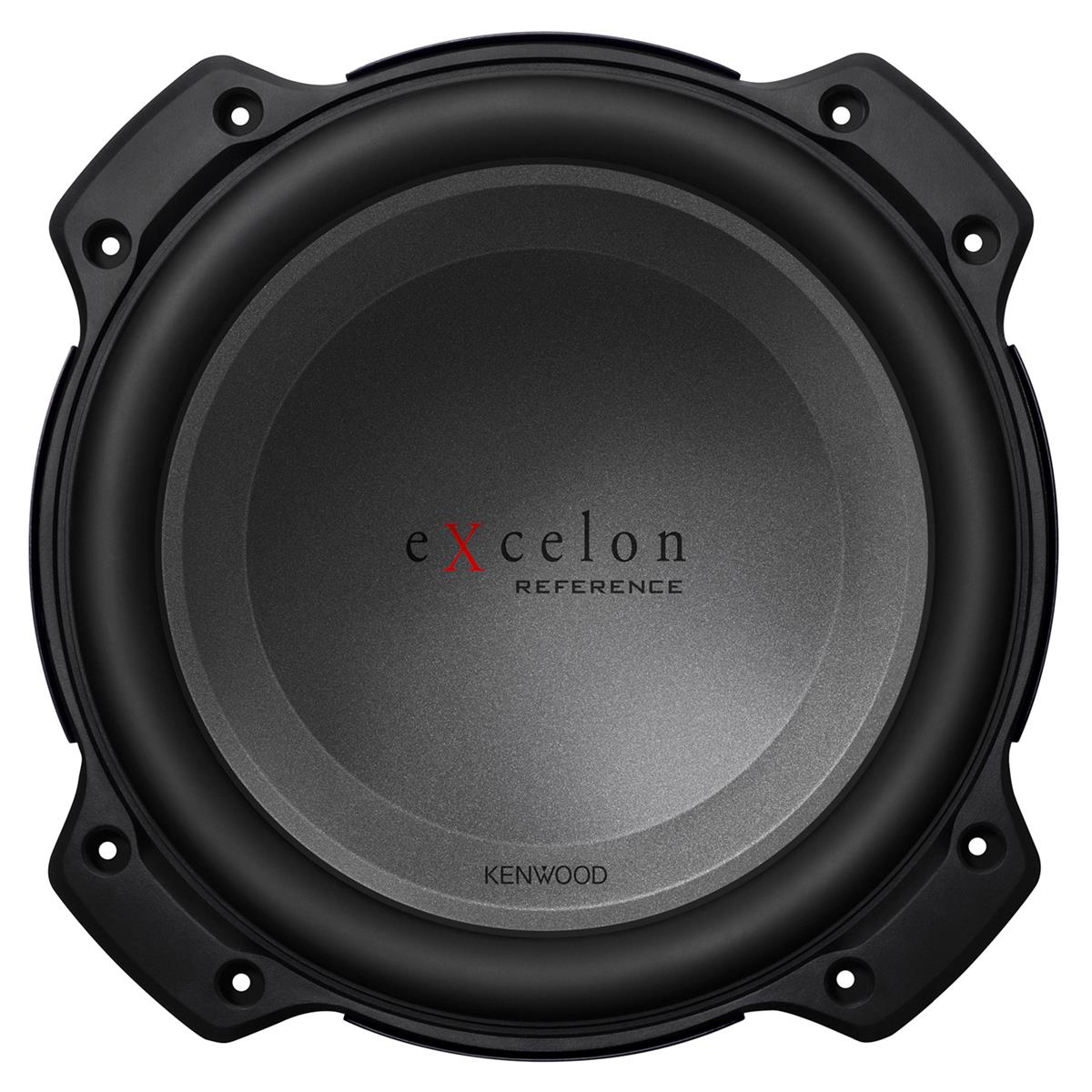

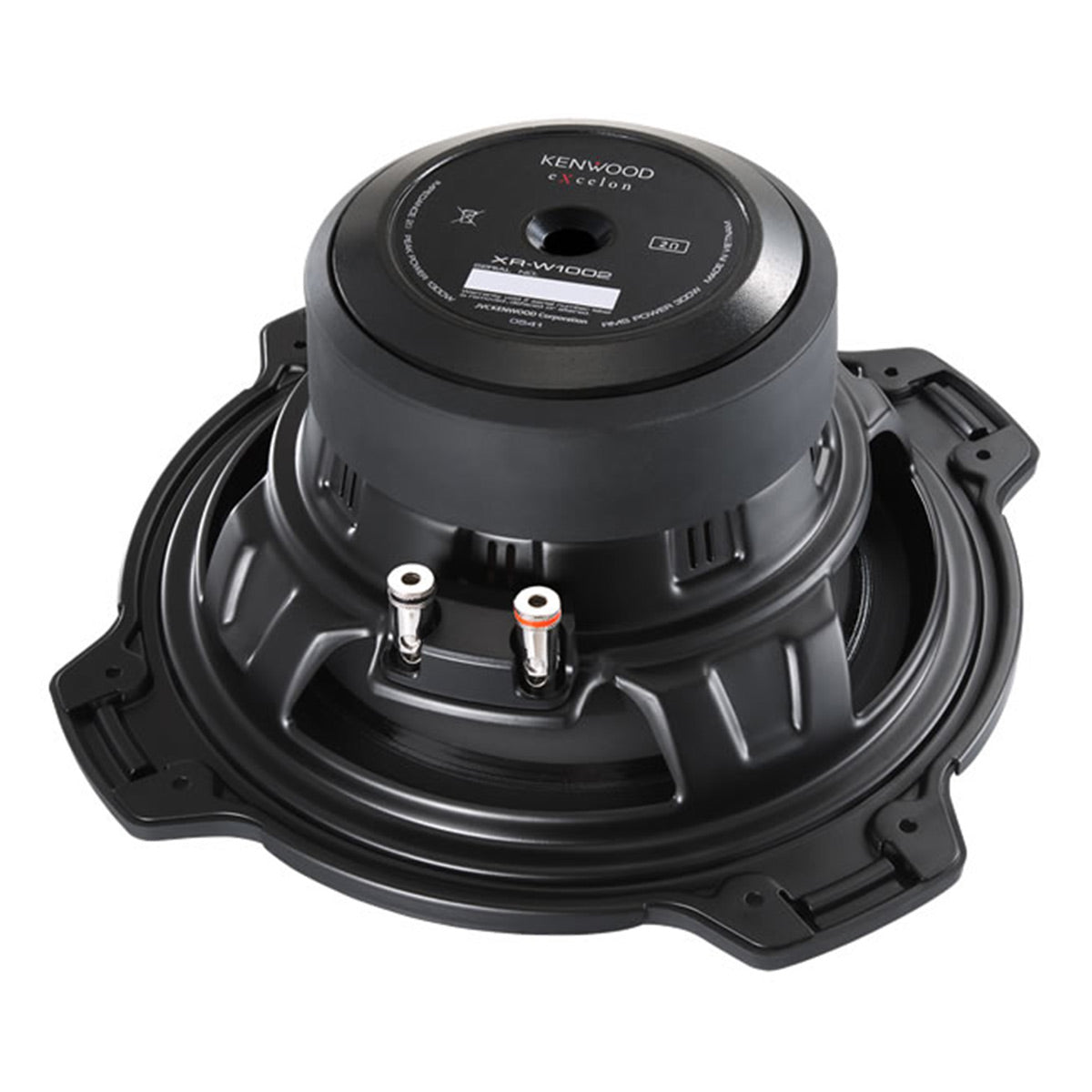

Kenwood XR-W1002 eXcelon 10" Oversized Subwoofer

Model: XR-W1002 UPC: 0019048215918 Item: 166303

Product Information

Kenwood XR-W1002 eXcelon Oversized Subwoofer Features:

Advanced Panel & New GUI

  • Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swipe. Three programmable shortcut source keys offer a quick jump to your favorite sources.

iDatalink Maestro RR

  • When an Automotive Data Solutions iDatalink Maestro RR is connected to a compatible KENWOOD receiver, it provides a seamless interface with factory infotainment features such as Satellite Radio, USB Media Player, Bluetooth hands-free and music streaming. Vehicle information such as HVAC, performance information, and TPMS can also be displayed.

Parking Guide Lines

  • Parking guide lines appear on any standard backup camera image, making parking safer and easier.

Dual Camera Input

  • Two Camera inputs for Front and Rear cameras. A rear view camera can be used for the front as it has the ability to reverse the image.


Kenwood XR-W1002 eXcelon Oversized Subwoofer Features:


  • Size: Oversized 25cm, Oversized 10in
  • Diaphragm: PP Cone
  • Surround: Rubber
  • Basket: Steel
  • Magnet Ferrite: φ140xt16x2pcs

Dimension Woofer (Unit)

  • Width: 10-13/16in
  • Height: 10-13/16in
  • Cutout Diameter: 9-1/8in
  • Depth: 5-5/8in
  • Mounting Depth: 4-13/16in


  • Woofer (pc.): 11.5lb(5.2kg)
  • Gross Weight: 13.5lb(6.1kg)

Nominal Impedance

  • 2ohms

Power Handling

  • Peak Power: 1300W
  • RMS Power (CEA SPEC): 300W


  • 80dB / W at 1m

Frequency Response

  • 31Hz-300Hz


  • Screw sets φ4*35 *8pcs
  • Cushion *1pc
  • Warranty Card *1pc

Special Feature

  • Dual ventilation system
  • Oversized Cone
  • Stress-Free Damper
  • 8AWG Push Terminal
  • Rubber Magnet Cover
