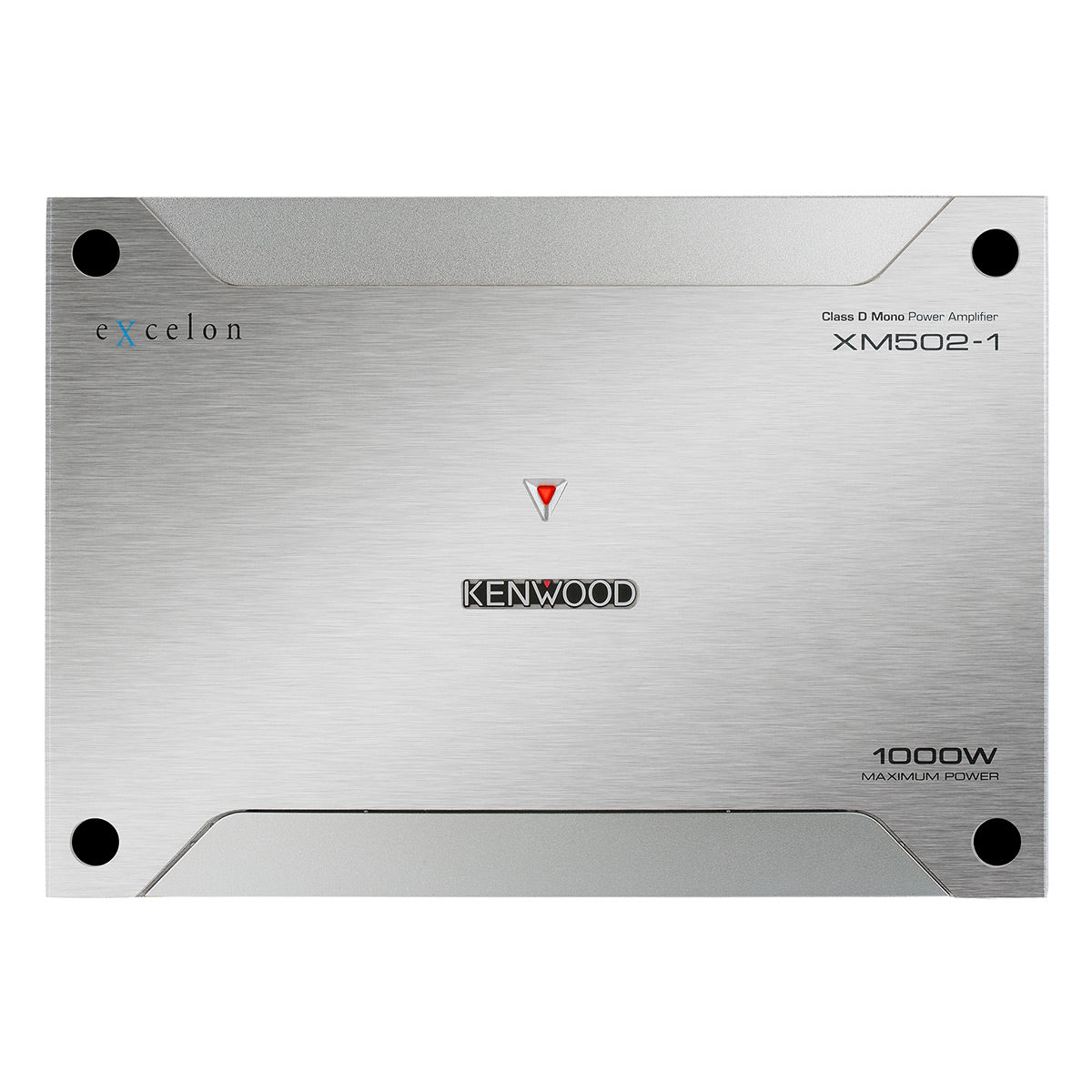

Kenwood XM502-1 Class D Mono Marine Power Amplifier

Regular price $299.00
Sale price $299.00 Regular price
Save $-299.00 (%)

In Stock & Ready to Ship
Free Shipping Get it between Tue, Jul 23 – Tue, Jul 30

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live


Product Information

Model: XM502-1 | UPC: 019048233875


Product Information

Model: XM502-1 | UPC: 019048233875

Ready to outfit your Side-by-Side, Watercraft, Off-Road Vehicle, and more? The Kenwood eXcelon Motorsports XM502-1 is a Class D Mono Marine-Grade Power Amplifier. This inclusion of a conformal coated circuit board, a protective terminal cover, and stainless-steel mounting screws ensure this amplifier is ready for the elements.

Complete Separation

  • Each block is completely separated - Analog Circuit, Digital Amplifier, Power Supply
  • Pattern layers of PCB do not overlap

Conformal Coating

  • Prevents Corrosion
  • Stabilizes Circuit Board Parts

Protective Terminal Cover

  • Plastic screw-in cover to restrict dust and moisture entry

Installation Flexibility

  • Infrasonic Filter: Cuts frequencies below 25kHz to protect subwoofer(s)
  • Variable Controls: For crossovers, gain, and bass boost
  • All Connections on 1 Side: Easier installation & a cleaner look
  • Optional Remote Sub Level Controller: KCA-RC01A Ready


  • 300W x 1 @ 4 ohms (RMS)
  • 500W x 1 @ 2 ohms (RMS)
  • Conformal Coated Circuit Board
  • Protective Terminal Cover
  • Stainless-Steel Mounting Screws
  • Signal Sensing Turn-On
  • Speaker Level Input with Included Cable
  • Power MOS-FET Switching Power Supply
  • Bass Boost 40Hz, 0-18dB
  • LP Crossover 50-200Hz 24dB
  • Wired Remote Level Control Ready (KCA-RC01A sold separately)
  • Dimensions: 8-3/8” x 2-1/16” x 5-7/8”
  • 2 Year Warranty
