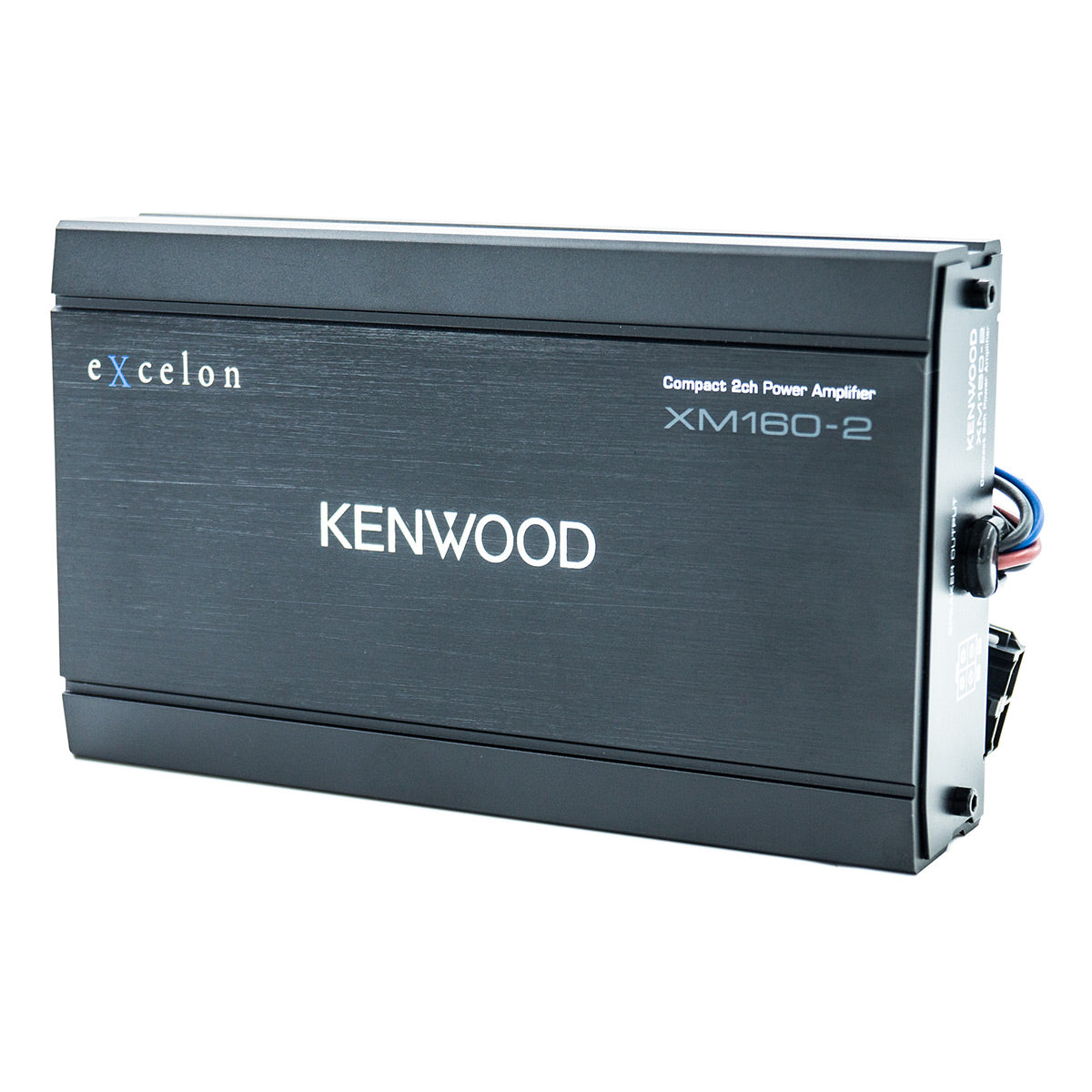

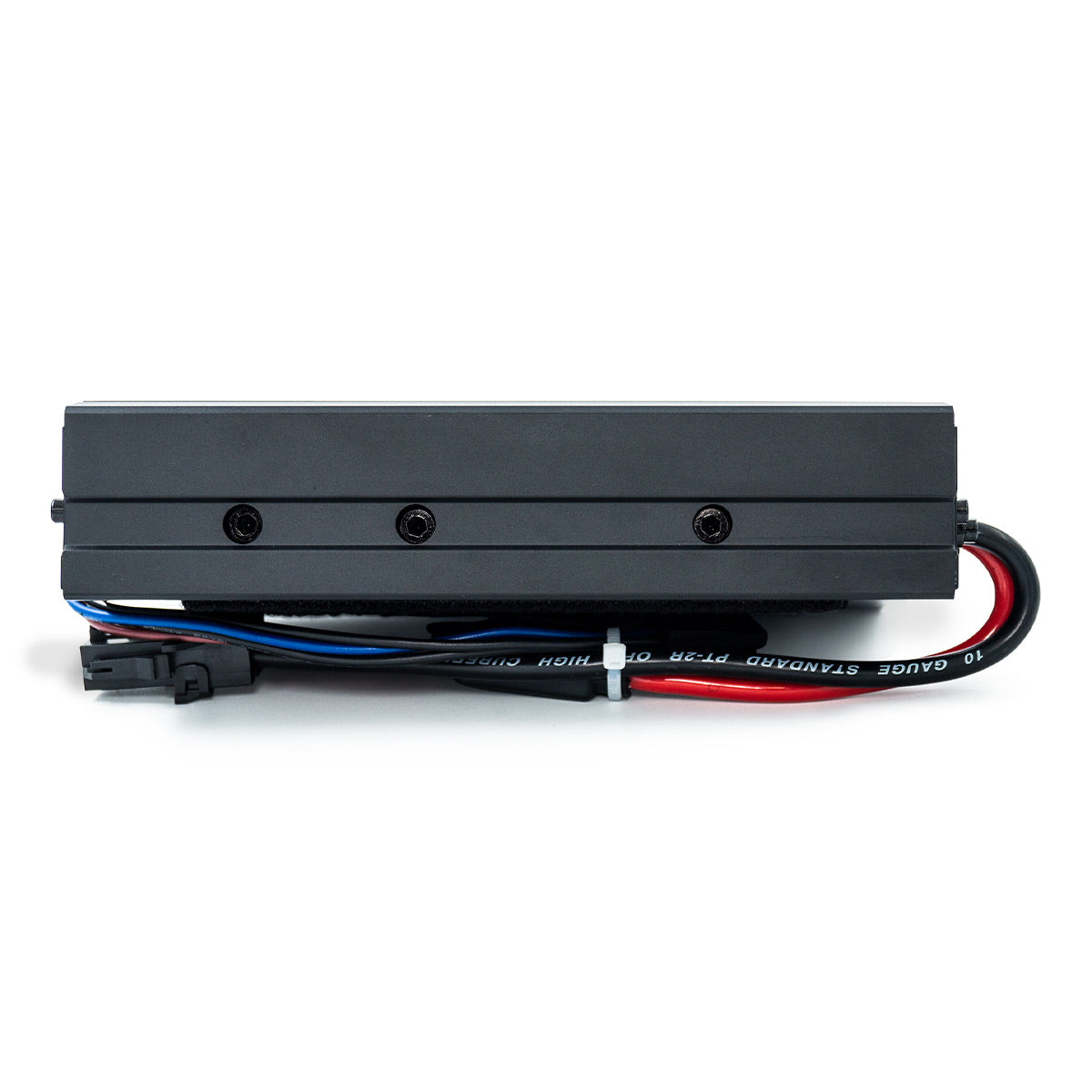

Kenwood XM160-2 2-Channel Harley Davidson Plug & Play Amplifier

Regular price $389.00
Sale price $389.00 Regular price
Save $-389.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Mar 18 – Tue, Mar 25

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Kenwood XM160-2 Overview

Product Information

Model: XM160-2 | UPC: 019048237026

Specifications

What's In The Box

Product Information

Model: XM160-2 | UPC: 019048237026

The Kenwood Excelon XM160-2 is a high-performance 2-channel power amplifier specifically designed for select 2014 and newer Harley-Davidson motorcycles. Delivering 80 watts RMS per channel at 2 ohms, this amplifier enhances your riding experience by providing clear and powerful audio, ensuring your favorite tunes are heard even over the roar of the engine.

Features

  • Powerful 2-Channel Amplification
  • No Radio Flashing Required
  • Plug-and-Play
  • Sensitivity Adjustment
  • Bypass Port for Easy System Expansion

Optimized for Seamless Integration

This amplifier is fine-tuned to work flawlessly with both stock Harley-Davidson and aftermarket radios, eliminating the need for any radio flashing during installation. Its plug-and-play design, complete with power, speaker, and input wiring, simplifies the setup process, allowing for a straightforward installation.

Flexible Input Sensitivity Adjustment

Equipped with an input sensitivity control, the XM160-2 allows for precise matching with your receiver's output. For optimal sound quality with an OEM Harley-Davidson radio, it's recommended to set the input sensitivity just past the halfway point. This setting enables you to increase the radio volume to near-maximum levels without distortion.

Expandable Audio System

Featuring a bypass port, this amplifier facilitates easy system expansion. By connecting additional amplifiers through the input/bypass harness, you can enhance your audio setup to meet your specific preferences.

Designed for Harley-Davidson Motorcycles

The XM160-2 comes with mounting plates tailored for Street Glide®, Ultra®, and Road Glide® models, ensuring a secure and unobtrusive installation. Its high-efficiency Class D design ensures robust performance without overloading the motorcycle's electrical system, making it a reliable choice for riders seeking superior audio quality on the road.

Specifications

  • Power & Performance
    • RMS Power Output: 80W x 2 @ 2Ω
    • RMS Power Output: 50W x 2 @ 4Ω
    • Frequency Response: 20Hz – 20kHz
    • Signal-to-Noise Ratio: ≥ 85dB
    • Total Harmonic Distortion (THD): < 1%
    • Class D Amplifier: High-efficiency design for minimal power draw
  • Compatibility & Installation
    • Compatible Models: 2014 & newer Harley-Davidson Street Glide®, Ultra®, and Road Glide®
    • Mounting Plates Included: Custom fit for secure installation
  • Power Requirements & Dimensions
    • Operating Voltage: 12V
    • Current Draw: Up to 15A

What's In The Box

  • XM160-2 2-Channel Harley Davidson Plug & Play Amplifier
  • Wiring Harness
  • Mounting PLates
  • Installation Hardware
  • Manual
