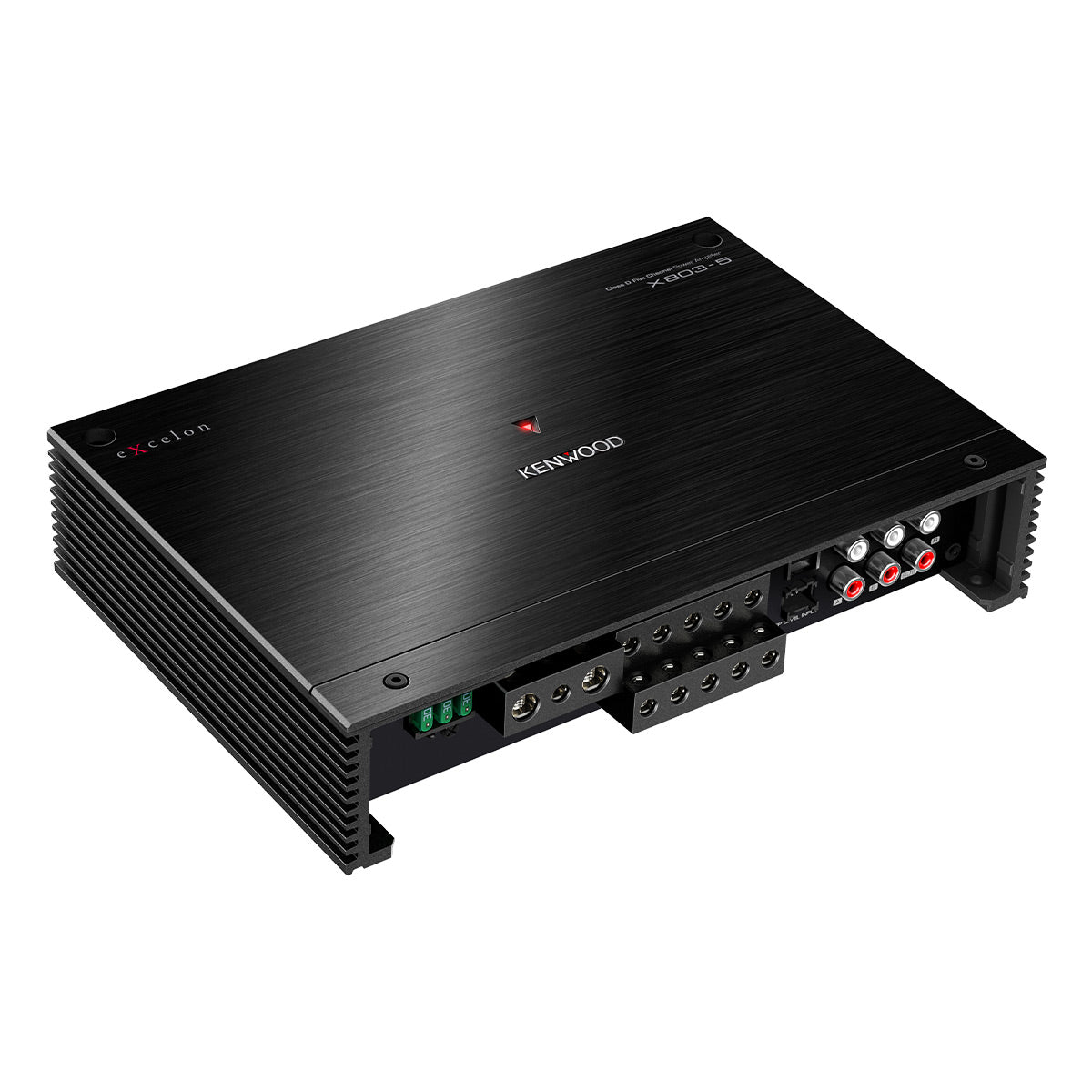

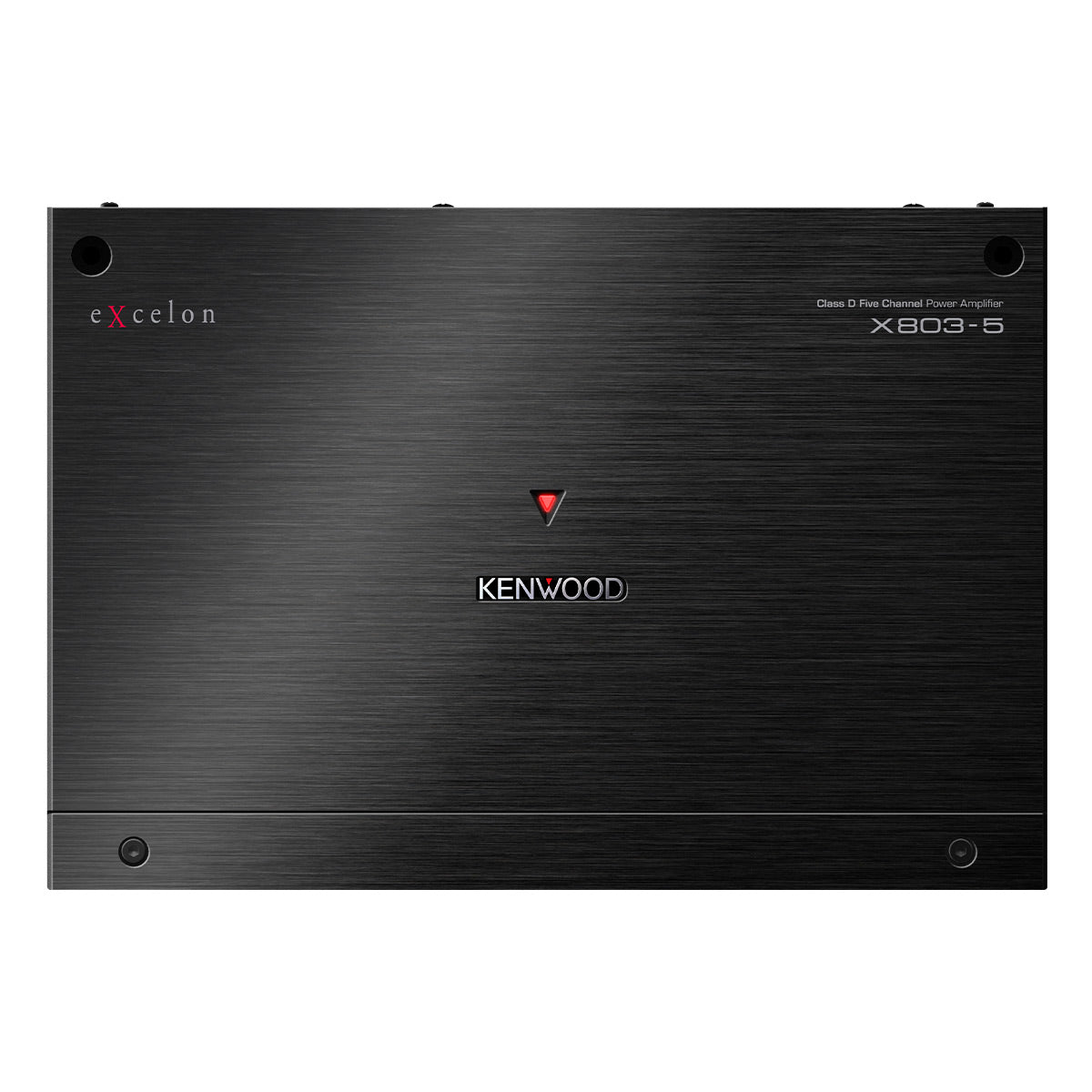

Kenwood X803-5 X Series Class D 5-Channel Amplifier

Regular price $399.00
Sale price $399.00 Regular price
Save $-399.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Feb 11 – Tue, Feb 18

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Kenwood X803-5 Overview

Product Information

Model: X803-5 | UPC: 019048240248

Specifications

What's In The Box

Product Information

Model: X803-5 | UPC: 019048240248

Features

  • Max Power 1600W
  • RMS 75W x4 (4Ω)
  • RMS 50W x4 + 300W (4Ω)
  • RMS 75W x4 + 500W (2Ω)
  • Size (inch) (W) 9-3/4" x (H) 2-1/16" x (D) 6-5/8"
  • High-Resolution Audio Certified
  • Variable Low Pass Filter
  • Bass Boost
  • Wired Remote Included

Rich & Immersive High-Resolution Audio

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

Output Coil with Magnetic Shield

Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.

High Quality Capacitors

PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.

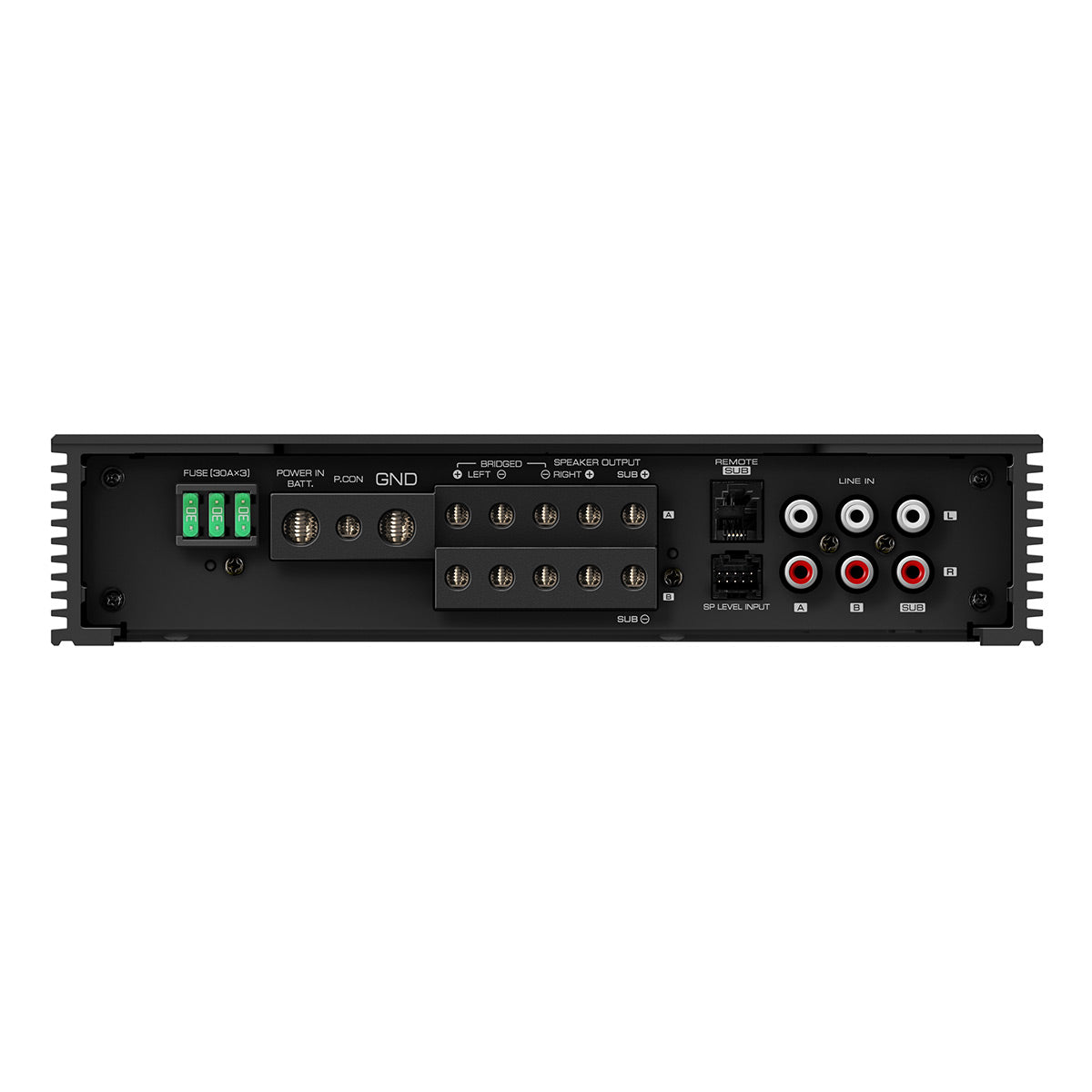

One-Side Connection

All terminals and connections are on one side for easier installation and a cleaner look.

Speaker Level Input Harness

Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.

Wired Level Control Included

The wired remote level control allows you to easily adjust the subwoofer volume.

Specifications

  • CTA-2006-D Value
    • Maximum Dynamic Power: 65W x 4 + 350W x 1 at 4 ohms and ≤ 10% THD + N
    • Continuous Power Output: 50W + 300W at 4 ohms and ≤ 1% THD + N
    • Signal to Noise
      • 77dBA x 4
      • 80dBA x 1 reference 1 Watt RMS
  • Maximum Power Output: 1600W
  • Rated Power Output at 14.4V
    • A/B (4 Ohms): 50Watts RMS x 4 (20-20kHz, ≤1.0% THD)
    • A/B (2 Ohms): 75Watts RMS x 4 (1kHz, ≤1.0% THD)
    • SUB (4 Ohms): 300Watts RMS x 1 (20-200Hz, ≤1.0% THD)
    • SUB (2 Ohms): 500Watts RMS x 1 (100Hz, ≤1.0% THD)
    • A/B (Bridged 4 Ohms): 150Watts RMS x 2 (1kHz, ≤1.0% THD)
  • Signal to Noise Ratio: 90dB (Reference: Rated Power into 4 Ohms at 14.4V)
  • Frequency Response
    • 20Hz-50kHz (+0dB, -3dB) A/B
    • 20Hz- (Upper frequency dependent on Low Pass Filter) SUBch
    • 20Hz-40kHz (+0dB, -1dB) A/B
  • Input Impedance: 10k ohm
  • Speaker Impedance: 4Ω (2Ω to 8Ω allowable)
  • Bridged Connection: 4Ω to 8Ω allowable

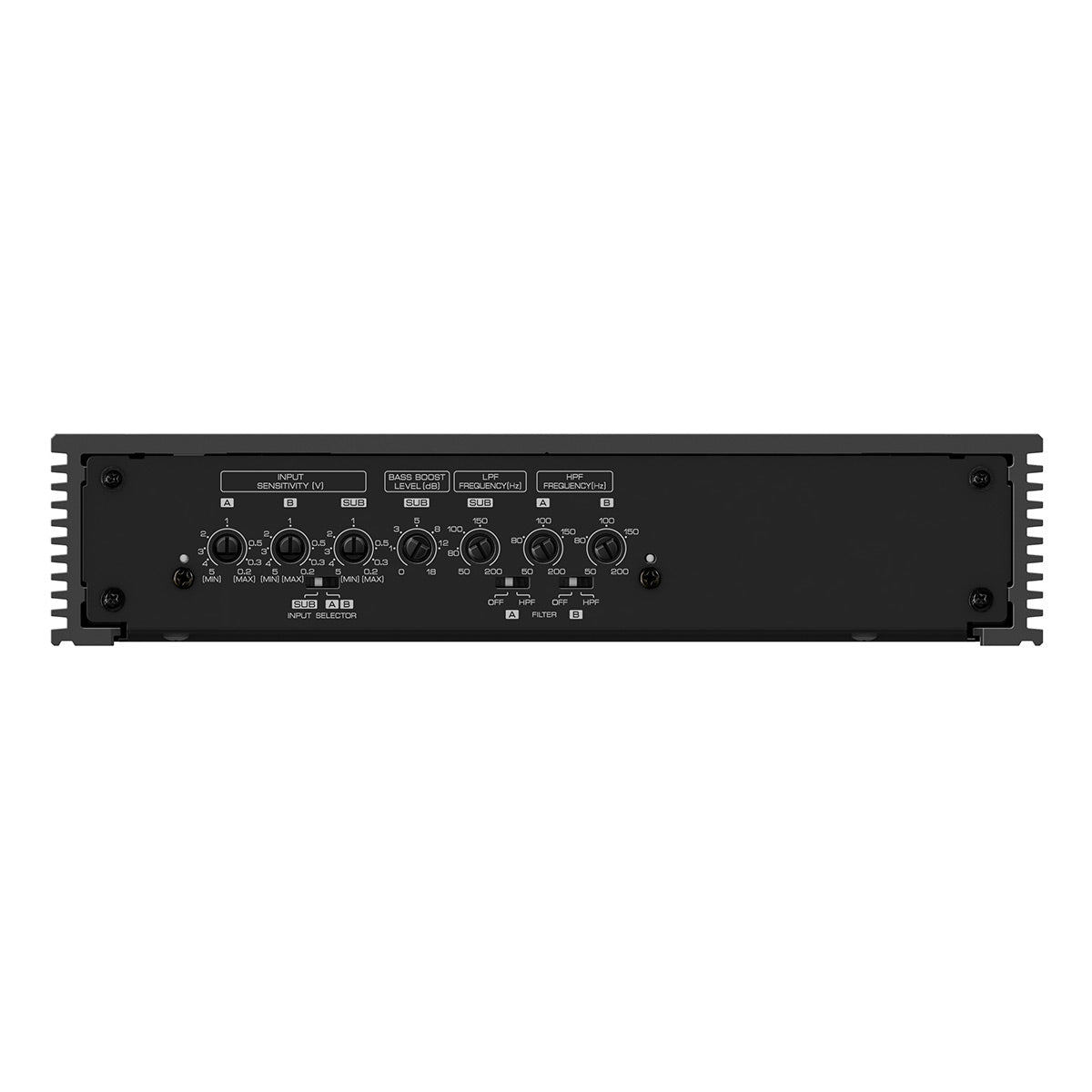

  • Audio
    • Low-Pass Filter (Sub):
    • Built-in Variable Low-Pass Filter (50Hz-200Hz, -24dB/oct)
    • High-Pass Filter (A/B):
    • Built-in Variable High-Pass Filter (50Hz-200Hz, -12dB/oct)
    • Bass Boost (Sub):
    • Built-in Bass Boost Control (40Hz, 0dB-18dB)
    • Infrasonic Filter: Not included
    • RCA Input Sensitivity: 0.2[V] - 5.0 [V]
    • Speaker Level Input Sensitivity: 4.0[V] - 12.0 [V]
  • Terminals
    • Battery & Ground: Wire Clamp Type Terminal Block (M6, Nickel Colored), Hexagon Screw, Capable for AWG4-AWG6
    • Speaker Output: Wire Clamp Type Terminal Block (M4, Nickel Colored), Hexagon Screw, Capable for AWG8-AWG16
  • General
    • Dimensions (W x H x D): 9-3/4" x 2-1/16” x 6-5/8”
    • Weight: 4.6 lbs.
    • Operating Voltage: 14.4V (11-16V allowable)
    • Current Consumption: 48[A]

What's In The Box

  • X803-5 X Series Class D 5-Channel Amplifier
  • Wired Remote
  • Installation Hardware
  • Manual
