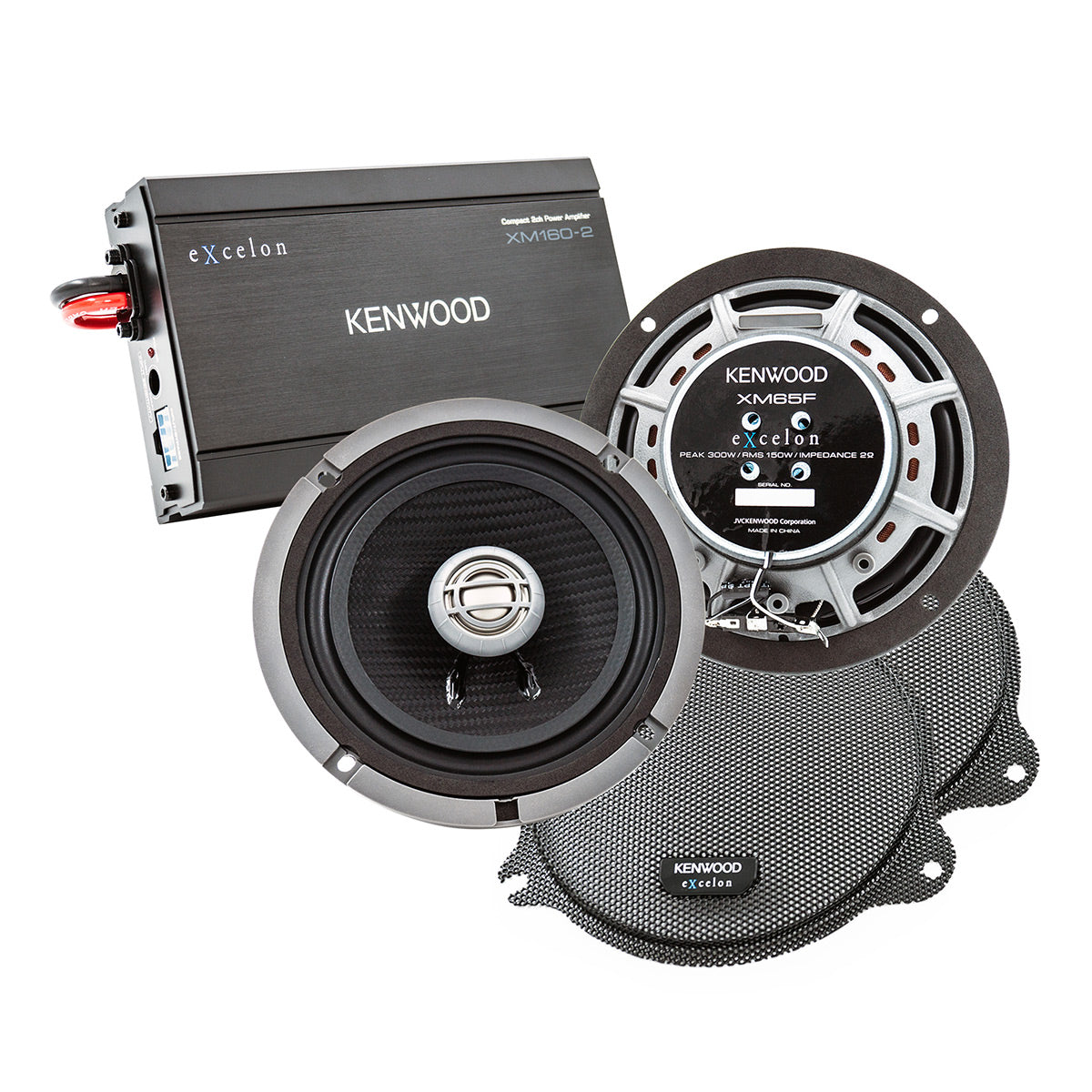

Kenwood P-HD1F Front Amplified Speaker Package for 2014-Up Select HD Motorycles

Regular price $589.00
Sale price $589.00 Regular price
Save $-589.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Kenwood P-HD1F Overview

Product Information

Model: P-HD1F | UPC: 019048238139

Specifications

What's In The Box

Product Information

Model: P-HD1F | UPC: 019048238139

Enhance your Harley-Davidson® riding experience with the Kenwood Excelon P-HD1F Front Audio Package. Designed specifically for select 2014 and newer Street Glide® and Road Glide® models, this plug-and-play system elevates your motorcycle's audio performance, ensuring clear and powerful sound on every journey.

Features

  • Plug-and-Play Installation
  • High-Powered 2-Channel Amplifier
  • Premium 6.5” Coaxial Speakers
  • Durable & Weather-Resistant Build
  • Expandable System
  • Custom-Fit for Harley-Davidson® Models

Comprehensive Audio Upgrade

The P-HD1F package includes a Class D 2-channel power amplifier and a pair of 6.5" 2-way coaxial front speakers. This combination delivers robust audio output, allowing riders to enjoy their favorite tunes with enhanced clarity and volume, even at highway speeds.

High-Efficiency Amplifier

At the heart of this package is the XM160-2 amplifier, which provides 80W x 2 channels at 2 ohms RMS. Its high-efficiency design ensures it won't overload your motorcycle's electrical system. Notably, there's no need for a radio flash, simplifying the installation process. The amplifier also features a bypass port for system expansion and comes with mounting plates suitable for both Street Glide®/Ultra® and Road Glide® models. The plug-and-play power, speaker, and input wiring make setup straightforward.

Premium Coaxial Speakers

The included XM65F speakers boast Injection Molded Polypropylene (IMPP) woofer cones and 1” Poly-Ether-Imide (PEI) dome tweeters, ensuring a rich and dynamic sound profile. With an impedance of 2 ohms, a sensitivity of 92dB, and a frequency response range of 40Hz to 25kHz, these speakers are engineered to provide exceptional audio clarity. They handle up to 150W RMS and 300W peak power, ensuring durability and performance. For Street Glide® models, metal mesh grilles are included to protect the speakers while complementing the bike's aesthetics.

Tailored Fitment

This audio package is compatible with a range of Harley-Davidson® models, including:

  • 2014-2023 FLHX Street Glide
  • 2015-2023 FLTR Road Glide
  • 2014-Current FLHTK Limited Ultra
  • 2014-Current FLHTCU Ultra Classic
  • 2014-Current FLHTCUG Tri Glide Ultra
  • 2016-Current FLTRU Road Glide Ultra
  • 2020-Current FLTRK Limited Road Glide Ultra
  • 2018-2023 FLHT Electra Glide Standard Fairing (with factory radio installed)

Specifications

  • XM65F 6.5” Coaxial Speakers
    • Speaker Type: 2-Way Coaxial
    • Woofer Material: Injection Molded Polypropylene (IMPP)
    • Tweeter Type: 1” Poly-Ether-Imide (PEI) Dome
    • Impedance: 2 ohms
    • Sensitivity: 92dB
    • Frequency Response: 40Hz – 25kHz
    • Power Handling
      • RMS Power: 150W
      • Peak Power: 300W
    • Weather-Resistant: Yes (Built to withstand heat, moisture, and road vibrations)
    • Included Accessories: Metal mesh grilles (for Street Glide® models only)
  • XM160-2 Class D 2-Channel Amplifier
    • Amplifier Type: Class D
    • Power Output (RMS)
      • 80W x 2 @ 2 ohms
      • 50W x 2 @ 4 ohms
    • Signal-to-Noise Ratio: ≥90dB
    • Total Harmonic Distortion (THD): ≤1%
    • Frequency Response: 20Hz – 20kHz
    • High-Efficiency Design: Minimizes strain on the motorcycle’s electrical system
    • Bypass Port: Yes (for system expansion)
    • Installation: Plug-and-play harness (no radio flash required)
  • Compatibility
    • Motorcycle Models: Select 2014+ Harley-Davidson® Street Glide®, Road Glide®, Ultra® models
    • Mounting Hardware: Brackets for both Street Glide®/Ultra® and Road Glide® included

What's In The Box

  • P-HD1F Front Amplified Speaker Package for 2014-Up Select HD Motorycles
    • (2) 6.5” 2-Way Coaxial Front Speakers
    • XM160-2 Class D 2-Channel Amplifier
  • Custom-Fit Mounting Bracket Kit
  • Pre-Wired Plug-and-Play Harness
  • (2) Metal Mesh Speaker Grilles
  • Installation Hardware
  • User Manual & Installation Guide
