Specifications
Specifications
- FM
- Frequency Range (MHz): 87.9MHz to 107.9MHz
- Frequency step: (200kHz)
- Usable Sensitivity: 8.2dBf
- S/N:30dB: (0.71μV/75Ω)
- Quieting Sensitivity: 17.2dBf
- DIN S/N:46dB: (2.0μV/75Ω)
- Frequency Response (±3.0dB): 30Hz to 15kHz
- S/N(dB): 64.0dB(MONO)
- Stereo Separation: 40dB(1kHz)
- MW (AM)
- Frequency Range(kHz): 530kHz to 1700kHz
- Frequency step: (10kHz)
- Usable Sensitivity: 29dBμ (28.2μV)
- Preout Level(mV)/Load -Unbalanced: 4000mV/10kΩ
- Preout Impedance(Ω): =<600Ω
- Speaker Impedance(Ω): 4 to 8Ω
- USB I/F
- USB: USB 1.1 / 2.0 High Speed
- File System: FAT12 / 16 / 32
- Maximum Supply current: DC5V(DC logo) 1.5A
- Frequency Response: 20Hz to 20kHz(±1dB)
- S/N Ratio (dB): 98dB(1kHz)
- Dynamic Range: 93dB
- Channel Separation: 91dB
- MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
- WMA Decode: Compliant with Windows Media Audio
- AAC Decode: AAC-LC ".aac",".m4a" files
- WAV Decode: Linear-PCM
- FLAC Decode: FLAC file (Up to 24bit/96kHz)
- AUX Input
- Frequency Response: 20Hz to 20kHz ±3dB
- Input Maximum Voltage: 1000mV
- Input Impedance: 30kΩ
- AMP
- PWR(MAX): 50Wx4
- Full Bandwidth Power (at less than 1%THD): 22Wx4
- TONE
- Band1: 62.5Hz ±9dB
- Band2: 100Hz ±9dB
- Band3: 160Hz ±9dB
- Band4: 250Hz ±9dB
- Band5: 400Hz ±9dB
- Band6: 630Hz ±9dB
- Band7: 1kHz ±9dB
- Band8: 1.6kHz ±9dB
- Band9: 2.5kHz ±9dB
- Band10: 4kHz ±9dB
- Band11: 6.3kHz ±9dB
- Band12: 10kHz ±9dB
- Band13: 16kHz ±9dB
- Bluetooth
- Version: Bluetooth 4.2
- Frequency Range: 2.402 to 2.480GHz
- RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Profile
- HFP 1.7.1 (Hands Free Profile)
- SPP (Serial Port Profile)
- PBAP (Phonebook Access Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP 1.6.1 (Audio/Video Remote Control Profile)
- General
- Operating voltage: 12V DC car battery
- Installation Size (W x H x D): 7-3/16” x 2-1/16” x 3-15/16”
- Net Weight (Trim plate and Mounting sleeve Included): 1.5 (lbs)

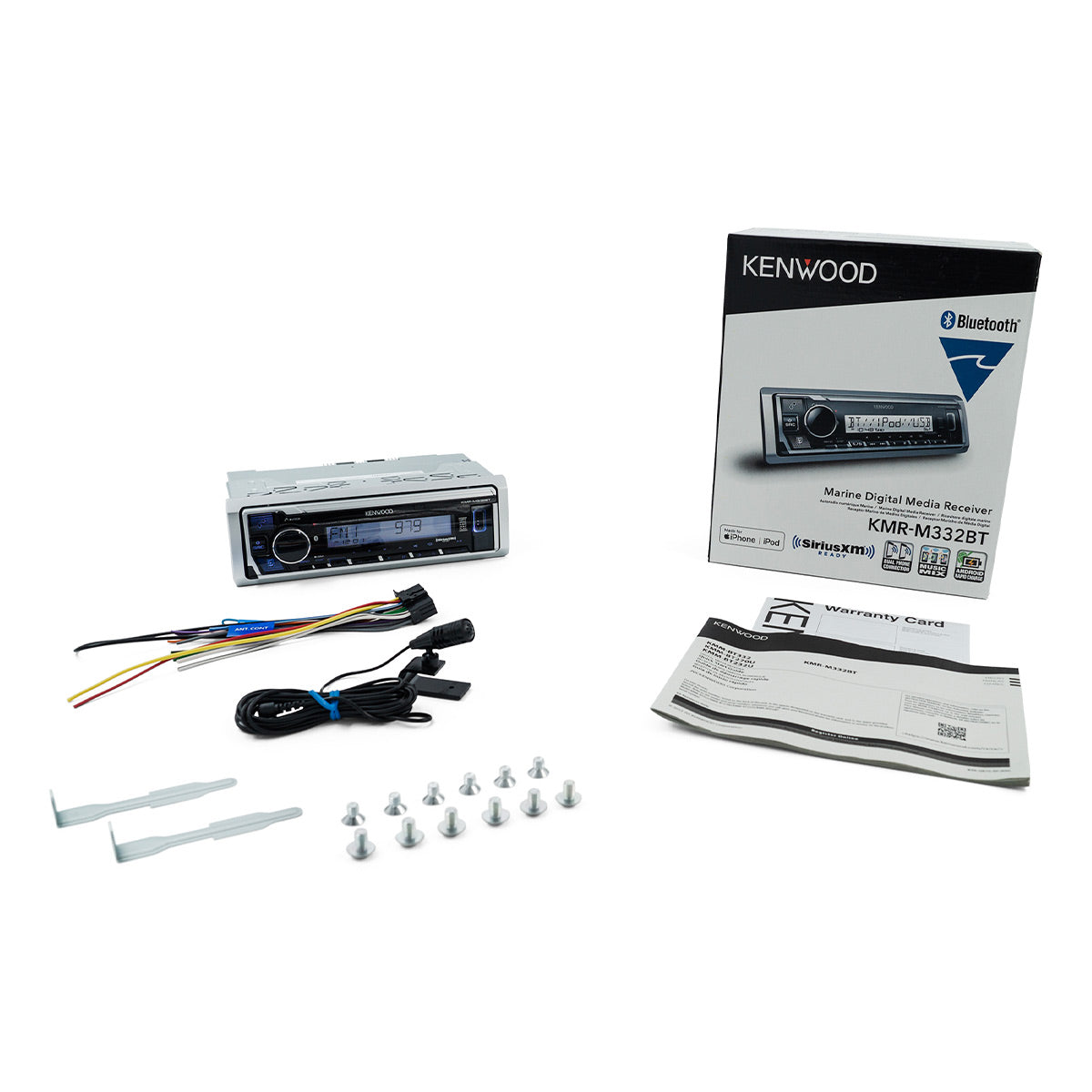

What's in the Box
What's in the Box

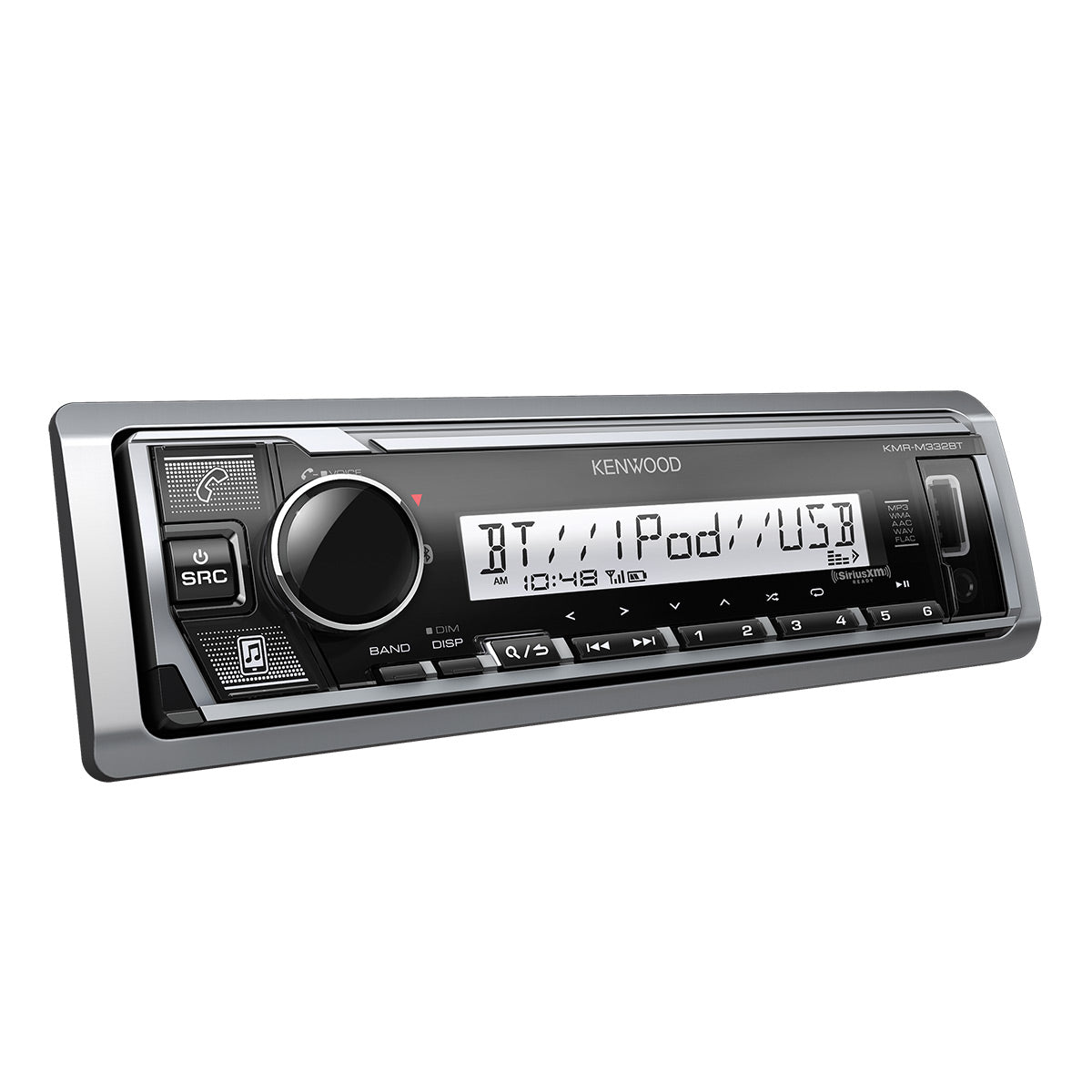

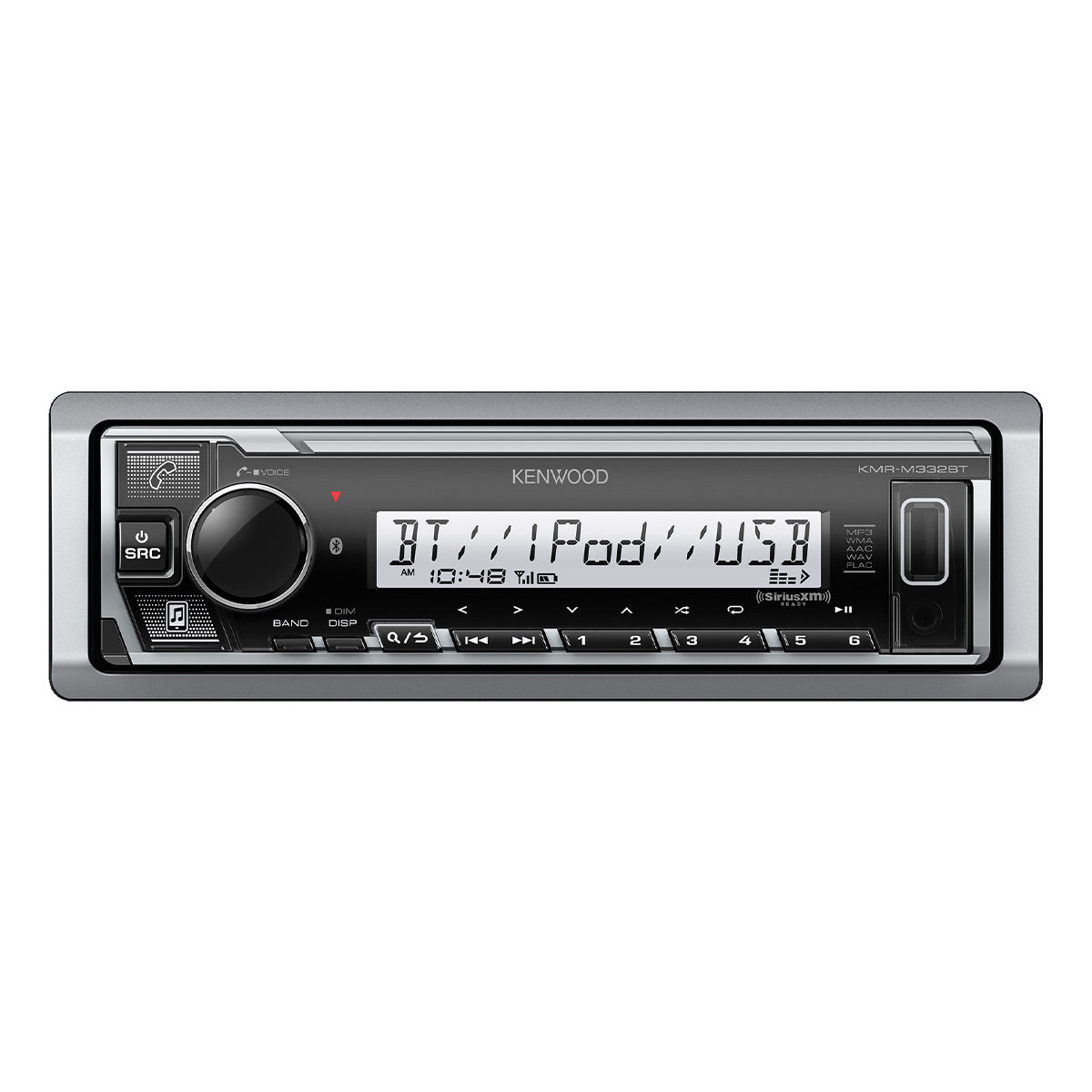

- KMR-M332BT Marine Digital Media Receiver with Bluetooth
- Face Plate
- Trim Plate
- Mounting Sleeve
- Wiring Harness
- Microphone with Bracket
- (2) Extraction Keys
- Screws
- (4) M5 x 7 mm
- (4) M5 x 6 mm
- (1) M4 x 8 mm
- Manual
