Kenwood KMR-M300BT Marine & Motorsport Digital Media Receiver with IP66 Waterproof Rating, Corrosion Resistance, and Bluetooth

$449.00 OR

Regular Price: $550.00

Save: $101.00 (18%)

In Stock

More Product Details

Our product experts are here to help

Questions? We're here to help.

Model: KMR-M300BT UPC: 019048237941 Item: 180060

Product Information


  • 3” Gauge-Style Mounting
  • 2.7” LCD Display
  • AM/FM/Global Weather Band Tuner
  • Waterproof Rating of IP66
  • Wired Remote Ready (KCA-RC35MR, Sold Separately)
  • SiriusXM Ready®
  • Rear USB Port w/ 1.5A Charging
  • Variable Color Illumination
  • Bluetooth® Streaming
  • Rear View Camera Input
  • Independent Subwoofer Volume Control
  • 50 Watts x 4
  • 3 Pre-Outs (2.0V)

Salt Spray-Proof

ASTM B117 salt spray (or salt fog) corrosion test simulates harsh conditions in a salt water environment to ensure the product does not corrode or fail in these harsh conditions.

UV Protection

The unit cover satisfied ASTM D4329 UV resistant test.

Vibration Resistant

3-axis multi-frequency vibration tested to withstand damaging shocks.

Conformal Coating

Improved moisture resistance of the circuit boards to prevent corrosion.

Bluetooth Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.

Playable USB Files

Compatible with a broad range of audio file formats from FLAC and MP3, WMA and AAC.

13 Band EQ

13-Band equalizer gives optimal tuning enhancements for the listener.

Weather System Expansion Ready

The KMR-XM300 has RCA outputs to expand the system to connect amplifiers to power additional speakers & subwoofer(s).

2.7" LCD Display

2.7" LCD display secures higher visibility under sunlight and daytime use.

Rear View Camera Input Support

KMR-XM300 is equipped with a rear view camera input. With an optional camera connected, you have increased safety while driving UTVs, boats, etc..

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio. (Optional SiriusXM tuner required, sold separately)

AM/FM/Global Weather Band Tuner

KMR-XM300 supports AM/FM and Global weather band.

Multicolor Illumination Controls

Bright variable color LED's can be adjusted to match your environment.


You can connect up to 6 remotes in-line with each other.

Spanish Text Display

On-screen display menu now available in Spanish.



  • Waterproof
    • Waterproof Rating: IP66 (Equivalent to IEC standard publication 60529 IP66) (IP66 Faceplate, IPX4 Body)
  • Monitor
    • Picture Size: 2.7 inch Color TFT
    • Backlight: LED
  • FM
    • Frequency Range (Frequency step)
    • North America: 87.9MHz - 107.9MHz(200kHz)
    • South America, Europe, Russia, Asia, Middle East, Australia: 87.5MHz - 108MHz(50kHz)
    • Japan: 76.0MHz - 99.0MHz(100kHz)
  • AM
    • Frequency Range (Frequency step)
    • North America, South America, : 530kHz - 1700kHz(10kHz)
    • Europe, Russia, Asia: 531kHz - 1611kHz(9kHz)
    • Japan: 522kHz - 1629kHz(9kHz)
    • Middle East: 531kHz - 1602kHz(9kHz)
    • Australia: 531kHz - 1701kHz(9kHz)
  • Weather Band Frequency Range (Frequency step)
    • USA/Canada: 162.400MHz - 162.550MHz(25kHz)
  • USB I/F
    • USB: USB 2.0 (Full speed)
    • Compatible Devices: Mass storage class
    • File System: FAT16, FAT32, ExFAT
    • Capacity: 32 GB max, 255 Folders max, 999 Files per Folder max
    • Maximum Supply Current: DC5V 1.5A
    • Frequency Response: 20Hz - 20,000Hz
    • MP3 decode: Compliant with MPEG-1 Audio Layer-3
    • WMA decode: Compliant with Windows Media Audio
    • AAC Decode: Compliant with MPEG2/4 AAC LC
    • FLAC Decode: FLAC file, up to 24bit/48kHz
    • Preout Level(mV)/Load -Unbalanced: 2000mV/10kΩ
    • Preout Impedance(Ω): <500Ω
    • Speaker Impedance(Ω): 2-8Ω
  • Bluetooth
    • Version: Bluetooth 5.0
    • Frequency Range: 2.4GHz - 2.4835GHz
    • RF Output Power: 0dBm(AVE), Power Class 2
    • Maximum Communication range: Line of sight approx.10m(32.8ft)
    • Pairing: SSP(Secure Simple Pairing)
    • Profile
      • A2DP(Advanced Audio Distribution Profile)
      • AVRCP 1.5(Audio/Video Remote Control Profile)
  • AMP
    • Maximum Power: 34W x 4 (@ 4 ohm, Peak), 50W x 4 (@ 2 ohm, Peak)
    • Full Bandwidth Power: 19W x 4 (@ 4 ohm, RMS), 28W x 4 (@ 2 ohm, RMS)
  • Equalizer
    • Band: 13 Band
    • Frequency: 62.5 / 100 / 160 / 250 / 400 / 630 / 1k / 1.6k / 2.5k / 4k / 6.3k / 10k / 16k Hz
    • Level: -9dB to +9dB
  • General
    • Operating voltage: 12V DC battery
    • Installation Size (W x H x D): 4-9/16” x 4-3/16” x 2-15/16”
    • Net Weight (includes Trim Bezel, Mounting Plate, and Screws): 2.0 lbs


What's in the Box

What's in the Box

  • KMR-M300BT Marine & Motorsport Digital Media Receiver with IP66 Waterproof Rating, Corrosion Resistance, and Bluetooth

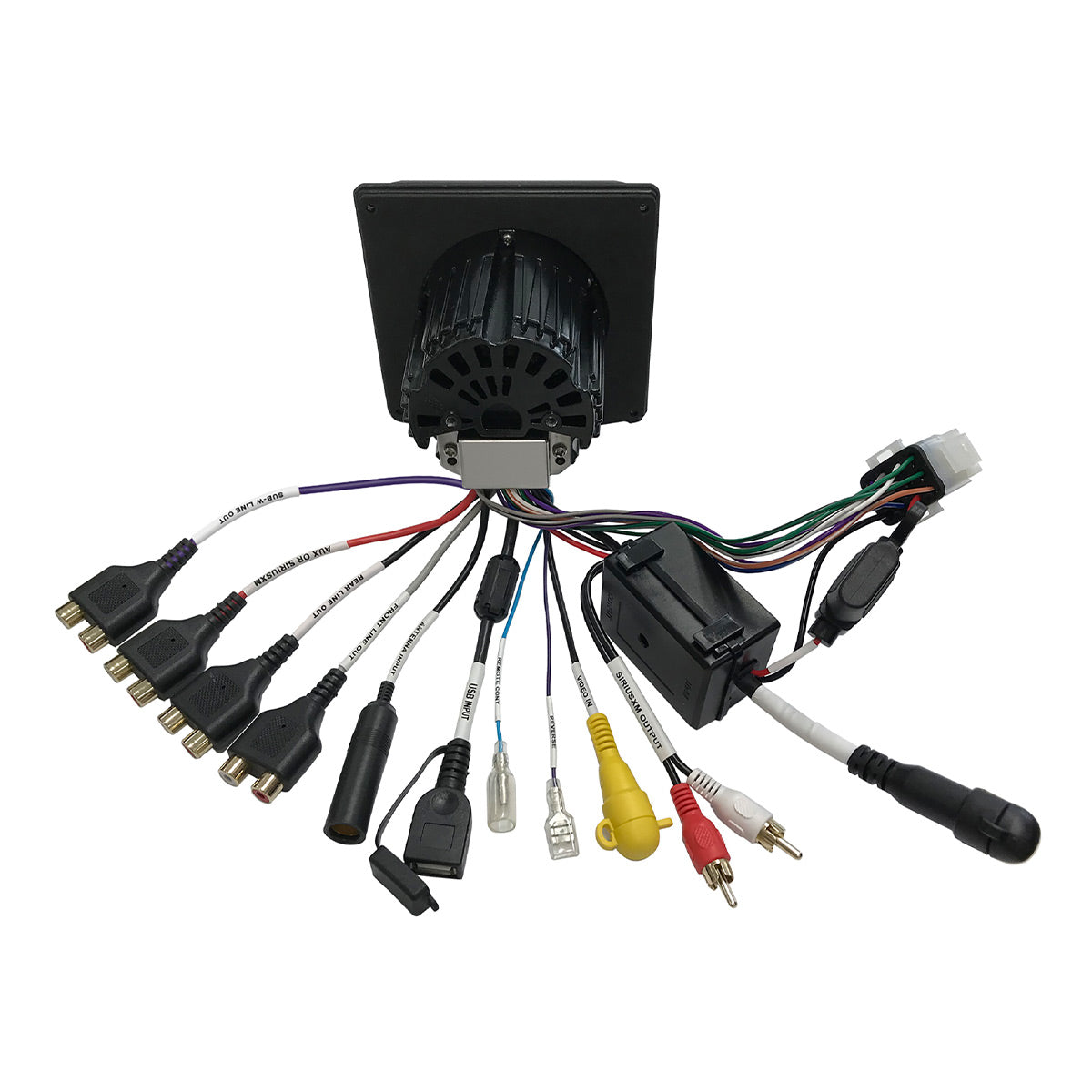

  • Wiring harness
  • Trim-ring
  • Trim-ring Tool
  • Mounting Bracket
  • Mounting Plate
  • Mounting Hardware
  • Instruction Manual
  • Warranty Card
