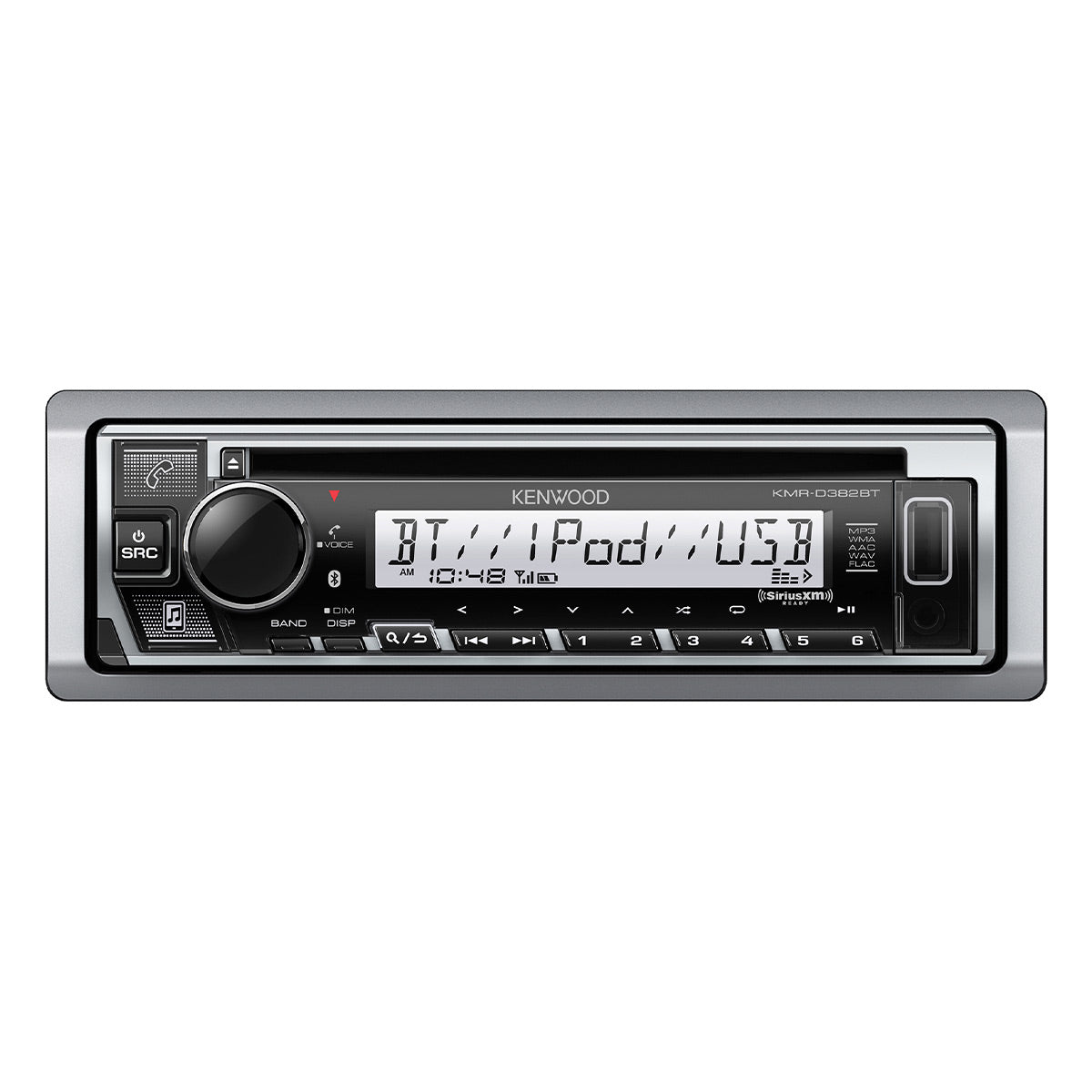

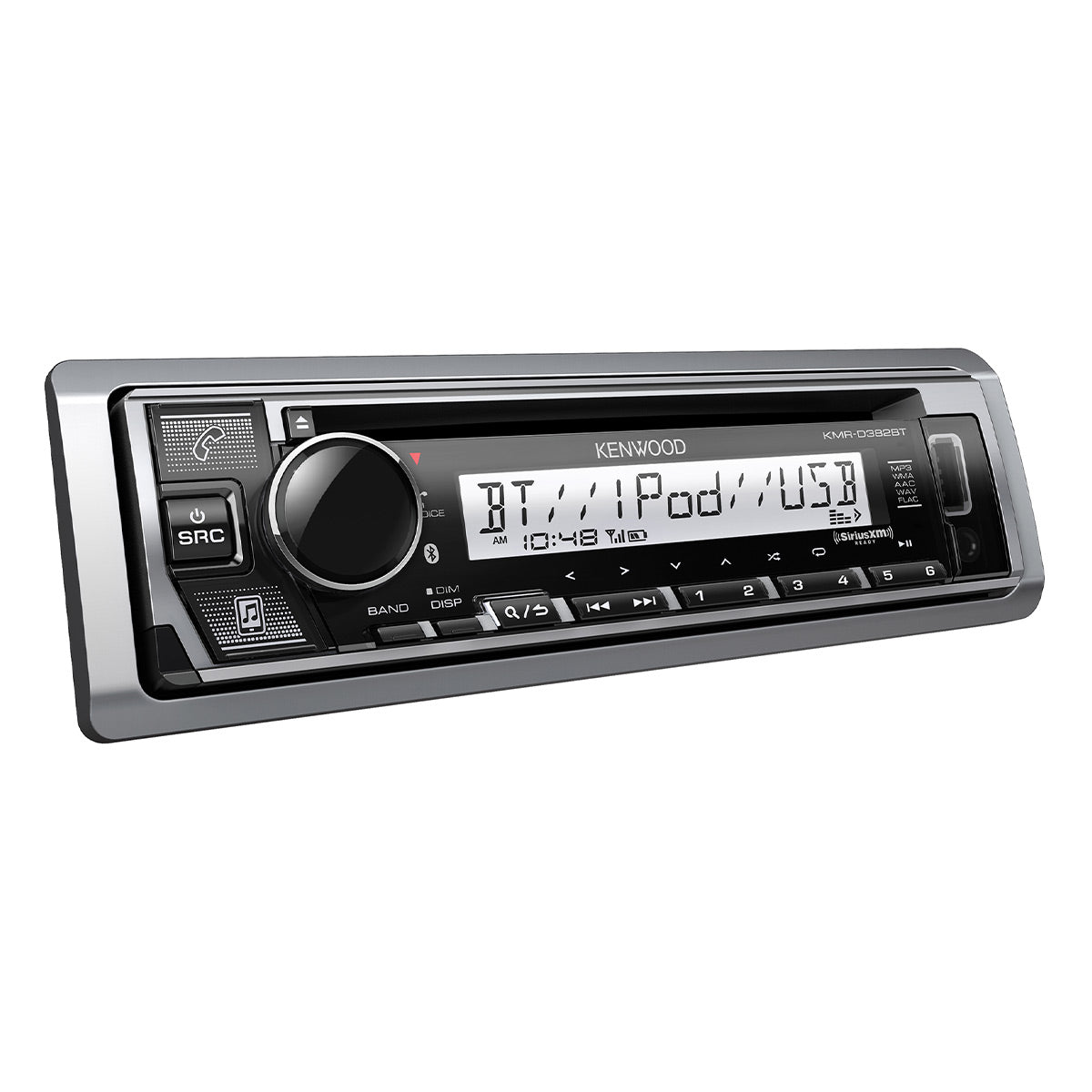

Kenwood KMR-D382BT Marine CD Receiver with Bluetooth & Conformal Coating

$179.00 OR

Regular Price: $210.00

Save: $31.00 (15%)

In Stock

More Product Details

Our product experts are here to help

Questions? We're here to help.

Model: KMR-D382BT UPC: 019048232564 Item: 177642

Product Information

Features

  • 255 Segment 1.5 Line Text Display
  • Bluetooth Direct Access Button
  • Variable Color Illumination
  • 13Band EQ & DTA
  • Conformal Coating
  • Optional Wired Remote Control Ready
  • Front USB & AUX-IN
  • 3 Preouts 4.0V

Music Mix

Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching devices with your friends or family.

Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

Remote App

A smartphone application can control the most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

Wireless Music Browsing (AVRCP 1.5 / 1.6)

Search and select songs from your music collection through a Bluetooth connection.

Graphic EQ / Digital Time Alignment

13-Band equalizer and DTA give optimal tuning enhancements for listeners.

Drive EQ

Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.

FLAC Supported

Compatible with various audio file formats from FLAC and WAV, to MP3, WMA, and AAC.

Android Rapid Charge

Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 1.5A.

Variable Color Illumination

Bright variable color LEDs can be adjusted to match any color dash lighting.

Conformal Coating

Improved moisture resistance of the circuit boards to prevent corrosion.

Specifications

Specifications

  • FM
    • Frequency Range(MHz): 87.9MHz to 107.9MHz
    • (Frequency step): (200kHz)
    • Usable Sensitivity: 8.2dBf
    • S/N:30dB: (0.71μV/75Ω)
    • Quieting Sensitivity: 17.2dBf
    • DIN S/N:46dB: (2.0μV/75Ω)
    • Frequency Response(±3.0dB): 30Hz to 15kHz
    • S/N(dB): 64.0dB(MONO)
    • Stereo Separation: 40dB(1kHz)
  • MW (AM)
    • Frequency Range(kHz): 530kHz to 1700kHz
    • (Frequency step): (10kHz)
    • Usable Sensitivity: 29dBμ (28.2μV)
  • CD
    • Laser Diode: GaAlAs
    • Digital Filter(D/A): 8 Times OverSampling
    • Spindle Speed: 500 to 200rpm (CLV)
    • Wow & Flutter: Below Measurable Limit
    • Frequency Response: 20Hz to 20kHz(±1dB)
    • Total Harmonic Distortion: 0.02%(1kHz)
    • S/N Ratio (dB): 94dB(1kHz)
    • Dynamic Range: 91dB
    • Channel Separation: 86dB
    • MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
    • WMA Decode: Compliant with WINDOWS MEDIA AUDIO
    • AAC Decode: AAC-LC ".aac" files
  • Preout Level(mV)/Load -Unbalanced: 4000mV/10kΩ
  • Preout Impedance(Ω): =<600Ω
  • Speaker Impedance(Ω): 4 to 8Ω
  • USB I/F
    • USB: USB 1.1 / 2.0 High Speed
    • File System: FAT12 / 16 / 32
    • Maximum Supply current: DC5V(DC logo) 1.5A
    • Frequency Response: 20Hz to 20kHz(±1dB)
    • S/N Ratio (dB): 98dB(1kHz)
    • Dynamic Range: 94dB
    • Channel Separation: 91dB
    • MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
    • WMA Decode: Compliant with Windows Media Audio
    • AAC Decode: AAC-LC ".aac",".m4a" files
    • WAV Decode: Linear-PCM
    • FLAC Decode: FLAC file (Up to 24bit/96kHz)
  • AUX Input
    • Frequency Response: 20Hz to 20kHz ±3dB
    • Input Maximum Voltage: 1000mV
    • Input Impedance: 30kΩ
  • AMP
    • PWR(MAX): 50Wx4
    • Full Bandwidth Power (at less than 1%THD): 22Wx4
  • TONE
    • Band1: 62.5Hz ±9dB
    • Band2: 100Hz ±9dB
    • Band3: 160Hz ±9dB
    • Band4: 250Hz ±9dB
    • Band5: 400Hz ±9dB
    • Band6: 630Hz ±9dB
    • Band7: 1kHz ±9dB
    • Band8: 1.6kHz ±9dB
    • Band9: 2.5kHz ±9dB
    • Band10: 4kHz ±9dB
    • Band11: 6.3kHz ±9dB
    • Band12: 10kHz ±9dB
    • Band13: 16kHz ±9dB
  • Bluetooth
    • Version: Bluetooth 4.2
    • Frequency Range: 2.402 to 2.480GHz
    • RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
    • Maximum Communication range: Line of sight approx.10m(32.8ft)
    • Profile
      • HFP 1.7.1 (Hands-Free Profile)
      • SPP(Serial Port Profile)
      • PBAP(Phonebook Access Profile)
      • A2DP(Advanced Audio Distribution Profile)
      • AVRCP 1.6.1 (Audio/Video Remote Control Profile)
  • GENE
    • Operating voltage: 12V DC car battery
    • Dimensions (W x H x D): 7-3/16" x 2-1/16" x 6-1/8"
    • Weight: 2.7 lbs (Trim plate and Mounting sleeve: Included)

Reviews

We'd love to hear your thoughts! Please leave a review.

Customer Reviews for Kenwood KMR-D382BT Marine CD Receiver with Bluetooth & Conformal Coating

There are no reviews for this item. Write Review

Q&A

Customer Q & A

Have a functionality, compatibility, or otherwise product-specific question about this product? Ask it here! If you have a customer service or shipping question, please direct it to our customer service department

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 1 answer
What wired marine remote is compatible with this radio?
Sierra K on Jan 21, 2023
  Thanks for your inquiry. Our marine stereo experts can be reached at 215-368-8343 and are happy to answer questions regarding car fit and compatibility.
