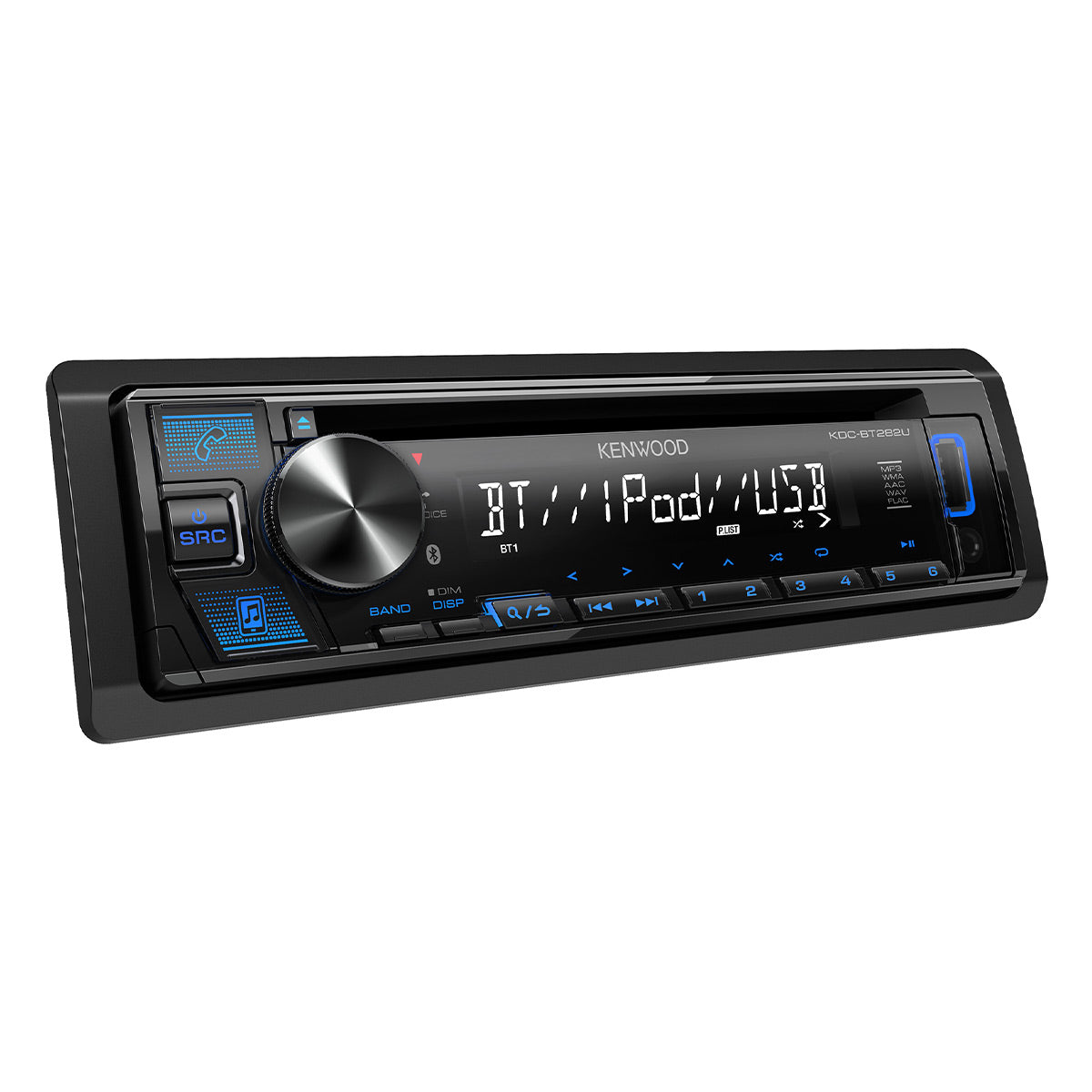

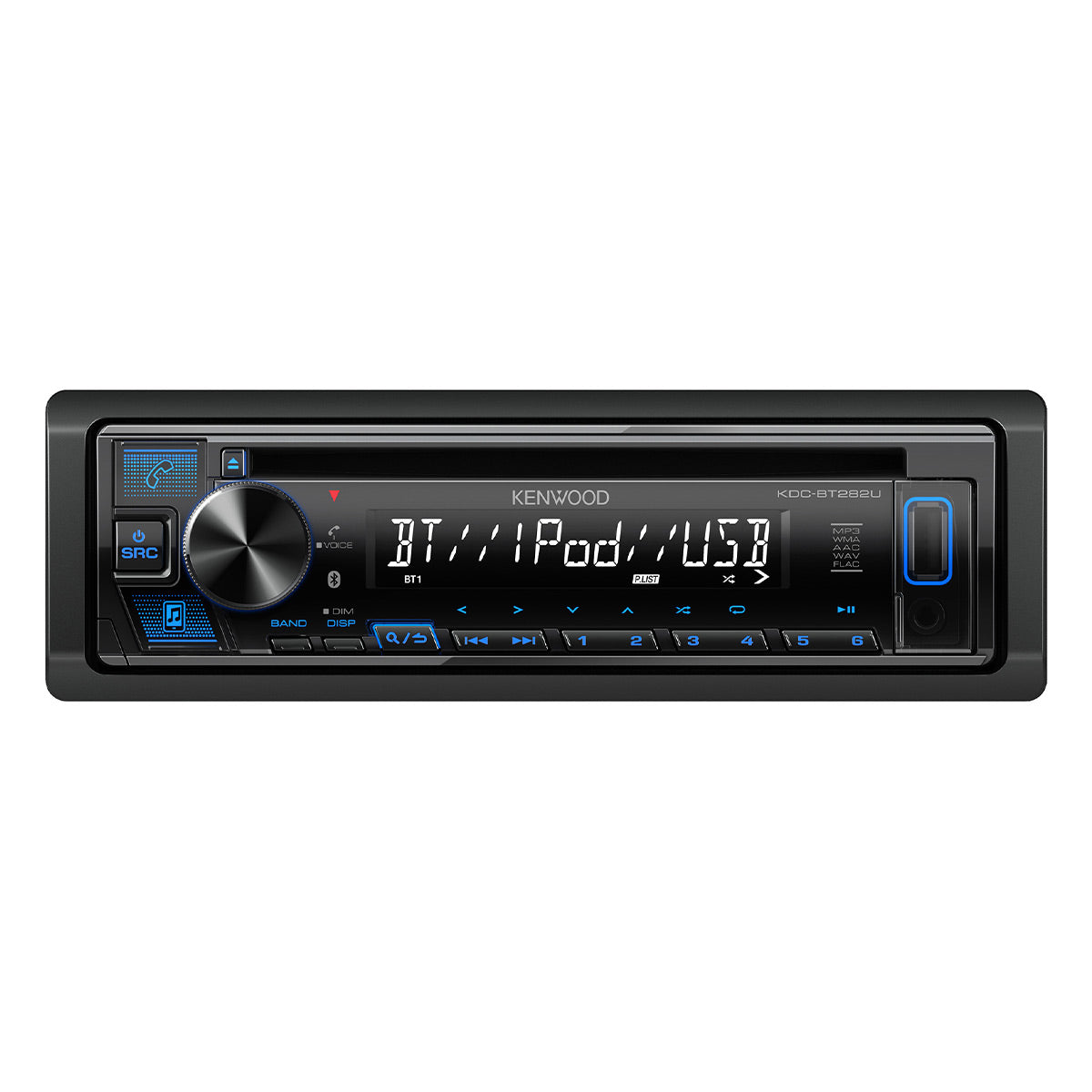

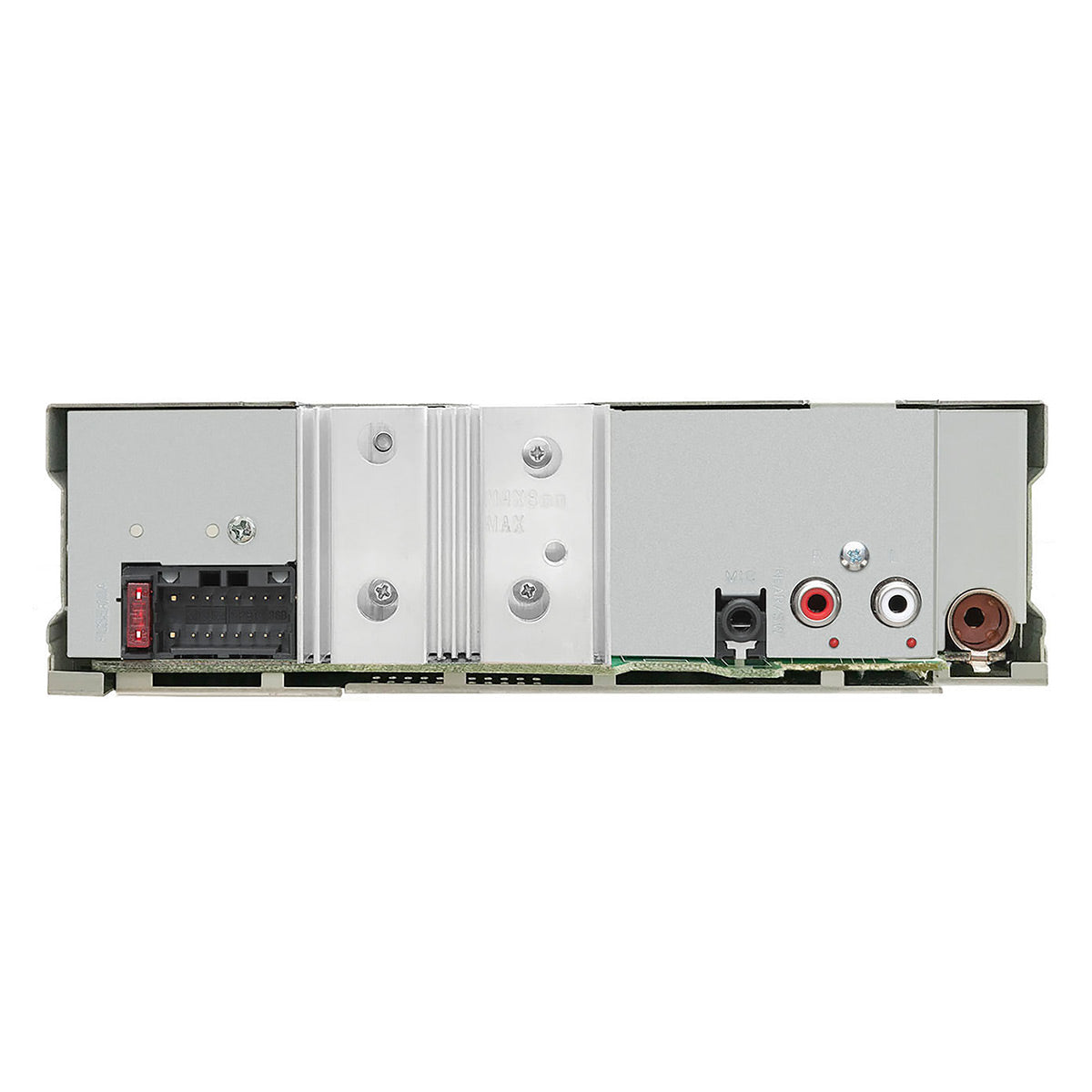

Kenwood KDC-BT282U CD Receiver with Bluetooth

Specifications

• FM
  • Frequency Range (MHz) (Frequency Step): 87.9MHz to 107.9MHz (200kHz)
  • Usable Sensitivity (S/N: 30dB): 8.2dBf (0.71µV/75Ω)
  • Quieting Sensitivity (DIN S/N: 46dB): 17.2 dBf (2.9µV/75Ω)
  • Frequency Response (±3.0dB): 30Hz to 15kHz
  • S/N (dB): 64.0dB (MONO)
  • Stereo Separation: 40dB (1kHz)
• MW (AM)
  • Frequency Range (kHz) (Frequency Range): 530kHz to 1700kHz (10kHz)
  • Usable Sensitivity (S/N 20dB): 29dBµV)
• CD
  • Laser Diode: GaAIAS
  • Digital Filter (D/A): 8 Times Over Sampling
  • Spindle Speed: 500 to 200 rmp (CLV)
  • Wow & Flutter: Below Measurable Limit
  • Frequency Response: 20Hz to 20kHz (±1dB)
  • Total Harmonic Distortion: 0.02% (1kHz)
  • S/N Ratio (dB): 94dB (1kHz)
  • Dynamic Range: 91dB
  • Channel Separation: 86dB
  • MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
  • WMA Decode: Compliant with WINDOWS MEDIA AUDIO
  • AAC Decode: AAC-LC ".aac" files
• Preout Level (mV)/Load
  • Unbalanced: 2500mV/10kΩ
• Preout Impedance (Ω): =<600Ω
• Speaker Impedance (Ω): 4 to 8Ω
• USB I/F
  • USB: USB 1.1 / 2.0 High Speed
  • File System: FAT12 / 16 / 32
  • Maximum Supply current: DC5V (DC logo) 1.5A
  • Frequency Response: 20Hz to 20kHz (±1dB)
  • S/N Ratio (dB): 98dB (1kHz)
  • Dynamic Range: 94dB
  • Channel Separation: 91dB
  • MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
  • WMA Decode: Compliant with Windows Media Audio
  • AAC Decode: AAC-LC ".aac", ".m4a" files
  • WAV Decode: Linear-PCM
  • FLAC Decode: FLAC file (Up to 24bit/96kHz)
• AUX Input
  • Frequency Response: 20Hz to 20kHz ±3dB
  • Input Maximum Voltage: 1000mV
  • Input Impedance: 30kΩ
• AMP
  • PWR (MAX): 50W x 4
  • Full Bandwidth Power (at less than 1% THD): 22W x 4
• TONE
  • Band1: 62.5Hz ±9dB
  • Band2: 100Hz ±9dB
  • Band3: 160Hz ±9dB
  • Band4: 250Hz ±9dB
  • Band5: 400Hz ±9dB
  • Band6: 630Hz ±9dB
  • Band7: 1kHz ±9dB
  • Band8: 1.6kHz ±9dB
  • Band9: 2.5kHz ±9dB
  • Band10: 4kHz ±9dB
  • Band11: 6.3kHz ±9dB
  • Band12: 10kHz ±9dB
  • Band13: 16kHz ±9dB
• Bluetooth
  • Version: Bluetooth 4.2
  • Frequency Range: 2.402 to 2.480 GHz
  • RF Output Power (E.I.R.P): +4dBm (MAX), Power Class 2
  • Maximum Communication range: Line of sight approx. 10m (32.8 ft)
  • Profile
    • HFP 1.7.1 (Hands Free Profile)
    • SPP (Serial Port Profile)
    • PBAP (Phonebook Access Profile)
    • A2DP (Advanced Audio Distribution Profile)
    • AVRCP 1.6.1 (Audio/Video Remote Control Profile)
• GENE
  • Operating voltage: 12V DC car battery
  • Installation Size (W x H x D): 7-3/16" x 2-1/16" x 6-1/8"
  • Weight: 2.7 lbs (Trim plate and mounting sleeve included)
