Kenwood KAC-M8005 eXcelon Class D 5-Channel Marine Amplifier

Regular price $499.00
Sale price $499.00 Regular price
Save $-499.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Thu, May 8 – Thu, May 15

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: KAC-M8005 | UPC: 019048214546

Specifications

What's In The Box

Product Documents

Product Information

Model: KAC-M8005 | UPC: 019048214546

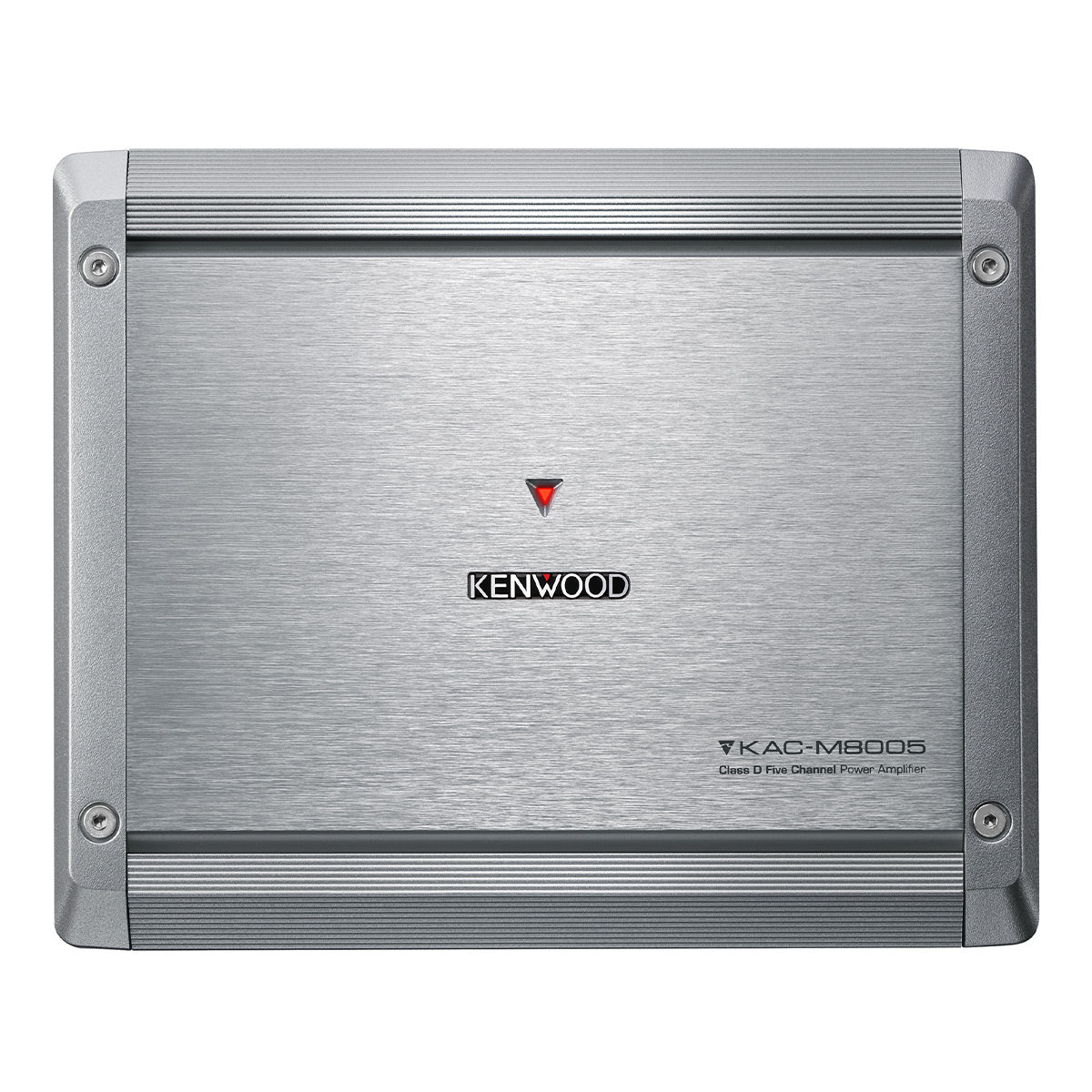

The Kenwood KAC-M8005 is a robust 5-channel amplifier engineered for marine and motorsport enthusiasts seeking high-quality audio performance in challenging environments. Its compact design and durable construction make it an ideal choice for those looking to enhance their sound systems on boats, ATVs, or motorcycles.

Features

  • Up to 1600-Watts of Max Power
  • 5-Channel Versatility
  • Marine-Grade Durability
  • Advanced Audio Controls
  • Compact & Easy Installation

Powerful and Versatile Performance

Delivering a maximum power output of 1600W, the KAC-M8005 provides 50W RMS to each of four channels at 4 ohms, plus an additional 300W to a subwoofer channel. At 2 ohms, it offers 75W RMS per channel and 500W to the subwoofer, ensuring ample power to drive a full-range audio system with clarity and depth.

Marine-Grade Durability

Designed to withstand harsh conditions, this amplifier features a conformal-coated circuit board that protects against moisture and salt exposure, making it suitable for marine applications. Its rugged construction ensures reliable performance whether you're on the water or off-road.

Advanced Audio Control

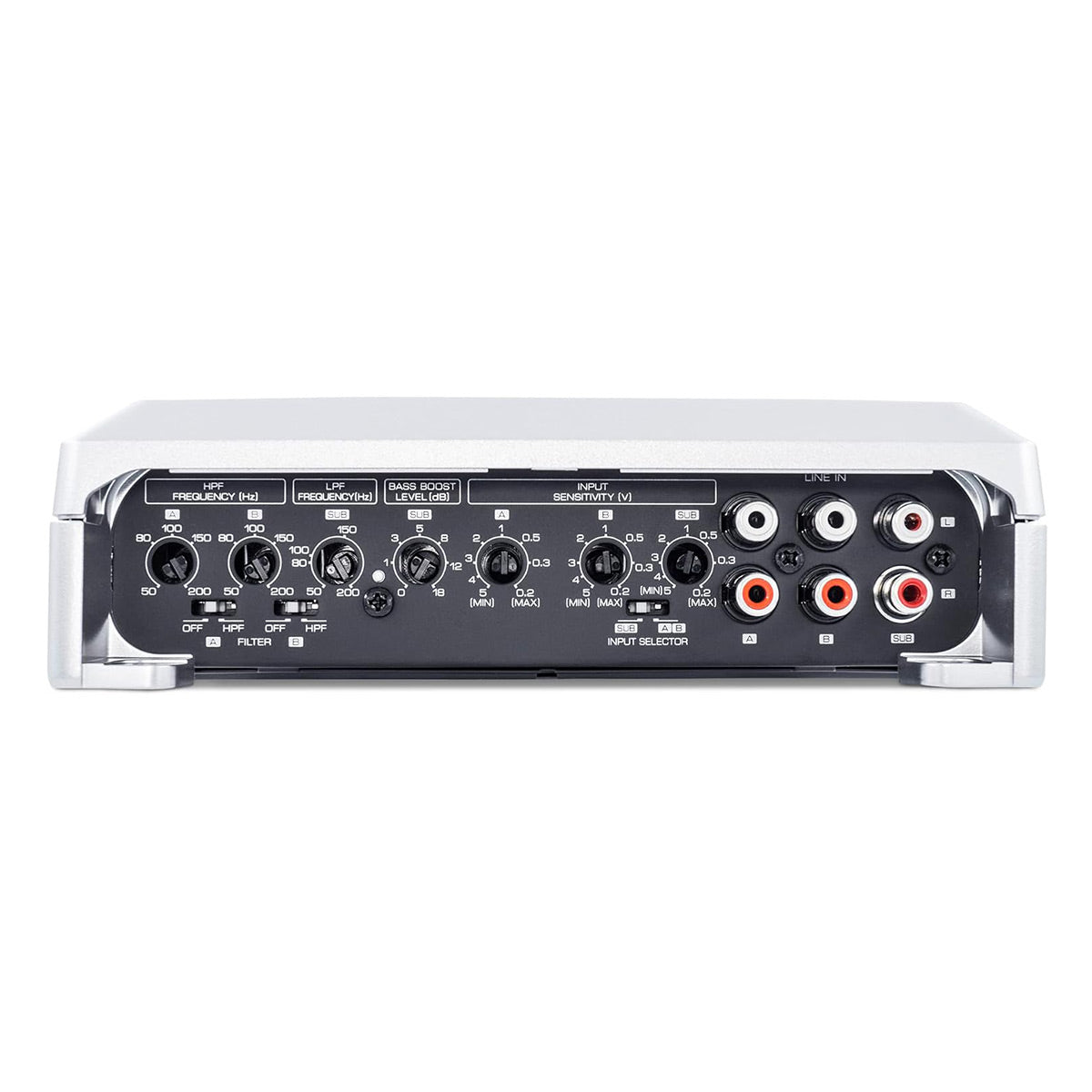

The KAC-M8005 includes variable low-pass and high-pass filters, allowing users to fine-tune frequencies for optimal sound quality across different speaker setups. Additionally, a bass boost feature enables enhancement of low-frequency output, delivering a richer bass experience tailored to your preferences.

Flexible Installation Options

Equipped with speaker-level inputs and signal sensing turn-on capabilities, this amplifier simplifies installation by accommodating various audio sources without the need for separate remote turn-on wiring. Its compact dimensions (9” x 2-3/16” x 7-3/8”) allow for versatile placement even in vehicles with limited space.

Specifications

  • Power Output (CEA-2006 Compliant)
    • Maximum Power: 1600W
    • Rated Power Output at 14.4V
      • A/B Channels (4 Ohms): 50 Watts RMS x 4 (20-20kHz, ≤1.0% THD)
      • A/B Channels (2 Ohms): 75 Watts RMS x 4 (1kHz, ≤1.0% THD)
      • Subwoofer Channel (4 Ohms): 300 Watts RMS x 1 (20-200Hz, ≤0.5% THD)
      • Subwoofer Channel (2 Ohms): 500 Watts RMS x 1 (100Hz, ≤0.5% THD)
      • A/B Channels Bridged (4 Ohms): 150 Watts RMS x 2 (1kHz, ≤1.0% THD)
  • Audio Performance
    • Signal-to-Noise Ratio: 100dB (Reference: Rated Power into 4 Ohms at 14.4V)
    • Frequency Response
      • A/B Channels: 20Hz-50kHz (+0dB, -3dB)
      • Subwoofer Channel: 20Hz-200Hz (+0dB, -3dB)
  • Input Sensitivity
    • RCA Input: 0.2V - 5.0V
    • Speaker Level Input: 4.0V - 12.0V
  • Crossover and Filters
    • Low-Pass Filter (Subwoofer): 50Hz-200Hz, -24dB/oct
    • High-Pass Filter (A/B Channels): 50Hz-200Hz, -12dB/oct
    • Bass Boost (Subwoofer): 40Hz, 0dB to +18dB
  • General Specifications
    • Dimensions (W x H x D): 9" x 2-3/16" x 7-3/8"
    • Operating Voltage: 14.4V (11-16V allowable)

What's In The Box

  • KAC-M8005 eXcelon Class D 5-Channel Marine Amplifier
  • Mounting Hardware
  • Manual
