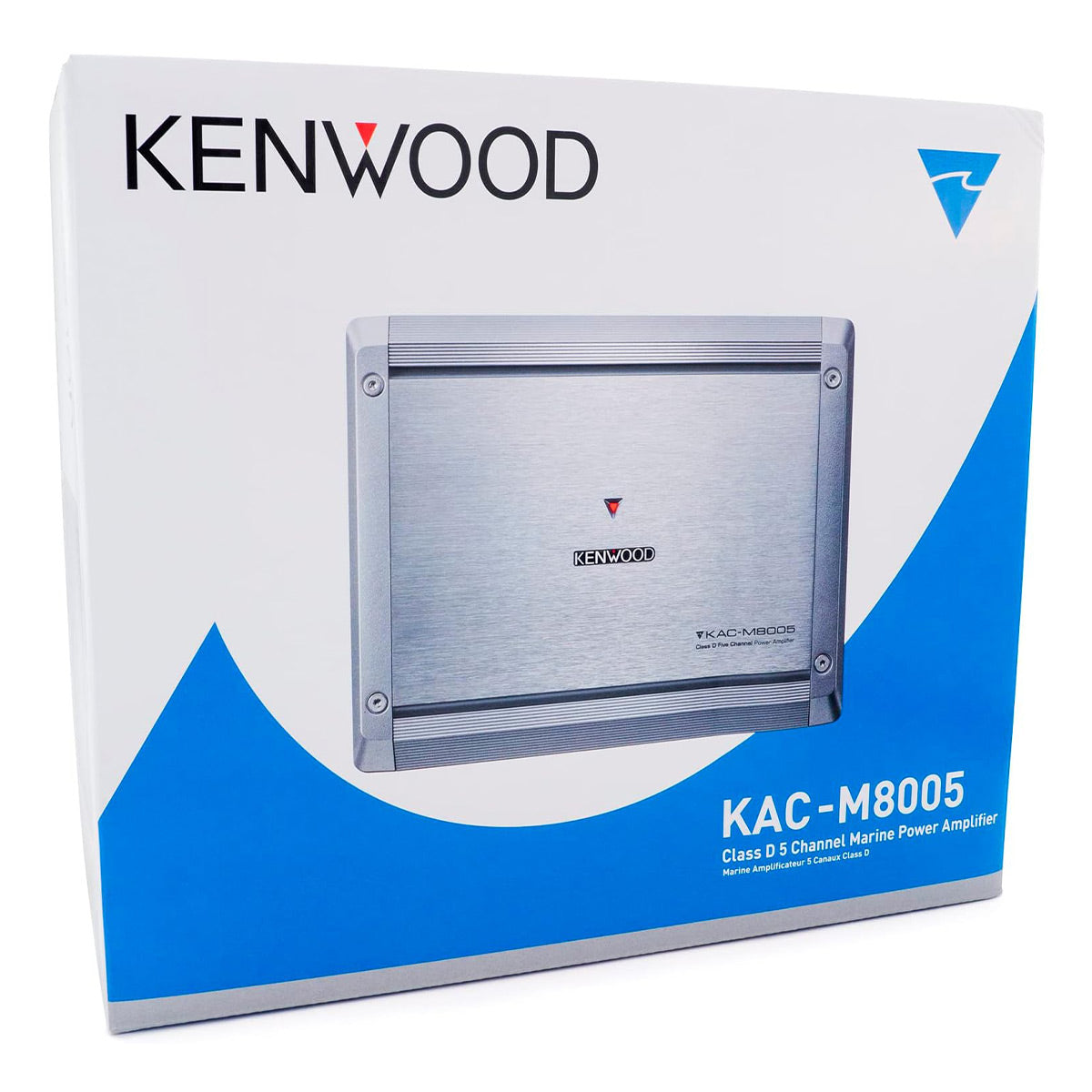

Kenwood KAC-M8005 eXcelon Class D 5-Channel Marine Amplifier

Model: KAC-M8005 UPC: 0019048214546 Item: 166259

Product Information

Kenwood KAC-M8005 eXcelon 5-Channel Marine Amplifier Features:

  • MAX Power: 1600W
  • RMS Power:
    • 50W x 4 + 300W (4Ω)
    • 75W x 4 + 500W (2Ω)
    • 150W x 2 (Bridged) + 300W (4Ω) Conformal Coating*
  • Speaker Level Input
  • Signal Sensing Turn-on
  • Variable Low & High-pass Filter
  • Bass Boost
  • (W)9” x (H)2-3/16” x (D)7-3/8”

Specifications

Kenwood KAC-M8005 eXcelon 5-Channel Marine Amplifier Specifications:

CEA-2006 Primary Ratings

  • Power Output: 50 Watts RMS x 4 + 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N
  • Signal-to-Noise Ratio: 80dBA (Reference: 1Watt into 4Ohms)

Rated Power Output at 14.4V

  • A/B (4 Ohms): 50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
  • A/B (2 Ohms): 75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
  • SUB (4 Ohms): 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
  • SUB (2 Ohms): 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
  • A/B (Bridged 4Ohms): 150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)

Specifications

  • Maximum Power Output: 1600W
  • Signal to Noise Ratio: 100dB (Reference: Rated Power into 4Ohms at 14.4V)
  • Frequency Response: 20Hz-50kHz (+0dB, -3dB) A/B, 20Hz-200Hz (+0dB, -3dB) SUB
  • Input Impedance: 10k ohm
  • Speaker Impedance: 4Ω (2Ω to 8Ω allowable)
  • Bridged Connection: 4Ω to 8Ω allowable

Audio Section

  • Low-Pass Filter: 50Hz-200Hz, -24dB/oct (SUB)
  • High-Pass Filter: 50Hz-200Hz, -12dB/oct (A/B)
  • Bass Boost: 40Hz, 0dB - +18dB (SUB)
  • RCA Input Sensitivity: 0.2[V] - 5.0 [V]
  • Speaker Level Input Sensitivity: 4.0[V] - 12.0 [V]

Terminals

  • Battery & Ground: M6 Screw Type Terminal Block
  • Speaker Output: M4 Screw Type Terminal Block

General

  • Dimensions (WxHxD): 9 x 2-3/16 x 7-3/8 [inch]
  • Operating Voltage: 14.4V (11-16V allowable)
  • Current Consumption: 58[A]

Key Features

  • CEA-2006 Compliant
  • 2 Ohms Load Capability
  • Speaker Level Input with Signal Sensing Turn-on
  • Power MOS-FET Switching Power Supply
  • Extruded Aluminum Heat Sink Design
  • A B Sub Independent Gain Adjustment
