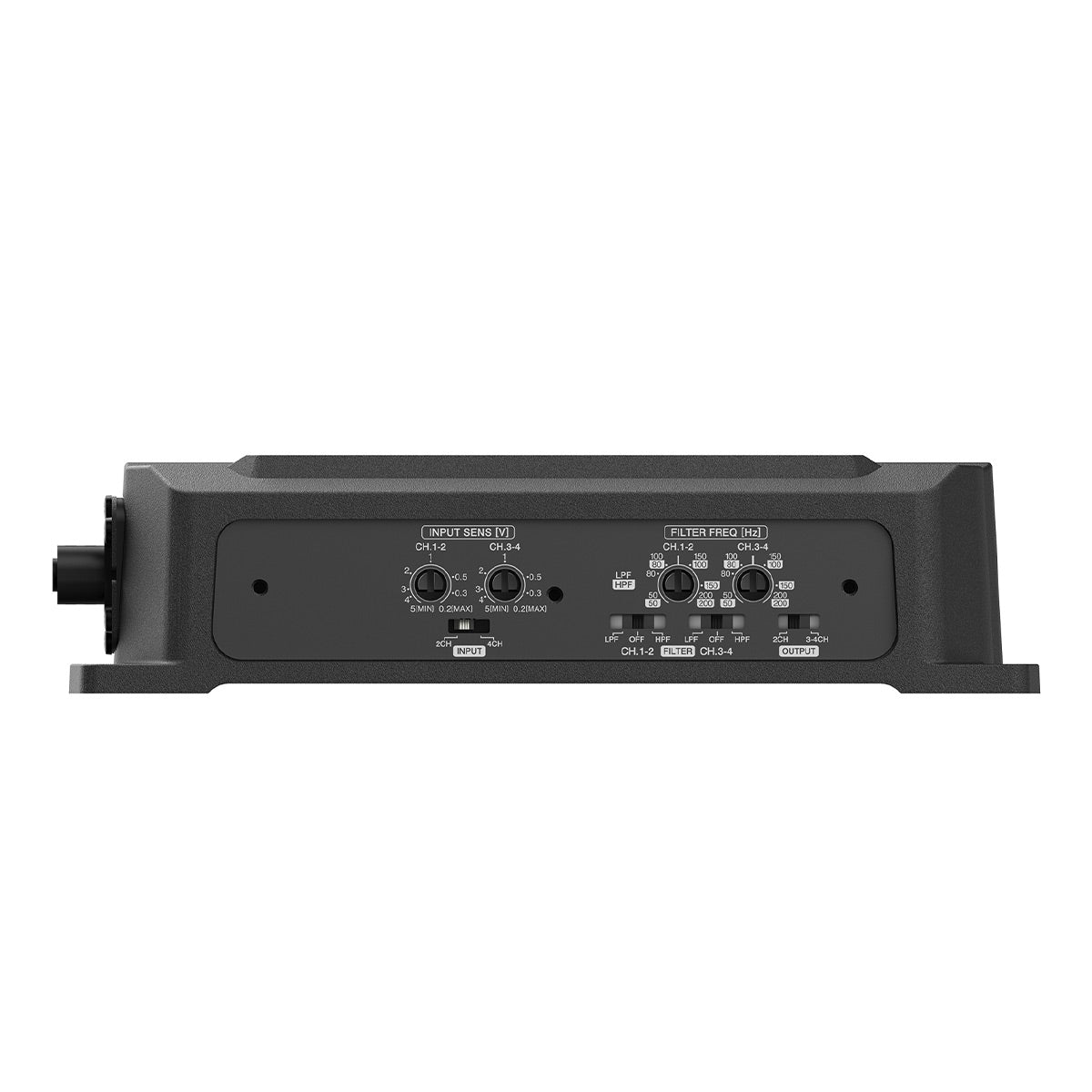

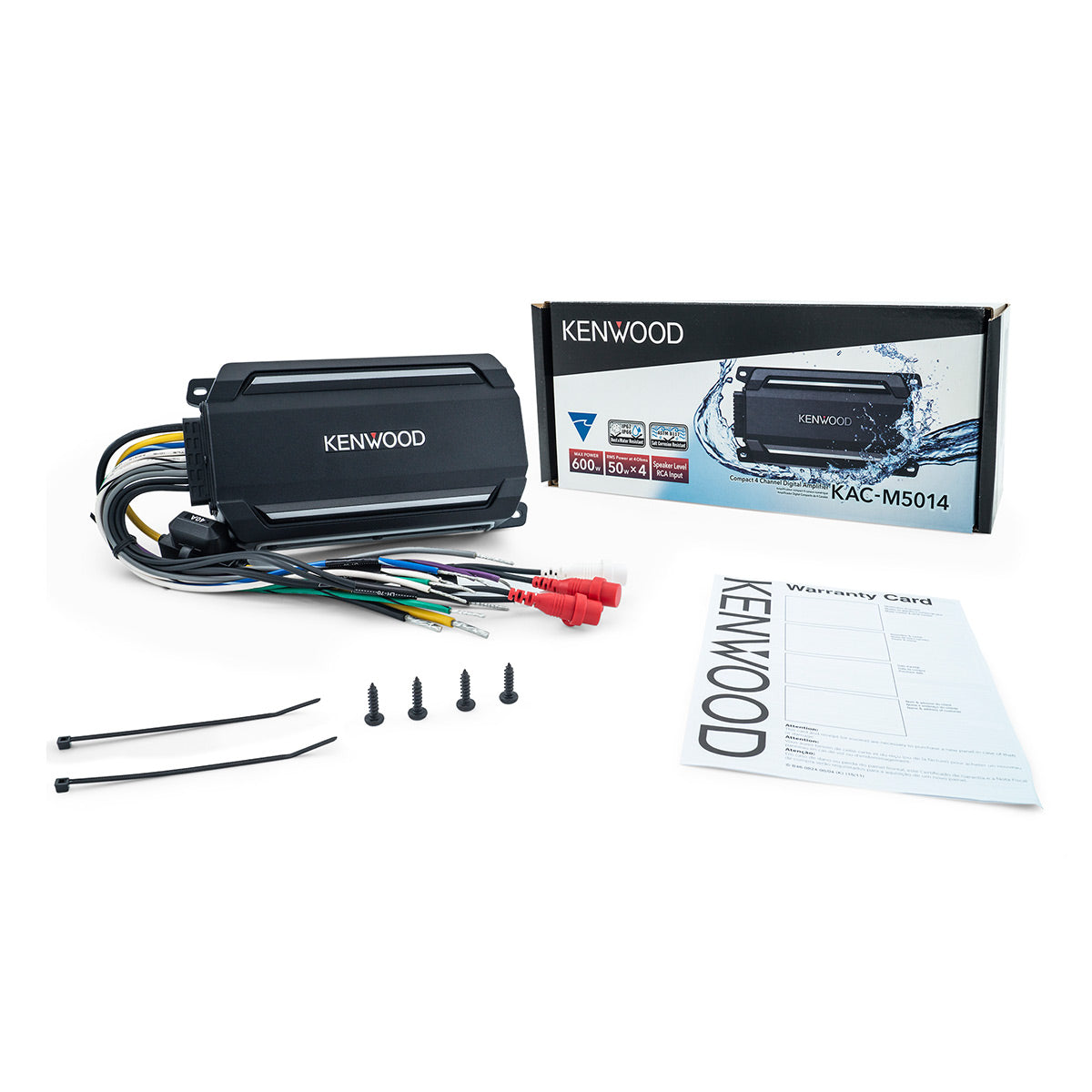

Kenwood KAC-M5014 Compact 4-Channel Digital Marine & Motorsport Amplifier

Specifications

• Amplifier Type: Class D
• CTA-2006-D Value
  • Maximum Dynamic Power: 65W at 4ohms and ≤ 10% THD + N
  • Continuous Power Output: 50W at 4ohms and ≤ 1% THD + N
  • Signal to Noise: 77dBA reference 1 Watt RMS
• Maximum Power Output
  • MAX POWER: 600W
• RMS Power at 14.4V
  • A/B (4 Ohms): 50Watts RMS x 4 at 4 Ohms, 20Hz-20kHz , ≤1% THD+N
  • A/B (2 Ohms): 75Watts RMS x 4 at 4 Ohms, 1kHz, ≤1%THD+N
  • A/B (Bridged 4 Ohms): 150Watts RMS x 2 at 4 Ohms, 1kHz, ≤1%THD+N
• Audio
  • Signal to Noise Ratio: 89dB (Reference: Rated Power into 4Ohms at 14.4V)
  • Frequency Response: 10Hz-35kHz (+0dB, -3dB)
  • Input Impedance: 10k ohm
  • Speaker Impedance: 4Ω ( 2Ω to 8Ω allowable)
  • Bridged Connection: 4Ω to 8Ω allowable
  • Low-pass Filter: 50-200Hz, -12dB/oct (A/B CH)
  • High-pass Filter: 50-200Hz, -12dB/oct (A/B CH)
  • Filter Selector: LPF/OFF/HPF (A/B CH)
  • RCA Input Sensitivity: 0.2 (V) - 5.0 (V)
  • Speaker Level Input Sensitivity: 4.0 (V) - 12.0 (V)
  • Input Selector: 2ch, 4ch
  • Output Selector: 2ch, 3/4ch
• Terminal
  • Battery & Ground: 12" 10-gauge Pigtail Cable with Molded Strain Relief Bushing
  • Speaker Output: 12" 16-gauge Pigtail Cable with Molded Strain Relief Bushing
  • Line In (Pigtail RCA): Yes (A/B)
  • Pre Out (Pigtail RCA): No
  • Speaker Input (Pigtail RCA In): Yes (A/B)
• General
  • Dimensions (W x H x D): 7-13/16" x 1-15/16" x 4-1/8"
  • Weight: 2.9 lbs
  • Operating Voltage: 14.4V (11-16V allowable)
  • Current Consumption: 26A
  • Fuse: 40A
