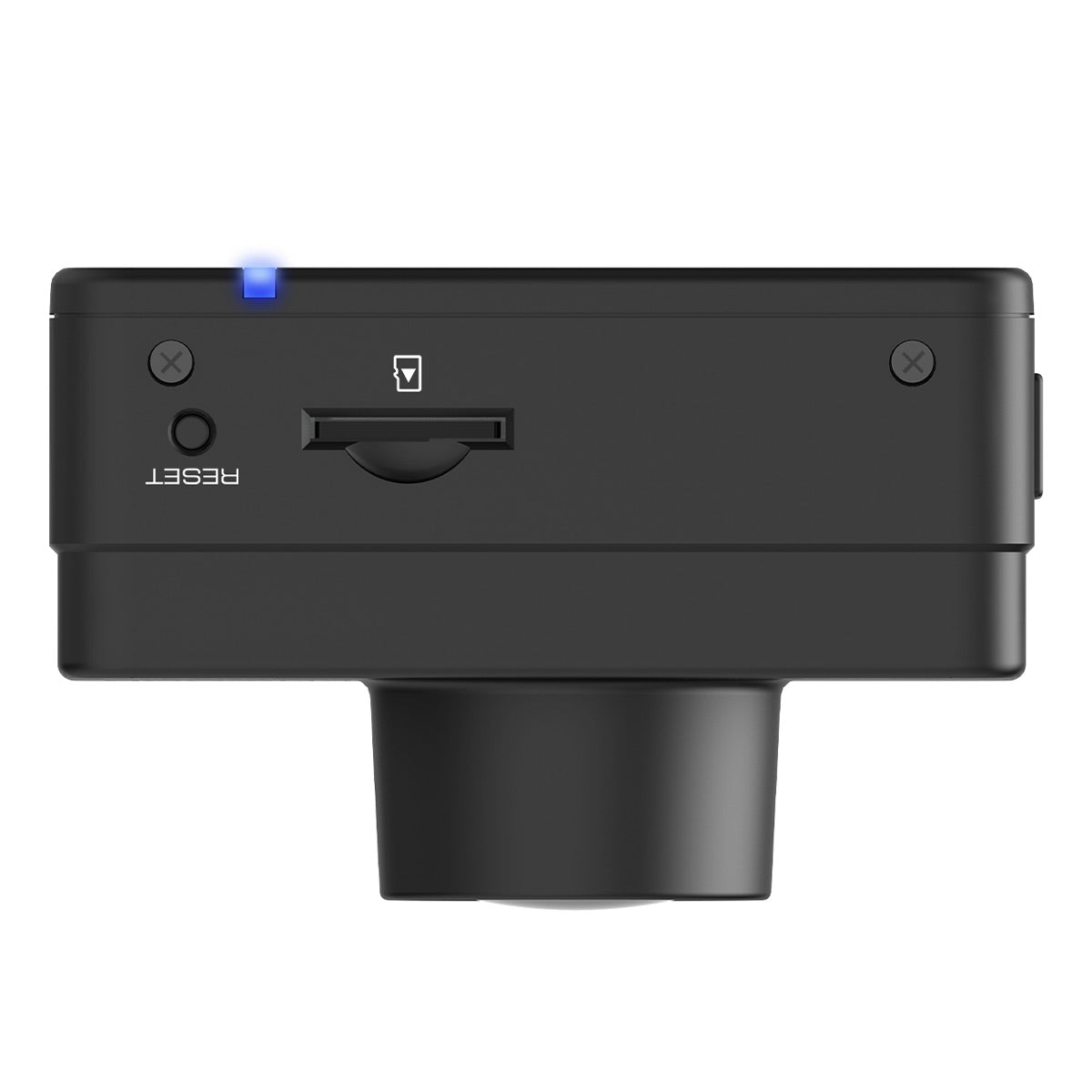

Kenwood DRV-A510WDP Front & Rear Wide Quad HD Dash Cam System

Regular price $219.00
Sale price $219.00 Regular price
Save $-219.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Mon, Nov 11 – Mon, Nov 18

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Kenwood DRV-A510WDP Front & Rear Wide Quad HD Dash Cam System Overview

Product Information

Model: DRV-A510WDP | UPC: 019048239495

Specifications

What's In The Box

Product Documents

Product Information

Model: DRV-A510WDP | UPC: 019048239495

Features

  • 3.7 MP Front & 2.0 MP Rear Recording
  • Built-in G-Sensor & GPS
  • IP67 Dust and Waterproof (Rear)
  • Compact Design
  • 12V & 24V Compatible
  • Supports micro SDXC/SDHC Cards up to 256GB

High-Definition Recording & Wireless Link

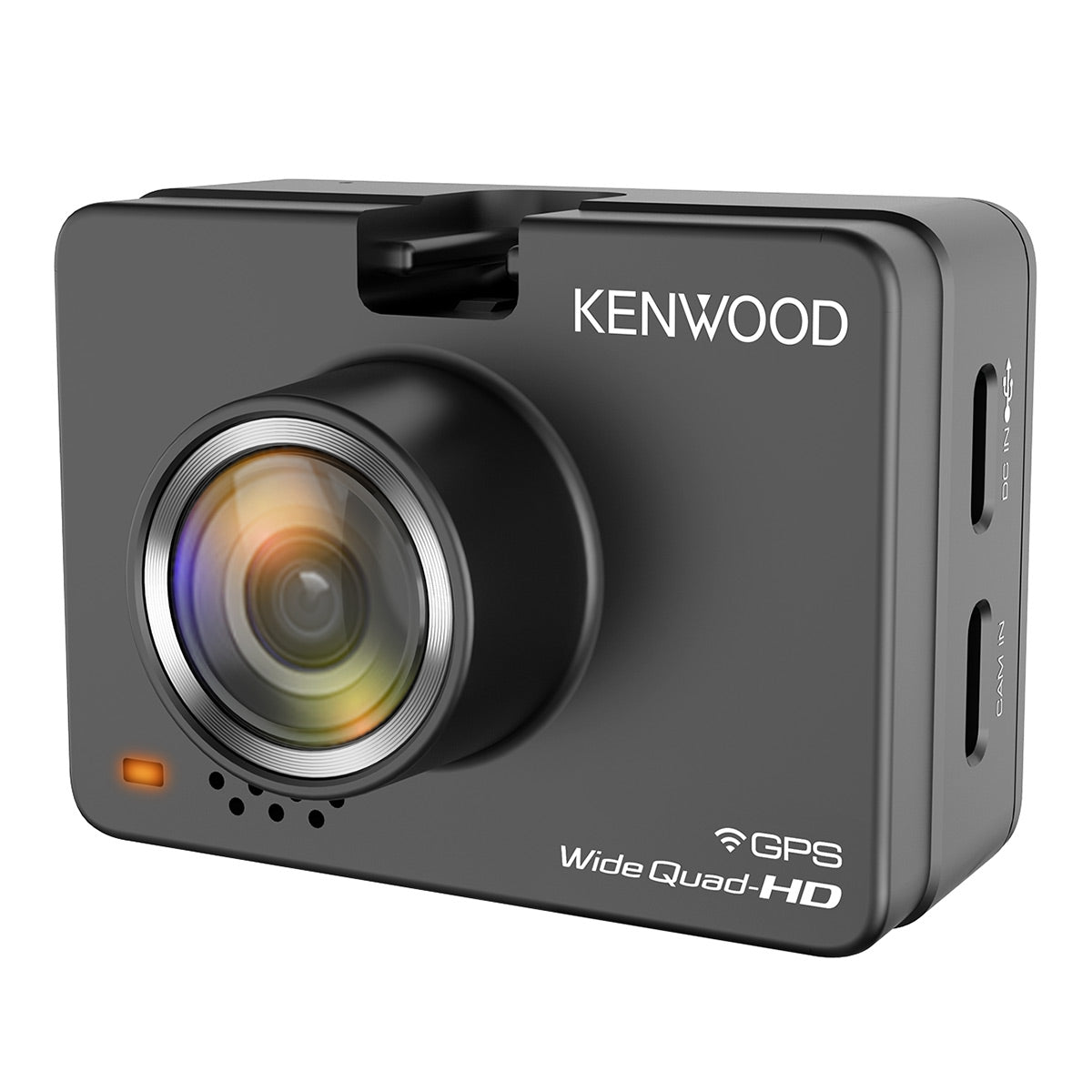

Dual Camera package is equipped with 3.7 Megapixel Wide Quad Hi-Vision (Front Camera) and 2.0 Megapixel High-Vision (Rear Camera) recording and provides easy data transfer to your smartphone through Wireless Link.

HDR & WDR for Backlighting

Easily records clear images in dark or well lit settings without underexposing or overexposing the image.

Front & Rear View Recording

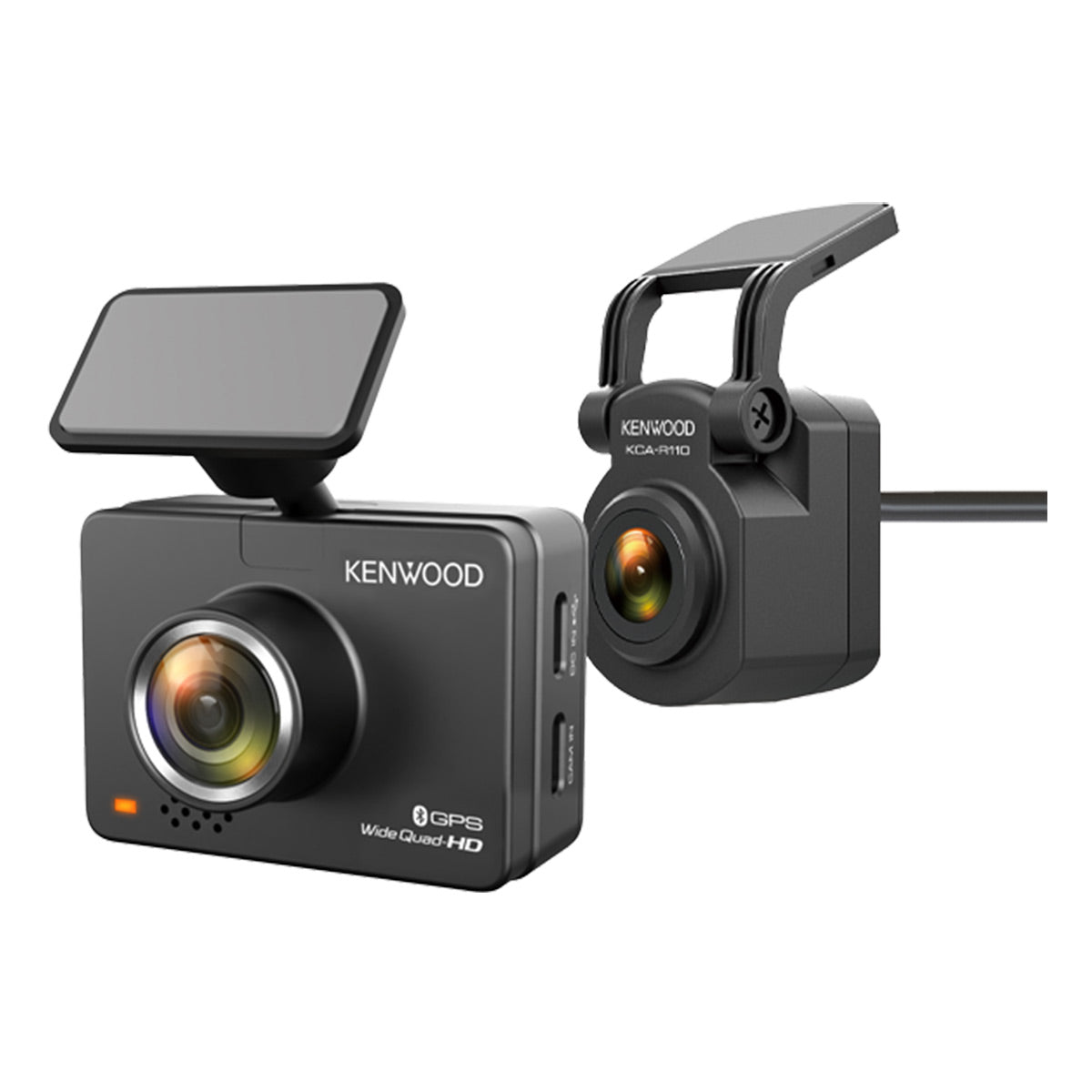

The DRV-A510WDP includes 2 dash cams: 1 to record in front of your vehicle and 1 to record behind your vehicle, all at the same time. The rear dash cam includes a 26’ cable that connects to the front dash cam, allowing it to easily be mounted to the rear windshield or outside of the vehicle where you would like to record.

26'(8m) Rear Camera Cable

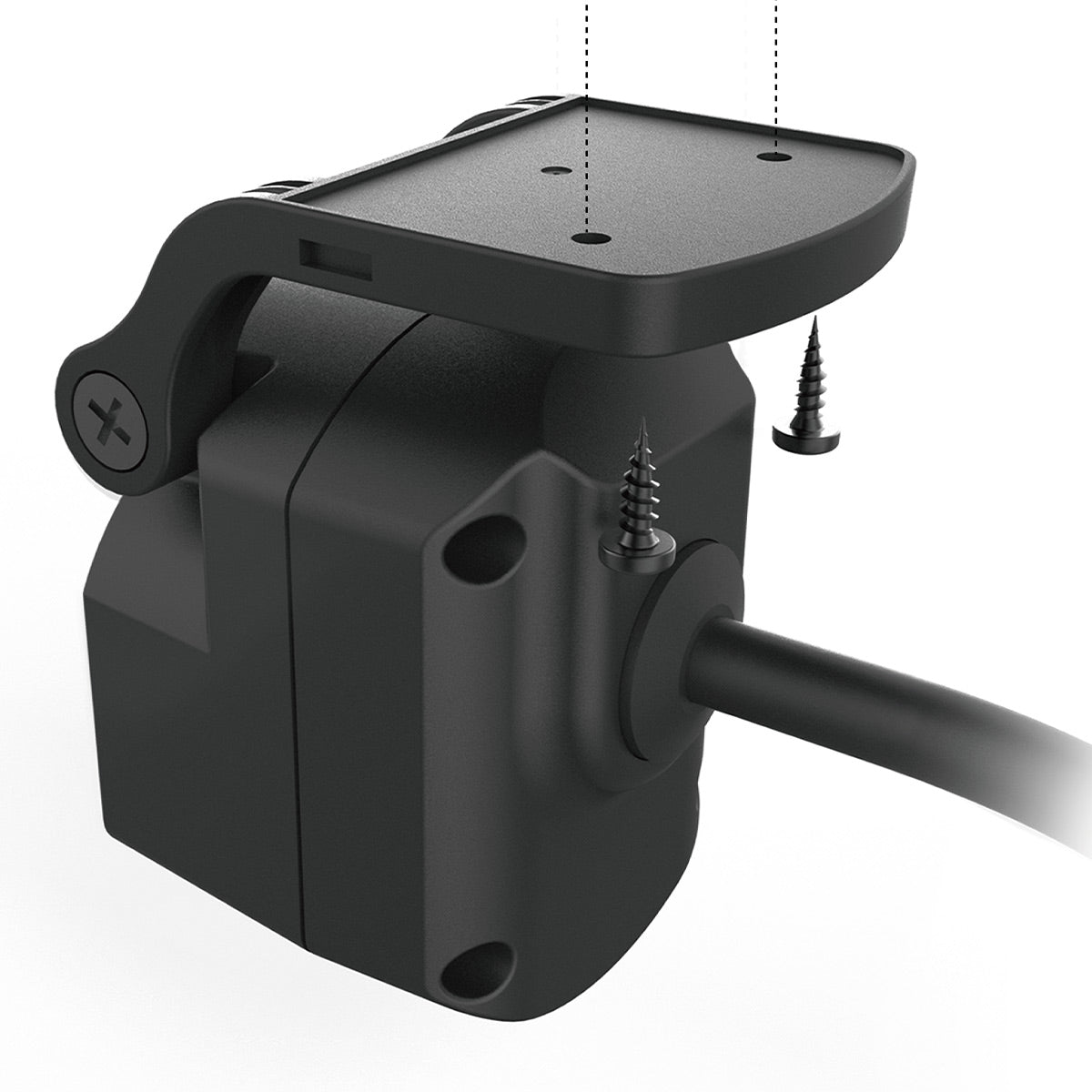

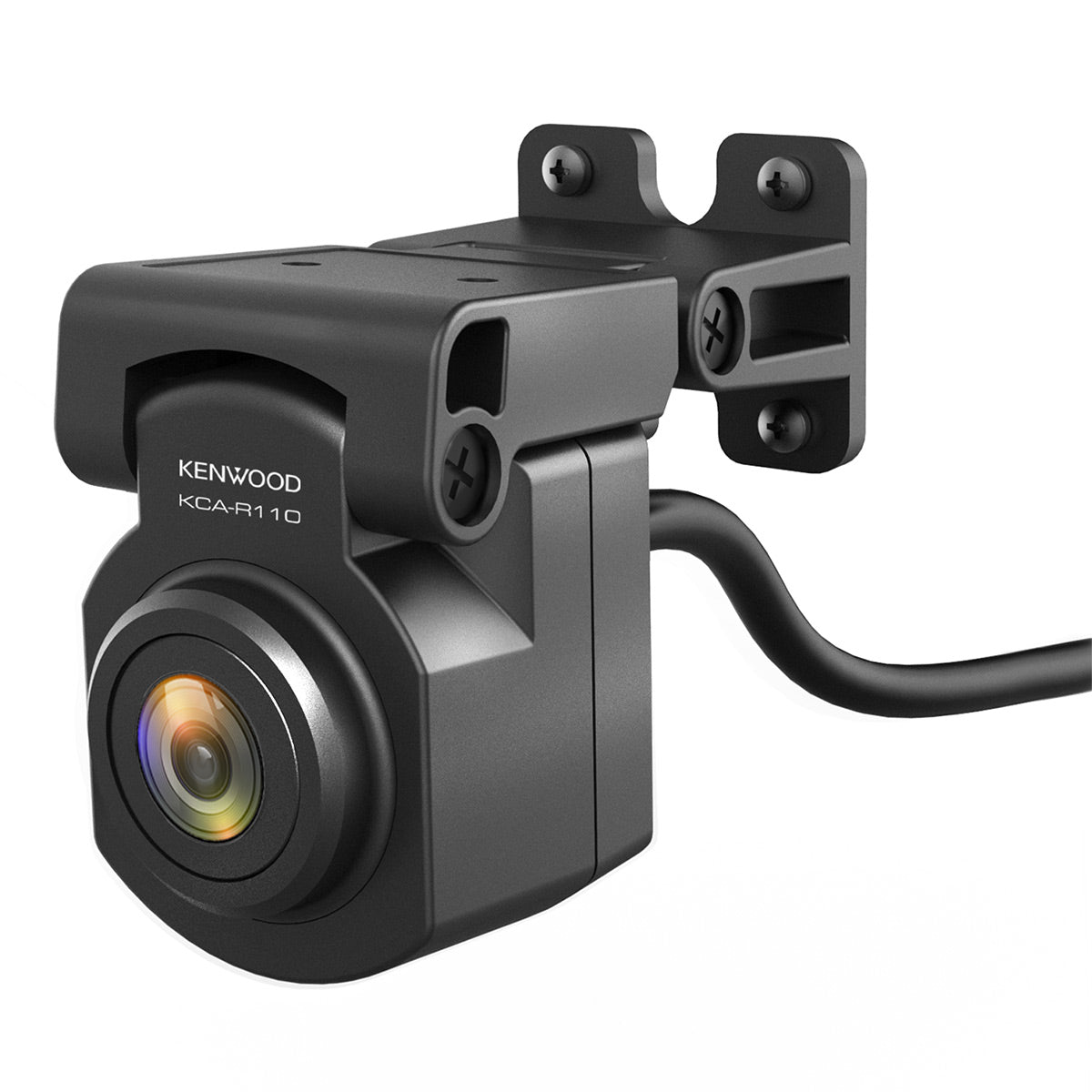

26' (8m) power & video cable enable you to install the rear camera inside or outside of your car, truck, or RV.

Wireless Link App

KENWOOD DASH CAM MANAGER can be used to remote control and live stream preview in a short distance or download and review videos from DRV-A510W. With its mapping function, users can view the route, speed, latitude, longitude, and direction of the drive at the time.

G-sensor & Built-in GPS

The DRV-A510W is equipped with a G-Sensor designed to detect a collision, and GPS that records speed, latitude, and longitude.

IP67 Waterproof & Dustproof

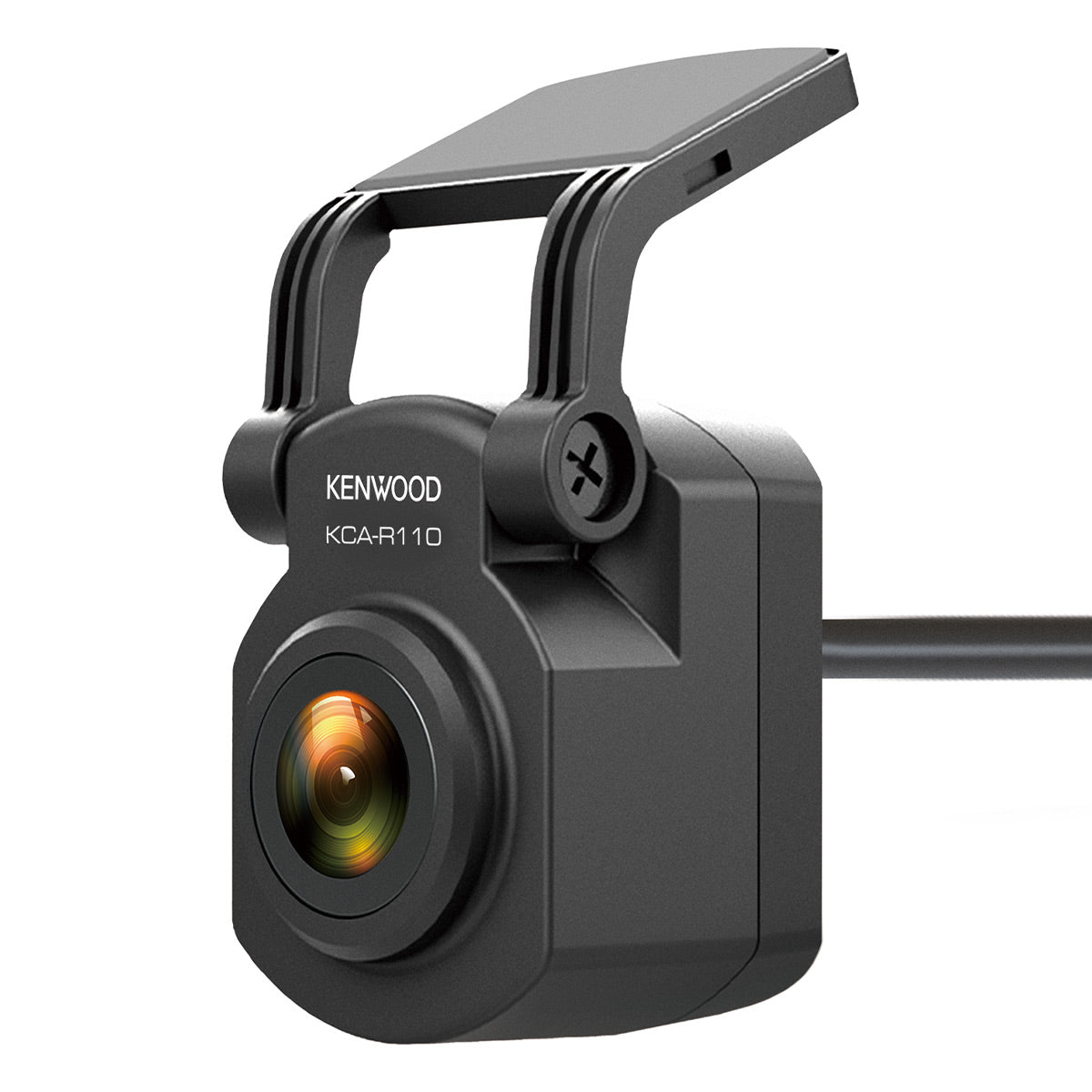

The Rear Camera carry an IP67, meaning that camera can be submerged in up to 3.3 feet of water for 30 minutes. The Camera is also fully sealed and protected against dust entry.

Parking Mode & Motion Detection Recording

When the vehicle is parked and turned off, parking mode becomes active. If the vehicle is subject to a collision or other physical impact, the cameras power on and automatically record 30 seconds of video.

In standby mode, if the device detects any moving objects, the camera will automatically record a 30-second video and then stop recording until there are no more moving objects.

*Please Note: Optional CA-DR1130 hardware kit required for Parking Mode & Motion Detection Recording (sold separately).

Super Capacitor

If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.

Specifications

  • Product Name / Model Number: Dash Cam / DRV-A510W
  • Power Requirements: 5V/1.5A; 12-24V DC
  • Power Supply (Car power cable)
    • Input: 12-24V DC
    • Output: 5V DC
    • Fuse Type: SMD/4A
  • Power Input (Car power cable): Built-in super capacitor
  • Front Sensor Resolution: 5M Pixel
  • Rear Sensor Resolution (Rear camera is sold separately): 2M Pixel
  • Front Lens Angle / Aperture: 135.6° /F1.8
  • Rear Lens Angle / Aperture (Rear camera is sold separately): 131.6° / F2.0
  • Front Recording Resolution: 2K (2560 x 1440 pixel) @ 30fps
  • Rear Recording Resolution: 1080p (1920 x 1080 pixel) @ 30fps

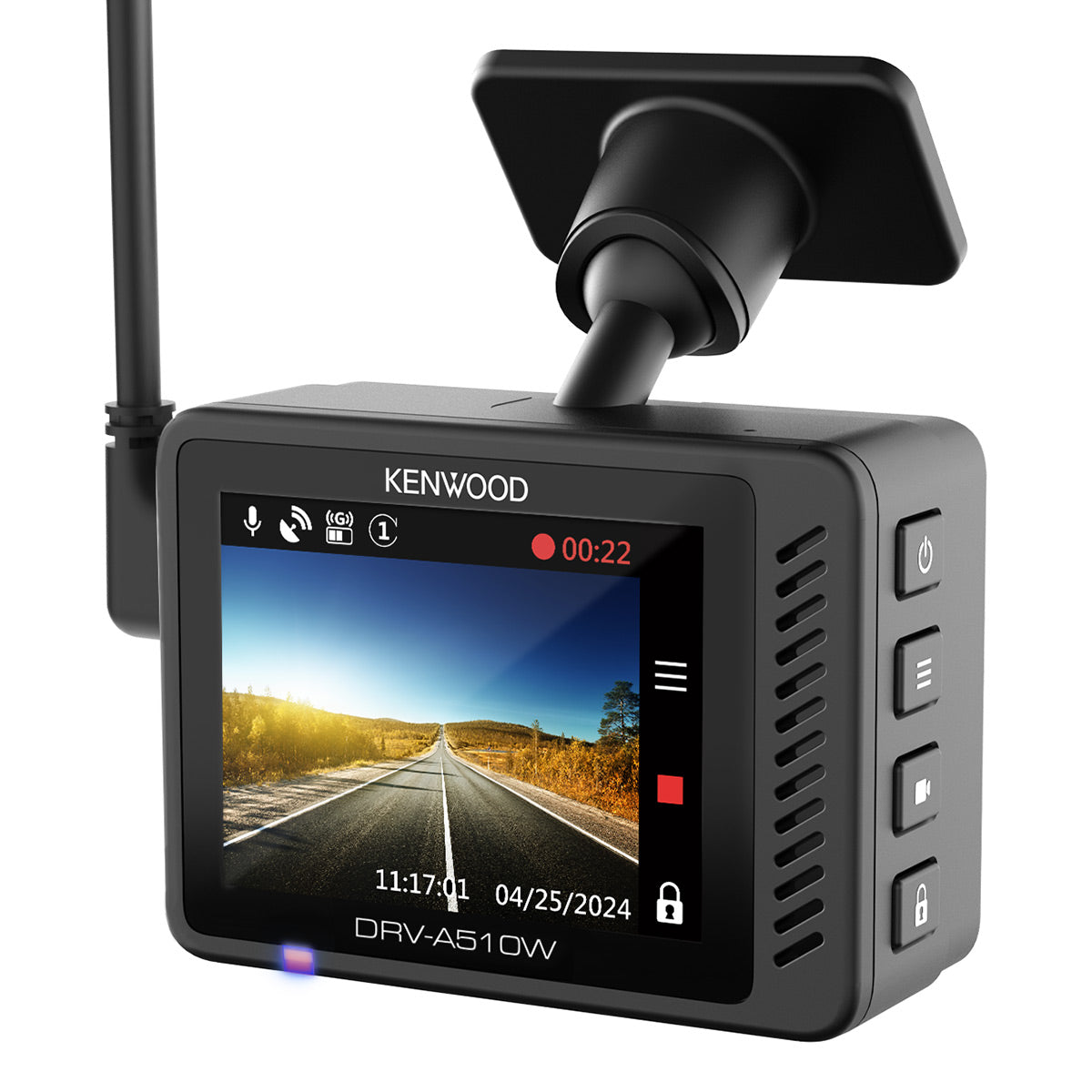

  • Screen Size: 2.0"
  • Screen Resolution: 320(W) x 240(H) pixel x RGB
  • Screen Ratio: 4:3
  • Card Reader: Micro SD, SDHC, up to 256GB
  • SD Card (Recommended Type): micro SDXC/SDHC card 8GB to 256GB supported, UHS type 3 recommended for best results
  • SD Card Recorded File Capacity (Based on Default Settings)
    • 32 GB Micro SD = 190 mins of recording
    • 64 GB Micro SD = 380 mins of recording
    • 128 GB Micro SD = 760 mins of recording
    • 256 GB Micro SD = 1520 mins of recording
  • Weight and Dimensions
    • Front Unit Dimensions (W x H x D): 2.3” x 1.68” x 0.96”
    • Front Unit Weight: 0.15 lbs.
    • Rear Unit Dimensions (W x H x D): 1.06” X 2” x 1.25”
    • Rear Unit Weight: 0.66 lbs.

What's In The Box

  • DRV-A510WDP 4K/2K Front & Rear Dash Cam System
  • Adhesive Mount
  • Car Power Cable
  • USB Car Charger Cable Clips
  • Manual

Please note: SD card for storage sold separately
