Kenwood

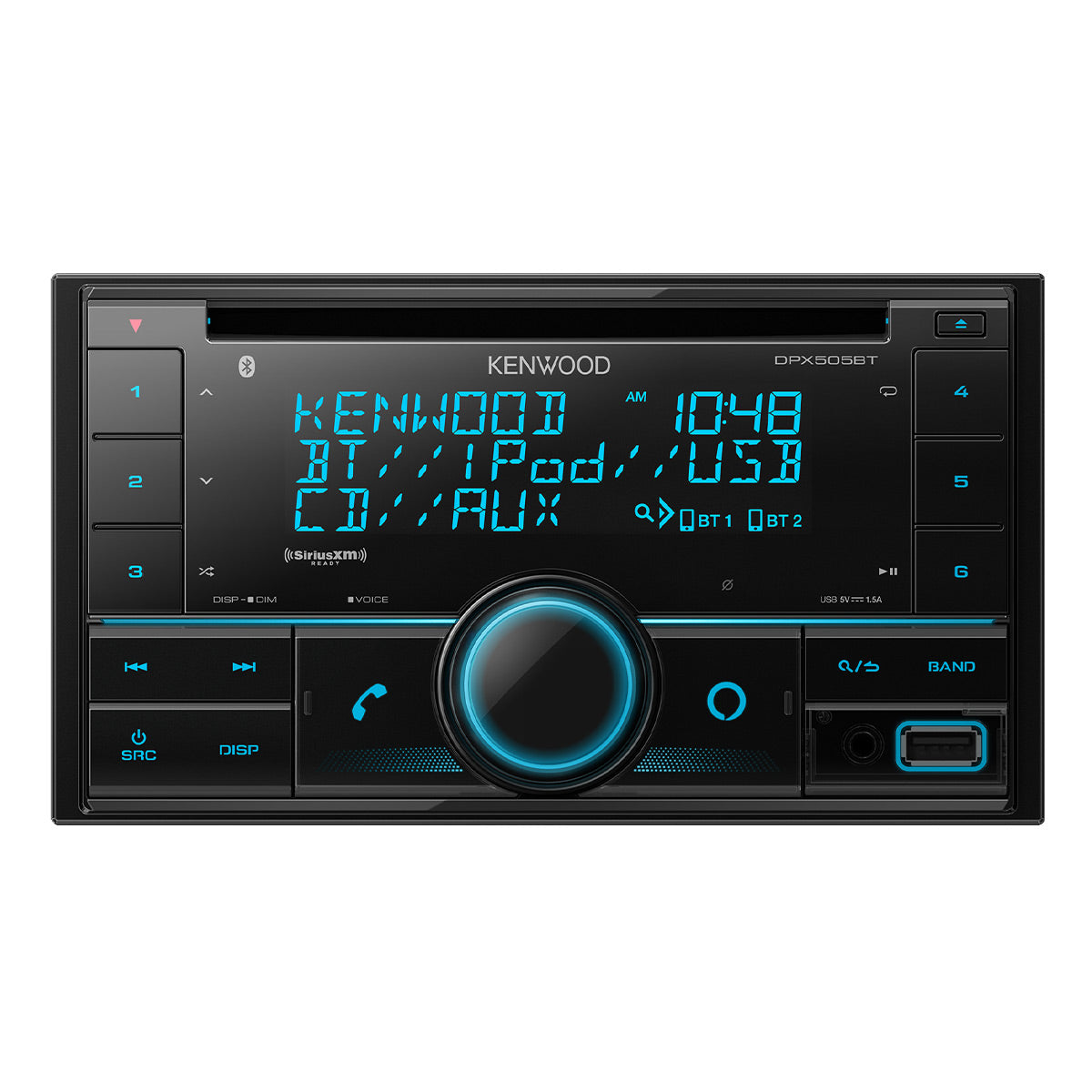

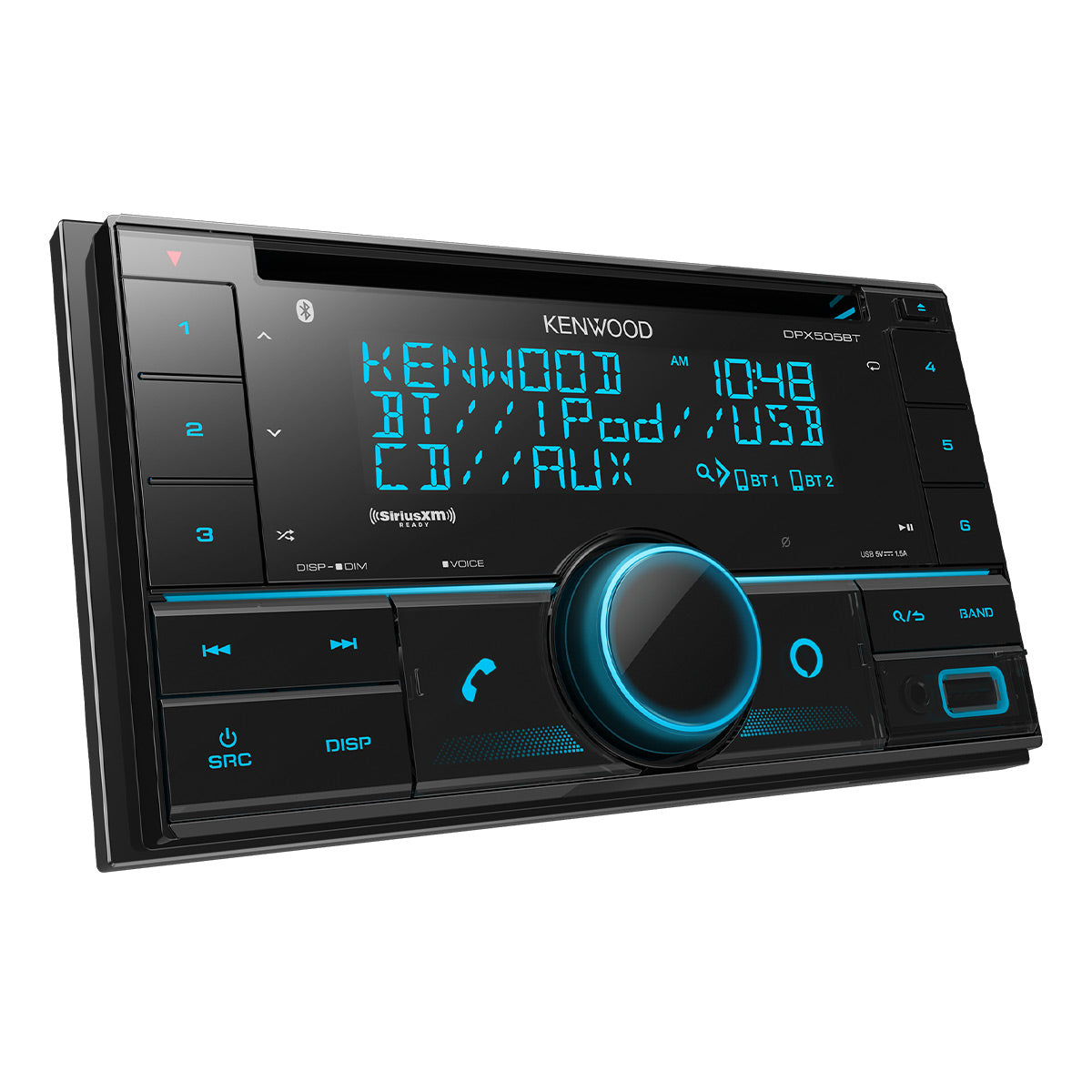

Kenwood DPX505BT CD Receiver with Bluetooth and Amazon Alexa Built-In

Regular price $149.00
Sale price $149.00 Regular price
Save $-149.00 (%)
OR

In Stock - Local Pickup Only

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: DPX505BT | UPC: 019048233714

Specifications

What's In The Box

Product Information

Model: DPX505BT | UPC: 019048233714

Features

  • 420 Segment 3 Line Text Display
  • Amazon Alexa Ready
  • Front USB & AUX In
  • 13Band EQ & Digital Time Alignment
  • Variable Color Illumination
  • 3 Preouts 2.5V

Amazon Alexa Compatible

With Alexa on your KENWOOD Receivers, you can use your voice to control your music and much more. Using Alexa is as easy as asking a question. Just ask and Alexa can play your favorite song, skip to the next track, change the volume, read you the news and more. Using Alexa on the KENWOOD Receiver is simple and hands-free, just ask and Alexa will respond instantly, or press the Amazon Alexa key on the KENWOOD receiver, you can easily activate Alexa and get voice control.

Bluetooth Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.

Equipped with the Intuitive KENWOOD Music Mix

Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.

Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

Control the Receiver from Your Smartphone with the KENWOOD Remote App

A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices

Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.

13-Band EQ / Digital Time Alignment

13-Band equalizer and DTA gives optimal tuning enhancements for the listener.

Playable USB Files

Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.

Digital Time Alignment

Sound coming from a variety of speakers located within your car are time aligned to arrive at your ear at exactly the same time.

Drive Equalizer

Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.

System Expansion Ready

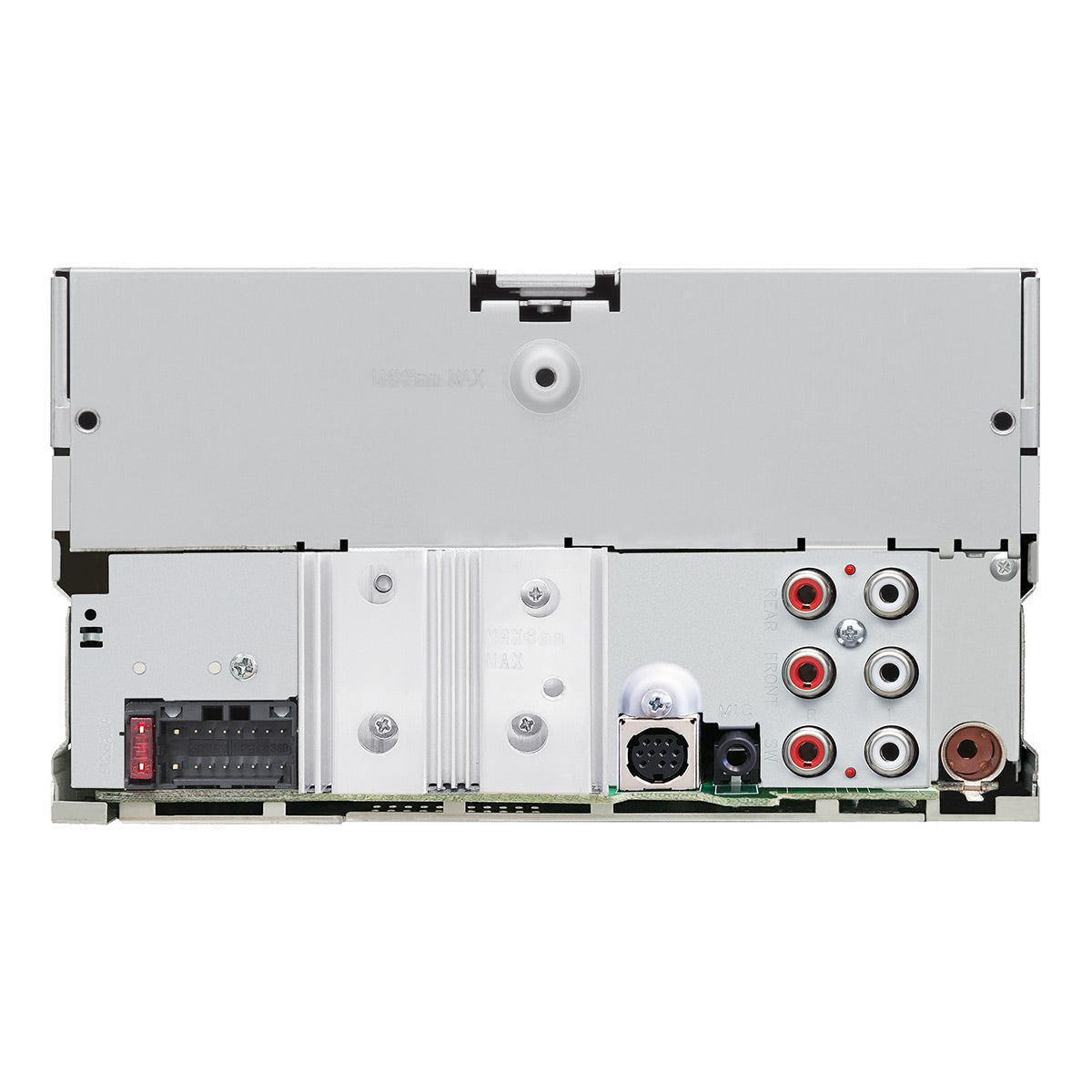

The KENWOOD receiver has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer.

Match Your Mood with Variable Color Illumination

Bright variable color LEDs can be adjusted to match any color dash lighting.

Adjustable 3-Zone Variable Color Illumination

You can adjust the front panel illumination into 3 separate color zones.

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio. (Optional SiriusXM tuner required, sold separately)

Spanish and French Text Display

On-screen display menu now available in Spanish and French.

Specifications

  • FM
    • Frequency Range(MHz) (Frequency step): 87.9MHz to 107.9MHz (200kHz)
    • Usable Sensitivity (S/N:30dB): 8.2dBf (0.71μV/75Ω)
    • Quieting Sensitivity (DIN S/N:46dB): 17.2dBf (2.0μV/75Ω)
    • Frequency Response (±3.0dB): 30Hz to 15kHz
    • S/N(dB): 64.0dB(MONO)
    • Stereo Separation: 40dB(1kHz)
  • MW (AM)
    • Frequency Range(kHz) (Frequency step): 530kHz to 1700kHz (10kHz)
    • Usable Sensitivity (S/N 20dB): 29dBμ (28.2μV)
  • CD
    • Laser Diode: GaAlAs
    • Digital Filter(D/A): 8 Times Oversampling
    • Spindle Speed: 500 to 200rpm (CLV)
    • Wow & Flutter: Below Measurable Limit
    • Frequency Response: 20Hz to 20kHz(±1dB)
    • Total Harmonic Distortion: 0.01%(1kHz)
    • S/N Ratio (dB): 97dB(1kHz)
    • Dynamic Range: 92dB
    • Channel Separation: 90dB
    • MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
    • WMA Decode: Compliant with WINDOWS MEDIA AUDIO
    • AAC Decode: AAC-LC ".aac" files
    • Preout Level(mV)/Load (-Unbalanced): 2,500mV/10kΩ
    • Preout Impedance(Ω): =<600Ω
    • Speaker Impedance(Ω): 4 to 8Ω
  • USB I/F
    • USB: USB 1.1 / 2.0 High Speed
    • File System: FAT12 / 16 / 32
    • Maximum Supply current: DC5V(DC logo) 1.5A
    • Frequency Response: 20Hz to 20kHz(±1dB)
    • S/N Ratio (dB): 98dB(1kHz)
    • Dynamic Range: 93dB
    • Channel Separation: 90dB
    • MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
    • WMA Decode: Compliant with Windows Media Audio
    • AAC Decode: AAC-LC ".aac",".m4a" files
    • WAV Decode: Linear-PCM
    • FLAC Decode: FLAC file (Up to 24bit/96kHz)
  • AUX Input
    • Frequency Response: 20Hz to 20kHz ±3dB
    • Input Maximum Voltage: 1,000mV
    • Input Impedance: 30kΩ
  • AMP
    • Maximum Power: 50Wx4
    • Full Bandwidth Power (at less than 1%THD): 22Wx4
  • TONE
    • Band1: 62.5Hz ±9dB
    • Band2: 100Hz ±9dB
    • Band3: 160Hz ±9dB
    • Band4: 250Hz ±9dB
    • Band5: 400Hz ±9dB
    • Band6: 630Hz ±9dB
    • Band7: 1kHz ±9dB
    • Band8: 1.6kHz ±9dB
    • Band9: 2.5kHz ±9dB
    • Band10: 4kHz ±9dB
    • Band11: 6.3kHz ±9dB
    • Band12: 10kHz ±9dB
    • Band13: 16kHz ±9dB
  • Bluetooth
    • Version: Bluetooth 4.2
    • Frequency Range: 2.402 to 2.480GHz
    • RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
    • Maximum Communication range: Line of sight approx.10m(32.8ft)
  • Profile
    • HFP 1.7.1 (Hands Free Profile)
    • SPP (Serial Port Profile)
    • PBAP (Phonebook Access Profile)
    • A2DP (Advanced Audio Distribution Profile)
    • AVRCP 1.6.1 (Audio/Video Remote Control Profile)
  • General
    • Operating voltage: 12V DC car battery
    • Installation Size (W x H x D): 7” x 3-15/16” x 6-1/8”
    • Net Weight: 2.9 (lbs)

What's In The Box

  • DPX505BT CD Receiver with Bluetooth and Amazon Alexa Built-In
  • (6) Round Head Screws (M5 x 8mm)
  • (6) Flat Head Screws (M5 x 8mm)
  • Faceplate
  • Trim Plate
  • Mounting Sleeve
  • Wiring Harness
  • Microphone with Bracket
  • (2) Extractions Keys
  • Warranty Card
