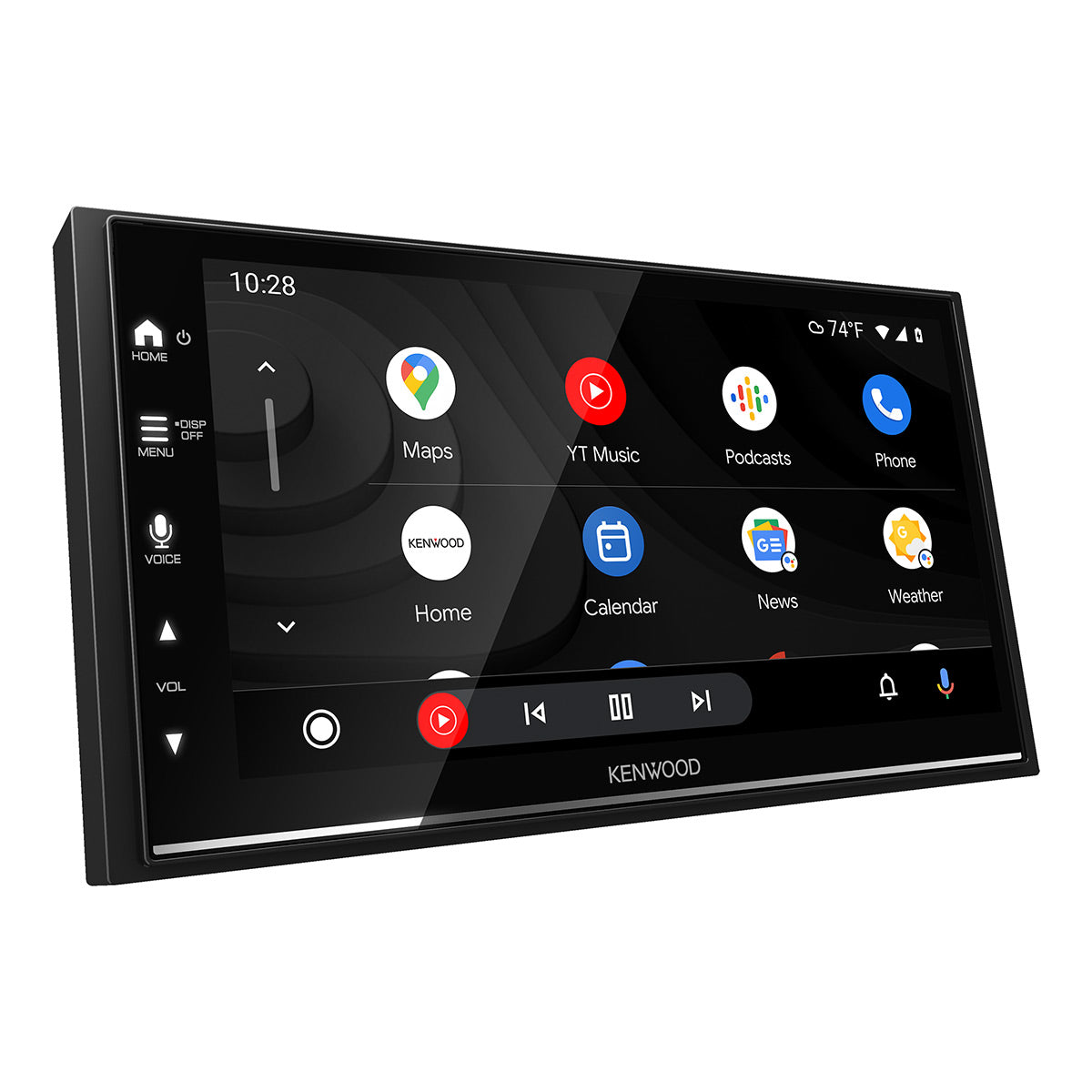

Kenwood DMX8709S Digital Multimedia Touchscreen Receiver with Bluetooth

Regular price $449.00
Sale price $449.00 Regular price
Save $-449.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Dec 3 – Tue, Dec 10

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: DMX8709S | UPC: 019048234919

Specifications

What's In The Box

Product Information

Model: DMX8709S | UPC: 019048234919

Features

  • 6.8" WVGA Monitor with Capacitive Touch Panel
  • Android Auto™ & Android Auto™ Wireless
  • Wired and Wireless Apple CarPlay™
  • USB Mirroring for Android
  • Built-in HD Radio Tuner
  • 13 Band EQ & Digital Time Alignment
  • 3 Camera Inputs
  • Short Chassis
  • 3 Preouts 4.0V

Safe, Smart and Comprehensive Control with Apple CarPlay

Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported. KENWOOD Wi-Fi receivers now support Apple CarPlay wirelessly (compatible phone required).

Android Auto for Easy Connectivity

Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze. KENWOOD Wi-Fi receivers also support Android Auto wirelessly (compatible phone required).

True Mirroring via USB, 2-Way Touch Control for Android

Allows you to display and control your Android smartphone on the screen of the receiver. You can enjoy your favorite apps on a large display and with impressive sound quality. Before starting, just install the free app “Mirroring OA for KENWOOD” on your smartphone and connect it to KENWOOD receiver via a USB cable and Bluetooth.

HDMI Input

Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the monitor. KCA-HD200 optional HDMI cable sold separately.

Bluetooth Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.

Equipped with the Intuitive KENWOOD Music Mix

Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.

Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

Enhanced Vehicle Integration

Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately) for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, these models feature expanded support when connected to the RR2, including an Advanced Driver Assistance Systems (ADAS) Widget, Customizable Accessory Controls, and compatibility with specific ESCORT radar detector systems (sold separately).

Rear View Camera Input with Parking Guidelines

An optional rearview camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

3 Camera Inputs

To enable a smarter driving experience, receivers featuring 3 camera inputs allow for the utmost in convenience, flexibility, and safety. With 3 camera inputs, you can connect a front camera, a rear camera and a third camera which can be used for trailers or caravans. Alternatively, 3 camera inputs support several other configurations, including the connection of 2 blind spot cameras and a reverse camera. Camera switching is available using on-screen controls and manual switchers.

Convenient and Easy-to-Use Capacitive Touch Panel

Provides a high contrast ratio, crystal clear display and vivid text. Easy-to-use widgets provide access to information screens with a swipe.

SriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio. (Optional SiriusXM tuner required, sold separately)

Short Chassis Design

Only 2-15/16" (75mm) of depth for more flexible installation.

Specifications

  • Monitor Section
    • Picture size: 6.75 inches (diagonal) wide
    • W x H: 6 x 3-1/7 inch
    • Display system: TN LCD panel
    • Drive system: TFT active matrix system
    • Number of pixels: 1,152,000 (800H x 480V x RGB)
    • Effective pixels: 99.99%
    • Pixel arrangement: RGB striped arrangement
    • Backlighting: LED
  • USB I/F Section
    • Connector Type: Type-A
    • USB Standard: USB2.0 Full Speed / High Speed
    • File System: FAT 16/32, exFAT
    • Maximum Power Supply Current: DC5V=1.5A
    • D/A Converter: 24Bit
    • Audio Decoder: MP3 / WMA / AAC / WAV / FLAC
    • Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
    • Frequency response
      • 192k Sampling: 20 to 20,000 Hz
      • 96k Sampling: 20 to 20,000 Hz
      • 48k Sampling: 20 to 20,000 Hz
      • 44.1k Sampling: 20 to 20,000 Hz
    • Total harmonic distortion 1kHz: 0.010%
    • Signal to Noise ratio: 98.5dB
    • Dynamic range: 89dB
  • Wi-Fi
    • IEEE Standard: 802.11 a/b/g/n/ac
    • Frequency Range: Dual Band ( 2.4GHz / 5GHz )
    • Channels
      • Auto (1-11ch)
      • Auto (149,153,155,157,161ch)
    • Transfer rates (MAX)
      • 11a:54 Mbps / 11b: 11 Mbps
      • 11g: 54 Mbps / 11n:150 Mbps / 11ac:433 Mbps
  • Bluetooth Section
    • Technology: Bluetooth Ver5.0
    • Frequency: 2.402 to 2.480 GHz
    • Maximum Communication range: Line of sight approx.10m(32.8ft)
    • Audio Codec: SBC / AAC
    • Multi Profile Support: Multi Profile
    • Profile
      • HFP (V1.8) (Hands Free Profile)
      • SPP (Serial Port Profile)
      • A2DP (V1.3.2) (Advanced Audio Distribution Profile)
      • AVRCP (V1.6.2) (Audio/Video Remote Control Profile)
      • PBAP (Phonebook Access Profile)
  • HDMI I/F Section
    • Connector Type: Type-D
    • Input Resolution
    • VGA (640x480p @59.94Hz/60Hz)
    • 480p (720x480p @59.94Hz/60Hz)
    • Input Audio Type: 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM
  • DSP Section
    • Equalizer: 13 Band
    • Band Frequency: 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k[Hz]
      • Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/ 0/ 1/ 2/ 3/ 4/ 5/ 6/ 7/ 8/ 9 [dB]
      • Tweeter Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 [dB]
    • HPF Frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
      • Slope: -6/-12/-18/-24[dB/Oct.]
      • Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
    • LPF Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through
      • Slope: -6/ -12/ -18/ -24 dB/Oct.
      • Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
      • Phase: Normal/ Reverse
    • Tweeter HPF Frequency: 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k [Hz]
      • Slope: -6/ -12 [dB/Oct.]
      • Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 [dB]
      • Phase: Normal/ Reverse
    • Mid Range HPF Frequency: Through/30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250[Hz]
      • Slope: -6/ -12 [dB/Oct.]
    • Mid Range LPF Frequency: 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k/Through [Hz]
      • Slope: -6/ -12 [dB/Oct.]
      • Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 [dB]
      • Phase: Normal/ Reverse
    • Subwoofer LPF Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through [Hz]
      • Slope: -6/ -12 [dB/Oct.]
      • Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 [dB]
      • Phase: Normal/ Reverse
  • FM
    • Frequency range (Frequency step): 87.9MHz to 107.9MHz (200kHz)
    • Usable sensitivity: 7.2 dBf
    • S/N:30dB: 0.63 μV / 75 Ohms
    • Quieting sensitivity: 15.2 dBf
    • DIN S/N:46dB: 1.58 μV / 75 Ohms
    • Frequency response: 30Hz to 15kHz (±3.0dB)
    • S/N(dB): 68 dB(MONO)
    • Selectivity: Over 80dB (±400kHz)
    • Stereo separation: 40 dB(1 kHz)
  • AM
    • Frequency range (Frequency step): 530kHz to 1700kHz (10kHz)
    • Usable sensitivity: 29 dBμ (28.2μV)
  • Video
    • Color system of external video input: NTSC/PAL
    • External video input level (RCA jacks): 1 Vp-p / 75 Ohms
    • External video input level (Mini jacks): 1 Vp-p / 75 Ohms
    • External audio max input level (Mini jacks): 2 V / 25 kOhms
    • Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
    • Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
  • Audio
    • Maximum Power Output (Front&Rear): 50Wx4
    • Typical Power Output (Front&Rear): Full Bandwidth Power (at less than 1%THD) 22W x 4
    • Output frequency band: 20 to 88,000Hz
    • Preout level (V): 5V / 10kOhms
    • Preout impedance (Ω): =< 600 Ohms
    • Speaker Impedance (Ω): 4 to 8 Ohms
  • General
    • Operating voltage: 12V DC Car Battery
    • Installation Dimensions (W x H x D)
      • Main Unit: 7-1/16” x 3-15/16” x 2-15/16”
      • Main Unit with Sleeve: 7-3/16” x 4-3/8” x 2-15/16”
    • Weight Main Unit (with trim plate and mounting sleeve): 2.7 lb (with trim plate and mounting sleeve)



What's In The Box

  • DMX8709S Digital Multimedia Touchscreen Receiver with Bluetooth
  • Wiring harness
  • Extension wire
  • (6) Flat head screws (M5 × 8 mm)
  • (6) Round head screws, (M5 x 8 mm)
  • Microphone
  • Trim plate
  • Mounting sleeve
  • (2) Extraction keys
  • GPS antenna
  • Metal plate
  • Manual
