Specifications
- Monitor Section
- Picture size: 6.75 inches (diagonal) wide
- W x H: 6 x 3-1/7 inch
- Display system: TN LCD panel
- Drive system: TFT active matrix system
- Number of pixels: 1,152,000 (800H x 480V x RGB)
- Effective pixels: 99.99%
- Pixel arrangement: RGB striped arrangement
- Backlighting: LED
- USB I/F Section
- Connector Type: Type-A
- USB Standard: USB2.0 Full Speed / High Speed
- File System: FAT 16/32, exFAT
- Maximum Power Supply Current: DC5V=1.5A
- D/A Converter: 24Bit
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
- Frequency response
- 192k Sampling: 20 to 20,000 Hz
- 96k Sampling: 20 to 20,000 Hz
- 48k Sampling: 20 to 20,000 Hz
- 44.1k Sampling: 20 to 20,000 Hz
- Total harmonic distortion 1kHz: 0.010%
- Signal to Noise ratio: 98.5dB
- Dynamic range: 89dB
- Wi-Fi
- IEEE Standard: 802.11 a/b/g/n/ac
- Frequency Range: Dual Band ( 2.4GHz / 5GHz )
- Channels
- Auto (1-11ch)
- Auto (149,153,155,157,161ch)
- Transfer rates (MAX)
- 11a:54 Mbps / 11b: 11 Mbps
- 11g: 54 Mbps / 11n:150 Mbps / 11ac:433 Mbps
- Bluetooth Section
- Technology: Bluetooth Ver5.0
- Frequency: 2.402 to 2.480 GHz
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Audio Codec: SBC / AAC
- Multi Profile Support: Multi Profile
- Profile
- HFP (V1.8) (Hands Free Profile)
- SPP (Serial Port Profile)
- A2DP (V1.3.2) (Advanced Audio Distribution Profile)
- AVRCP (V1.6.2) (Audio/Video Remote Control Profile)
- PBAP (Phonebook Access Profile)
- HDMI I/F Section
- Connector Type: Type-D
- Input Resolution
- VGA (640x480p @59.94Hz/60Hz)
- 480p (720x480p @59.94Hz/60Hz)
- Input Audio Type: 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM
- DSP Section
- Equalizer: 13 Band
- Band Frequency: 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k[Hz]
- Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/ 0/ 1/ 2/ 3/ 4/ 5/ 6/ 7/ 8/ 9 [dB]
- Tweeter Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 [dB]
- HPF Frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
- Slope: -6/-12/-18/-24[dB/Oct.]
- Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
- LPF Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through
- Slope: -6/ -12/ -18/ -24 dB/Oct.
- Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
- Phase: Normal/ Reverse
- Tweeter HPF Frequency: 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k [Hz]
- Slope: -6/ -12 [dB/Oct.]
- Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 [dB]
- Phase: Normal/ Reverse
- Mid Range HPF Frequency: Through/30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250[Hz]
- Slope: -6/ -12 [dB/Oct.]
- Mid Range LPF Frequency: 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k/Through [Hz]
- Slope: -6/ -12 [dB/Oct.]
- Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 [dB]
- Phase: Normal/ Reverse
- Subwoofer LPF Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through [Hz]
- Slope: -6/ -12 [dB/Oct.]
- Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 [dB]
- Phase: Normal/ Reverse
- Digital FM
- Frequency Range: 87.9MHz to 107.9MHz
- Frequency step: (200kHz)
- Frequency Response: 20 Hz to 20 kHz (±3.0 dB)
- S/N: 75 dB (STEREO)
- Digital AM
- Frequency Range: 530kHz to 1700kHz
- Frequency step: (10kHz)
- Frequency Response: 40Hz to 15kHz (±3.0 dB)
- S/N: 70 dB (STEREO)
- FM
- Frequency range (Frequency step): 87.9MHz to 107.9MHz (200kHz)
- Usable sensitivity: 7.2 dBf
- S/N:30dB: 0.63 μV / 75 Ohms
- Quieting sensitivity: 15.2 dBf
- DIN S/N:46dB: 1.58 μV / 75 Ohms
- Frequency response: 30Hz to 15kHz (±3.0dB)
- S/N(dB): 68 dB(MONO)
- Selectivity: Over 80dB (±400kHz)
- Stereo separation: 40 dB(1 kHz)
- AM
- Frequency range (Frequency step): 530kHz to 1700kHz (10kHz)
- Usable sensitivity: 29 dBμ (28.2μV)
- Video
- Color system of external video input: NTSC/PAL
- External video input level (RCA jacks): 1 Vp-p / 75 Ohms
- External video input level (Mini jacks): 1 Vp-p / 75 Ohms
- External audio max input level (Mini jacks): 2 V / 25 kOhms
- Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
- Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
- Audio
- Maximum Power Output (Front&Rear): 50Wx4
- Typical Power Output (Front&Rear): Full Bandwidth Power (at less than 1%THD) 22W x 4
- Output frequency band: 20 to 88,000Hz
- Preout level (V): 5V / 10kOhms
- Preout impedance (Ω): =< 600 Ohms
- Speaker Impedance (Ω): 4 to 8 Ohms
- General
- Operating voltage: 12V DC Car Battery
- Installation Dimensions (W x H x D)
- Main Unit: 7-1/16” x 3-15/16” x 2-15/16”
- Main Unit with Sleeve: 7-3/16” x 4-3/8” x 2-15/16”
- Weight Main Unit (with trim plate and mounting sleeve): 2.7 lb (with trim plate and mounting sleeve)
What's in the Box
What’s in the Box

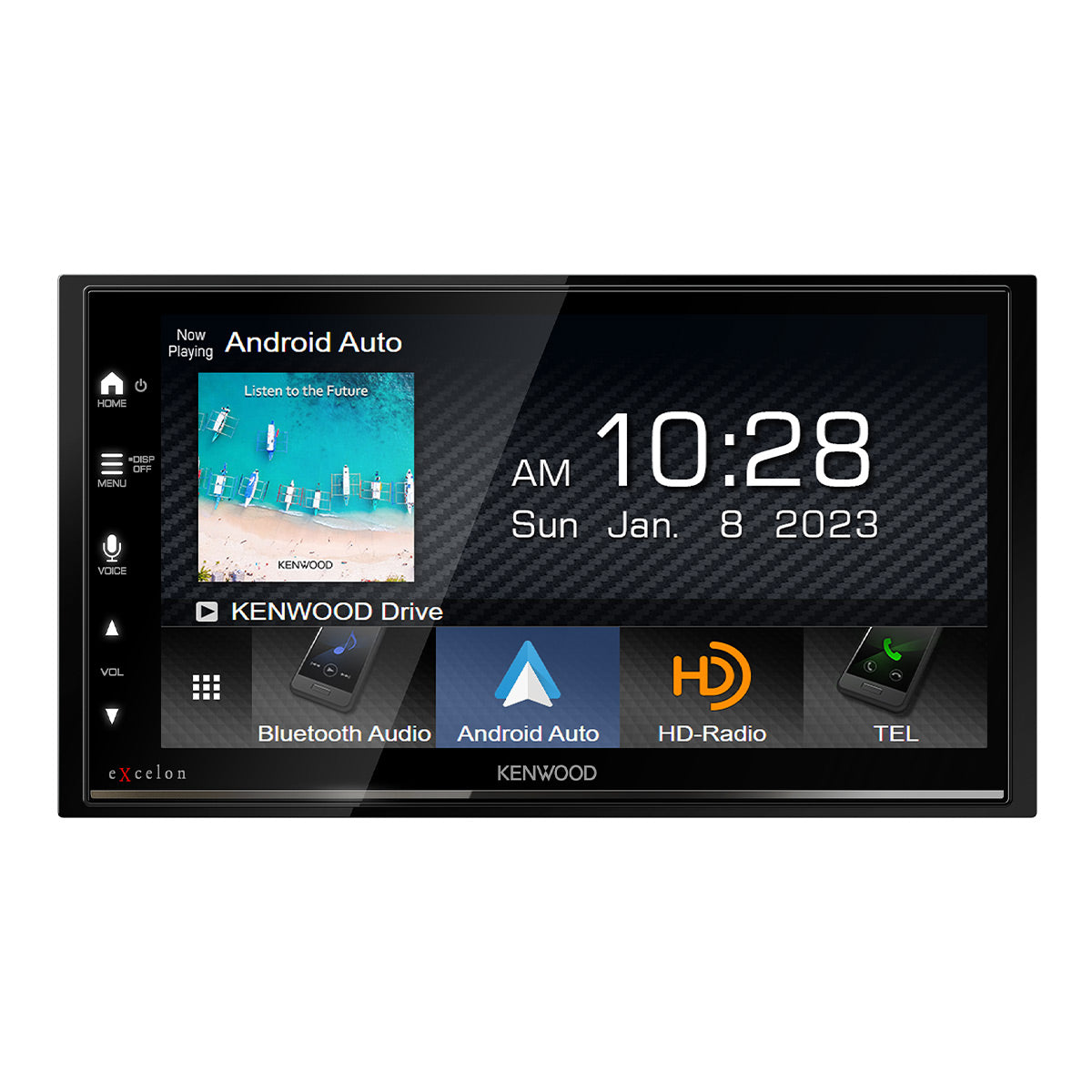

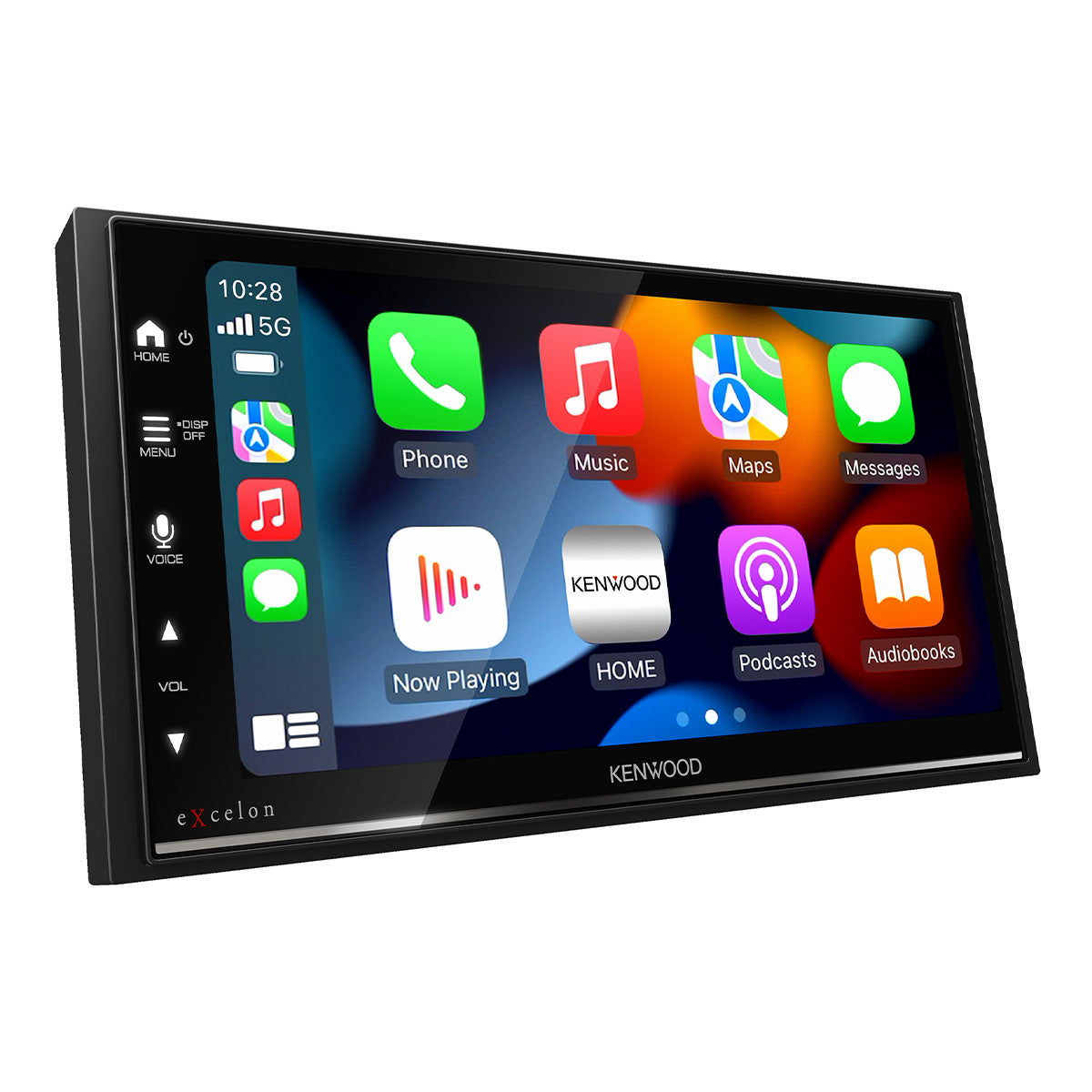

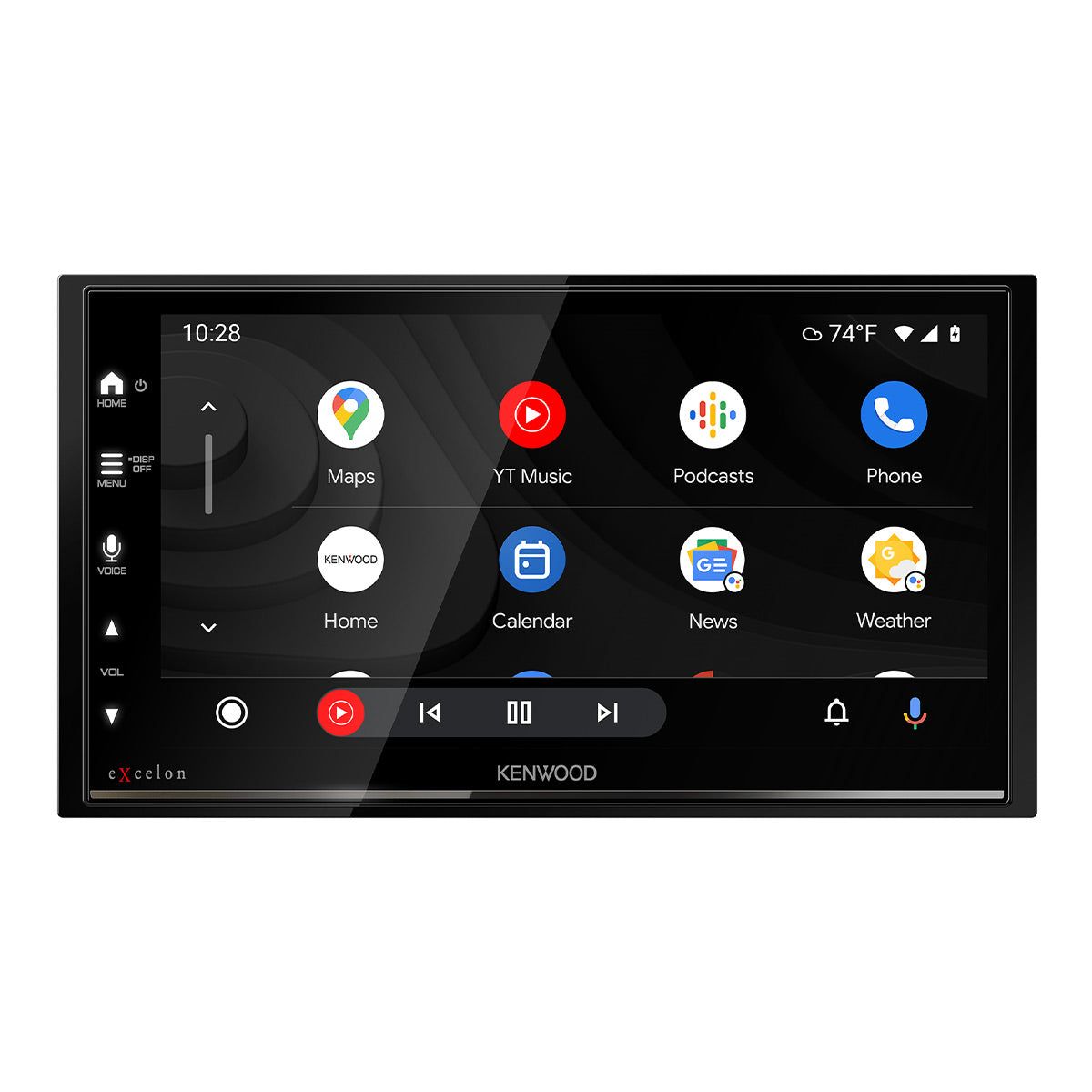

- DMX809S Digital Multimedia Touchscreen Receiver with Bluetooth & HD Radio
- Wiring harness
- Extension wire
- (6) Flat head screws (M5 × 8 mm)
- (6) Round head screws, (M5 x 8 mm)
- Microphone
- Trim plate
- Mounting sleeve
- (2) Extraction keys
- GPS antenna
- Metal plate
- Manual
