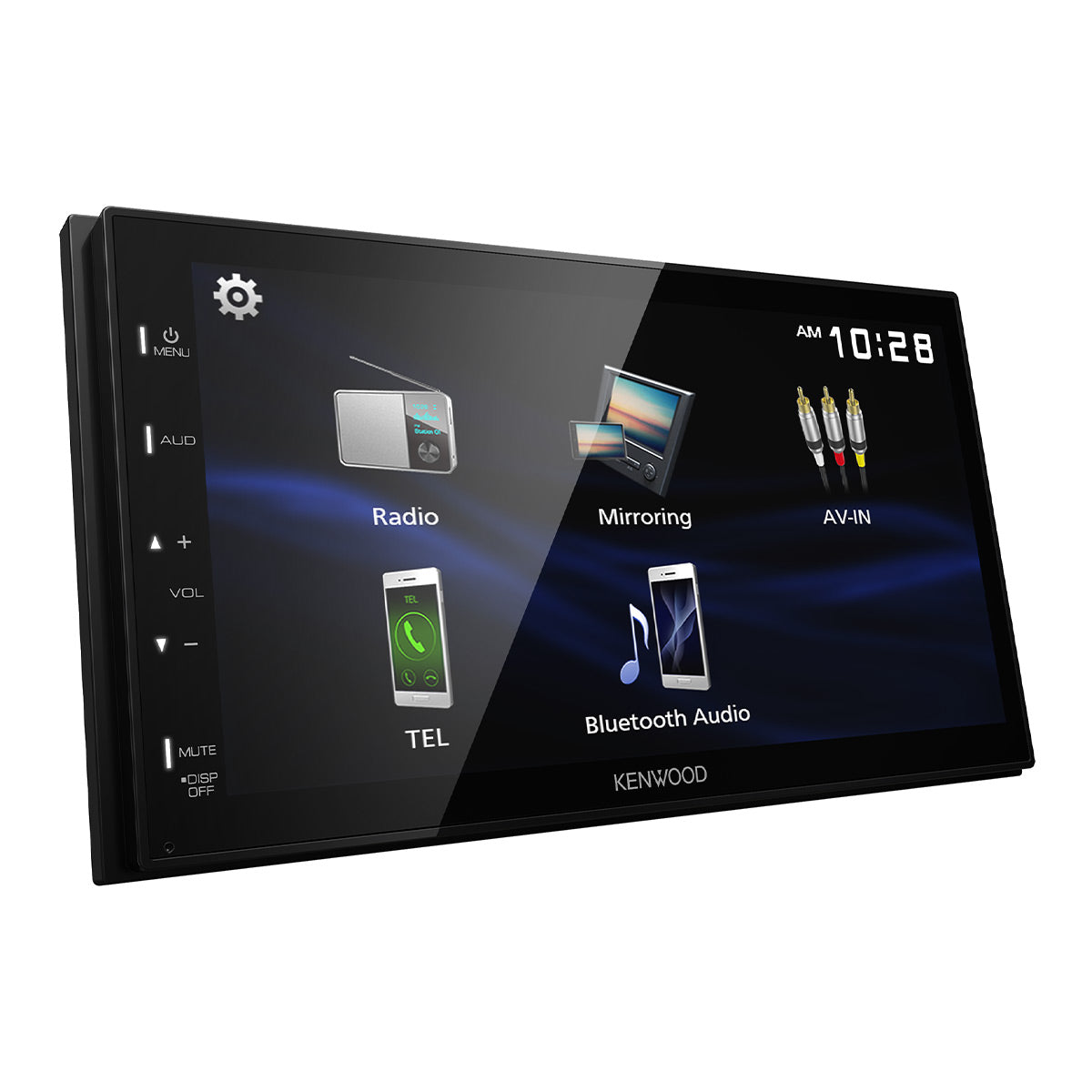

Kenwood DMX129BT Multimedia Receiver with Bluetooth

Regular price $179.00
Sale price $179.00 Regular price
Save $-179.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Fri, May 24 – Fri, May 31

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: DMX129BT | UPC: 019048238191

Specifications

What's In The Box

Product Information

Model: DMX129BT | UPC: 019048238191

Features

  • 6.8" WVGA Monitor
  • USB Mirroring Ready for Android
  • 13 Band EQ with Digital Time Alignment
  • Rear View Camera Input with Parking Guidelines
  • Built-in Bluetooth®
  • 2 Preouts 2V with Subwoofer out

True Mirroring via USB, 2-Way Touch Control for Android

Allows you to display and control your Android smartphone on the screen of the receiver. You can enjoy your favorite apps on a large display and with impressive sound quality.

Bluetooth Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

Playable Video & Audio Files

You can play back from USB devices audio and video files compressed in various formats.

Rear View Camera Input with Parking Guidelines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

Convenient and Easy-to-Use Capacitive Touch Panel

Provides a high contrast ratio, crystal clear display and vivid text.

Parking Guidelines

Parking guidelines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.

Short Chassis Design

Only 2-15/16" (75mm) of depth for more flexible installation.

Specifications

  • Monitor
    • Picture size: 6.75 inches (diagonal) wide
    • W x H: 5-15/16” x 3-1/8”
    • Display system: TN LCD panel
    • Drive system: TFT active matrix system
    • Number of pixels: 1,152,000 (800H x 480V x RGB)
    • Effective pixels: 99.99%
    • Pixel arrangement: RGB striped arrangement
    • Backlighting: LED
  • USB I/F
    • USB Standard: USB 2.0 High Speed
    • Connector: Type-A
    • File System: FAT 16 / 32 / exFAT / NTFS
    • Maximum Power Supply Current: DC5V (DC logo) 1.5A
    • D/A Converter: 24 Bit
    • Audio Decoder: MP3/ WMA/ WAV/ AAC/ FLAC
    • Video Decoder: MPEG1/ MPEG2/ MPEG4/ H.264/ MKV
    • Frequency response
      • 192k Sampling: 20 - 20,000 Hz
      • 96k Sampling: 20 - 20,000 Hz
      • 48k Sampling: 20 - 20,000 Hz
      • 44.1k Sampling: 20 - 20,000 Hz
  • Bluetooth
    • Version: Bluetooth V5.0
    • Frequency: 2.402 – 2.480 GHz
    • RF Output Power (E.I.R.P.): +8 dBm (AVE), Power Class 1
    • Maximum Communication range: Line of sight approx.10m (32.8ft)
    • Audio Codec: SBC / AAC
    • Multi Profile Support: Multi Profile
    • Profile
      • HFP (Hands Free Profile) 1.6
      • SPP (Serial Port Profile)
      • A2DP (Advanced Audio Distribution Profile) 1.2
      • AVRCP (Audio/Video Remote Control Profile) 1.5
      • PBAP (Phonebook Access Profile) 1.2
  • FM
    • Frequency range (Frequency step): 87.9 - 107.9 MHz (200kHz)
    • Usable sensitivity: 16.2dBf
    • S/N:30dB: 1.8μV/75Ω
    • Frequency response(±3.0dB): 30Hz - 14kHz
    • S/N Ratio(dB): 50dB (MONO)
    • Stereo separation: 35 dB (1 kHz)
  • AM
    • Frequency range (Frequency step): 530 - 1700 kHz (10kHz)
    • Usable sensitivity: 99μV (40 dBμ)
  • Video
    • Color system of external video input: NTSC/ PAL
    • External video input level (RCA): 1 Vp-p / 75 Ω
    • External video input level (RCA, AV-In): 1 Vp-p / 75 Ω
    • External audio max input level (RCA, AV-In): 1.5 V / 25 kΩ
    • Video Output level (RCA): 1 Vp-p / 75 Ω
  • Audio
    • Maximum Power (Front&Rear): 45Wx4
    • Full Bandwidth Power (Front&Rear): 16Wx4
    • Output frequency band: 20 - 20,000 Hz
    • Preout level (V): 2 V / 10 kΩ
    • Preout impedance (Ω): 1.4 kΩ
    • Speaker Impedance (Ω): 4 - 8 Ω
    • Equalizer: 13 Band
    • Band Frequency: 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k/ 10k/ 16k Hz
      • Level: -09 - +09 (-9dB - +9dB)
    • HPF Frequency: Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz
      • Slope: -6/ -12/ -18/ -24 dB/Oct.
      • Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
    • LPF Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through
      • Slope: -6/ -12/ -18/ -24 dB/Oct.
      • Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
  • General
    • Operating voltage: 12V DC car battery
    • Installation Dimensions W x H x D: 7-3/16” x 4-7/16” x 2-15/16”
    • Main Unit Installation size W x H x D (w/o sleeve): 7-1/16” x 3-15/16” x 2-15/16”
    • Weight Main unit (Including Sleeve and Trim plate): 2.7 lbs

What's In The Box

  • DMX129BT 638" Multimedia Receiver with Bluetooth
  • Trim Ring
  • Power Harness
  • Speaker Harness
  • Microphone with Bracket (Attached)
  • (2) Radio Removal Tools
  • Trim Ring Removal Tool
  • Mounting Screws
  • Quick Start Guide
  • Warranty Card
