Kenwood

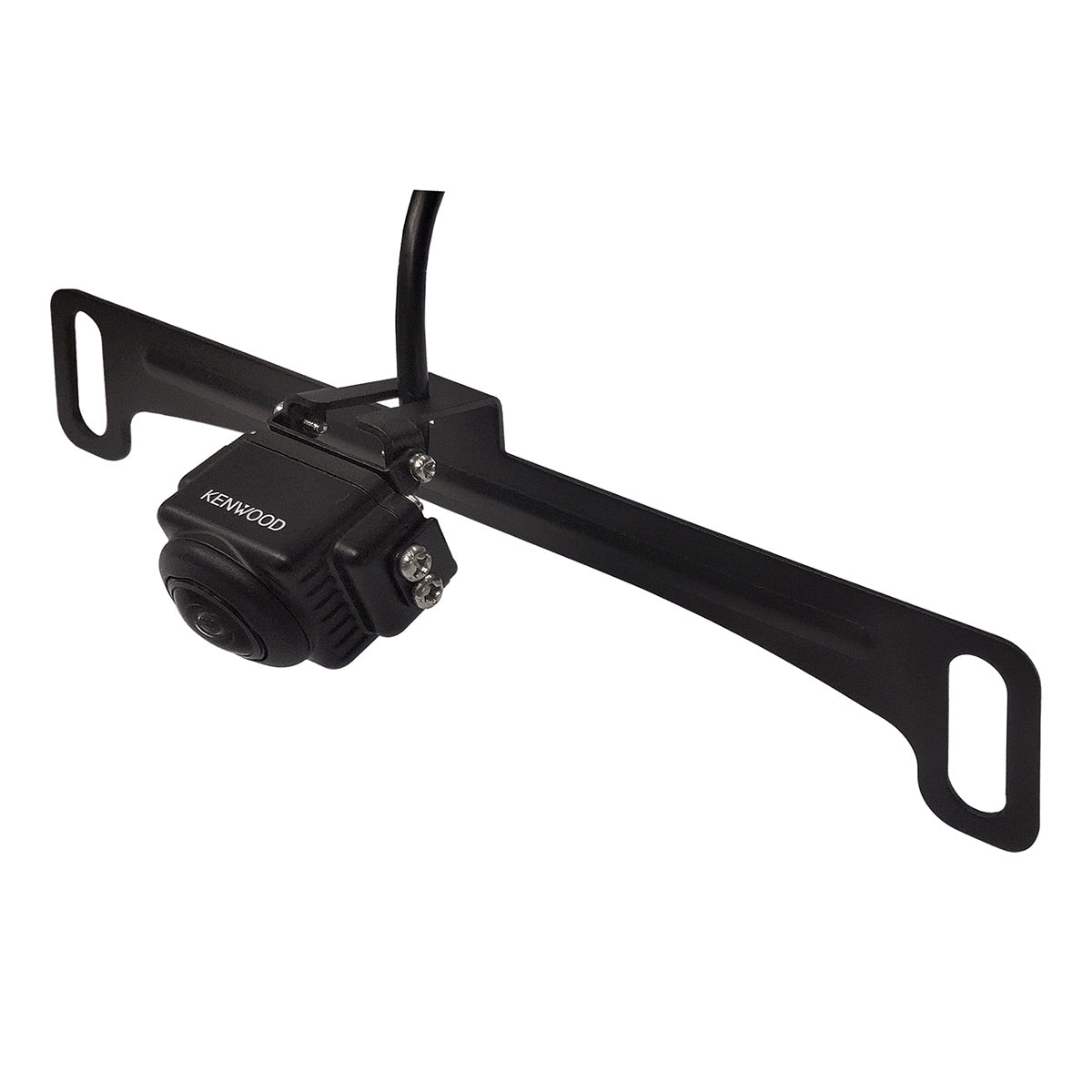

Kenwood CMOS-740HDLP Rear HD Camera with License Plate Mounting Kit

Regular price $219.00
Sale price $219.00 Regular price
Save $-219.00 (%)
OR

In Stock - Local Pickup Only

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Kenwood High Definition Rear View Camera with Mount Overview

Product Information

Model: CMOS-740HDLP | UPC: 0019048238283

Specifications

What's In The Box

Product Information

Model: CMOS-740HDLP | UPC: 0019048238283

Features

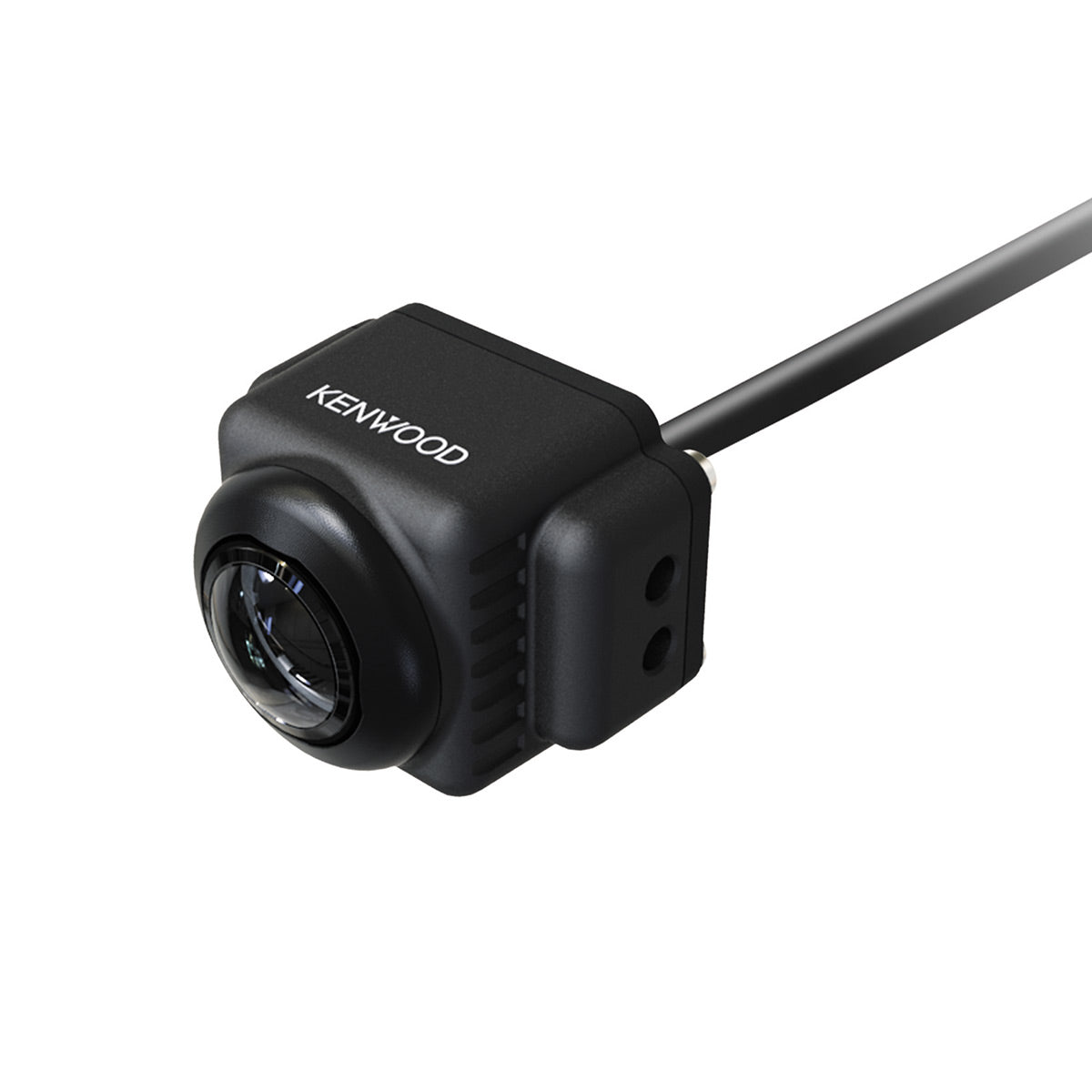

  • High Definition Rear Camera
  • 1280 x 720 (720P) HD Output
  • Dustproof / Waterproof IP67 Rated

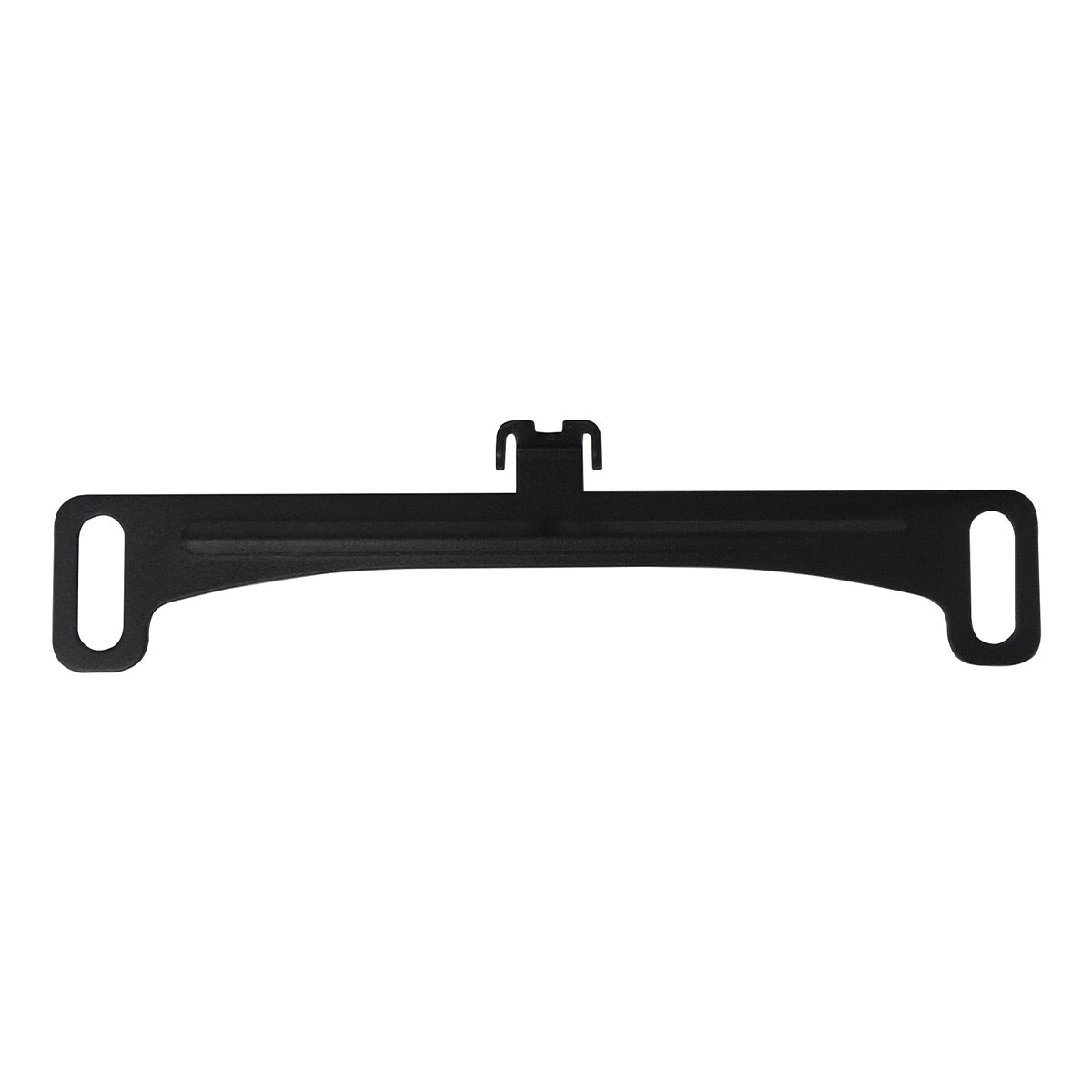

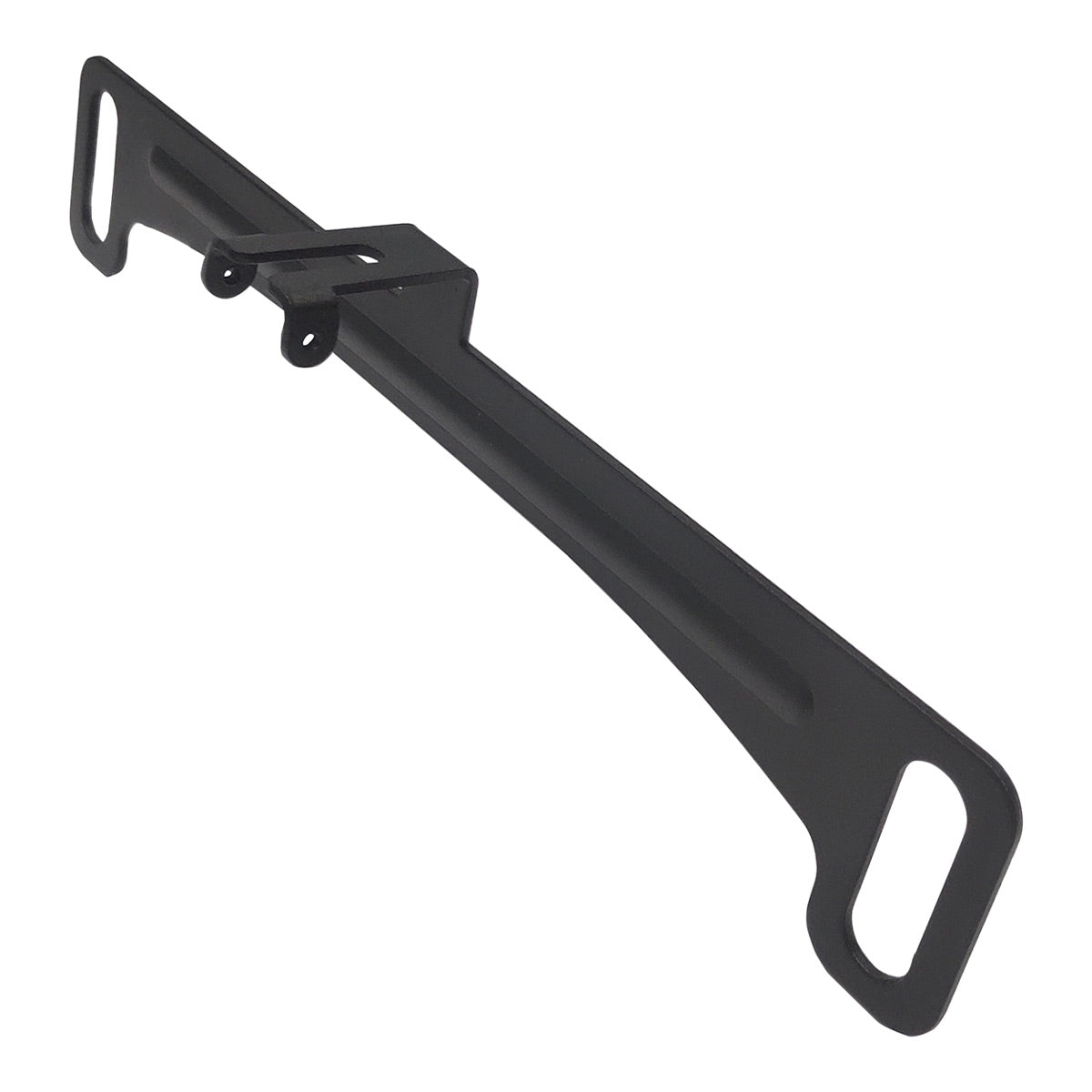

  • License Plate Mount Included

Please note: Only compatible with select Kenwood receivers (DNR1007XR, DNR1008RVS, DMX1057XR, DMX1037S, DNX997XR, DDX9907XR, and DMX958XR)

High Definition View

Displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers (DNR1007XR, DNR1008RVS, DMX1057XR, DMX1037S, DNX997XR, DDX9907XR, and DMX958XR).

HDR (High Dynamic Range)

HDR helps to reduce “blown-out highlights” and “crushed blacks” and ensure clear images in challenging environments, including backlit scenes in daylight, streetlight scenes at night, and places where light-dark contrast is particularly severe.

12V & 24V Compatible

Camera works with both 12V and 24V applications.

Specifications

  • Photographed Image: HD (1280 x 720)
  • Lens: Wide angle, focal length: 1.86mm F:2.0
  • Frame Rate: 30fps
  • Angles of View: Horizontal 180°/ Vertical 103°
  • Operating Voltage: 12V/24V
  • Operating Tempreture: -22? to +185? / -30? to +85?
  • IPX: IP67
  • Output: HD-TVI
  • Weight: 0.073lbs / 33.2g (without cable)
  • Dimensions (W x H x D): 1-1/4" x 15/16" x 1" / 31.1mm x23.0mm x25.2mm
  • Cable Length:
    • Camera Unit side: 9.84ft / 3m
    • DC Box Unit side: 19.69ft / 6m

What's In The Box

  • CMOS-740HDLP Rear HD Camera with License Plate Mounting Kit
  • Power Unit
  • Power Cord (19.68 ft)
  • Mounting Hardware
  • License Plate Mount
  • Manual
