KEF Ci5160REFM-THX Reference Meta In-Wall Speaker (Gloss Black/Grey)

Now on demo at:

1 of 7
KEF

KEF Ci5160REFM-THX Reference Meta In-Wall Speaker (Gloss Black/Grey)

Regular price $11,999.99
Sale price $11,999.99 Regular price
$0.00 Save $-11,999.99 (%)
OR

Trade In Your Gear

Get a personalized trade-in estimate within 48 hours and apply it toward your next premium upgrade.

Request Trade-In Quote
Trade In Your Gear

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

KEF Ci5160REFM-THX Overview

Product Information

Model: CI5160REFM-THX | UPC: 637203049927

Specifications

What's In The Box

Product Information

Model: CI5160REFM-THX | UPC: 637203049927

KEF’s First THX® Certified Dominus Speaker

The in-wall Ci-Reference architectural speaker Ci5160REFM-THX is KEF's first in-wall speaker to be THX® Certified Dominus among the very few that can achieve this ultimate standard worldwide. Together with a 12th generation Uni-Q driver array with Metamaterial Absorption Technology (MAT™), Ci5160REFM-THX delivers an immersive, high-fidelity soundstage with unmatched sonic excellence even for the most extensive home theatres and living rooms.

Features

  • 12th Generation Uni-Q driver array
  • Four 6.5” Bass Drivers with Hybrid Aluminum Cones
  • Aluminum baffle minimizes vibration and distortion
  • Metamaterial Absorption Technology (MAT)
  • Flush-Mount Design

Realistic, High-Fidelity Sound

Featuring four 160mm (6.5in.) bass drivers, Ci5160REFM-THX delivers a clean, rich and highly articulate bass response down to 32Hz. Together with the massive, vented motor system that was designed specifically for an in-wall environment, making Ci5160REFM-THX disappear into the room to leave an awe-inspiring, immersive experience.

THX® Certified Dominus

Ci5160REFM-THX is THX® Certified Dominus – the largest and most powerful THX® performance class, which is the closest approximation to a public cinema experience that one can achieve at home.

Total Attention to Detail

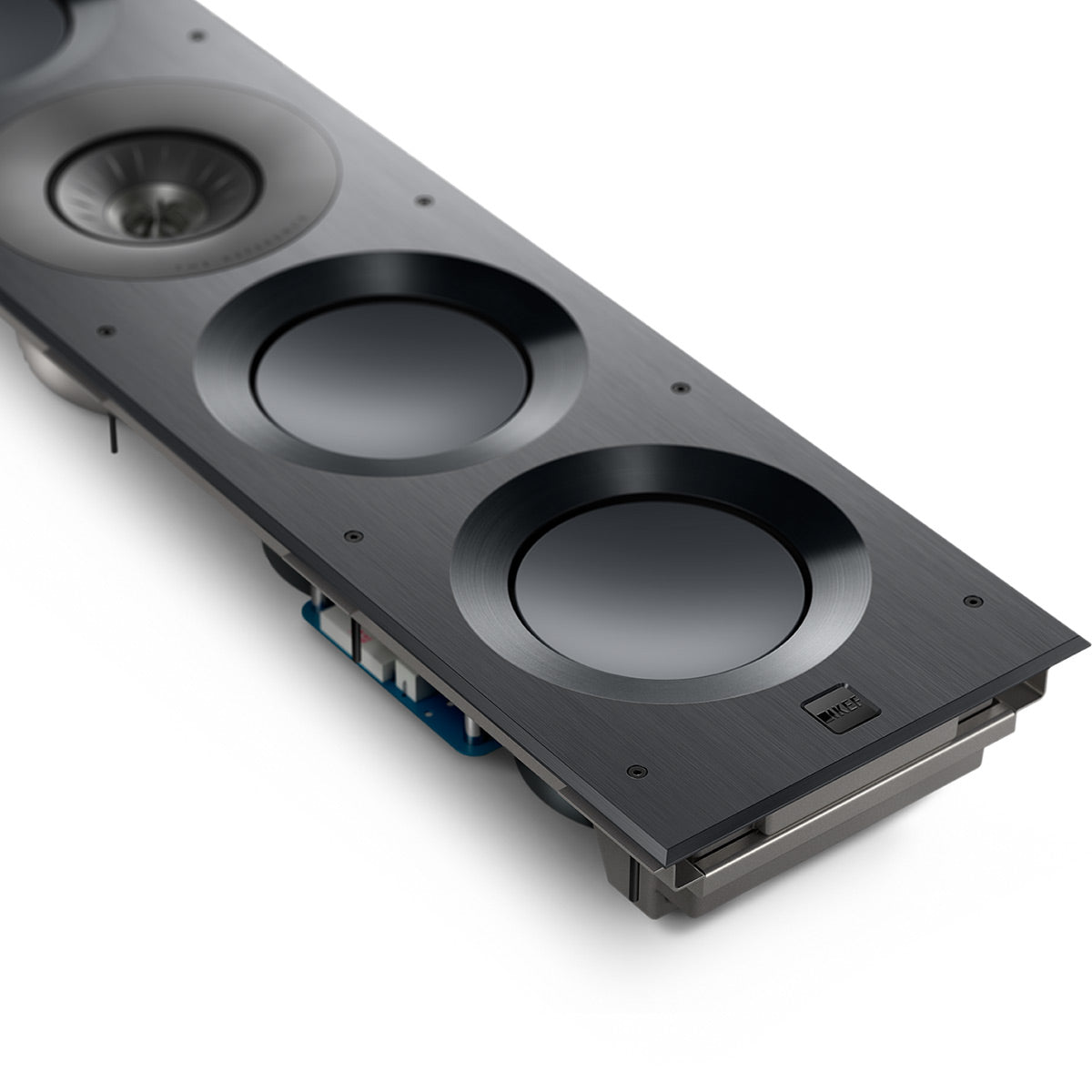

The 11mm thick precision-machined aluminium baffle is engineered to eliminate vibration and provides a stoic platform for the powerful drivers to perform at their best.

Uni-Q®

Acts as a single point source to enlarge the 'sweet spot' and disperse sound more evenly.

Hide Your Speakers, Not Your Sound

The paintable magnetic metal grille and optional black cloth grille ensure the speaker seamlessly blends into the environment.

Specifications

  • Model: Ci5160REFM-THX
  • Series: Ci-Reference
  • Nominal impedance: 4Ω
  • Sensitivity (2.83V/1m): 92dB
  • Frequency response (±6dB) open-backed: 40Hz - 28kHz
  • Frequency range (-10dB): 32Hz - 45kHz
  • Nominal coverage (degrees): 150°
  • Max SPL (dB): 116dB
  • Crossover frequency: 600Hz, 3kHz
  • Drive units
    • LF: 4 x 160mm (6.5in.)
    • MF 125mm (5.25in.) Uni-Q
    • HF 25mm (1in.) vented aluminum dome with Metamaterial Absorption Technology
  • Recommended amplifier power: 50 - 500W
  • Recommended high-pass filter (Hz): 35 - 80Hz
  • Product external dimensions (W x H x D): 9.06 x 42.13 x 4.16”
  • Cut-out dimensions (H x W): 41.42 x 8.23”
  • Net Weight: 47.8 lbs.
  • Mounting depth from surface 99mm (3.9in.)
  • Optional rough in frame: RIF5160L
  • Ideal rear volume: 90L
  • Minimum rear volume: 40L
  • THX certification: THX® Certified Dominus
  • Wall thickness (Maximum): 40mm (1.58in.)
  • Wall thickness (Minimum): 6mm (0.24in.)

What's In The Box

  • Ci5160REFM-THX Reference Meta In-Wall Speaker
  • Paintable Metal Grille
  • Cutout Template
  • Installation Hardware
  • Manual
