KEF Ci3160REFM-THX Overview

Product Information

Model: CI3160REFM-THX | UPC: 637203049910

Specifications

What's In The Box

Product Information

Model: CI3160REFM-THX | UPC: 637203049910

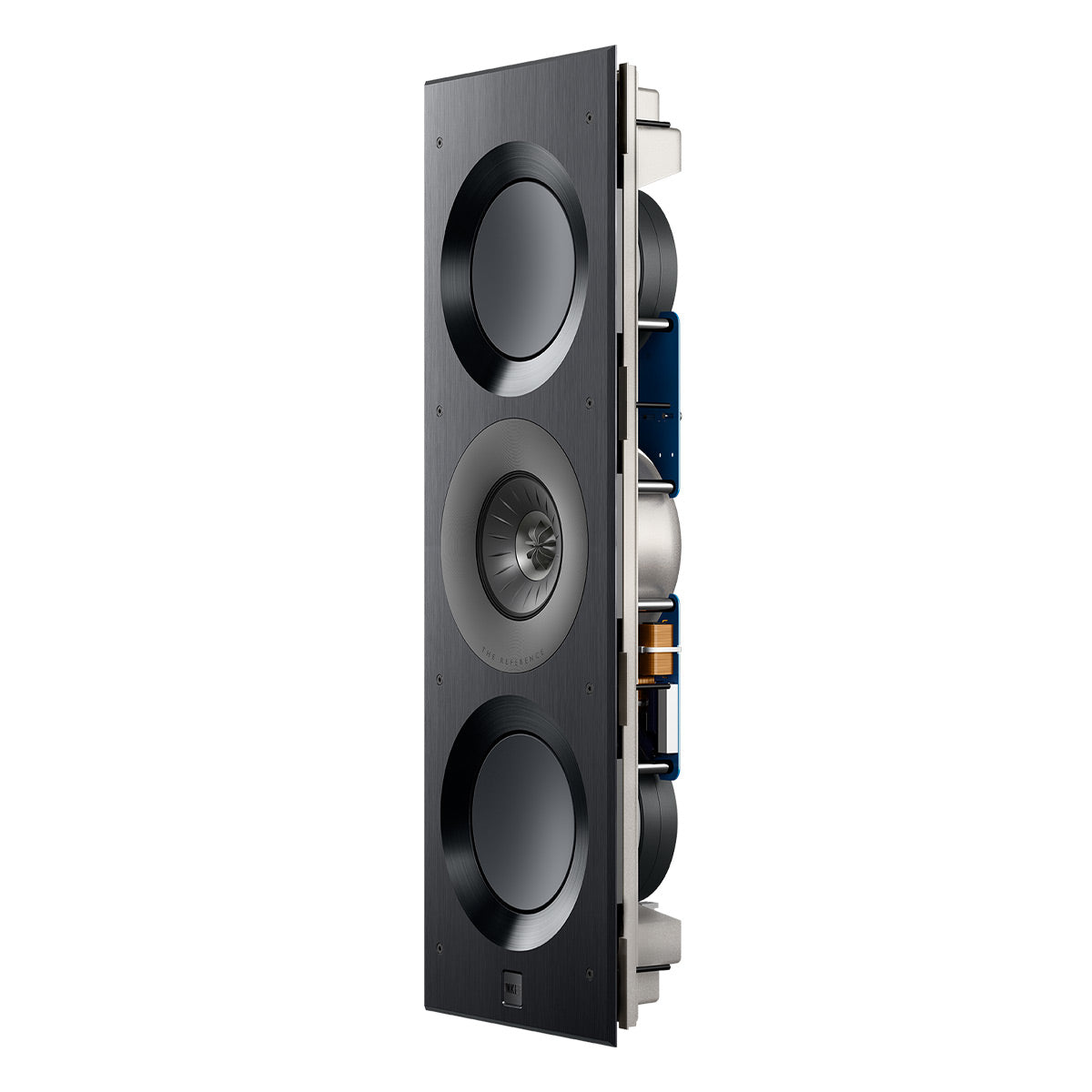

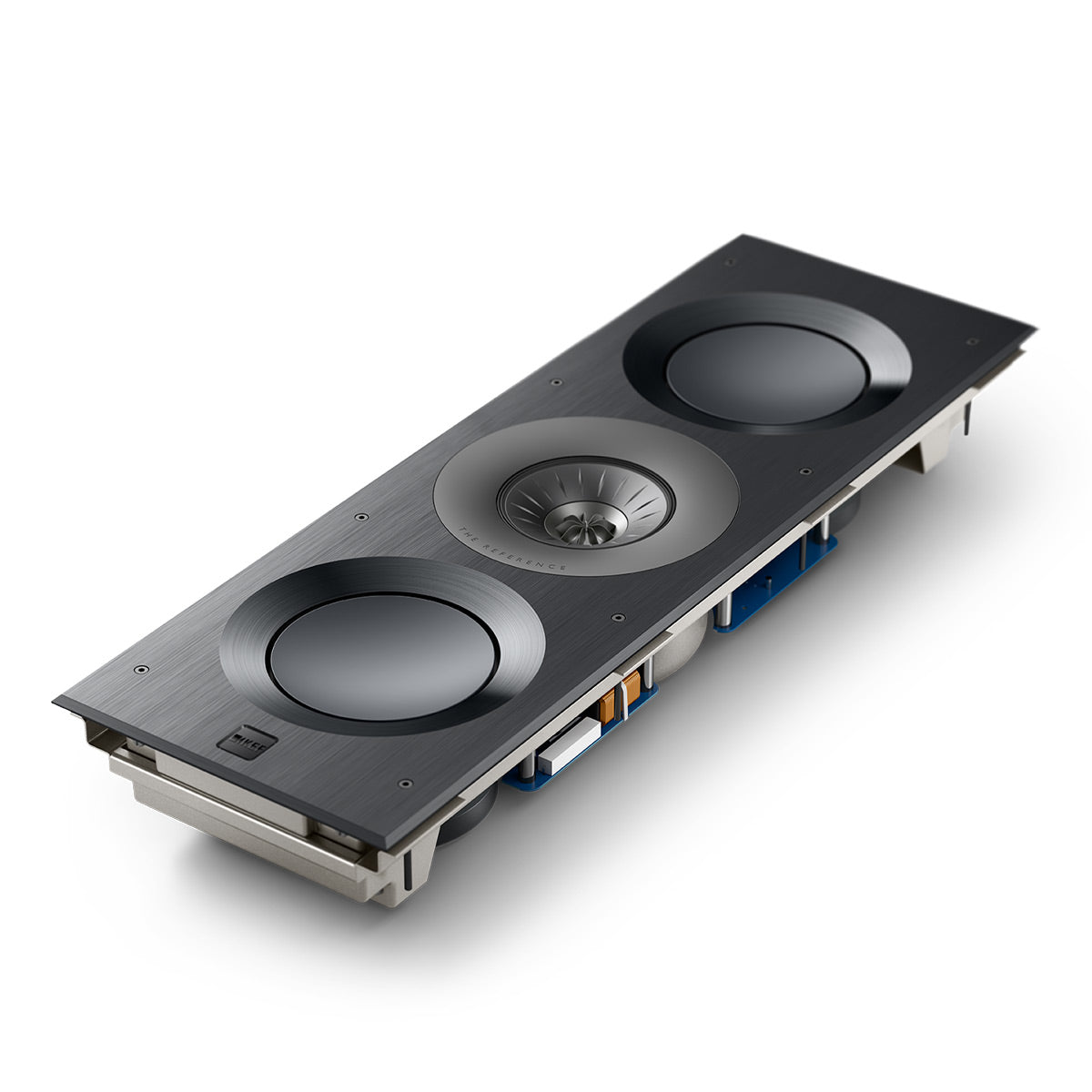

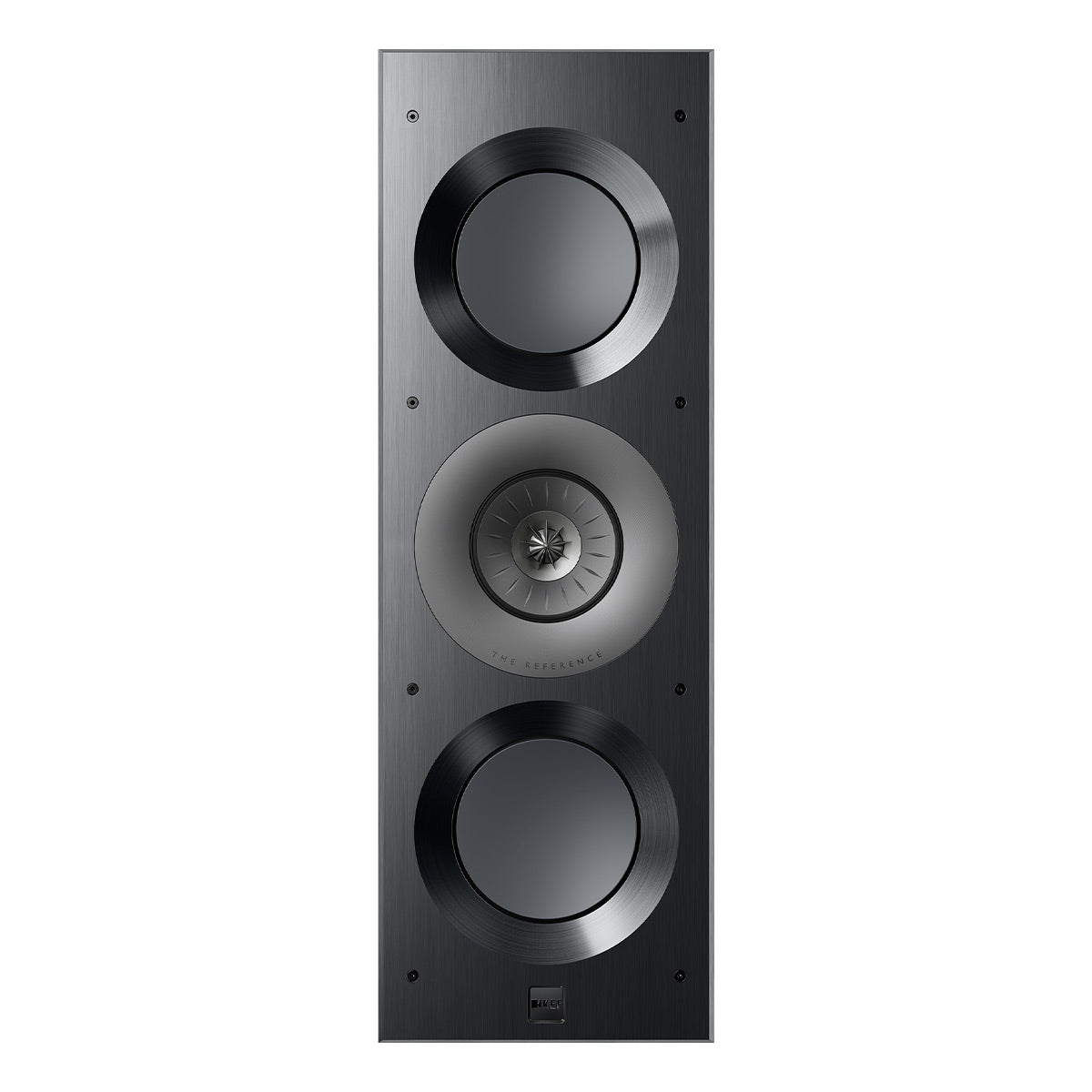

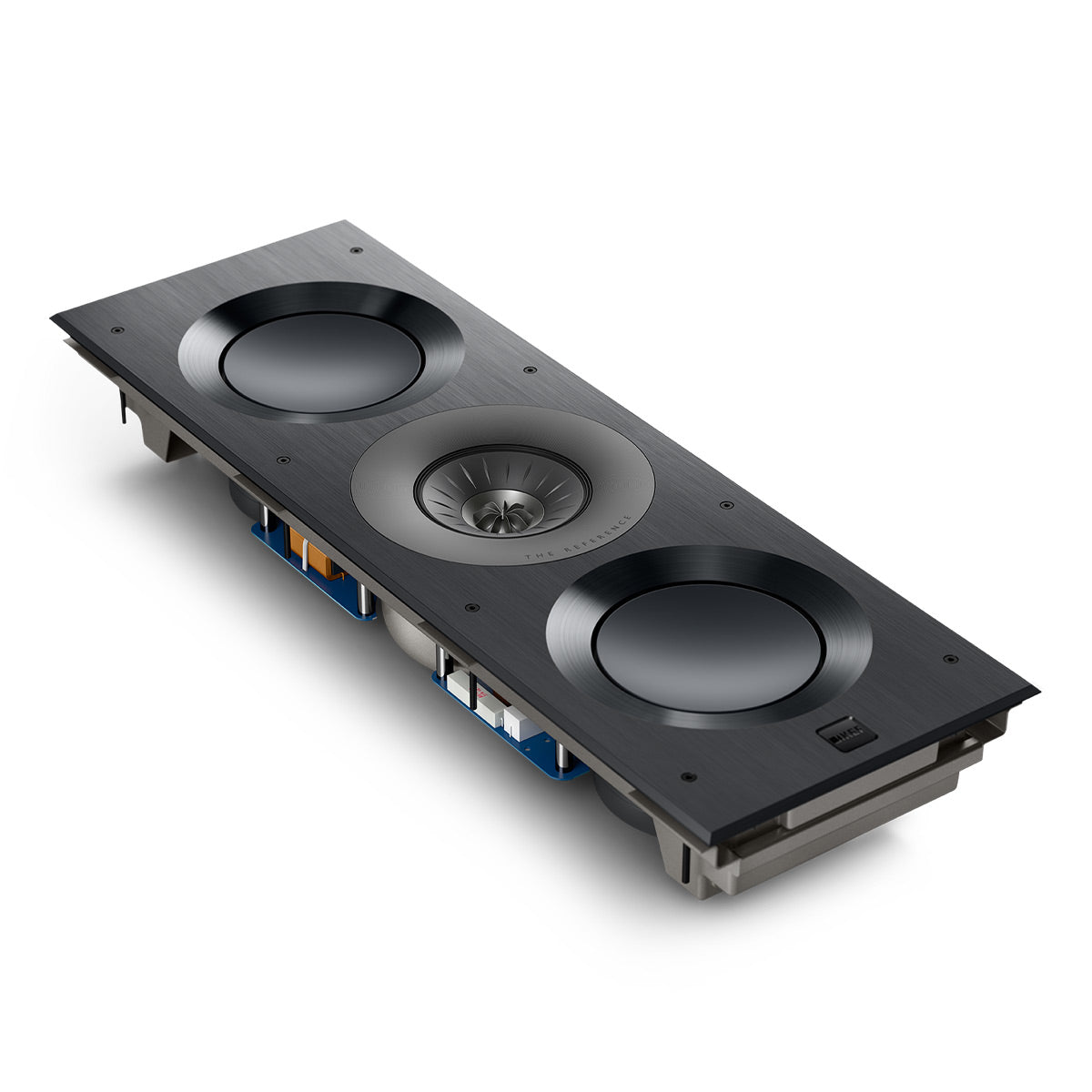

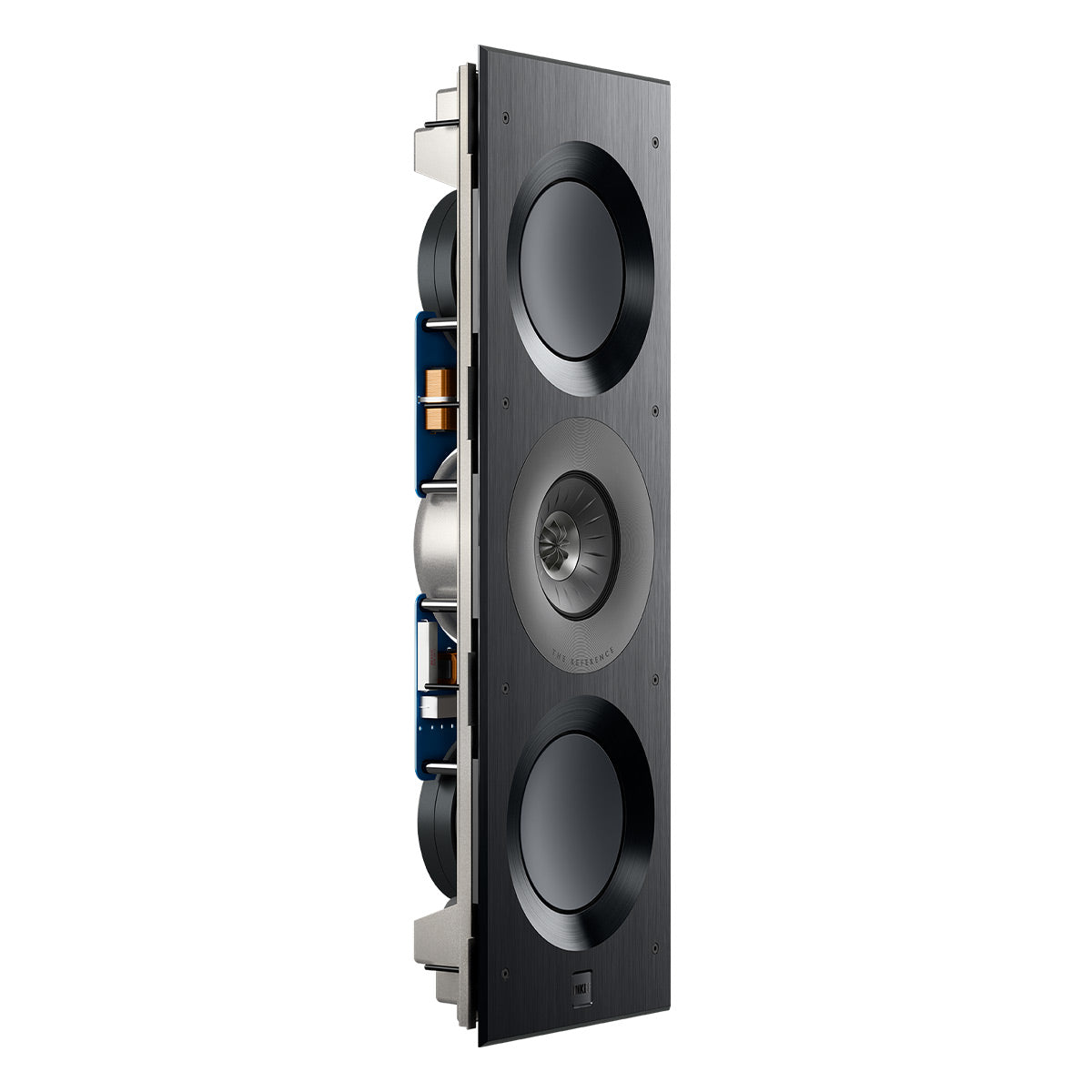

THX® Certified Ultra Speaker with MAT™

The Ci3160RLM-THX is an in-wall architectural speaker featuring the 12th generation Uni-Q driver array with KEF’s groundbreaking Metamaterial Absorption Technology (MAT™), refined to maximize its full potential and proudly carries the THX Certified Ultra designation. Together with two 6.5” hybrid aluminum bass drivers, it delivers the most dynamic audio experience for home theatres.

Features

  • 12th Generation Uni-Q driver array
  • Dual 6.5” Bass Drivers with Hybrid Aluminum Cones
  • Aluminum baffle minimizes vibration and distortion
  • Metamaterial Absorption Technology (MAT)
  • Flush-Mount Design
  • THX Ultra Certified

Uni-Q®

Acts as a single point source to enlarge the ‘sweet spot’ and disperse sound more evenly.

THX Certified

Ci3160RLM-THX delivers ultra-high performance with true theatre sound quality for large theatres and living rooms and it is THX® Certified Ultra.

True Bass Definition

Two hybrid aluminum bass drivers for tight, deep, controlled bass.

Total Attention to Detail

The 5.5 mm thick precision-machined aluminium baffle is engineered to eliminate vibration and provides a stoic platform for the powerful drivers to perform at their best.

Hide Your Speakers, Not Your Sound

The paintable magnetic metal grille and optional black cloth grille ensure the speaker seamlessly blends into the environment.

Specifications

  • Series: R Series
  • Nominal Impedance: 4Ω
  • Sensitivity (2.83V/1m): 89dB
  • Frequency Response (±6 dB) open-backed: 43Hz - 28kHz
  • Frequency Range (-10 dB): 33Hz - 45kHz
  • Nominal Coverage (degrees): 150°
  • Crossover Frequency: 640Hz, 2.6kHz
  • Drive Units
    • LF: 2 x 160mm (6.5in.)
    • MF: 160mm (6.5in.) Uni-Q
    • HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology
  • Recommended Amplifier Power: 50 - 350 W
  • Recommended High-pass Filter (Hz): 35Hz - 80Hz
  • Product External Dimensions (W X H X D): 9.06 x 26.77 x 4.16”
  • Cut-out Dimensions (H X W): 25.98 x 8.23”
  • Net Weight: 26.4 lbs.
  • Mounting Depth From Surface: 99mm (3.9in.)
  • Optional Rough In Frame: RIF3160L
  • Ideal Rear Volume (L): 60
  • Minimum Rear Volume (L): 30
  • Max SPL (dB): 110dB
  • Certification: THX® Certified Ultra
  • Wall Thickness (Maximum): 40mm (1.58in.)
  • Wall Thickness (Minimum): 6mm  (0.24in.)

What's In The Box

  • Ci3160REFM-THX Reference Meta In-Wall Speaker
  • Paintable Metal Grille
  • Cutout Template
  • Installation Hardware
  • Manual
