KEF Ci3120QLM-THX Meta Extreme In Wall THX Select Speaker

Now on demo at:

1 of 5
KEF

KEF Ci3120QLM-THX Meta Extreme In Wall THX Select Speaker

Regular price $1,299.99
Sale price $1,299.99 Regular price
$0.00 Save $-1,299.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

KEF Ci3120QLM-THX Overview

Product Information

Model: CI3120QLM-THX | UPC: 637203219276

Specifications

What's In The Box

Product Information

Model: CI3120QLM-THX | UPC: 637203219276

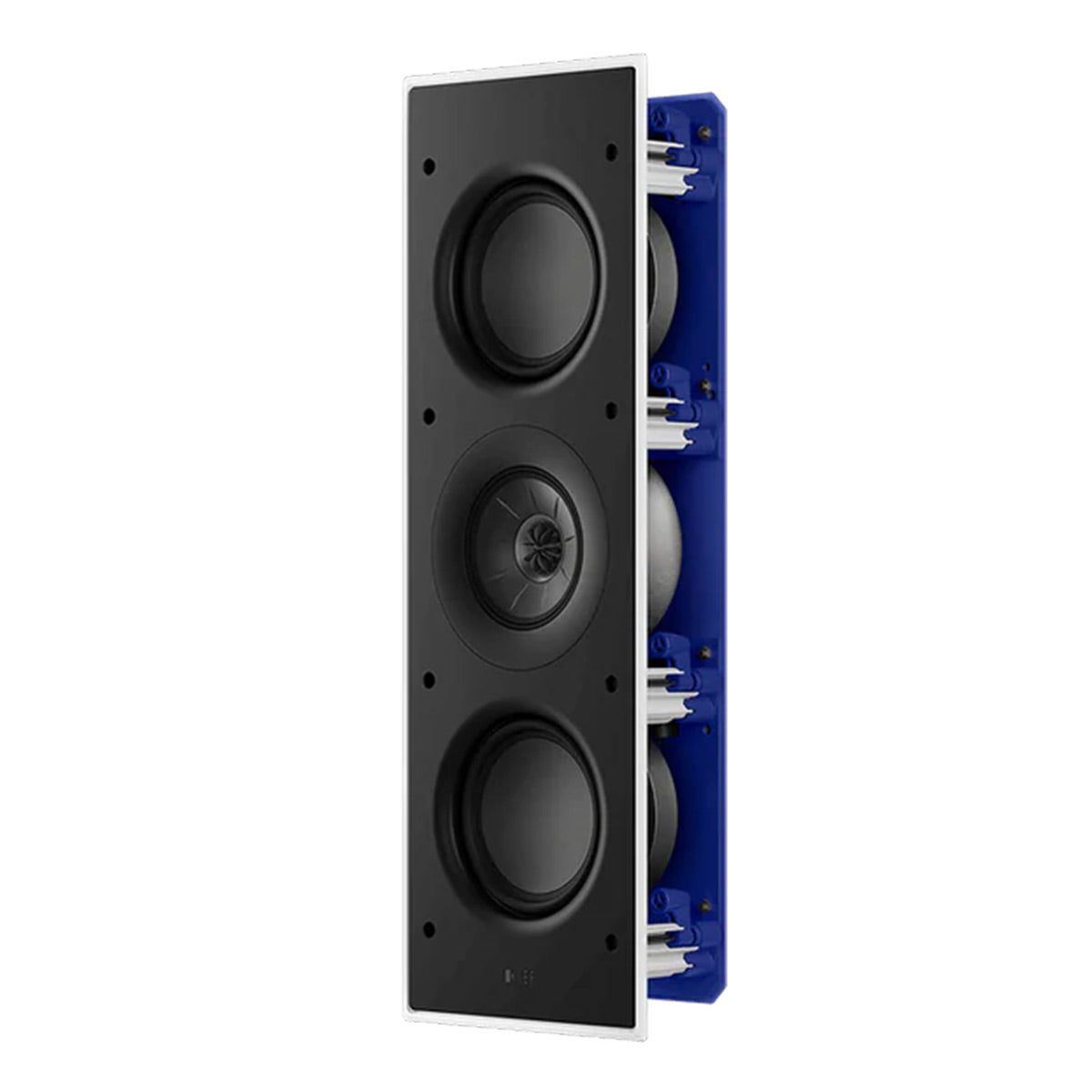

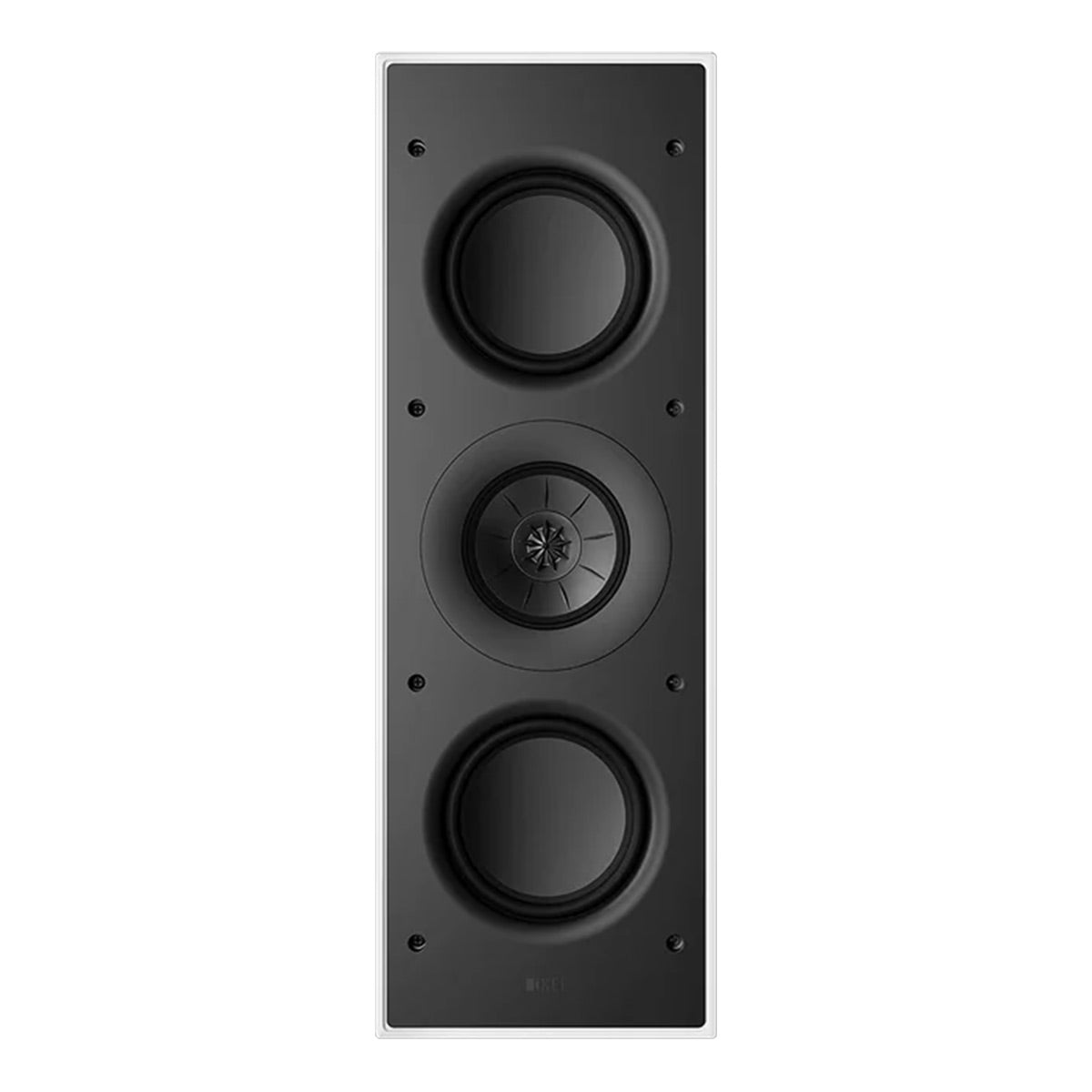

A Versatile THX Certified In-Wall Speaker with MAT™

The Ci3120QLM-THX in-wall architectural speaker meets the growing demand for high-performance home theatre solutions in multipurpose rooms, where dedicated spaces are less common. Featuring a 12th generation Uni-Q driver array and our groundbreaking Metamaterial Absorption Technology (MAT), the Ci3120QLM-THX is THX Certified Select. It recreates high-impact cinema sound with best-in-class audio fidelity, making it ideal for medium-sized rooms.

Features

  • Ultra-Deep, Clean Bass with 2 x 4.75” Woofers
  • 3-Way System Design with Optimized Crossovers
  • Metamaterial Absorption Technology
  • Uni-Q® Point Source ‘Sweet Spot’
  • THX Certified for True Theatre Sound Quality

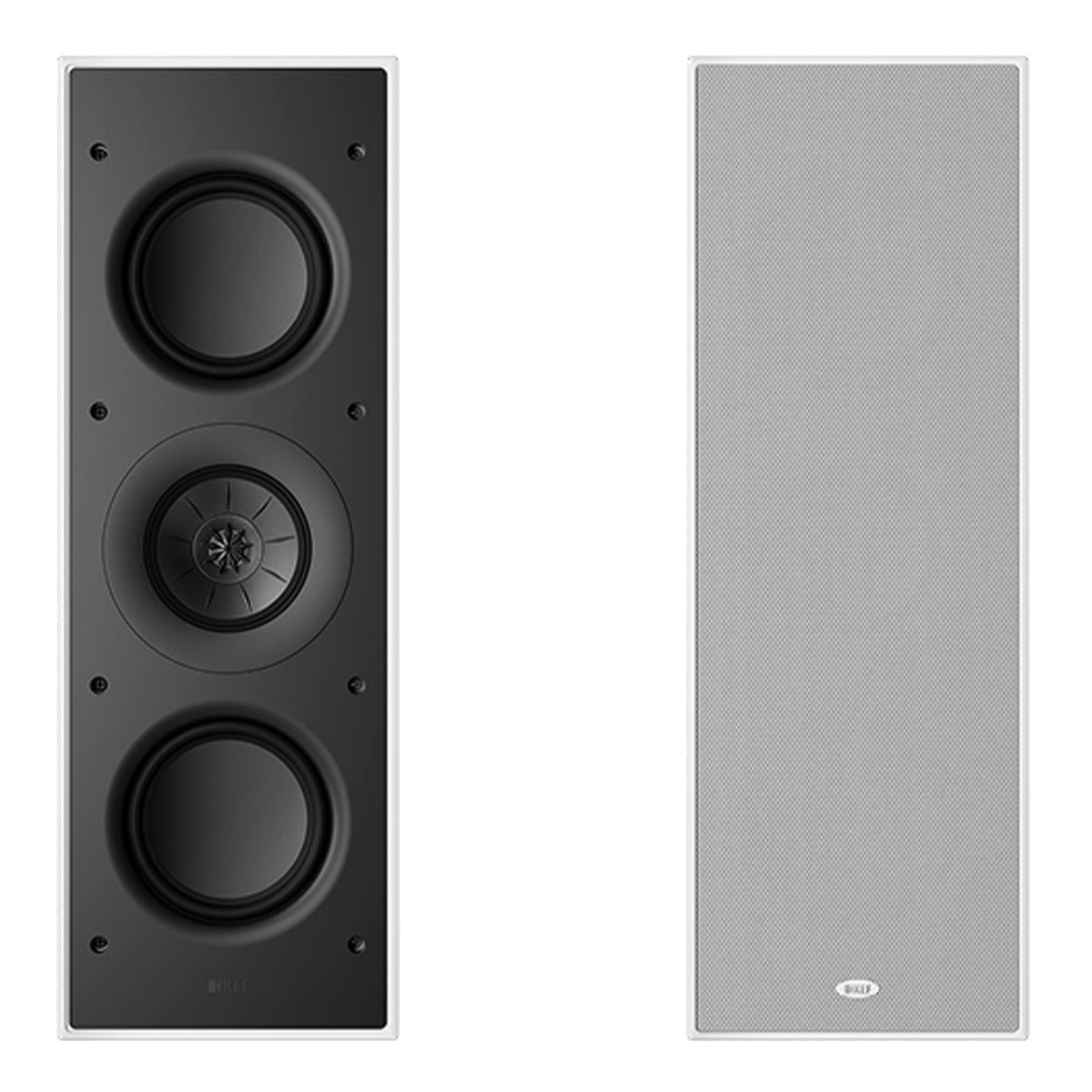

  • Paintable Magnetic Grille Included

Specifications

  • Model: Ci3120QLM-THX
  • Series: Q Series
  • Frequency Response Range: 50Hz - 20kHz
  • Frequency Response Remark: (±6dB) open-backed
  • Frequency Range: 42Hz - 20kHz
  • Sensitivity: 89dB
  • Nominal Impedance: 4Ω
  • Nominal Coverage: 150°
  • Maximum SPL Measured at 1m: 105 dB
  • Drive Units
    • LF: 2 x 120mm (4.75 in.)
    • MF: 100mm (4 in.) Uni-Q

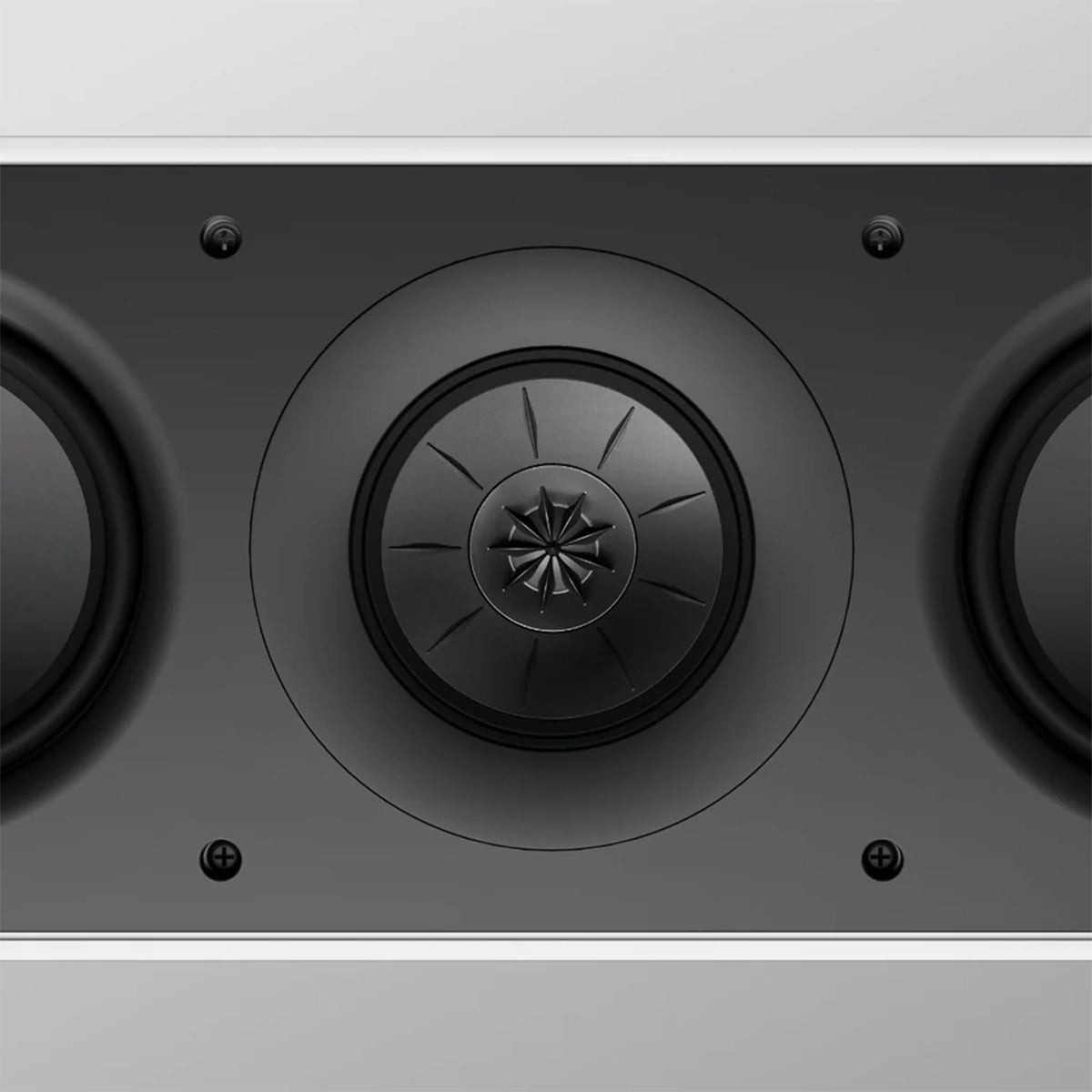

    • HF: 19mm (0.75 in.) vented aluminium dome with Metamaterial Absorption Technology
  • Crossover Frequency: 440Hz, 2.75kHz
  • Recommended Amplifier Power: 25 - 250 W
  • Recommended High-Pass Filter (Hz): 35Hz-100Hz
  • Product External Dimensions (W x H x D): 21.1 x 7.3 x 3.8"
  • Cut-Out Dimensions (W x H): 20.2 x 6.4"
  • Mounting Depth From Surface: 3.6 in. (90 mm)
  • Mounting Thickness
    • Maximum: 1.42 in. (36 mm)
    • Minimum: 0.24 in. (6 mm)
    • Ideal Rear Volume (L): 40
    • Minimum Rear Volume (L): 20
  • Net Weight: 21.4 lbs (9.7 kg)
  • Safety And Regulatory Compliance: IP64
  • THX Certification: THX® Certified Ultra

What's In The Box

  • Ci3120QLM-THX Meta Extreme In Wall THX Select Speaker
  • Metal Grille
  • Cutout Template
  • Manual
