KEF

KEF Ci160TR 4.5 Inch Thin In-Ceiling Speaker

Regular price $399.99
Sale price $399.99 Regular price
Save $-399.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

KEF Ci160TR Overview

Product Information

Model: CI160TR | UPC: 637203210983

Specifications

What's In The Box

Product Information

Model: CI160TR | UPC: 637203210983

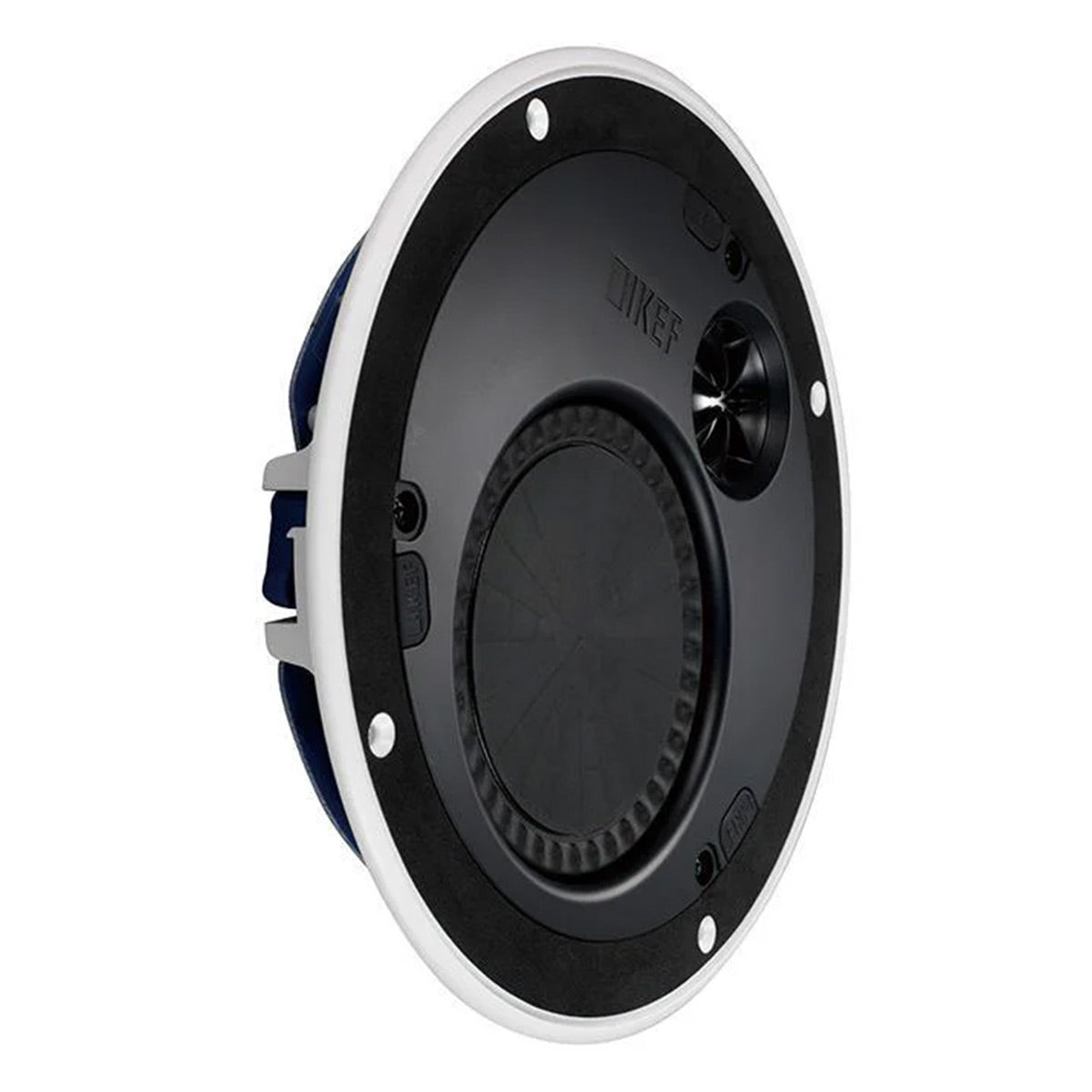

Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments and your music system.

Features

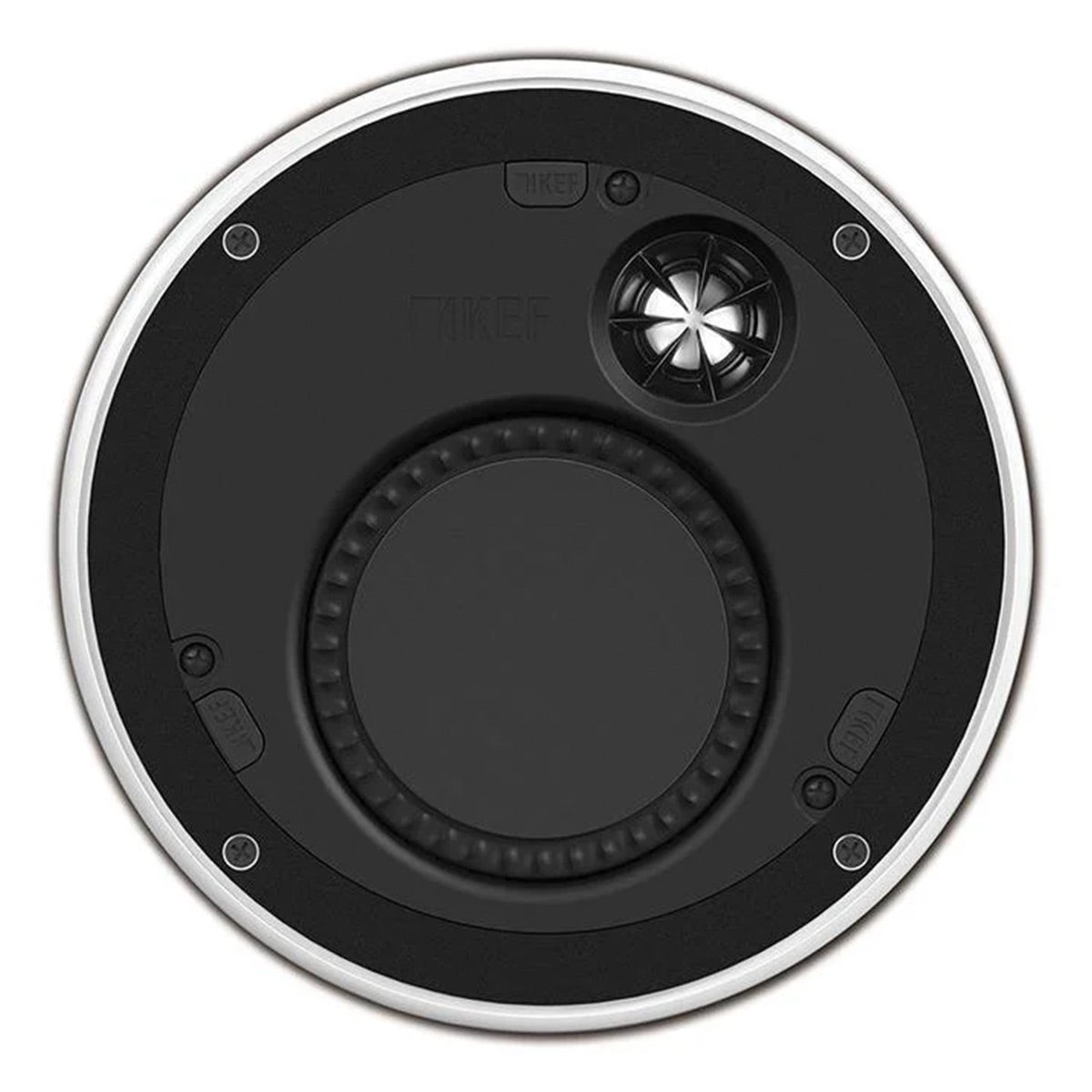

  • Uni-Q® Driver Array

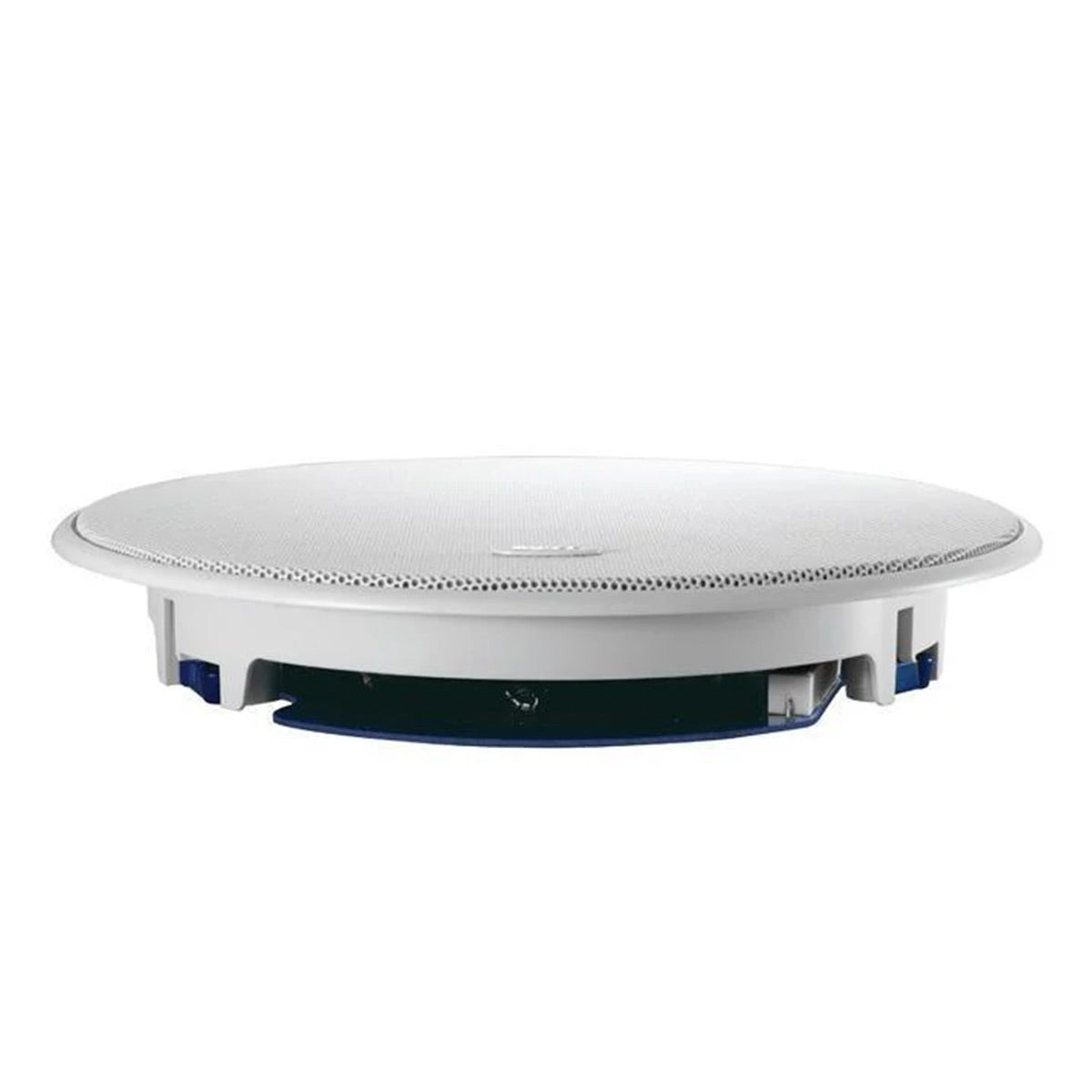

  • Ultra-Thin Bezel

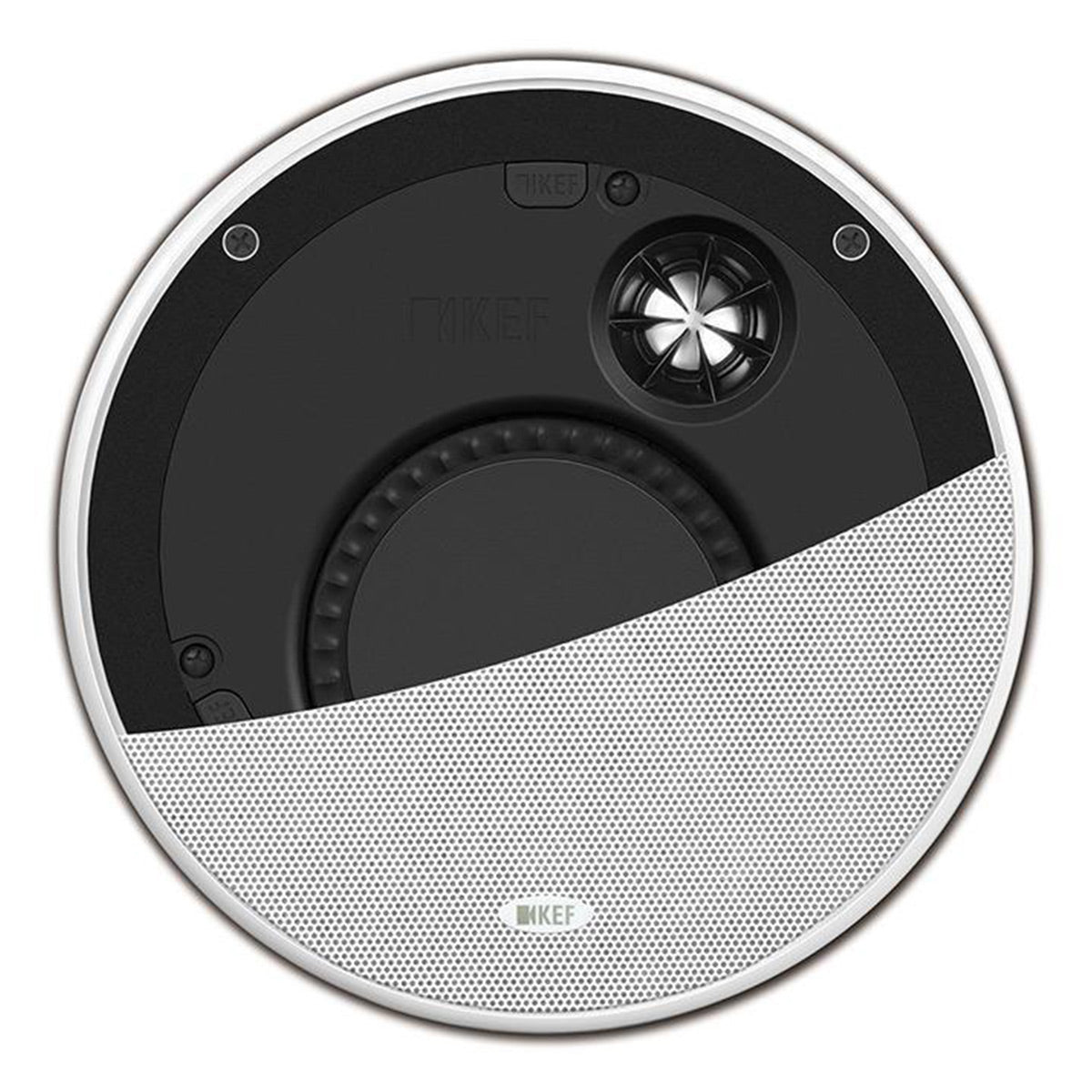

  • Magnetic Paintable Grille
  • Shallow Mounting

T Series

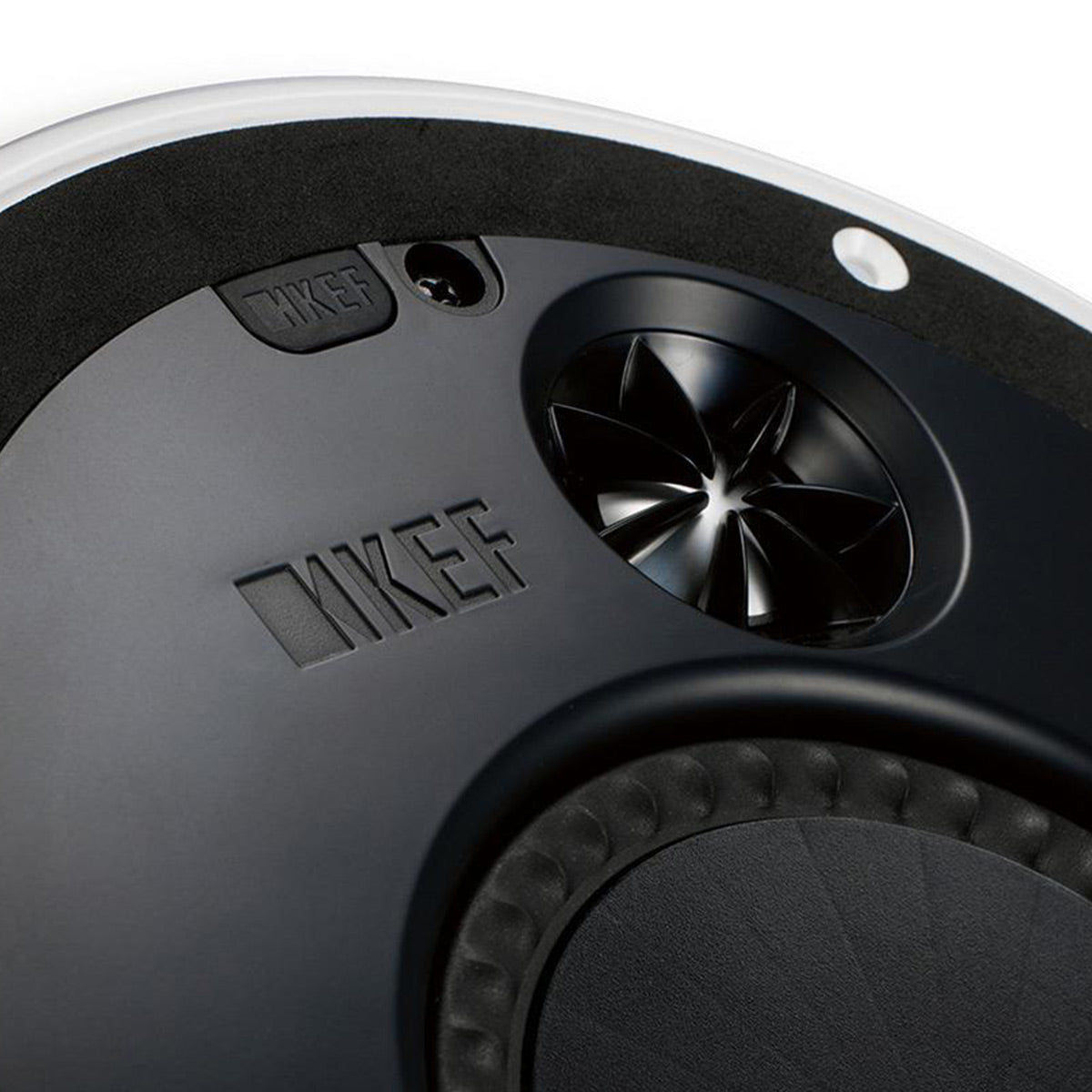

Boasting the latest incarnation of KEF’s formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim Ci-T Series speakers open up new possibilities for enjoying KEF’s uncompromised sound quality where space above the ceiling is at a premium. Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments or your music system.

Specifications

  • Nominal Impedance: 8 Ohm
  • Sensitivity: 87dB (2.83V/1m)
  • Crossover Response: 1.7kHz
  • Frequency Response: 110Hz - 24kHz (+/-6dB) open backed
  • Drive Units
    • LF: 115mm (4.5 in.) dual layer MF
    • HF: 25mm (1 in.) aluminium HF
  • Recommended Amplifier Power: 10-100W
  • Product External Dimension (H x W x D):
    • Diameter: 234.6mm (9.24 in.)
    • Depth: 40mm (1.57 in.)
    • Cut-Out Dimensions (H x W): 196mm (7.71 in.)
  • Mounting Thickness
    • Ceiling Thickness (Maximum): 26mm (1.03 in.)
    • Ceiling Thickness (Minimum): 9mm (0.36 in.)
    • Mounting Depth From Surface: 36mm (1.42 in.)
  • Optional Rough In Frame: RIF160R
  • Optional Rear Enclosure: RNC160R
  • Net Weight: 2.2 lbs.

What's In The Box

  • Ci160TR 4.5 Inch Thin In-Ceiling Speaker
  • Paintable Grille

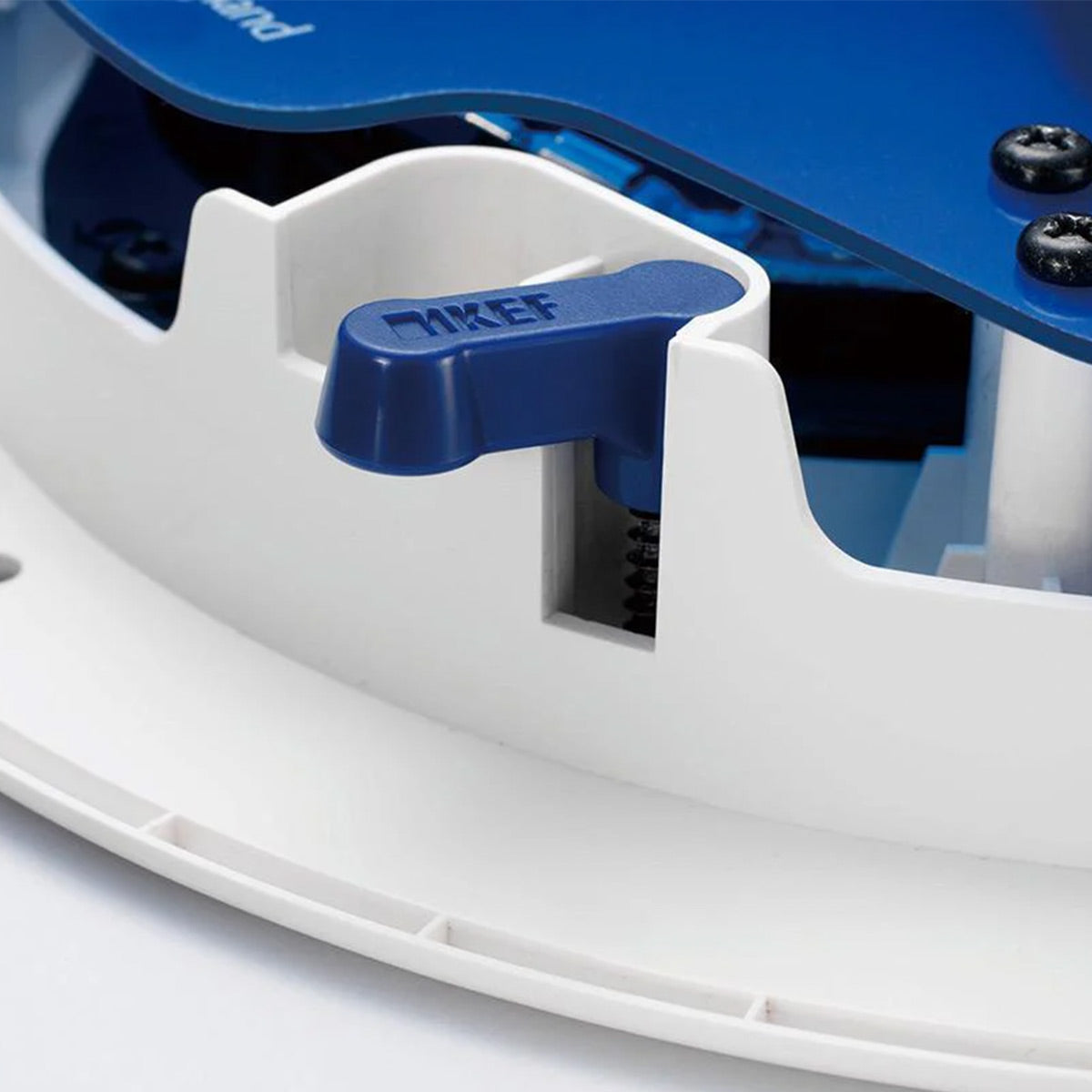

  • Installation Hardware
  • Manual
