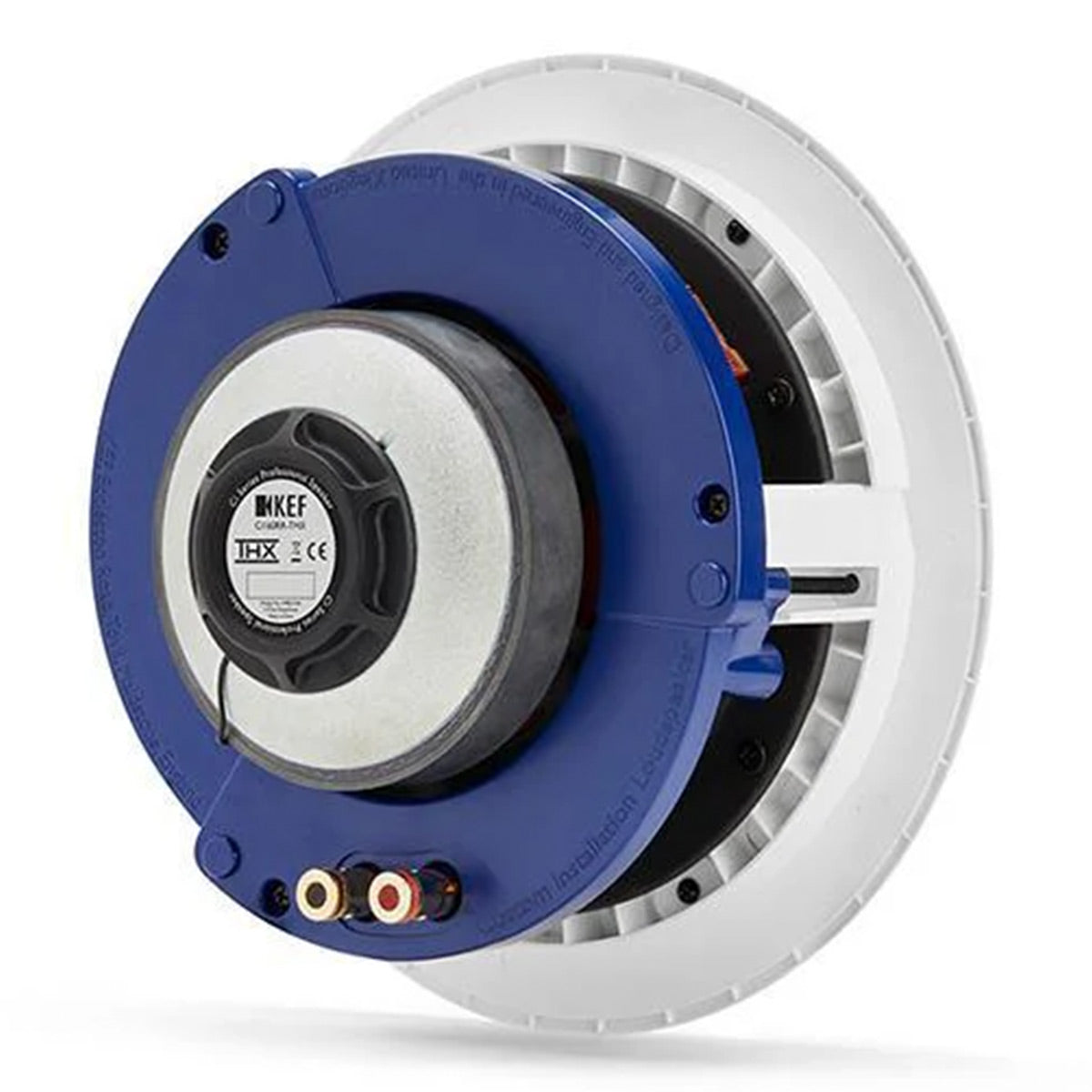

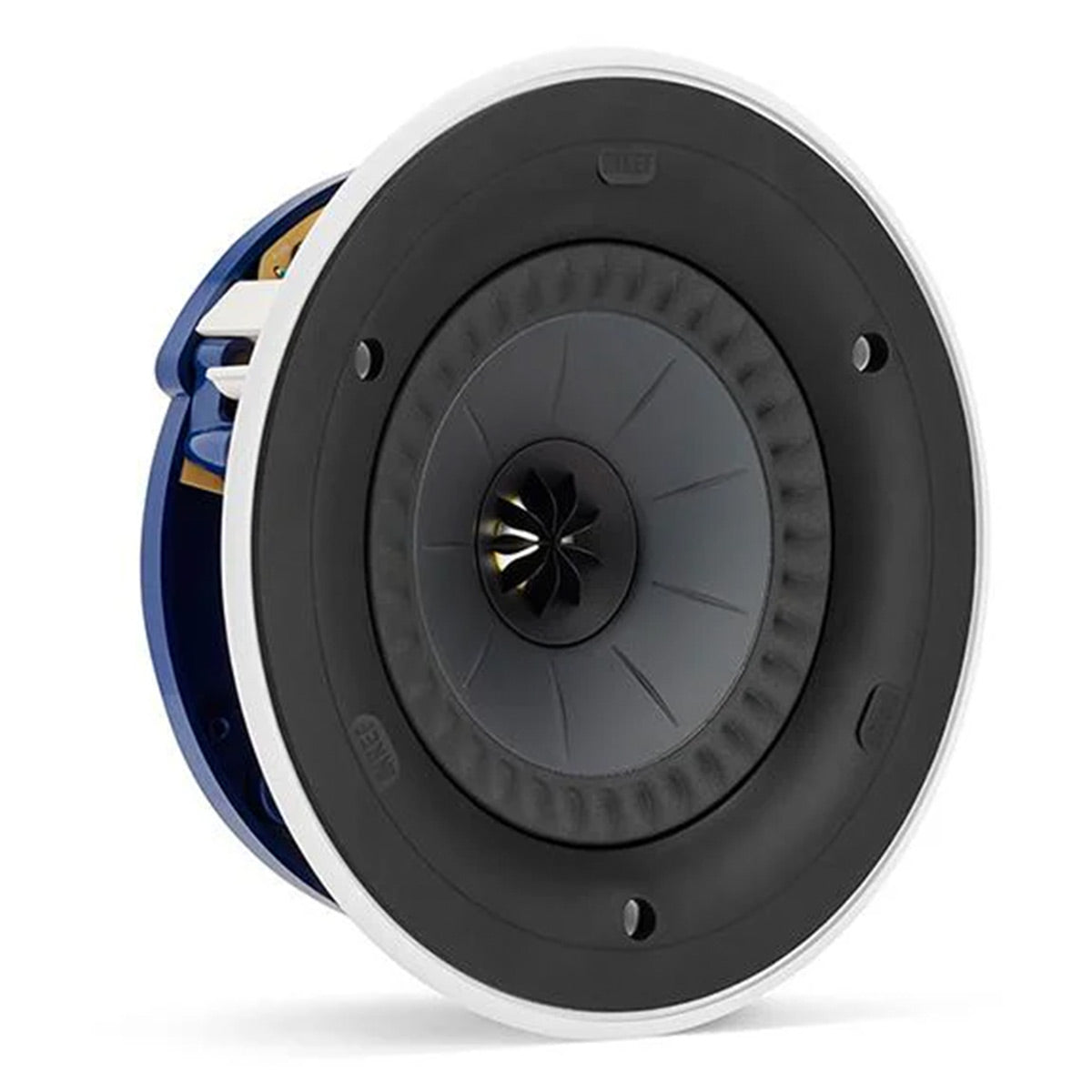

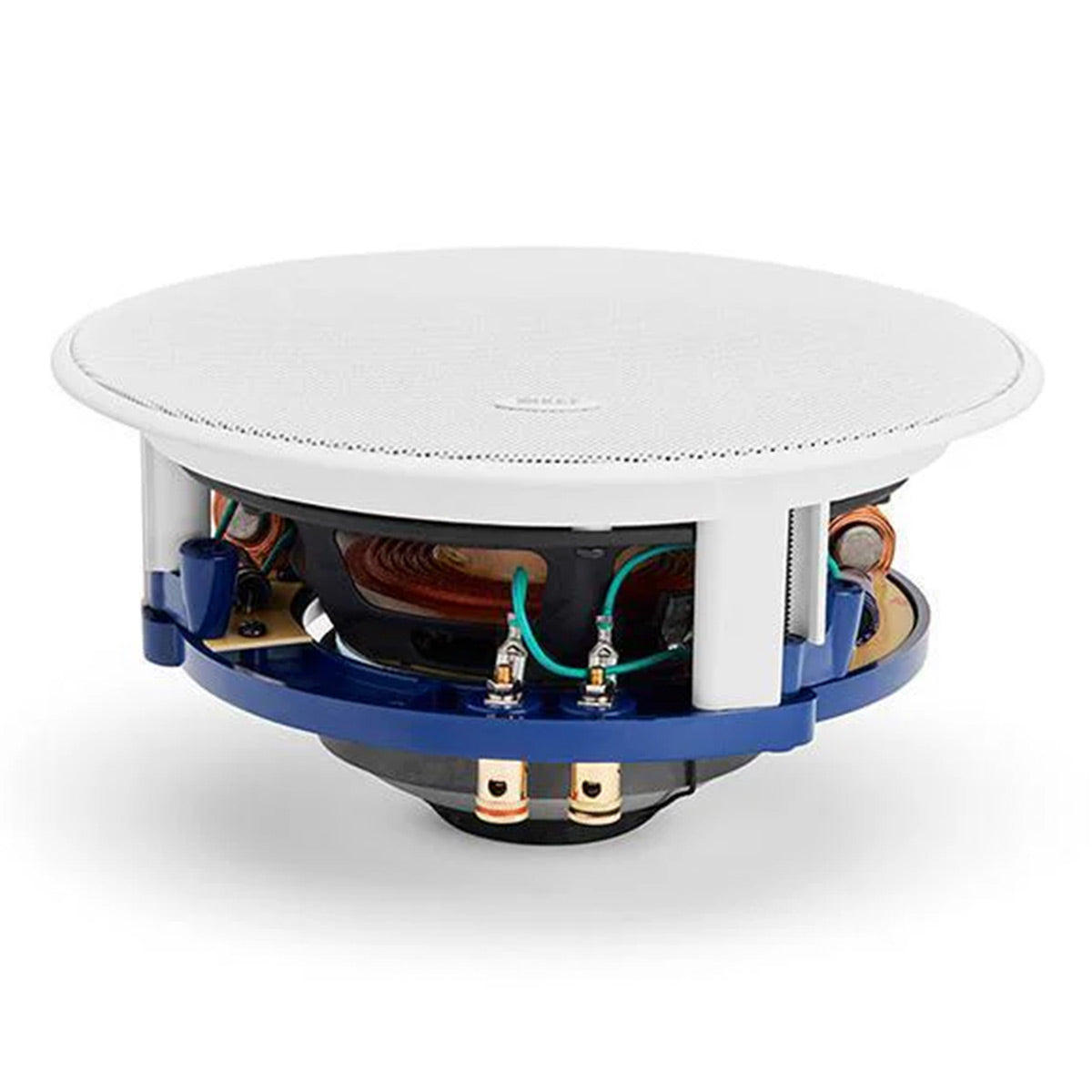

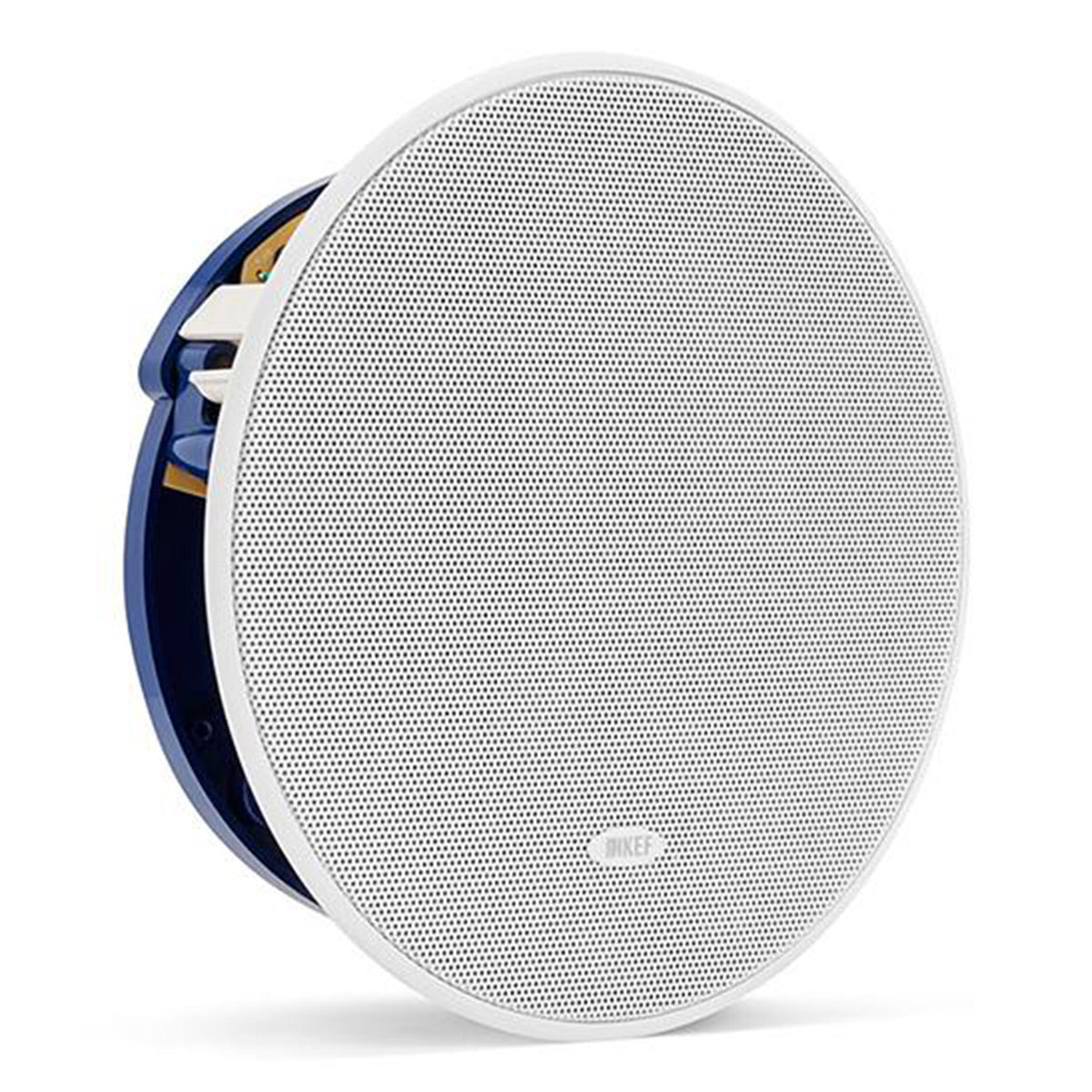

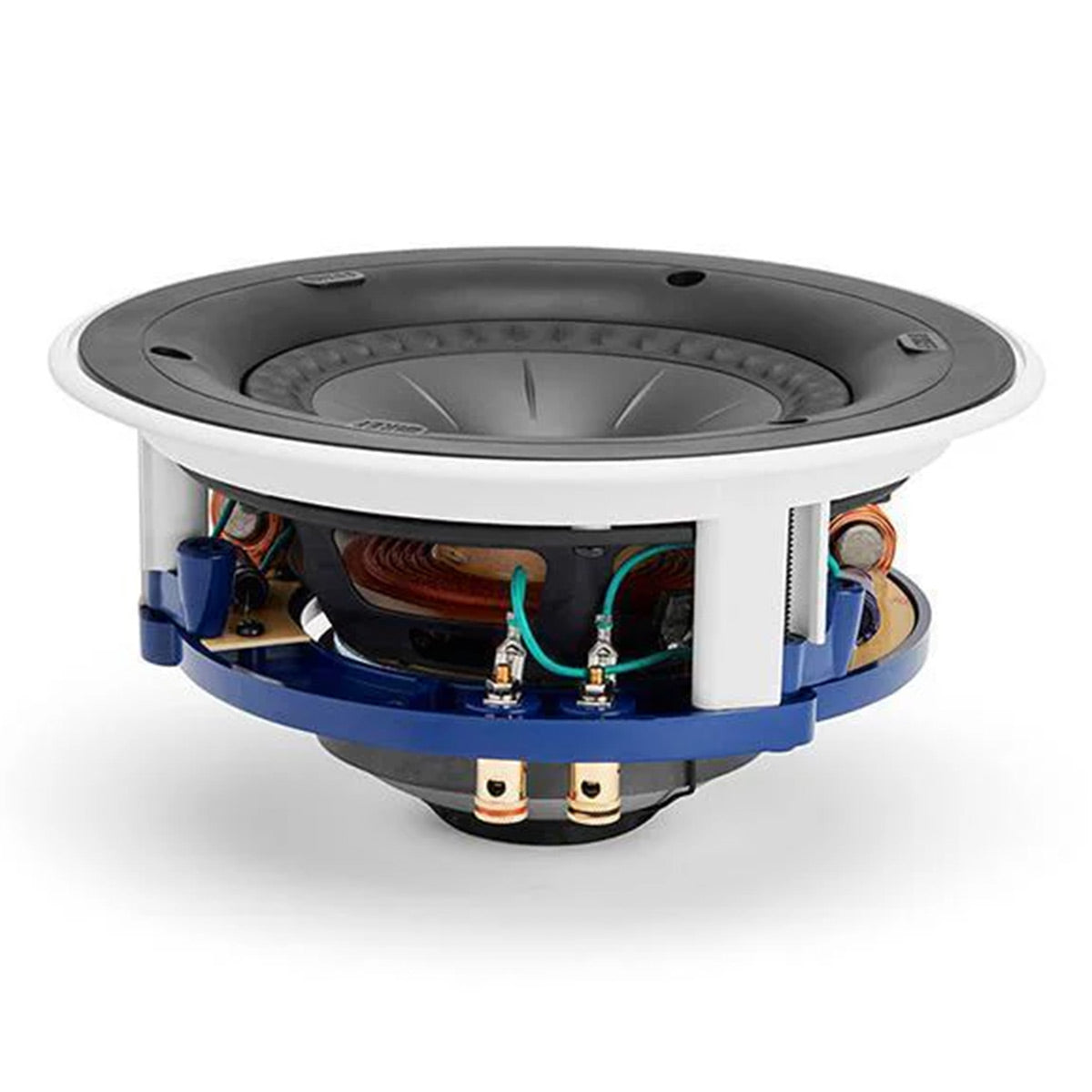

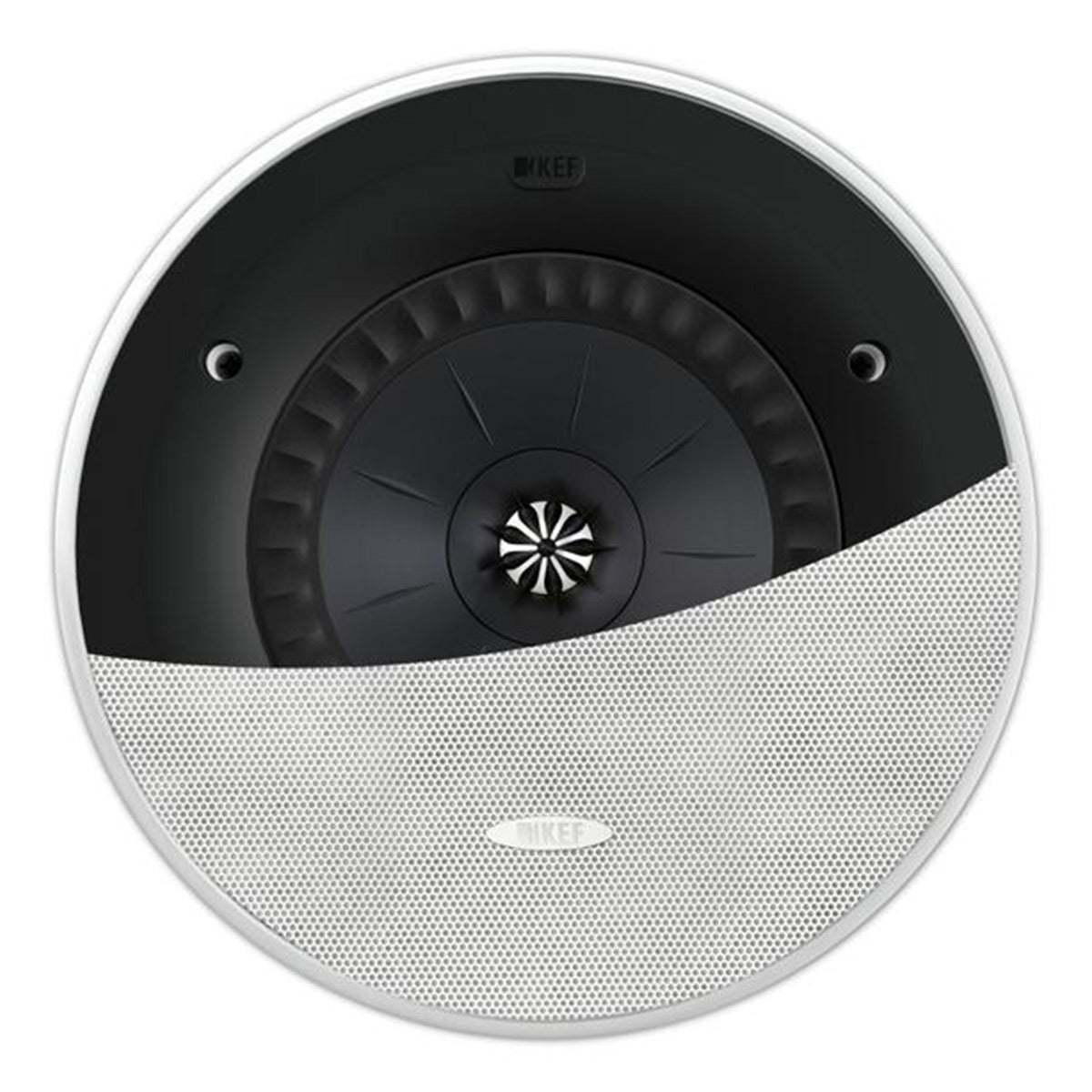

KEF Ci160RR-THX Ultra 6.5 Inch In-Ceiling Speaker

Now on demo at:

1 of 9
KEF

KEF Ci160RR-THX Ultra 6.5 Inch In-Ceiling Speaker

Regular price $999.99
Sale price $999.99 Regular price
$0.00 Save $-999.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

KEF Ci160RR-THX Overview

Product Information

Model: CI160RR-THX | UPC: 637203217654

Specifications

What's In The Box

Product Information

Model: CI160RR-THX | UPC: 637203217654

Ci160RR-THX is an ultra-high-performance loudspeaker featuring KEF's signature Uni-Q technology, designed for discreet in-ceiling or in-wall installation. As part of the Ci-R Series and a THX® Certified Ultra architectural loudspeaker, Ci160RR-THX is engineered to maintain exceptional sound quality at high outputs.

Features

  • THX® Certified Ultra Performance
  • Uni-Q® Driver Array
  • ide Frequency Response
  • High Sensitivity and Power Handling
  • Weather-Resistant Design (IP64)

Technology

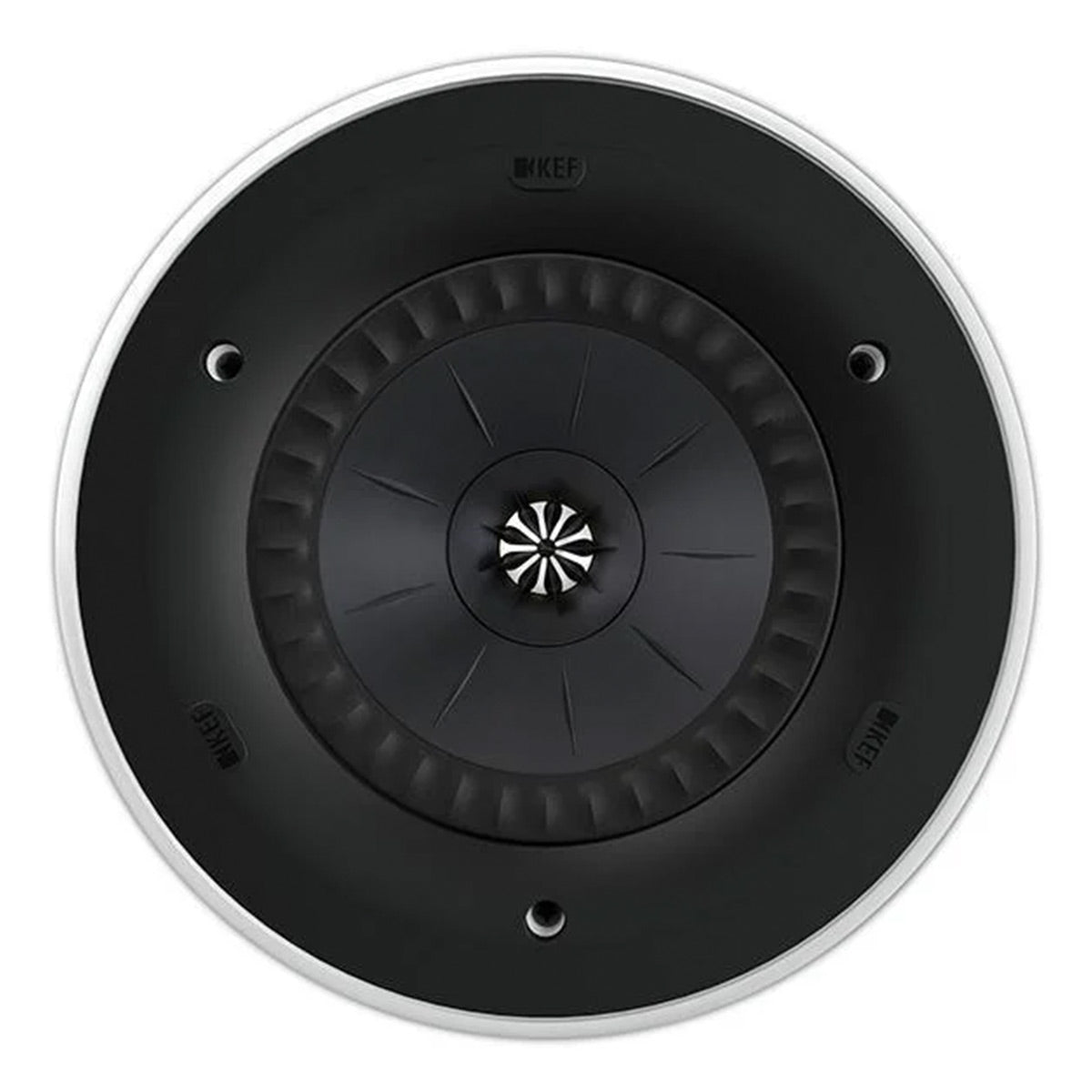

Ci160RR-THX’s Uni-Q® array boasts a 25mm high frequency tweeter mounted in the acoustic center of a 165mm woofer, delivering the same, natural performance across the entire listening area. Plus, a universal cut-out system means its opening is the same as any 160mm KEF speaker for ease of installation and component selection.

Specifications

  • Nominal Impedance: 4 Ohms
  • Sensitivity: 90dB (2.83V/ 1m)
  • Frequency Response (±6DB) Open-Backed: 52Hz - 24kHz
  • Frequency Range (-10DB): 38Hz-30kHz
  • Nominal Coverage (Degrees): 130
  • Optional Rough In Frame: RIF160R
  • Recommended Amplifier Power: 10-190W
  • Recommended High-Pass Filter (HZ): 38Hz
  • Product External Dimension
    • Diameter: 234.6mm (9.24in.)
    • Depth :115mm (4.53in)
  • Cut-Out Dimensions
    • Diameter: 196mm (7.71in.)
  • Mounting Thickness
    • Ceiling Thickness (Maximum): 37mm (1.460in.)
    • Ceiling Thickness (Minimum): 4mm (0.160in.)
  • Mounting Depth from Surface: 110mm (4.33in.)
  • MAX SPL (DB): 105
  • Crossover Frequency: 2.1kHz
  • Driver Unit
    • LF: 165mm (6.5in.) Uni-Q
    • HF: 25mm (1in.)
  • Net Weight: 2.94kg (6.48Ibs.)
  • Certification: THX ULTRA
  • Safety And Regulatory Compliance: IP64

What's In The Box

  • Ci160RR-THX Ultra 6.5 Inch In-Ceiling Speaker

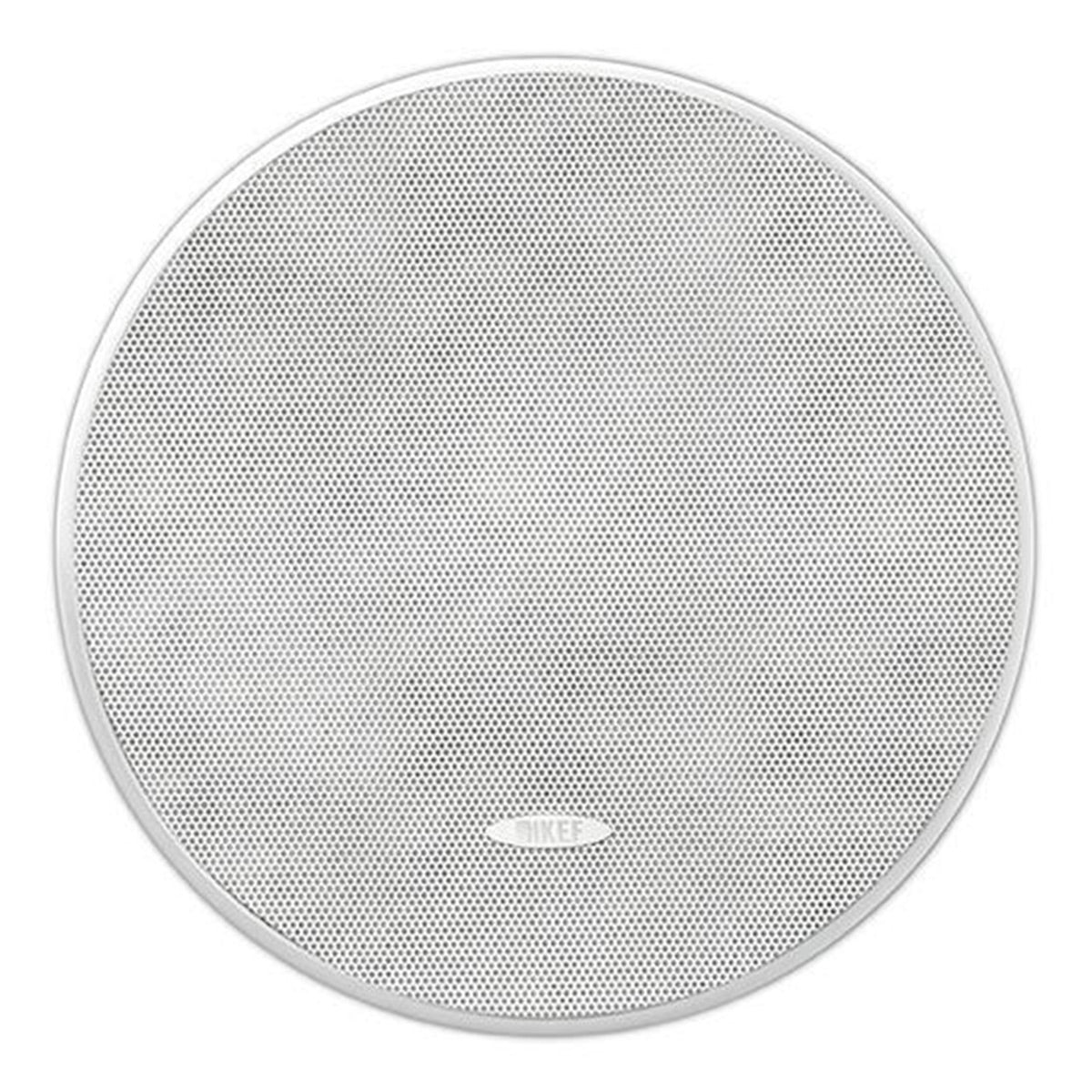

  • Paintable Grille
  • Installation Hardware
  • Manual
