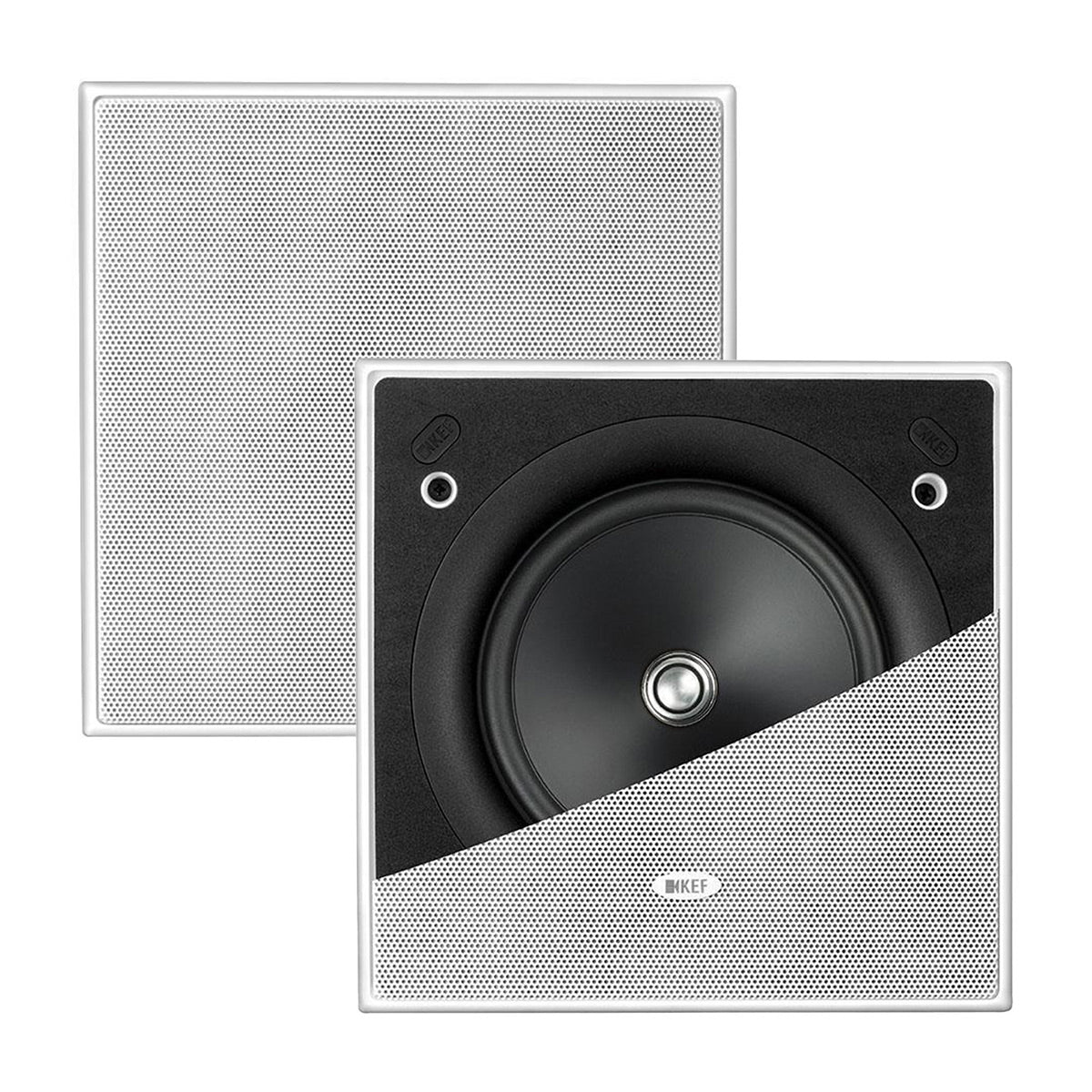

KEF Ci160ES 6.5 Inch In-Ceiling Speakers - Pair

Now on demo at:

1 of 10
KEF

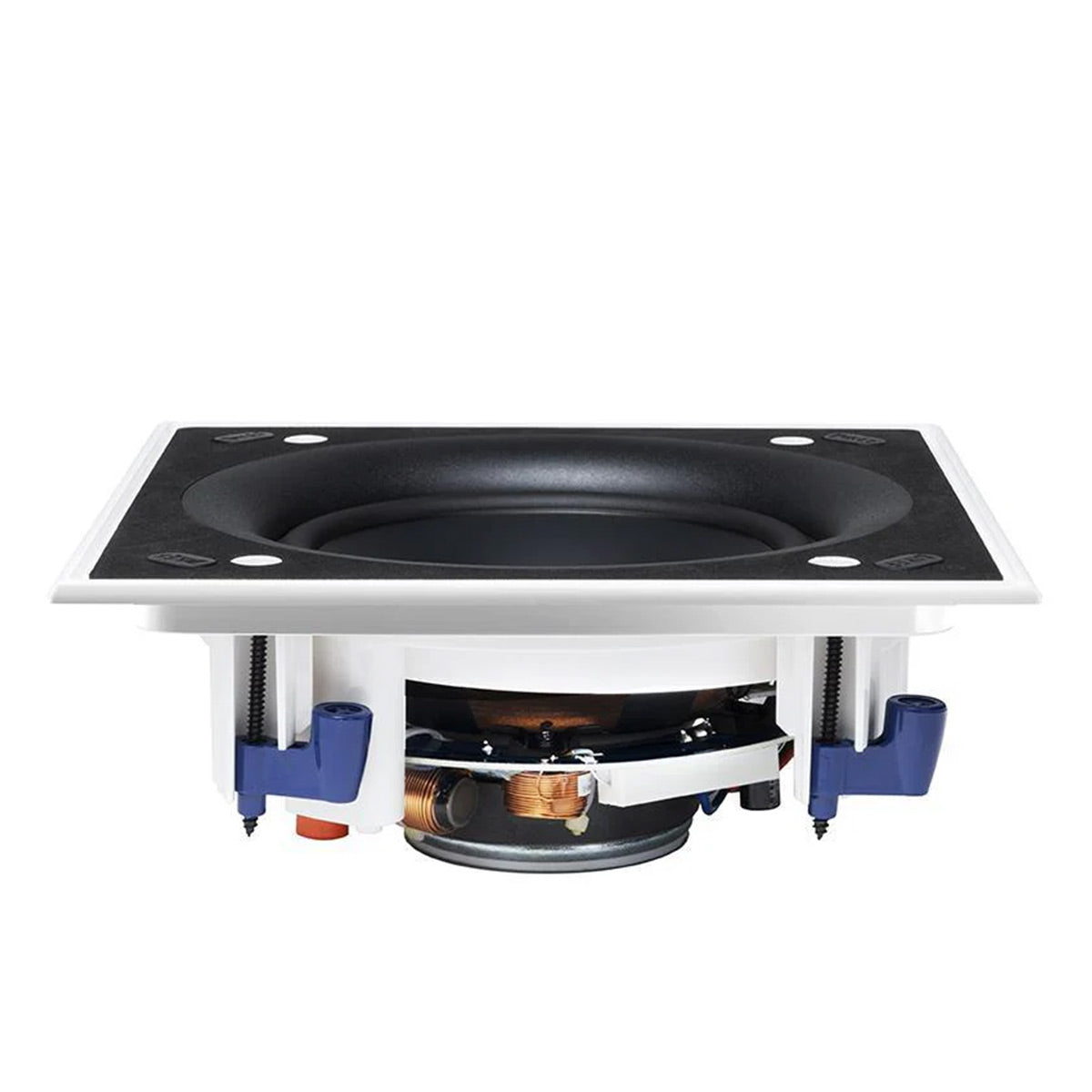

KEF Ci160ES 6.5 Inch In-Ceiling Speakers - Pair

Regular price $399.99
Sale price $399.99 Regular price
$0.00 Save $-399.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

KEF Ci160ES Overview

Product Information

Model: CI160ES | UPC: 637203218149

Specifications

What's In The Box

Product Information

Model: CI160ES | UPC: 637203218149

Heard but not seen, KEF's E series of architectural speakers is designed and manufactured to the same exacting standards as all KEF's architectural offerings and features KEF's famed Uni-Q driver technology.

Features

  • Uni-Q® Driver Array
  • Ultra-Thin Bezel

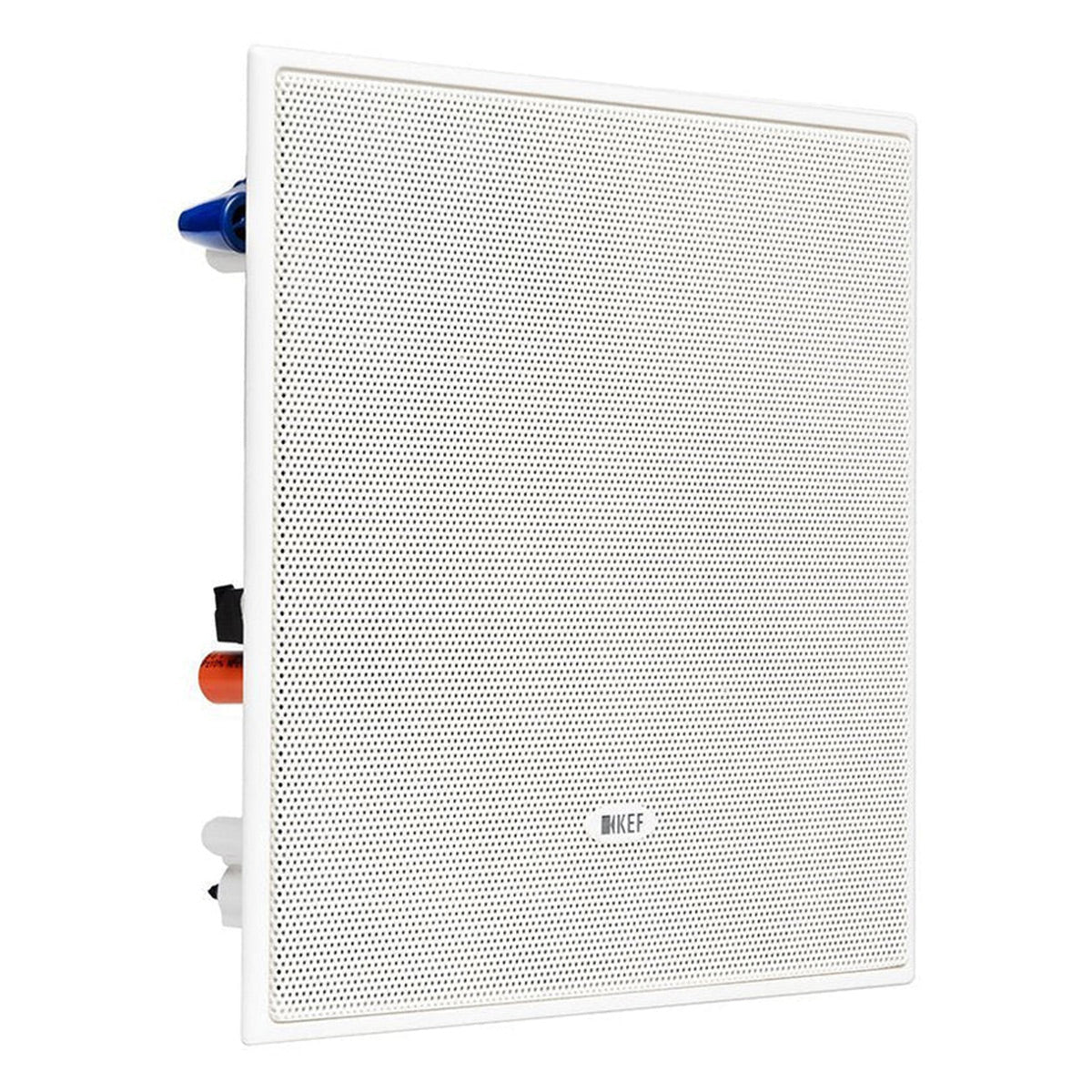

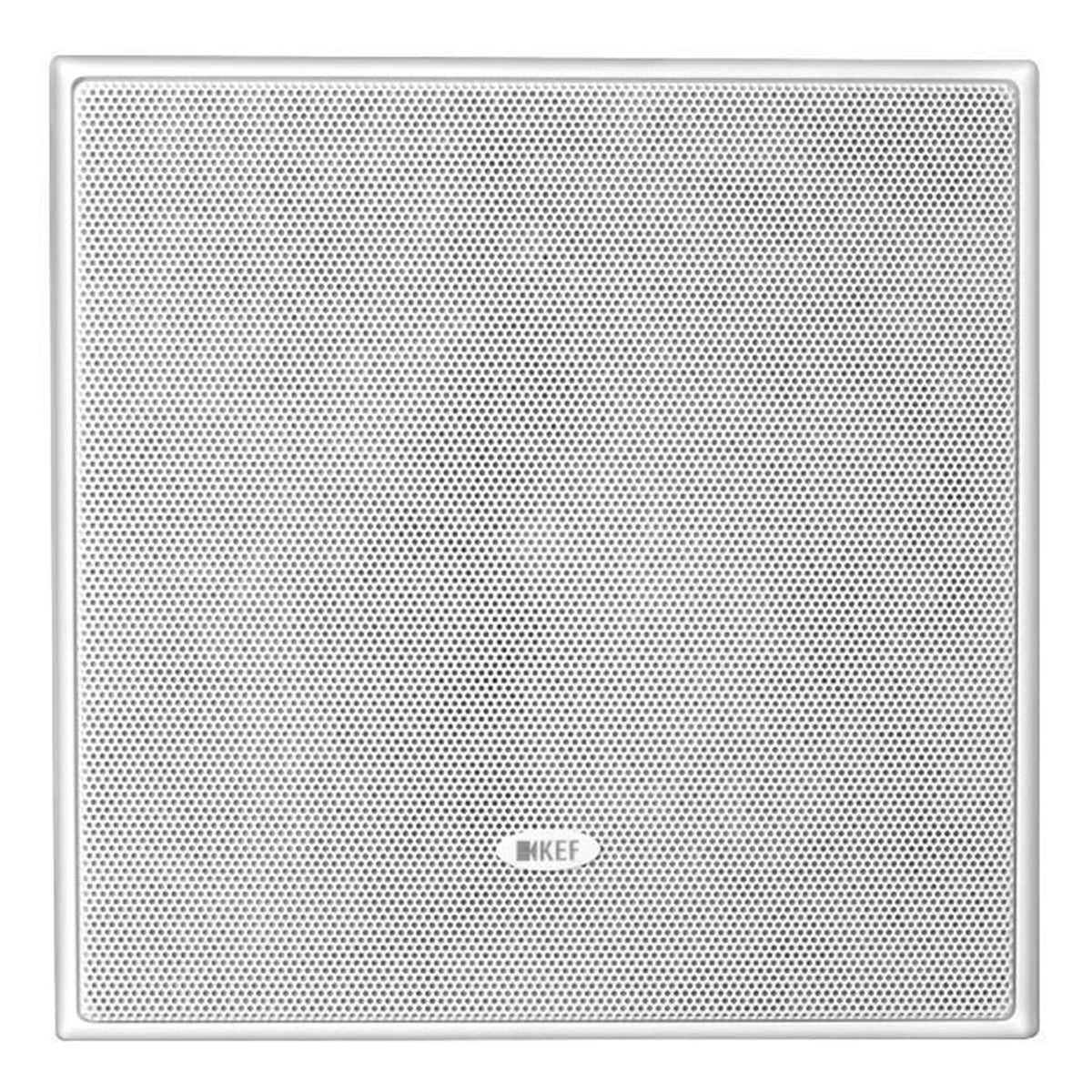

  • Magnetic Paintable Grille

Uni-Q

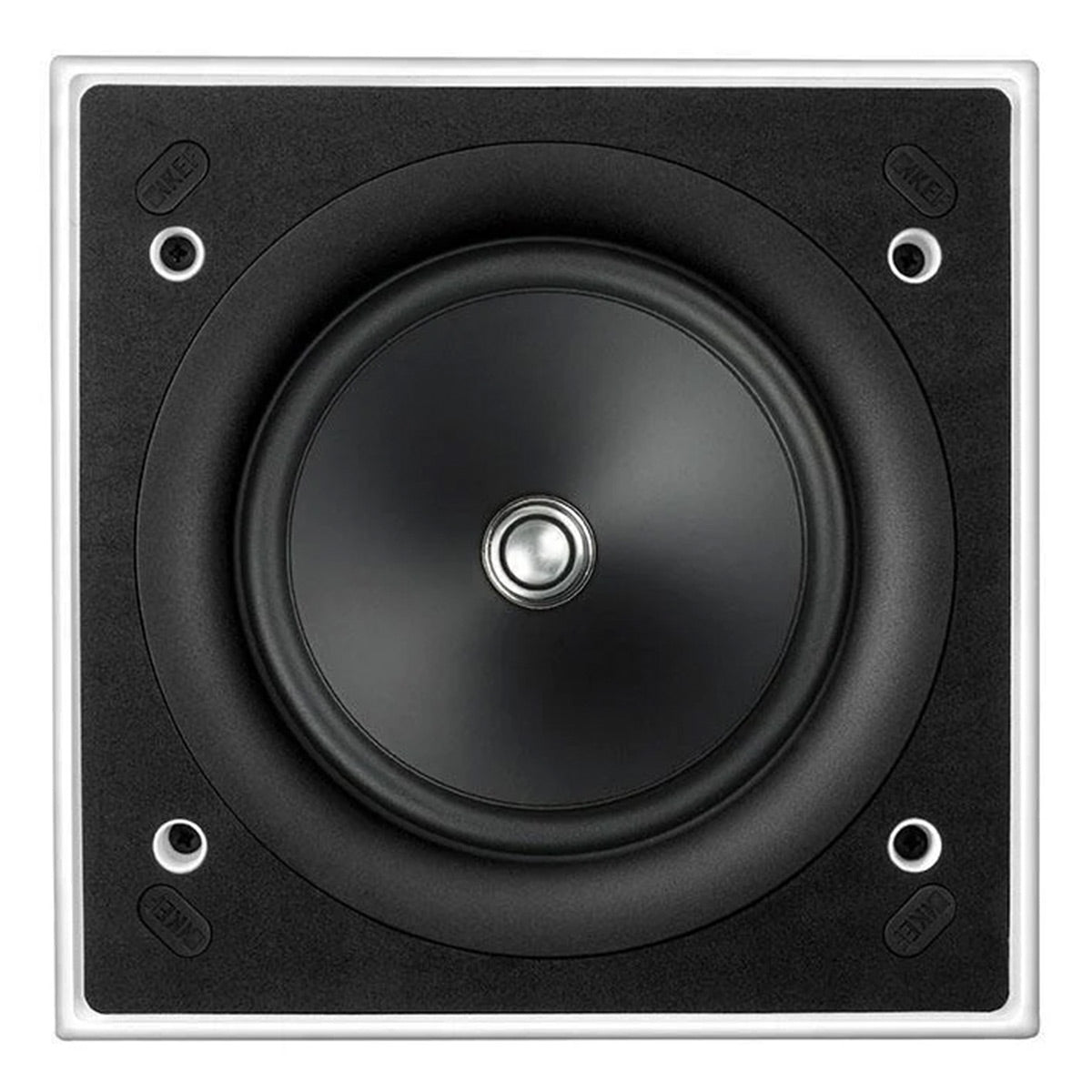

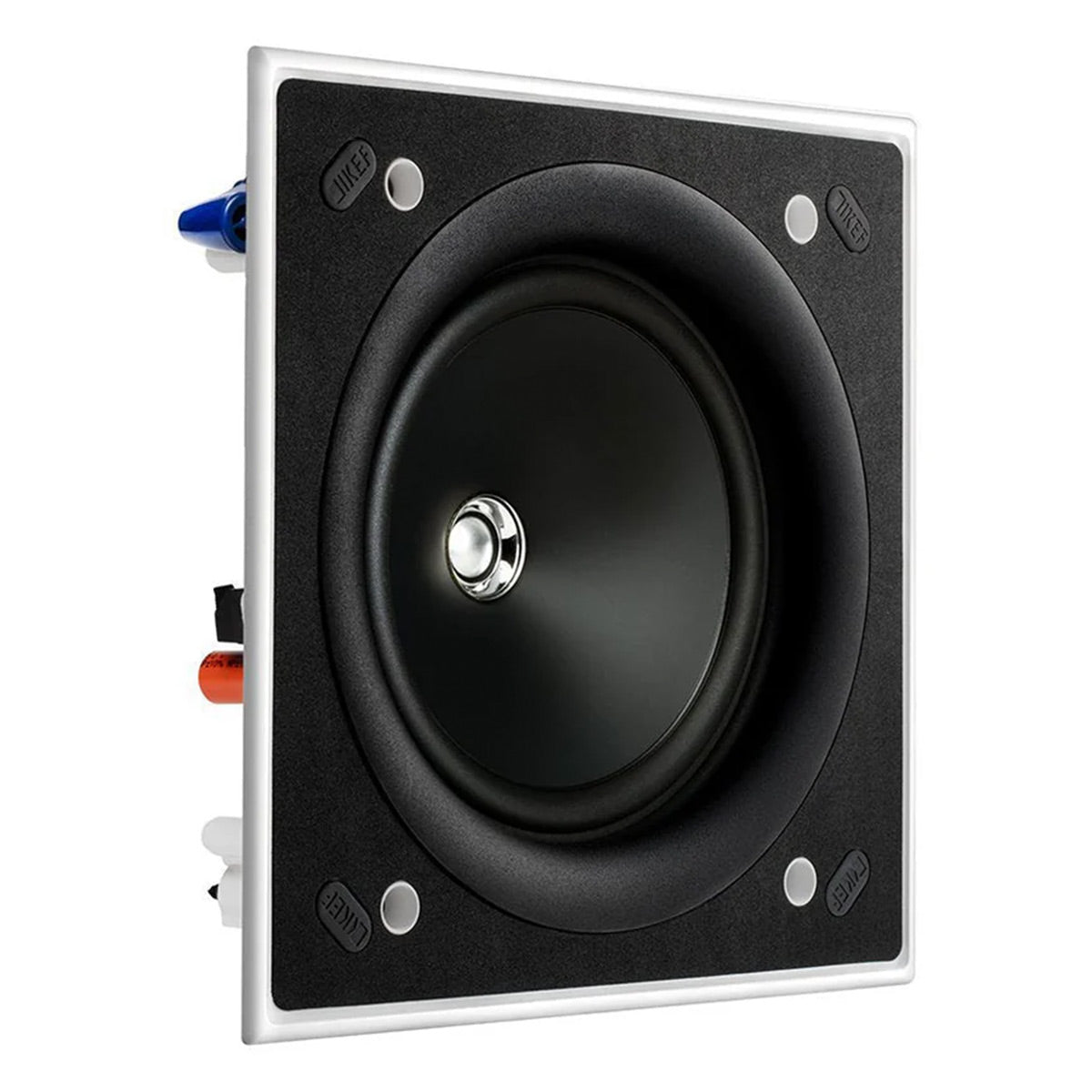

KEF's Uni-Q driver enables the mid-range and tweeter to act as a single point source. This patented technology allows the listener to sit anywhere in the room and still enjoy KEF's world-renowned sound and clarity without having to be positioned in the narrow "sweet-spot" found with conventional speaker designs.

Ultra-Thin Bezel

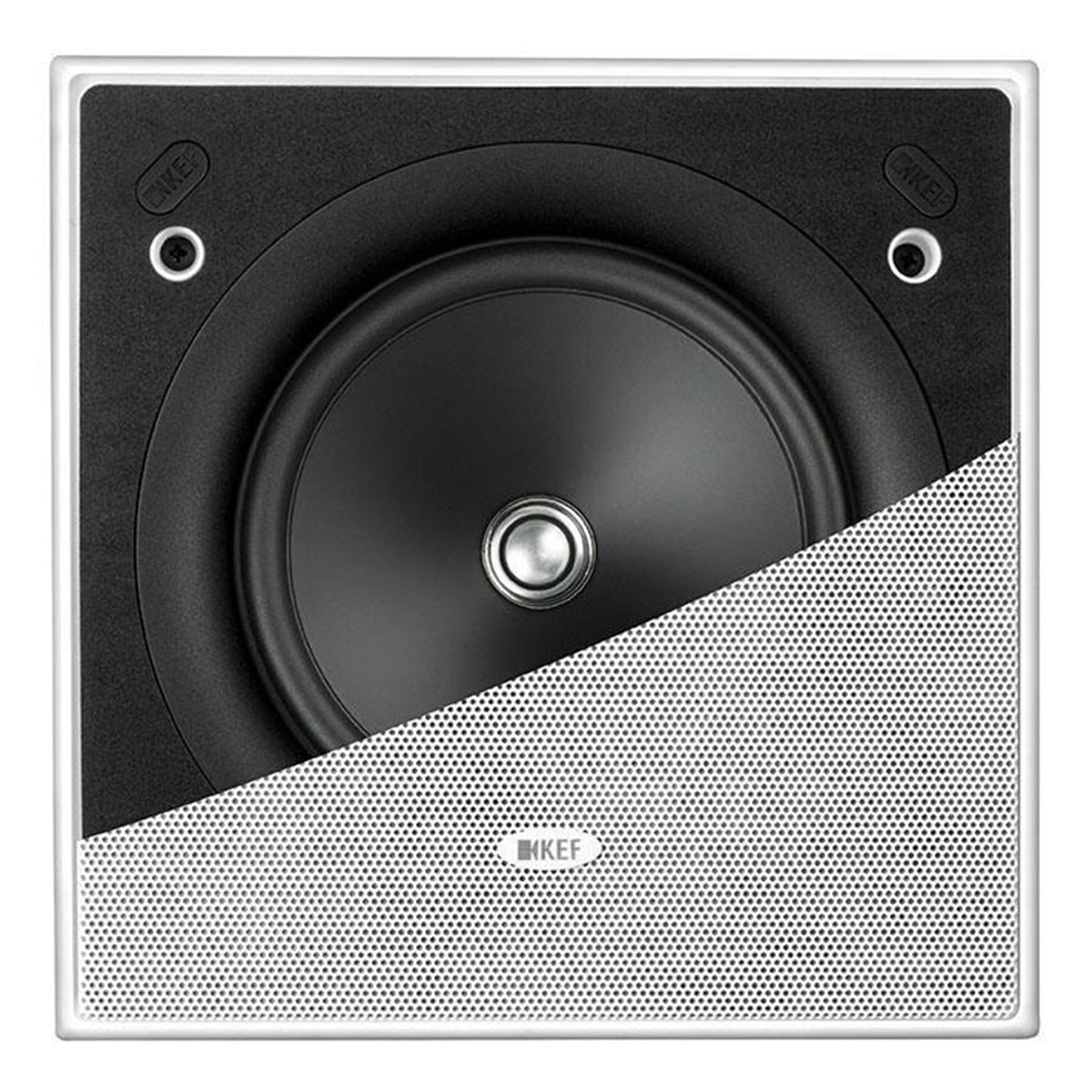

The Ci-E Series also features KEF's Ultra-Thin Bezel (UTB) technology which offers the thinnest possible visible rim around the speaker assembly. The bezel and grill can be painted to match the interior décor.

Ci-E SEries

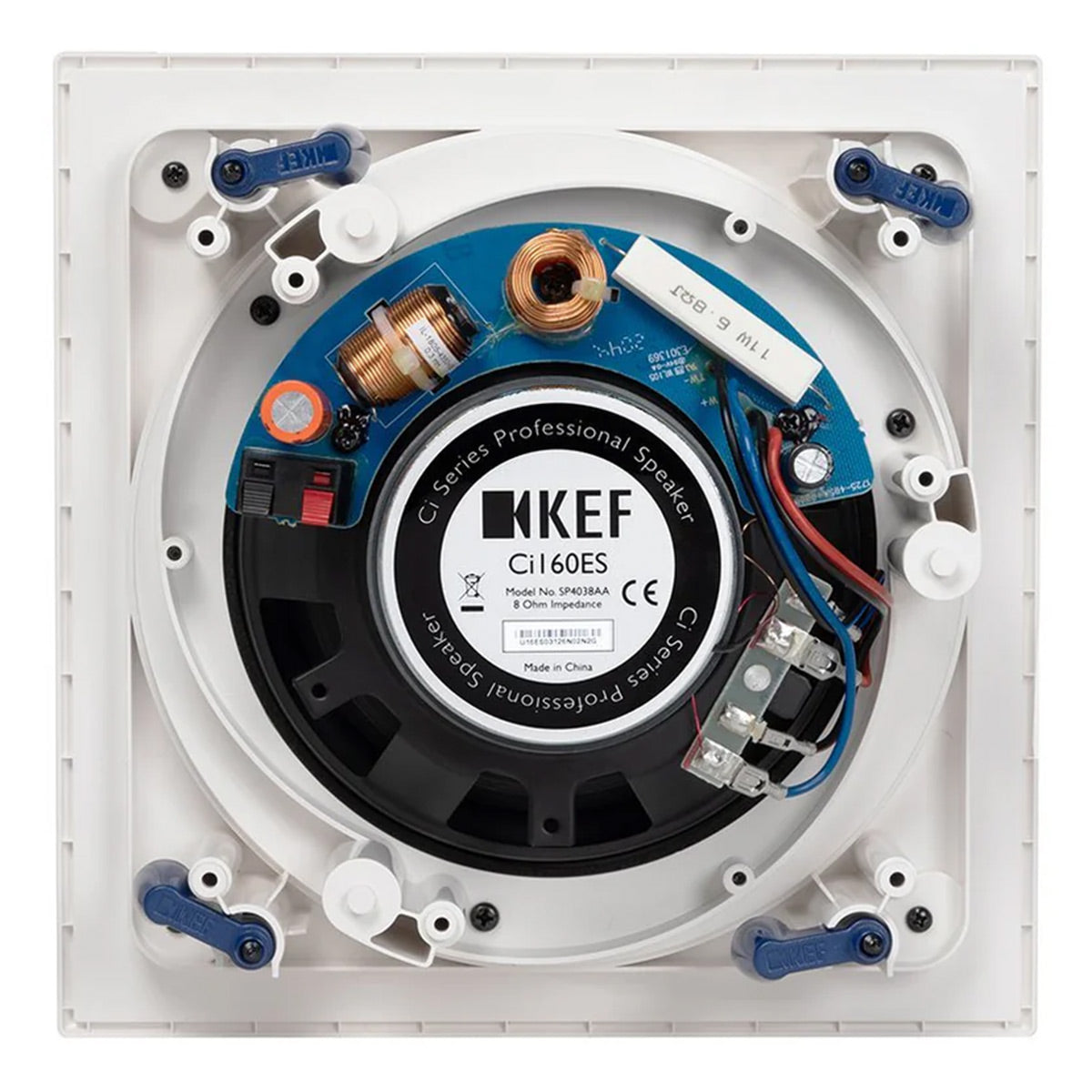

The speakers in the Ci-E Series, are manufactured to Weather Resistant Construction standards: The grilles are coated via a proprietary process, the speakers include moisture-resistant terminations and finish materials, and the plastics are UV protected, allowing you to safely use these speakers in applications such as bathroom and kitchen.

Specifications

  • Nominal Impedance: 8 Ohms
  • Sensitivity: 89dB (2.83V/1m)
  • Frequency Response: 52Hz - 20kHz (+/-6dB) open-backed
  • Frequency Range: 46Hz - 45kHz (-10dB)
  • Nominal Coverage: 110° (Degrees)
  • Max SPL (dB): 104dB
  • Crossover Frequencies: 2.8kHz
  • Drive Units
    • LF: 160mm (6.5in.) Uni-Q
    • HF: 16mm (0.6in.)
  • Recommended Amplifier Power: 10 - 100W
  • Recommended High-Pass Filter (Hz): 50Hz
  • Product External Dimensions: 223 x 223 x 88.7mm (8.78 x 8.78 x 3.49in.)
  • Cut-Out Dimensions: 194 x 194 mm (7.64 x 7.64 in.)

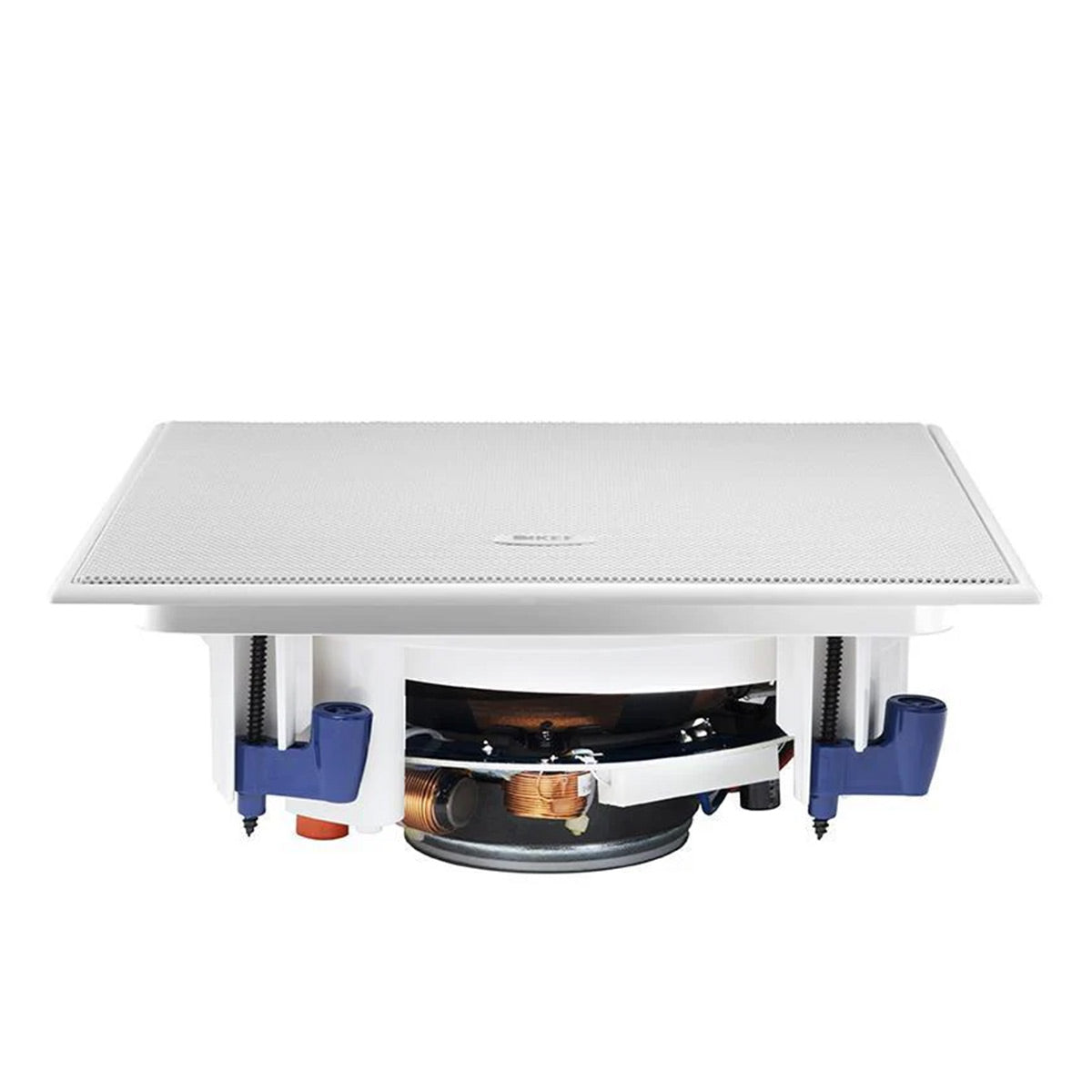

  • Mounting Depth From Surface: 85.2mm (3.35in.)
  • Optional Rough In Frame: RIF160S
  • Optional Rear Enclosure: RNC160S
  • Net Weight: 1.4kg (3.1lbs)
  • Ideal Rear Volume (L): 35L
  • Minimum Rear Volume (L): 20L
  • Certification: IP64

What's In The Box

  • Ci160ES 6.5 Inch In-Ceiling Speakers - Pair
  • Paintable Grille
  • Installation Hardware
  • Manual
