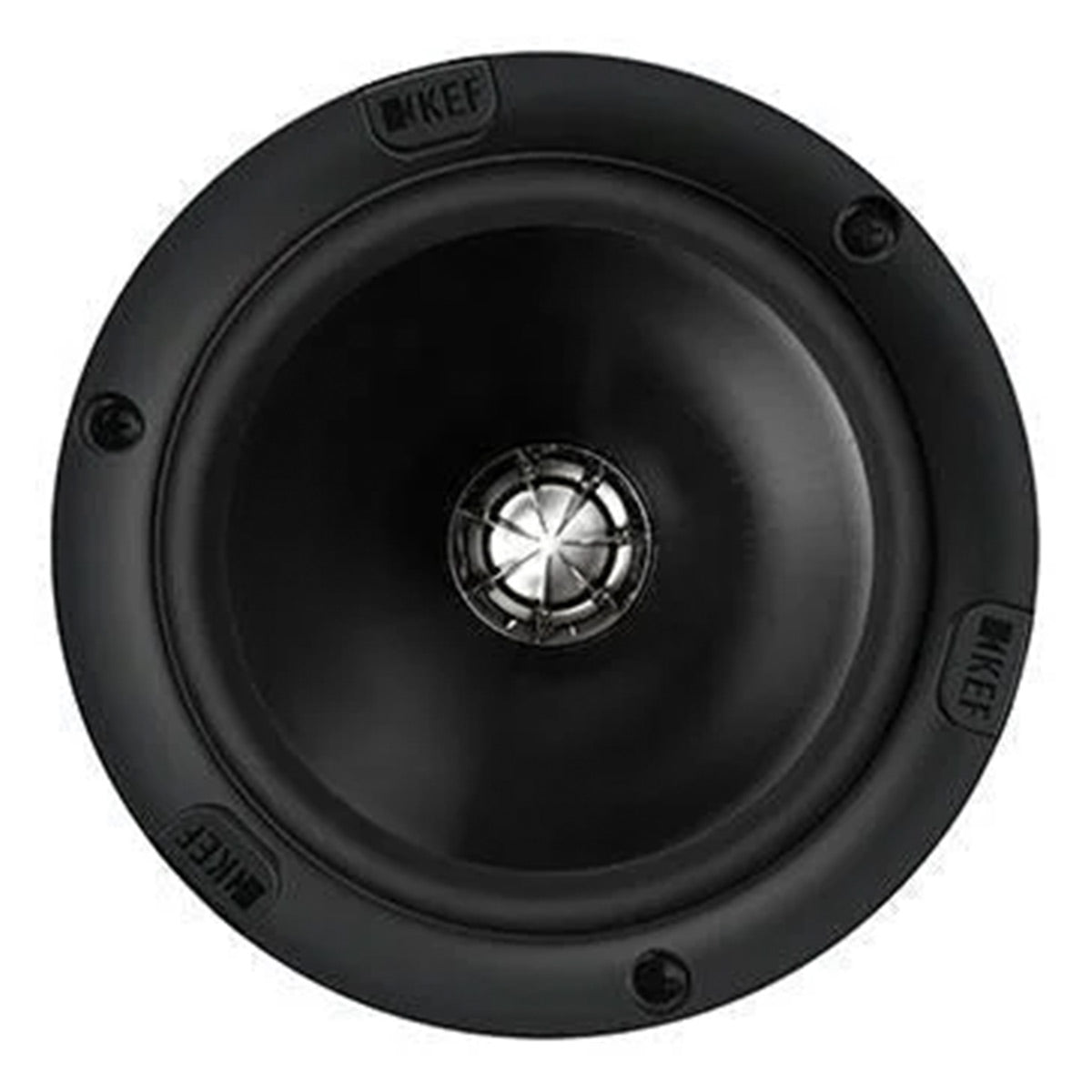

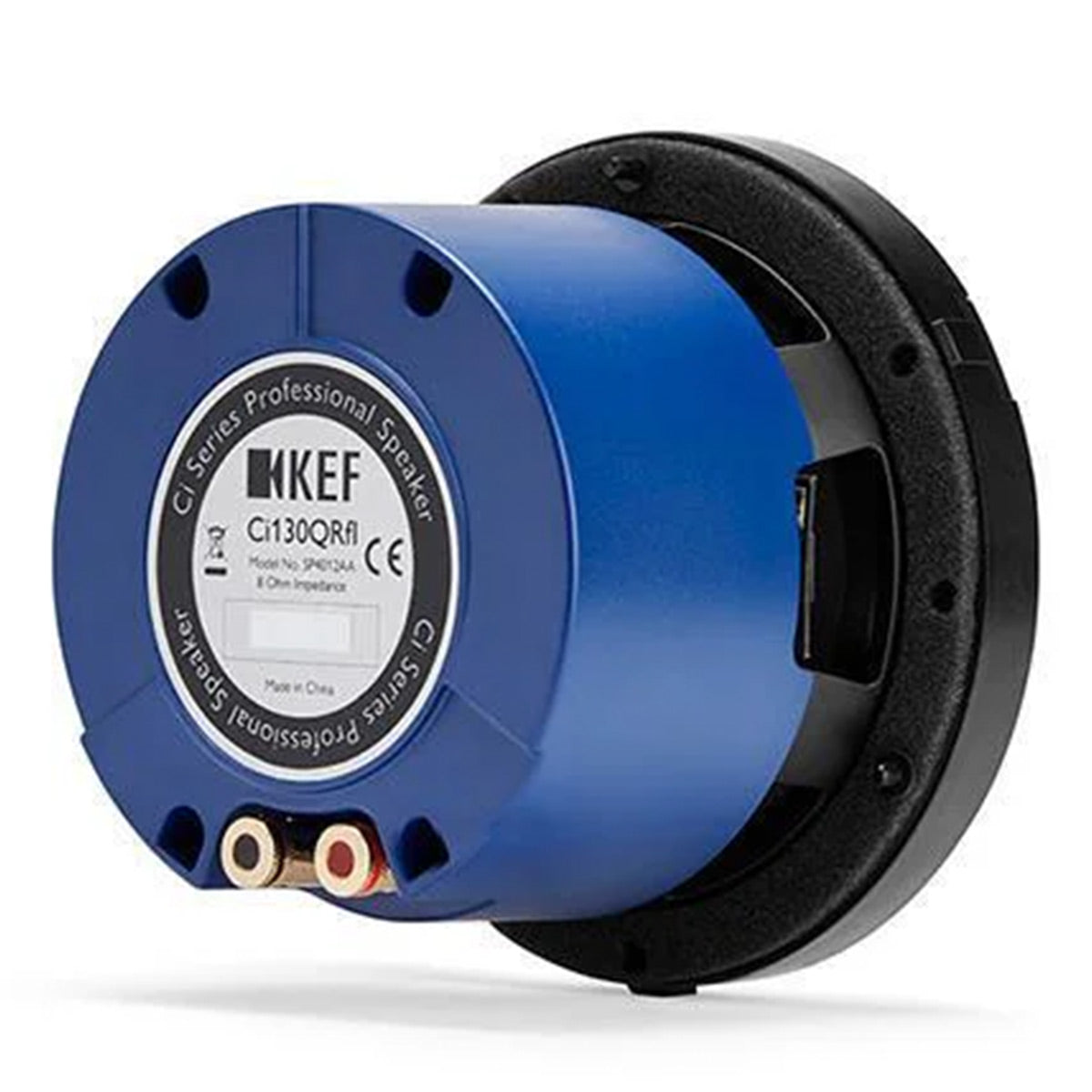

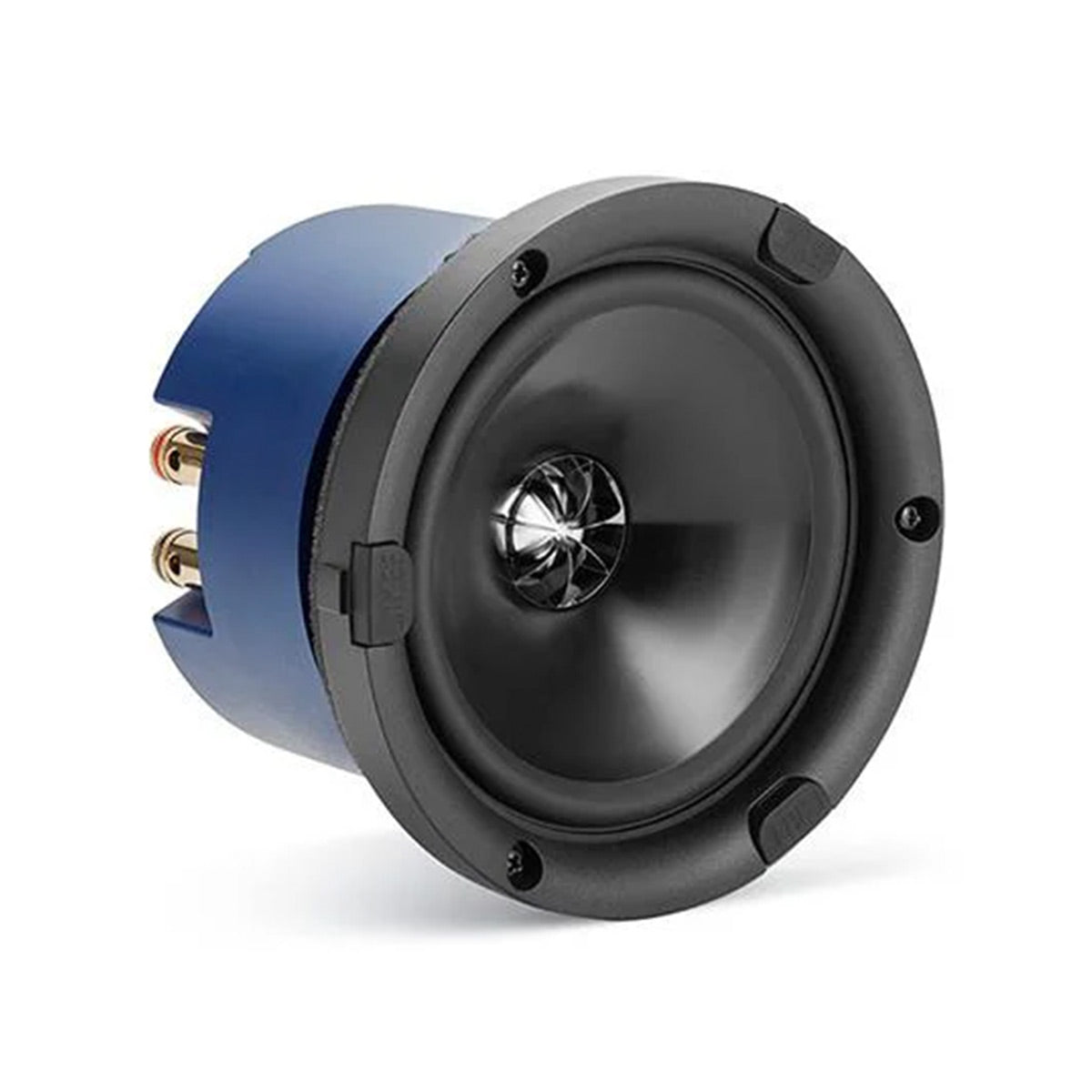

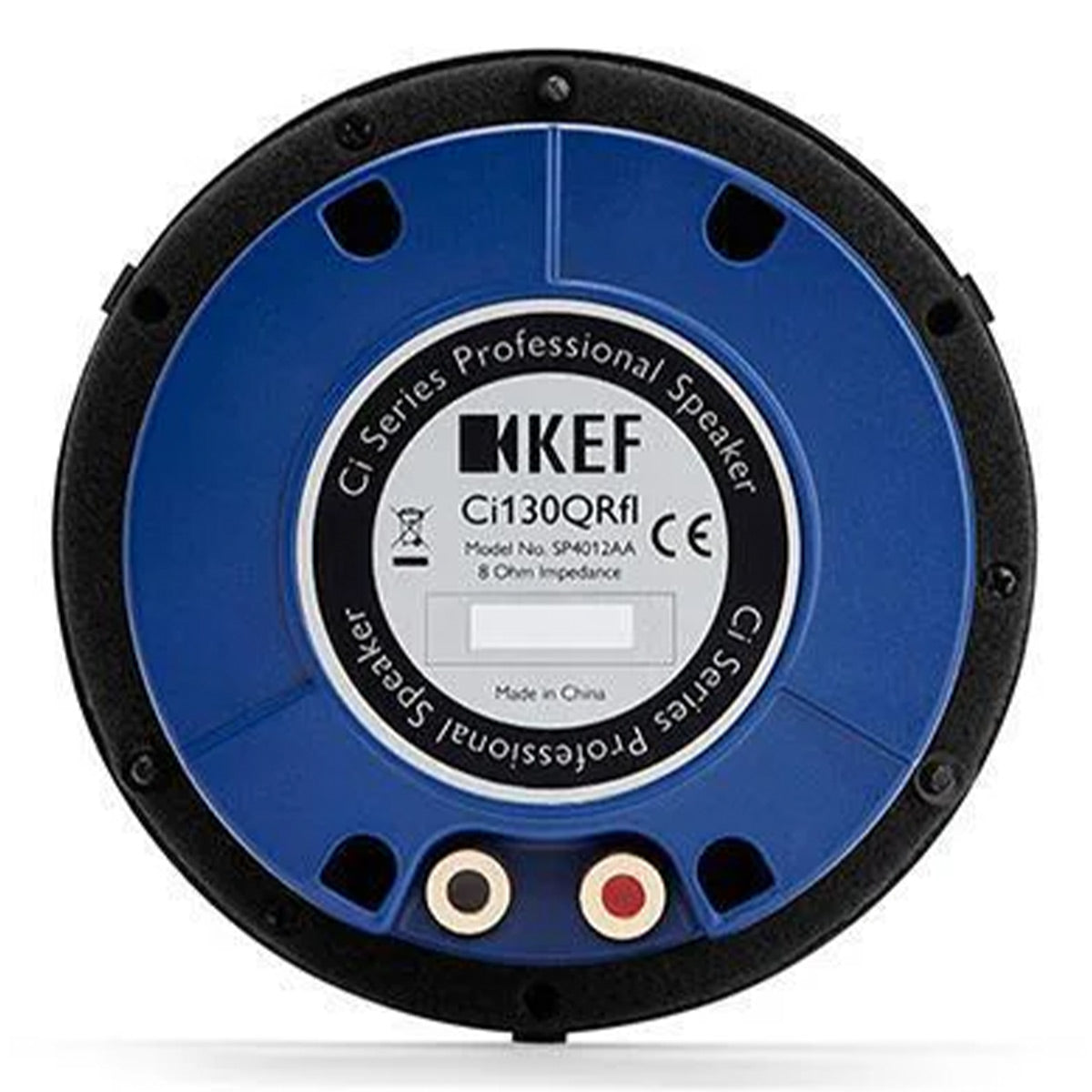

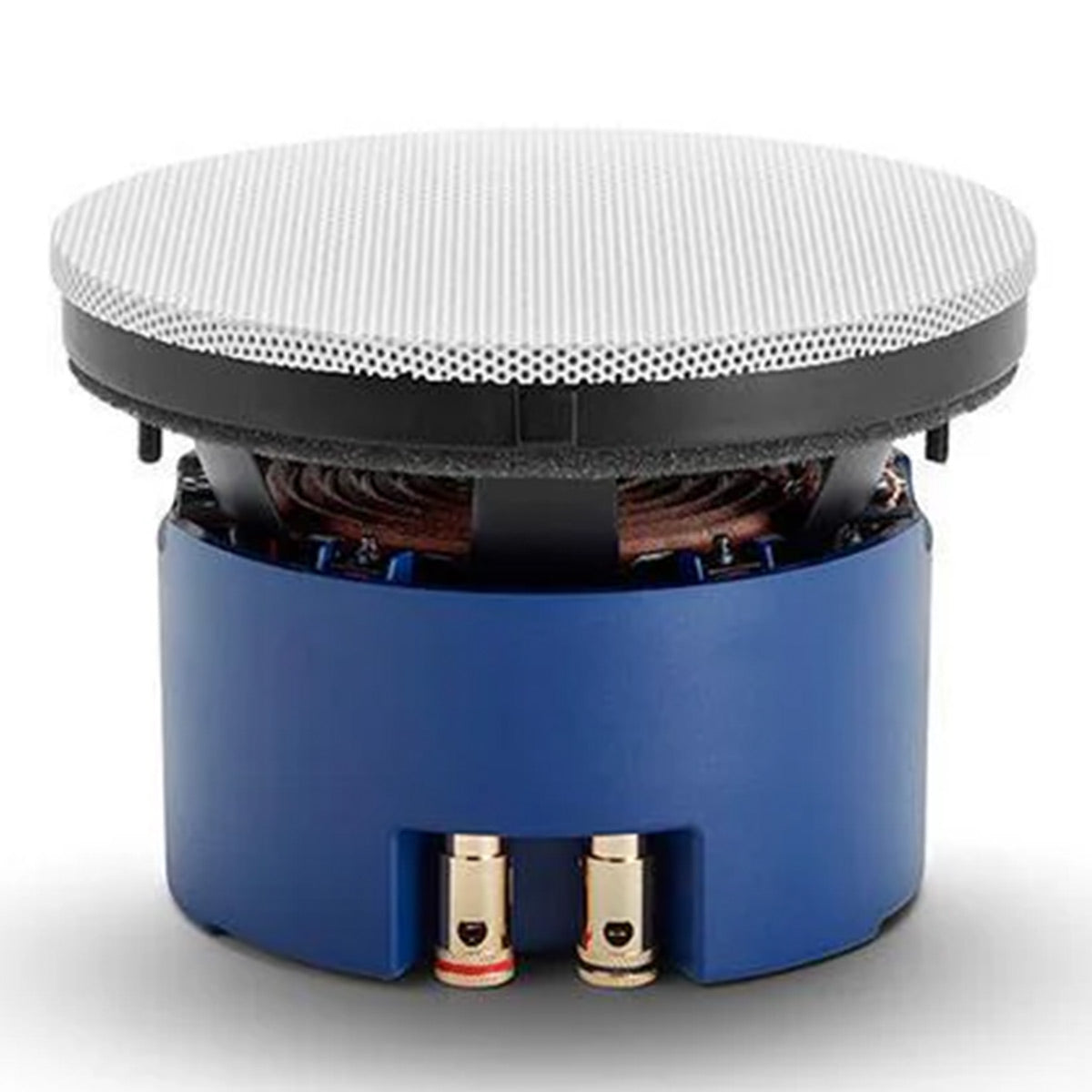

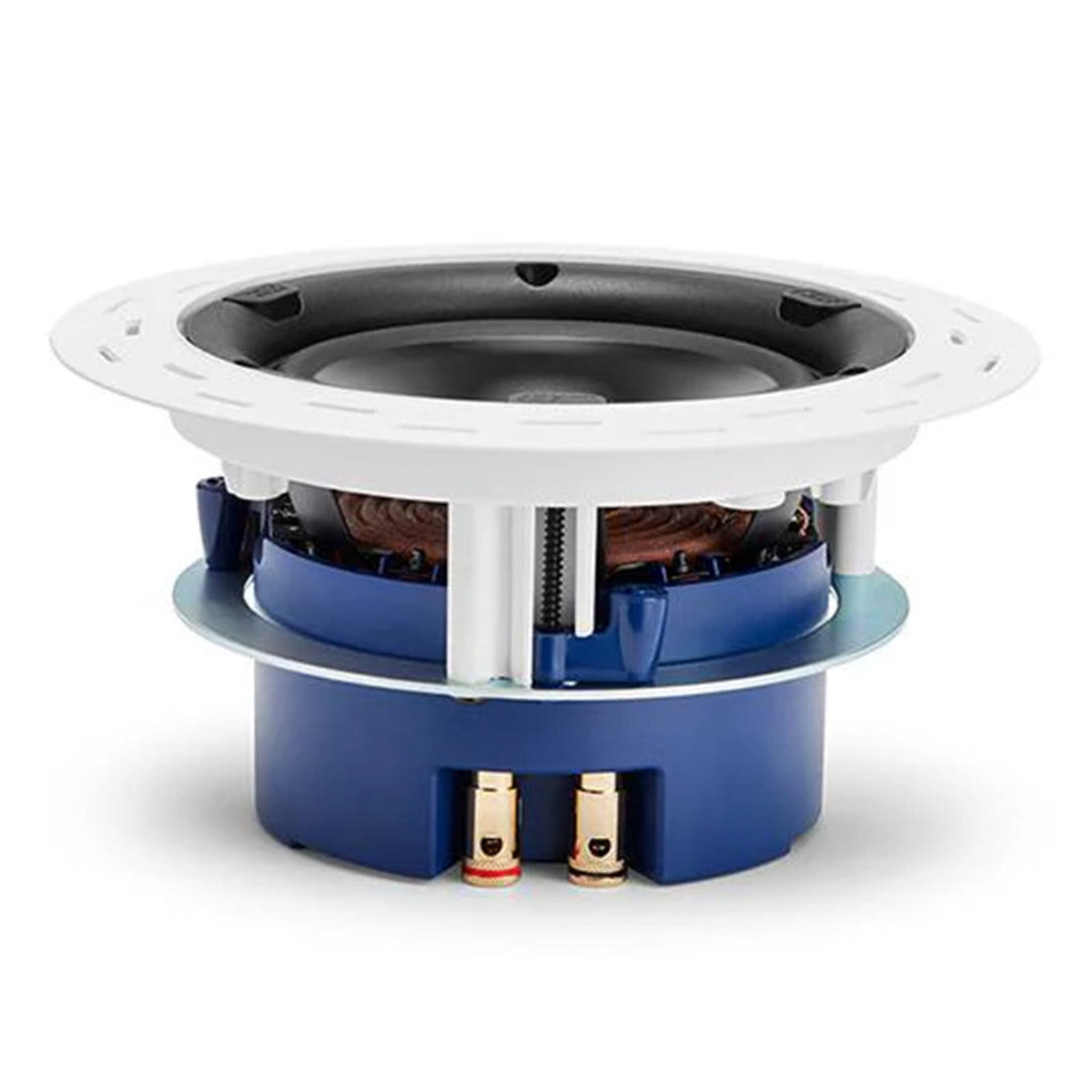

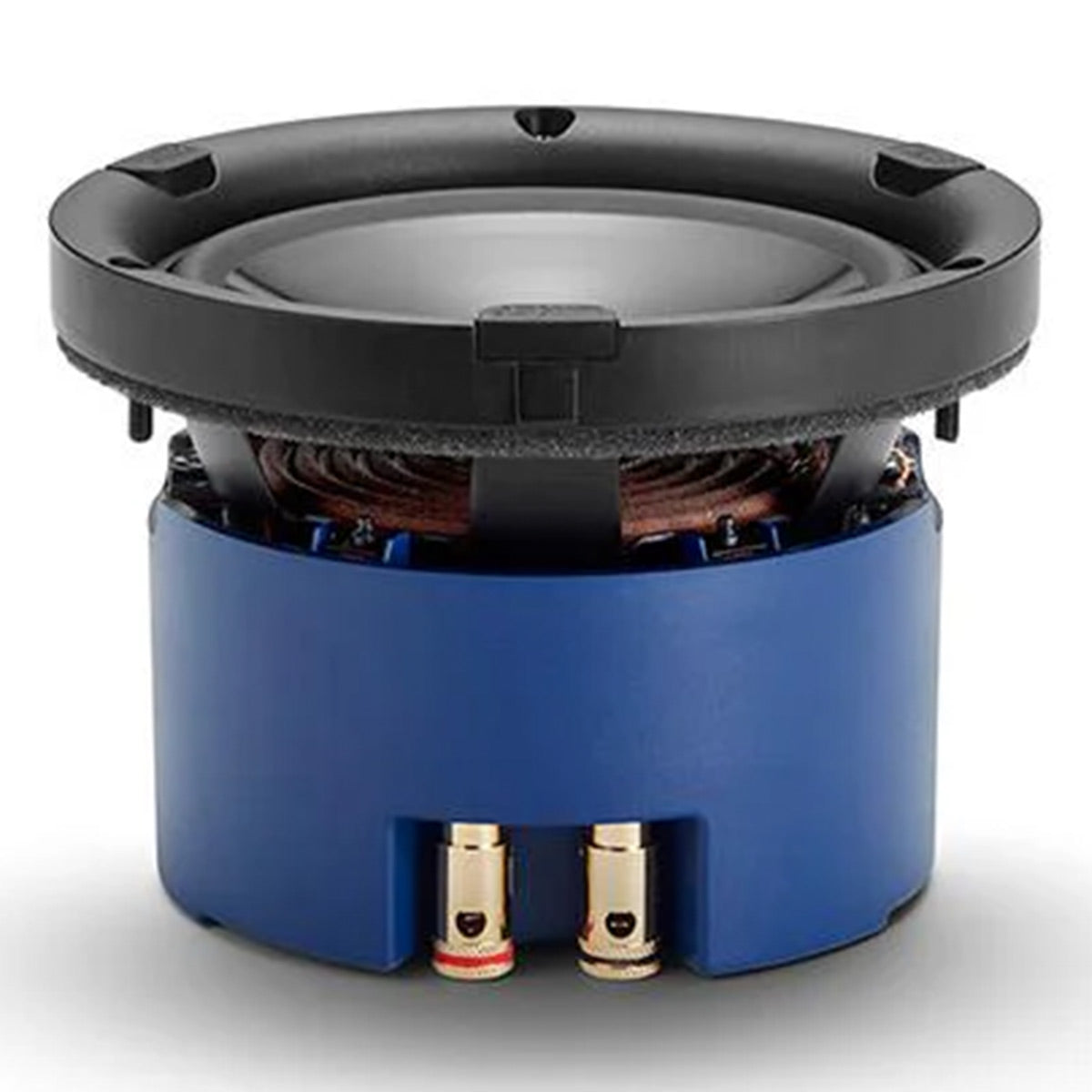

KEF Ci130QRfl 5.25 Inch In-Ceiling Speaker

Now on demo at:

1 of 10
KEF

KEF Ci130QRfl 5.25 Inch In-Ceiling Speaker

Regular price $599.99
Sale price $599.99 Regular price
$0.00 Save $-599.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

KEF Ci130QR Overview

Product Information

Model: CI130QRFL | UPC: 637203217630

Specifications

What's In The Box

Product Information

Model: CI130QRFL | UPC: 637203217630

KEF’s Ci130QRfl is a flush-mounted, frameless architectural speaker engineered for high-quality sound and simple installation. Designed for both new builds and retrofitting, Ci130QRfl sits flush with the wall or ceiling, making it ideal for properties with clean lines and minimalist features.

Features

  • Uni-Q® Driver Array
  • Tangerine Waveguide™
  • Frameless Flush-Mount Design

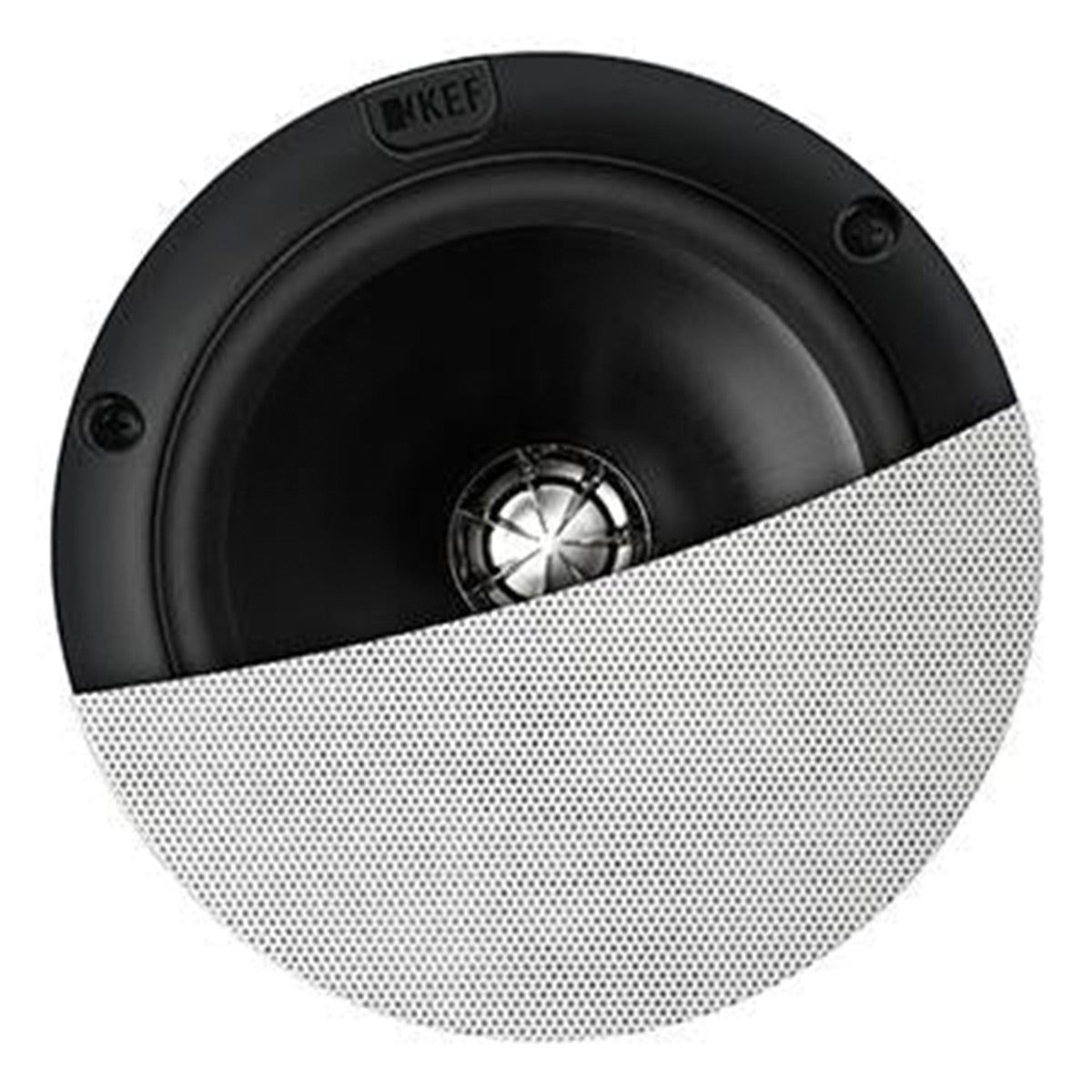

  • Magnetic Paintable Grille

Uni-Q Array

Part of the Ci-Q Series, Ci130QRfl is built around KEF’s signature Uni-Q array so it acts as a single point source, which combined with Tangerine Waveguide technology, disperses pristine sound throughout a room. The Ci130QRfl is a round loudspeaker, while the Ci130QSfl features identical drivers in a square format.

Intuitive Installation

Ci130QRfl is engineered to be easy to install. Designed for both new construction and retrofitting, Ci130QRfl can be installed as part of the plastering process, and thanks to its frameless design it sits completely flush with the wall or ceiling for an incredibly clean finish.

Specifications

  • Nominal Impedance: 8 Ohms
  • Sensitivity: 87dB (2.83V/ 1m)
  • Frequency Response (±6DB) Open-Backed: 45Hz - 34kHz
  • Frequency Range (-10DB): 38Hz-30kHz
  • Nominal Coverage: 130
  • MAX SPL (DB): 103
  • Crossover Frequency: 3.8kHz
  • Drive Units
    • LF: 130mm (5.25in.) Uni-Q
    • HF: 19mm (0.75in.)
  • Recommended Amplifier Power: 10-100W
  • Recommended High-Pass Filter (HZ): 50Hz
  • Product External Dimensions:
  • Diameter Ø: 7.9"
    Depth: 4.12"
  • Cut-Out Diameter: 6.22"
  • Mounting Thickness
    • Ceiling Thickness (Maximum): 31mm (1.220")
    • Ceiling Thickness (Minimum): 8mm (0.315")
  • Net Weight: 3.53 Ibs.
  • Mounting Depth From Surface: 101mm (3.98")
  • Ideal Rear Volume(L): 15
  • Minimum Rear Volume(L): 10

What's In The Box

  • Ci130QRfl 5.25 Inch Round Flush Mounted In-Ceiling Speaker

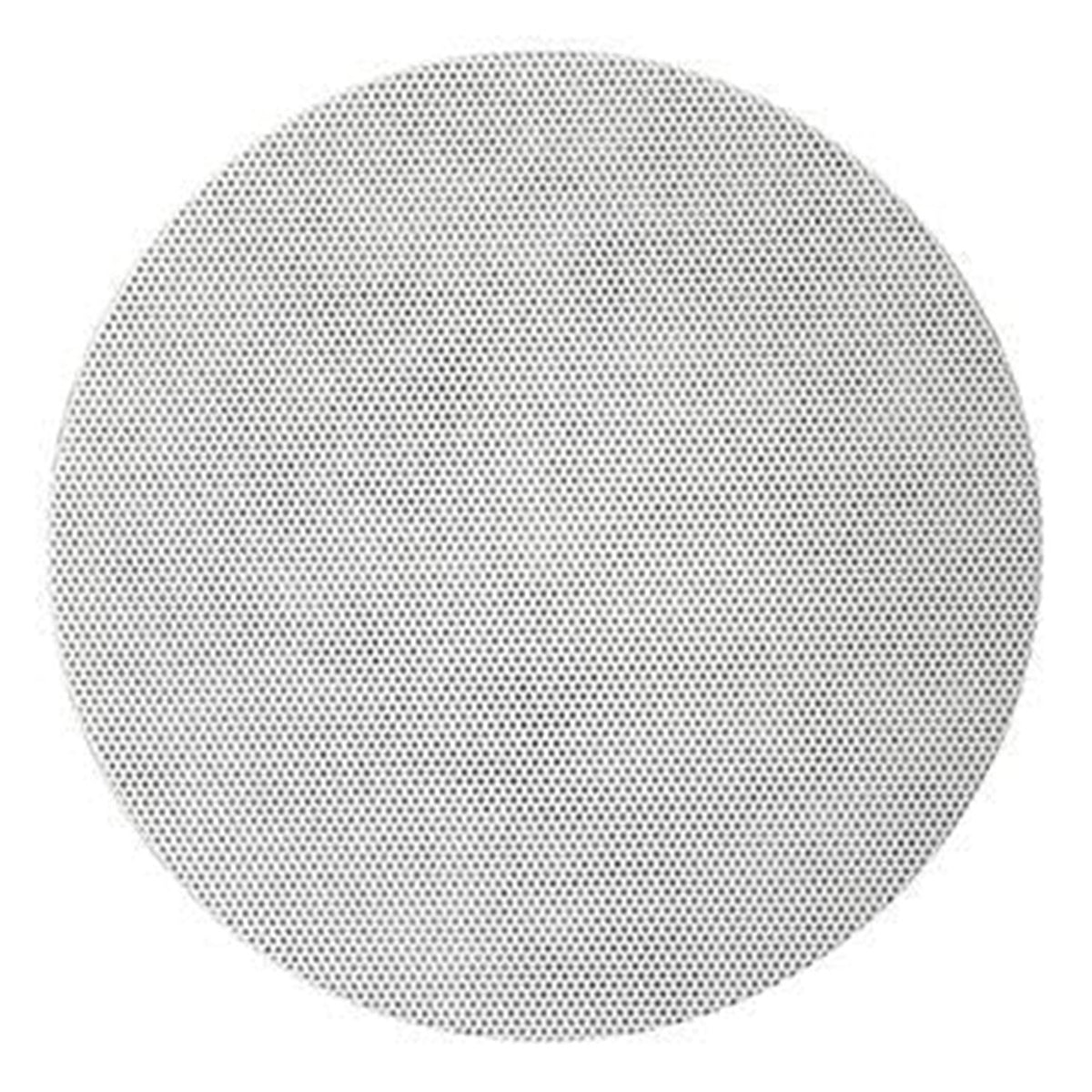

  • Paintable Grille
  • Installation Hardware
  • Manual
