Kaleidescape

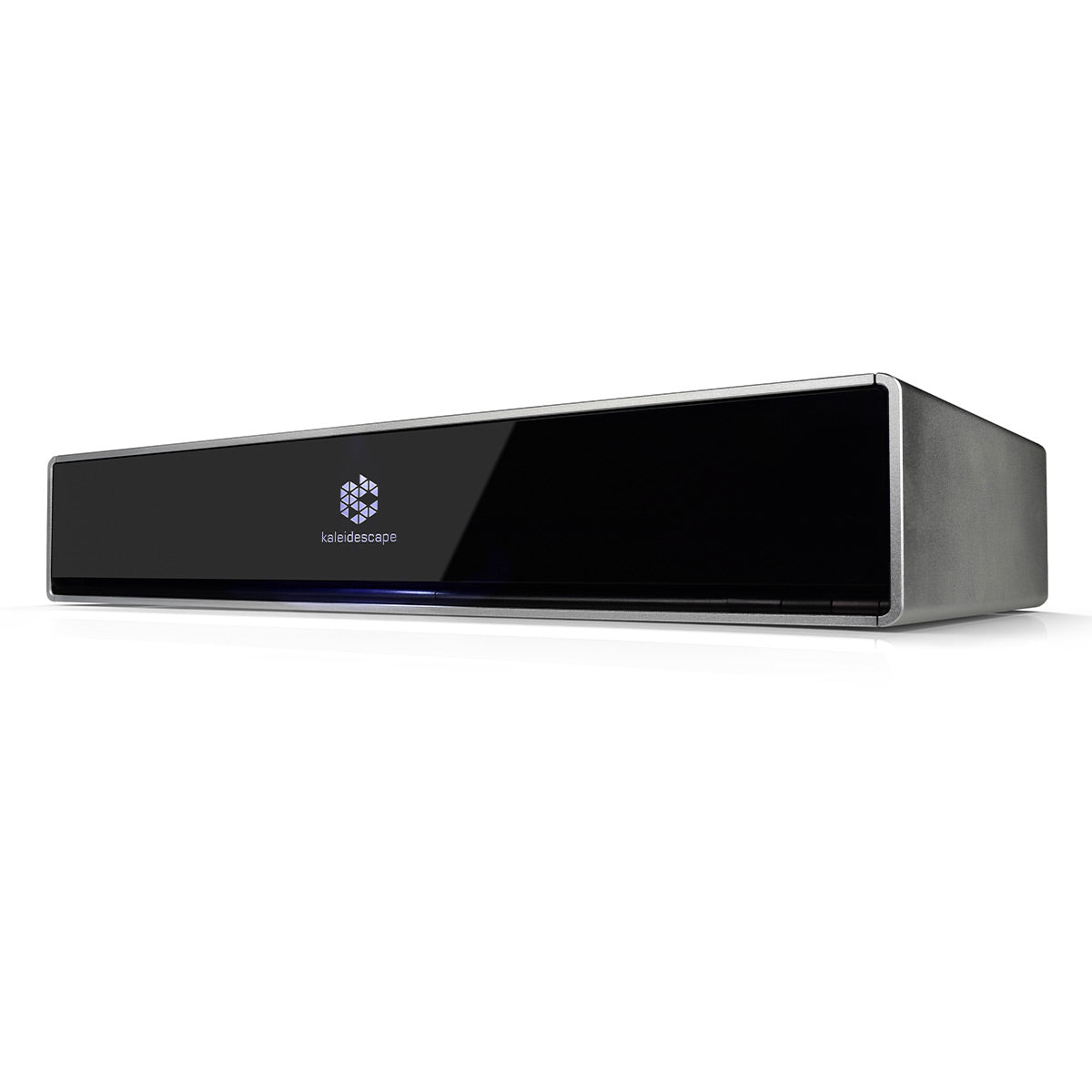

Kaleidescape Terra 48TB 4K Ultra HD Movie Server

Regular price $15,995.00
Sale price $15,995.00 Regular price
Save $-15,995.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Thu, May 2 – Thu, May 9

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: K0108-0048 | UPC: 850860005482

Specifications

What's In The Box

Product Information

Model: K0108-0048 | UPC: 850860005482

High-performance core of any multi-zone system

Features

  • Terra with 48TB of storage can store 720 to 1,440 movies with a typical mix of 4K Ultra HD, Blu-ray quality, and DVD quality titles
  • Multiple Terra servers can be combined to store even more movies
  • All movies are protected by cloud backup
  • Terra can download at up to 800 Mbps, downloading a 4K Ultra HD movie in 10 to 12 minutes
  • Incorporated enterprise-class computing performance and reliability for support of large systems
  • Provides caching and computing services that enhance player performance and enable large systems
  • Supports configurations with large numbers of players
  • Distributes up to eight 4K Ultra HD movies simultaneously
  • Advanced content protection features for storage of 4K Ultra HD movies
  • Custom rack ears with faceplate available (sold separately)

The Kaleidescape Terra movie server stores high-fidelity movies on an array of enterprise-quality hard drives, without compression or loss of quality. In addition to storing movies, Terra provides caching, staging, and computing services that improve player performance, and enable scaling to a large number of players.

Kaleidescape Terra is the foundation of a multi-room Kaleidescape Strato system. A Terra movie server can support any number of Strato C players and is capable of serving up to 8 simultaneous 4K Ultra HD playbacks. Kaleidescape Terra with Strato C players provides the best 4K Ultra HD performance and the most flexibility for future expansion.

Terra can simultaneously serve movies over a standard residential network to Strato S and Strato C players anywhere in the home. Once a movie is downloaded and stored on Terra, it can be enjoyed immediately by any player. Terra is designed to continue operating even after a hard drive fails. When the failed drive is replaced, its movies are automatically restored from the cloud.

Kaleidescape’s proprietary kOS operating system enables Terra to provide the advanced content protection required by Hollywood motion picture studios for their highest-fidelity movies.

Terra is available with either 24TB or 48TB of capacity. Multiple Terras can be combined for more storage.



Specifications

  • Dimensions (W x H x D): 17" x 3.5" x 10"
  • Weight:
    • 15.4 lb with no hard drives installed
    • 21.6 lb with four hard drives installed
  • Power
    • Max consumption: 45W
    • Typical: 40W
    • External power adapter: 100-240V, 50-60Hz universal input @ 1.5A, 90W with detachable line cord
  • Network: 100Base-TX/1000Base-T Ethernet (RJ45 connector)
  • Other Connection: USB 3.0 (reserved)
  • Environment
    • Operating temperature: 41 to 95°F
    • Storage temperature: -4 to 140°F
    • Relative humidity: 20 to 80% (operation) 5 to 90% (storage)
    • Maximum operating altitude: 10,000ft
    • Heat output: 102 BTU/hr (30W) max
    • Airflow: 10 CFM (17 m3/hr) max
  • Ventilation
    • Minimum 1in space at the front
    • Minimum 2in space at the rear
  • Certifications
    • CSA 62368-1
    • CSA 60950-1
    • IEC 62368-1
    • IEC 60950-1
    • FCC CLASS B
    • CE
    • RoHS Compliant
  • Storage
    • Four 12TB hard drives (48TB total)
    • 48TB configuration stores up to 720 4K Ultra HD movies, 1,300 Blu-ray quality movies, or 7,200 DVD quality movies
  • Movie Server
    • Maximum download rate: 800 Mbps
    • Serves 4K Ultra HD movies simultaneously to up to 8 viewing zones
    • Serves Blu-ray movies simultaneously to up to 15 viewing zones
    • Serves DVD quality movies simultaneously to up to 40 viewing zones



What's In The Box

  • Kaleidescape Terra Movie Server
  • Network cable
  • Power supply
