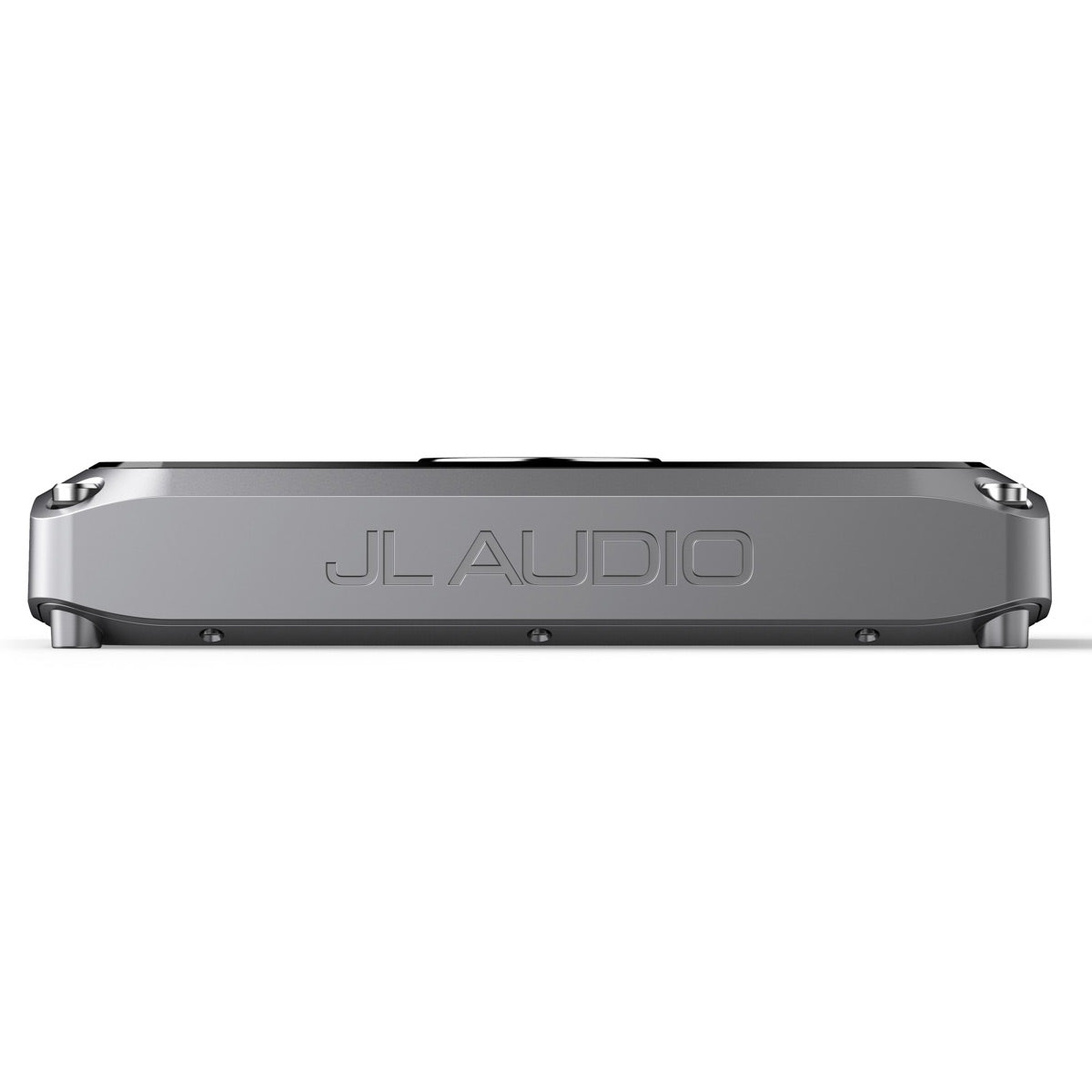

JL Audio VX1000/5i 100 Watts x 4 + 600 Watts x 1 at 2 Ohms 5-Channel Amplifier w/ DSP

Regular price $1,599.99
Sale price $1,599.99 Regular price
Save $-1,599.99 (%)

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 98632 | UPC: 699440986328

Specifications

What's In The Box

Product Documents

Product Information

Model: 98632 | UPC: 699440986328

VX1000/5i 100 Watts x 4 + 600 Watts x 1 at 2 Ohms 5-Channel Amplifier w/ DSP

5-Channel Class D System Amplifier with Integrated DSP, 100 W x 4 @ 2 Ω + 600 W x 1 @ 2 Ω - 14.4V.

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Employing JL Audio's second generation NexD2™ amplifier technology, the VX1000/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 600W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 600W @ 2 ohms on the subwoofer channel.

The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

Amplifier includes: Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, Subwoofer Output Connector, 6 ft A/B USB Cable

Features:

TüNTM Software Applications

Intuitive setup and tuning, all at your fingertips. Automatically recognizes connected amplifier and displays appropriate interface. TüN™ is available for download for free in a variety of applications, for computers and most handheld devices.

Unprecedented, Onboard DSP Tuning Power

  • Premium, triple-core AKM® DSP with an optimized configuration, developed in collaboration with AKM®
  • Hi-Res audio processing at 24 bit/96 kHz
  • High-performance AKM® A/D and D/A converters
  • 10 Bands of fully parametric EQ, per output channel, including pre-outs
  • Shelving EQ option for Band 1 and Band 10
  • High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes:
    • Linkwitz-Riley: 12, 24, 48 dB/octave
    • Butterworth: 6, 12, 18, 24, 36, 48 dB/octave
  • Signal Delay in 0.01 millisecond steps (equivalent to 1/8-inch, 3 mm)
  • All-Pass Filter (Phase EQ), with variable "Q" and corner frequency
  • Polarity Reversal (0 or 180 deg.)
  • Output Level Trim in 0.1 dB steps

NexD2TM Switching Amplifier Technology

  • JL Audio's latest generation of high-speed switching technology delivers superb low frequency power and efficiency.
  • Specially optimized for subwoofer applications

Ultra-Versatile Analog and Digital Inputs

  • High-performance, differential-balanced analog inputs for outstanding noise rejection
  • Accepts speaker level signals from 200 mV, up to 16V RMS, including those from many factory systems
  • Optical Digital (Toslink) input permits direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.
  • Independently configurable RCA analog and digital pre-outs (24 bit/96 kHz)
  • Automatic turn-on options via Signal-Sensing or DC-Offset sensing

Functional Compact Chassis Design

  • Solid cast alloy main unibody and bottom plate deliver superb EMI performance and shielding
  • All connections utilize compact mating connectors for maximum integrity and fitment into tight spaces.
  • Configurable LED logo ring displays status and can display audio preset color code or user-defined color
  • Logo badge can be oriented in 90 degree increments
  • Corner caps engineered to conceal mounting holes and hardware

JLidTM System Command and Control with Networking Capabilities

JL Audio's digital protocol provides control interface and communication between VXi amplifiers and optional JLidTM accessories, including:

  • DRC-100/DRC-200/DRC-205 Digital Remote Controllers: Offers convenient level and DSP preset control from the driver's seat.
  • VXi-BTC Bluetooth® Communicator: Permits wireless configuration of VXi amplifiers using your compatible Apple® or Android® device.
  • VXi-HUB Optical Network Hub: Provides network connectivity for up to five slave VXi amplifiers, allowing synchronization of DRC controllers and DSP presets. Up to two VXi-HUBs can be daisy-chained to network up to ten VXi amplifiers.

Specifications

Rated Continuous (RMS) Power @ 14.4V:

  • Main Channels @ 4 Ohms: 75W x 4
  • Main Channels @ 2 Ohms: 100W x 4
  • Main Channels Bridged @ 4 Ohms: 200W x 2
  • Subwoofer Channel @ 4 Ohms: 400W x 1
  • Subwoofer Channel @ 3 Ohms: 500W x 1
  • Subwoofer Channel @ 2 Ohms: 600W x 1

Rated Continuous (RMS) Power @ 12.5V:

  • Main Channels @ 4 Ohms: 60W x 4
  • Main Channels @ 2 Ohms: 90W x 4
  • Main Channels Bridged @ 4 Ohms: 180W x 2
  • Subwoofer Channel @ 4 Ohms: 360W x 1
  • Subwoofer Channel @ 3 Ohms: 480W x 1
  • Subwoofer Channel @ 2 Ohms: 600W x 1

General Specifications:

  • Frequency Response (Main Channels): 12Hz - 24kHz (+0, -1dB)
  • S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Frequency Response (Subwoofer Channel): 12Hz - 1kHz (+0, -1dB)
  • S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W (Analog Inputs - Main Channels): 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel): 72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to highest rated power (Digital Inputs - Main Channels): 100 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to highest rated power (Digital Inputs - Subwoofer Channel): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W (Digital Inputs - Main Channels): 81 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W (Digital Inputs - Subwoofer Channel): 73 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 Ohms: >150 / 50 Hz
  • Damping Factor @ 2 Ohms: >50 / 50 Hz
  • THD+N @ Rated Power (Main Channels): <1% @ 2 Ω per Ch.
  • THD+N @ Rated Power (Subwoofer Channel): <1% @ 2 Ω per Ch.
  • Input Voltage Range @ RCA Inputs: 200 mV - 16 V RMS
  • Min. Copper Power / Ground Wire Gauge: 2 AWG wire
  • Fuse Rating: 80 A (AFS, AGU or MaxiFuse™)

Physical Specifications:

  • Height: 2.12" (54mm)
  • Width: 11.32" (287mm)
  • Depth: 6.62" (168mm)
  • Weight: 6.45 lbs. (2.93kg)

What's In The Box

  • One VX1000/5i amplifier
  • Power connector
  • Analog Input/Pre-out harness
  • Speaker output harness
  • Subwoofer output connector
  • 6 foot A/B USB cable
  • Owner's manual
