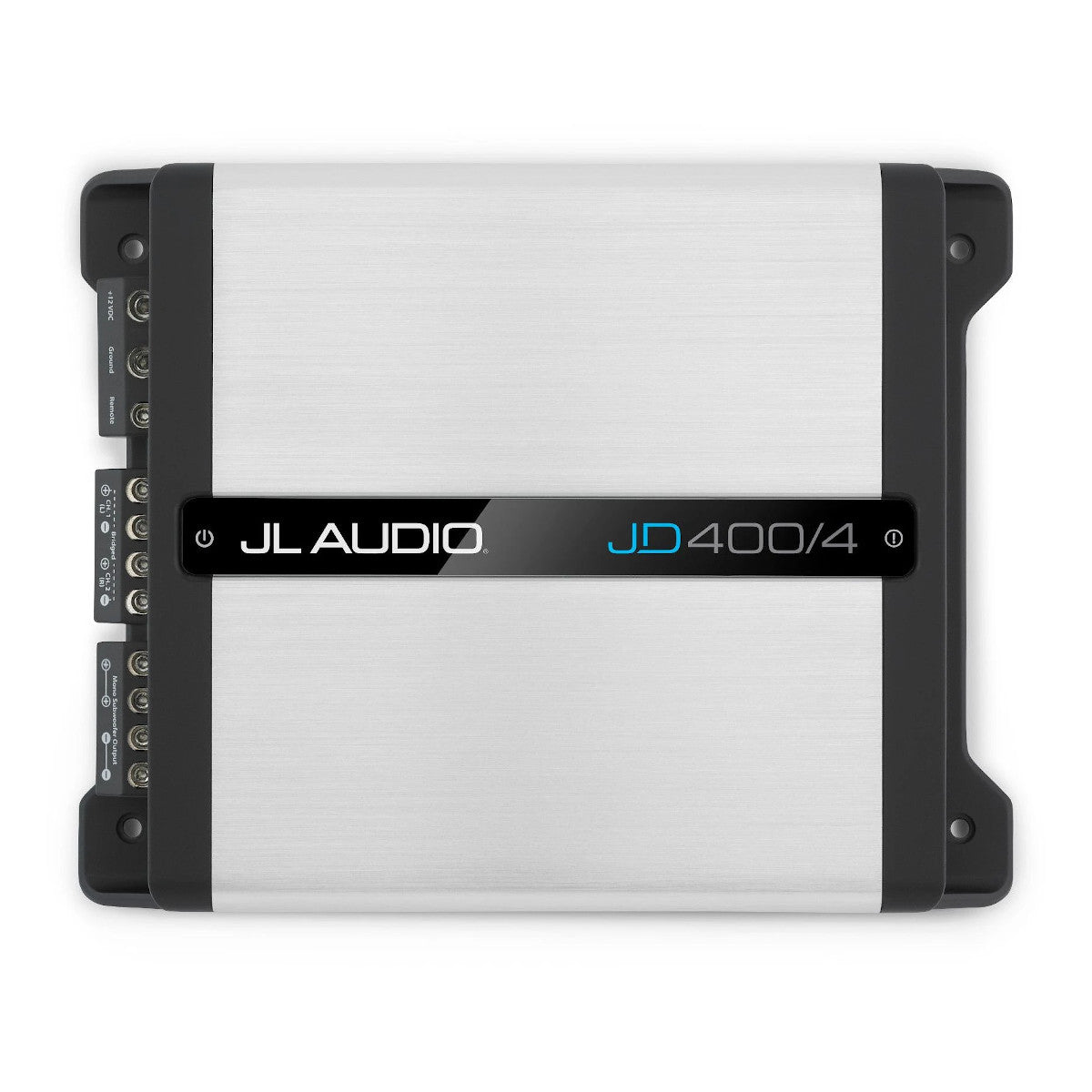

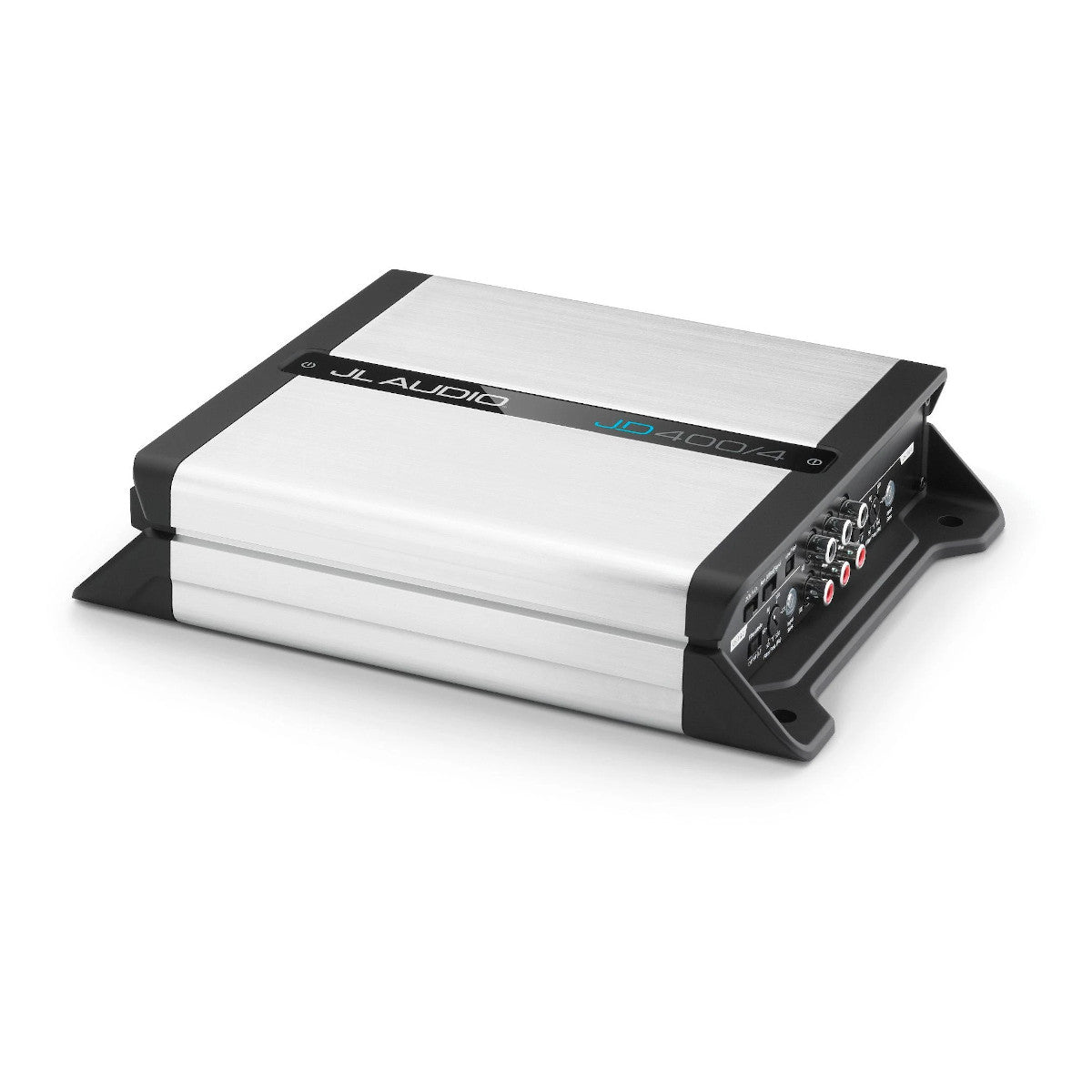

JL Audio JD400/4 Class D 4-Channel Amplifier - 75 Watts x 4

Model: JD400/4 UPC: 699440983617 Item: 174932

Product Information

Overview

4-Channel Class D Full-Range Amplifier, 100 W x 4 @ 2 Ω / 75 W x 4 @ 4 Ω - 14.4V

Utilizing JL Audio's exclusive NexD™ high-speed switching technologies, the JD400/4 amplifier is engineered to deliver loads of clean power, with excellent efficiency and low distortion. This little guy churns out 100 watts of audio from each of its four channels into 2 ohms (14.4V, 1% THD) and is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a whopping 200W x 2 into 4 ohms.

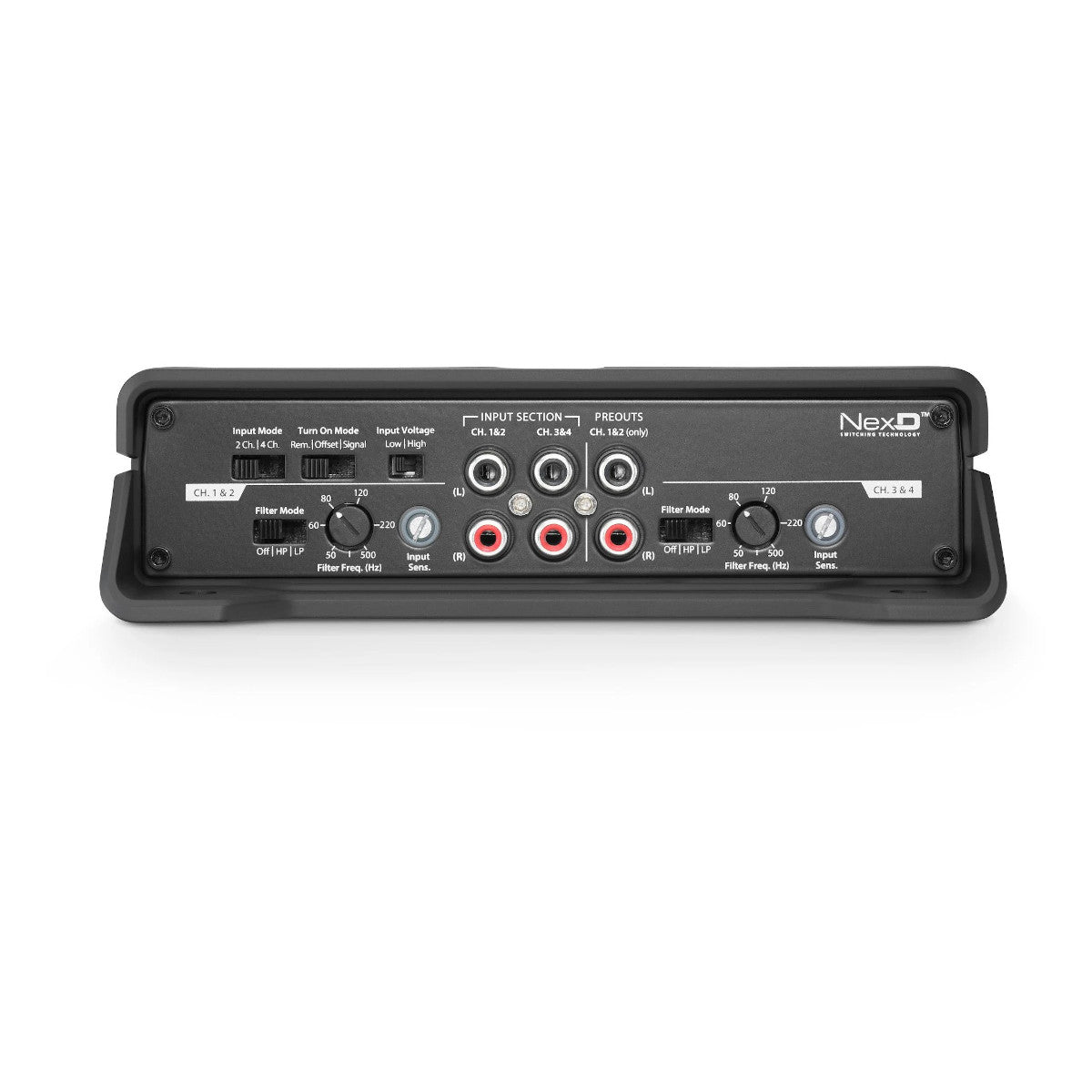

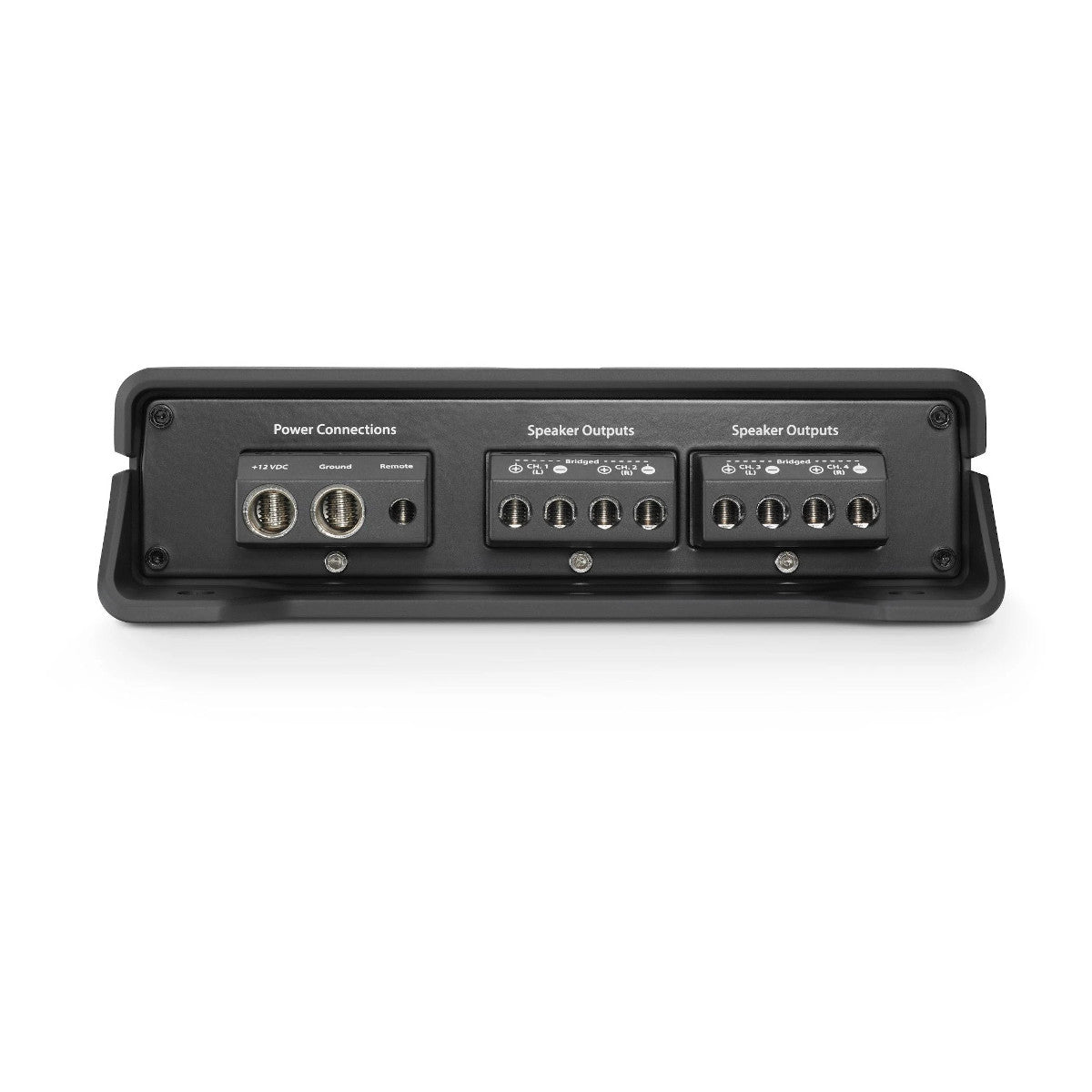

The JD400/4’s controls can be found on the input panel of the amplifier, with all speaker and power connections located along the opposite end of the extruded aluminum chassis. Signal processing features include high or low-pass 12 dB / octave filters (defeatable) for each channel pair, with continuously variable frequency selection from 50-500 Hz, and dual-range, differential-balanced inputs capable of accepting line-level or speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard equipment.

Onboard LED-clipping indicators are also included surrounding each input sensitivity control. This convenient feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. You will also find a set of buffered, pass-through preamp outputs on-board, so you can pass signals to another amplifier.

Specifications

Specifications

  • Rated Continuous (RMS) Power @ 14.4V
    • @ 4 Ohms: 75 watts x 4
    • @ 2 Ohms: 100 watts x 4
    • Bridged @ 4 Ohms: 200 watts x 2
  • Rated Continuous (RMS) Power @ 12.5V
    • @ 4 Ohms: 60 watts x 4
    • @ 2 Ohms: 90 watts x 4
    • Bridged @ 4 Ohms: 180 watts x 2
  • General Specifications
    • Frequency Response: 12 Hz - 22 kHz (+0, -1dB)
    • S/N Ratio, referred to highest rated power: >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    • S/N Ratio, referred to 1 W: >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
    • Damping Factor @ 4 ohms: >150 / 50 Hz
    • Damping Factor @ 2 ohms: >75 / 50 Hz
    • THD+N @ Rated Power: <1% @ 2 ohms per Ch.
    • Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
    • Min.Copper Power / Ground Wire Gauge: 4 AWG wire
    • Fuse Rating: 40 A (AFS, AGU or MaxiFuse)
  • Signal Processing
    • Filter Mode(s): Low-Pass or High-Pass
    • Filter Slope(s): 12 dB/octave
    • Filter Frequency Range: 50 Hz - 500 Hz
    • Detented, Calibrated Filter Freq. Potentiometer: No
    • Filter Defeat Function: Yes
    • Remote Level Control: No
    • Remote Level Modes: N/A
    • Channel Input Mode Switch: Yes (2/4 ch.)
    • Pass-Through Preamp Output: Buffered
    • Source Channel Selection for PreOuts: No (always 2 Ch)
  • Physical Specifications
    • Height (H): 2.10 in / 53 mm
    • Width (W): 9.50 in / 242 mm
    • Depth (D): 7.50 in / 190 mm

What's in the Box

What's in the Box

  • JD400/4 amplifier
  • 2.5mm hex wrench
  • 3mm hex wrench
  • Owner's manual
