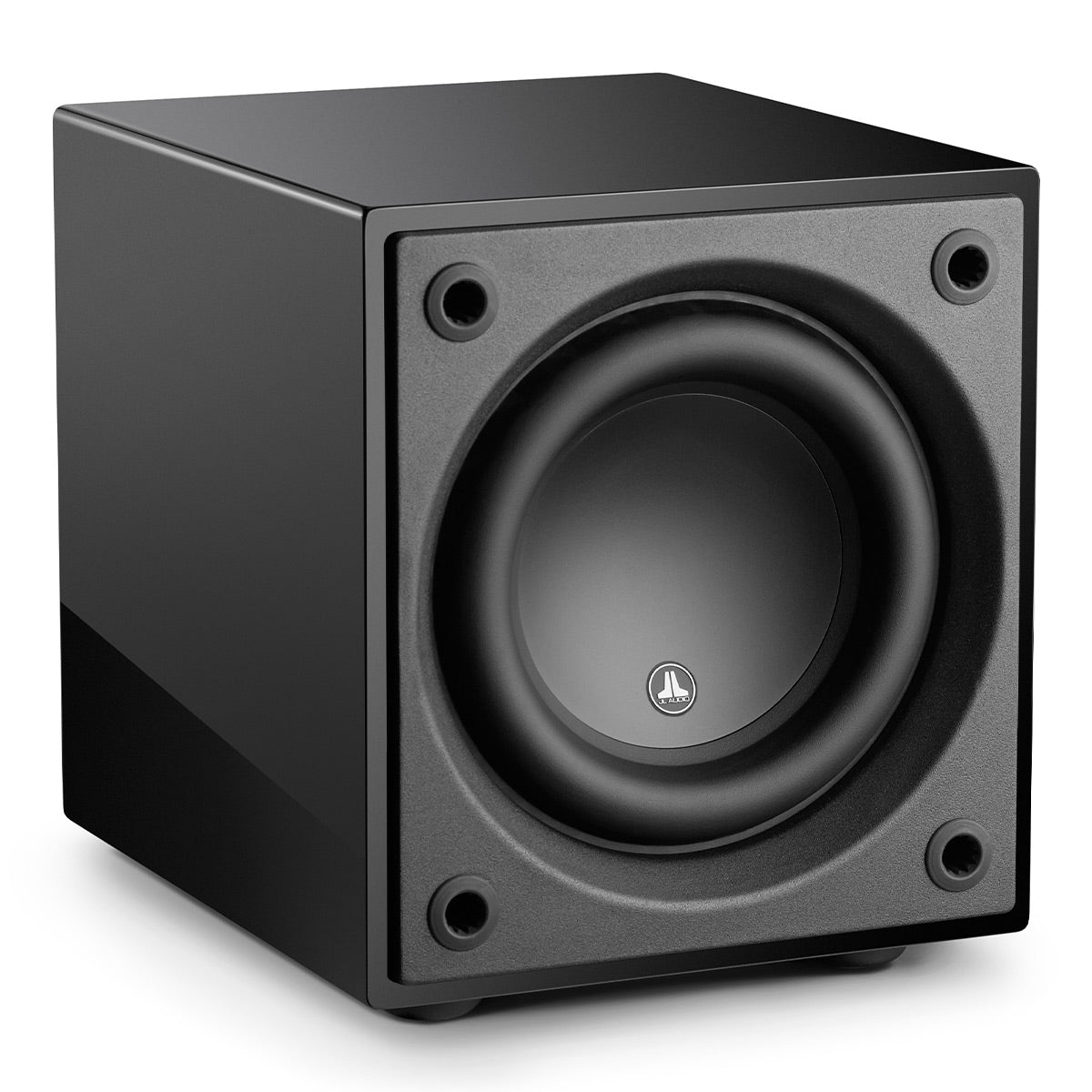

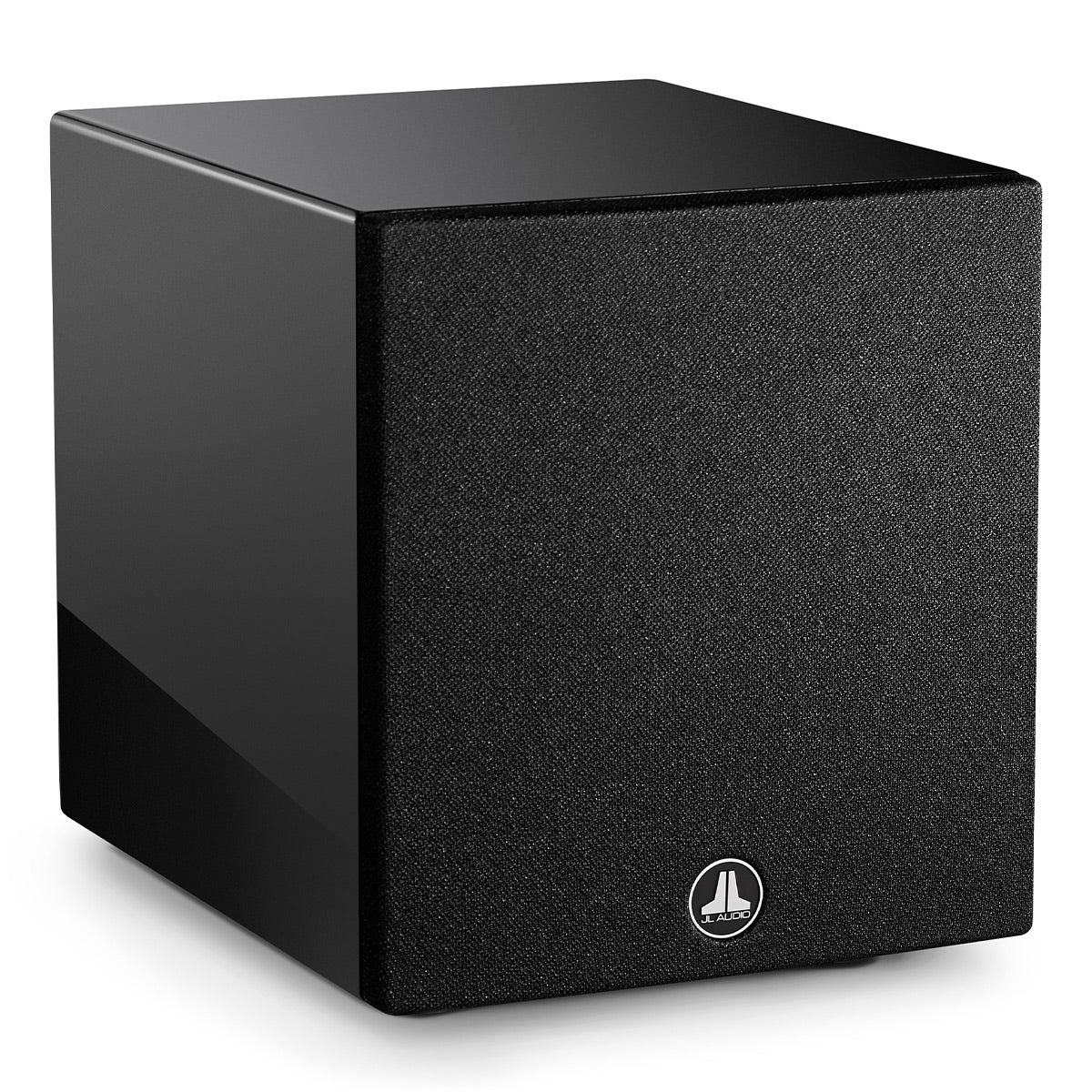

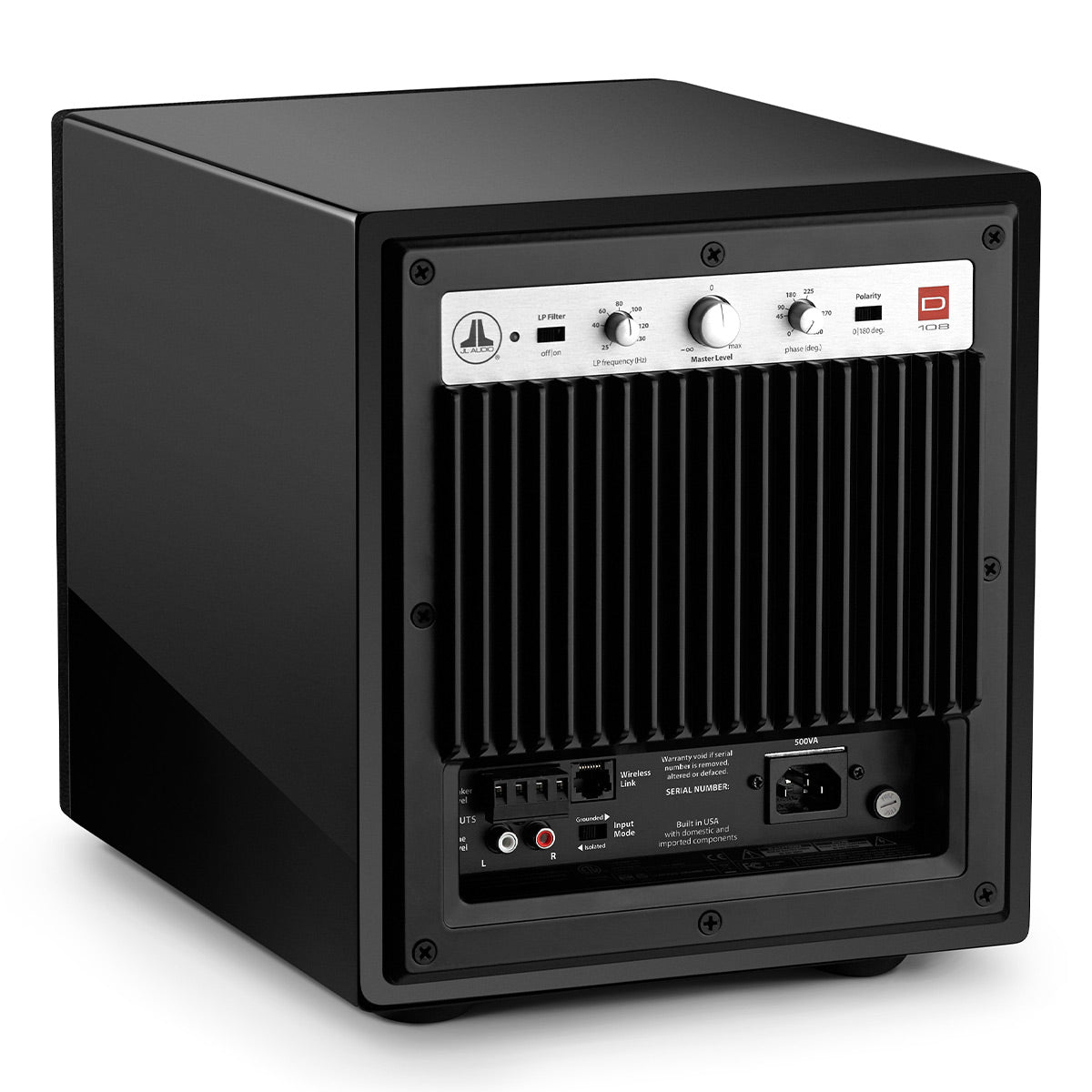

JL Audio Dominion d108 8" Powered Subwoofer - Each (Black Gloss)

Regular price $999.00
Sale price $999.00 Regular price
Save $-999.00 (%)
OR

Other Options

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 96282 | UPC: 699440962827

Specifications

What's In The Box

Product Information

Model: 96282 | UPC: 699440962827

Born from JL Audio’s vast collection of advanced technologies, Dominion® powered subwoofers combine a state-of-the-art Subwoofer and an advanced Class D amplifier to deliver unmatched performance and value for a wide variety of compact applications.

DMA (Dynamic Motor Analysis)

Purpose-built to reproduce powerful low-frequency events with stunning impact and precision, the Dominion® driver employs JL Audio’s exclusive DMA (Dynamic Motor Analysis) technology to produce higher output levels with reduced distortion, as well as improved dynamic tracking and resolution. As a result, Dominion® subwoofers are capable of peak-to-peak excursions well in excess of 2.5-inches (63 mm - d108), and 2.7 inches (68 mm – d110), without distress or audible distortion.

Class D

Dominion® amplifiers utilize an advanced Class D design in order to extract the most from the long-excursion driver platform. This design features a tightly regulated switching power supply, allowing the amplifier to generate prodigious amounts of unclipped output voltages. These technologies ensure that the Dominion® powered subwoofers remain in their comfort zone, which is well beyond the point where most small subwoofers run out of power or driver capability.

Signal Processing

With a host of signal processing features included, Dominion® powered subwoofers can be integrated into most systems with ease. Low-pass signals are precisely guided, thanks to the onboard crossover’s 24 dB/octave Linkwitz-Riley alignment. Phase and polarity controls are onboard to aid in achieving the optimal acoustic transition between the subwoofer(s) and main speakers. Flexible input options are on-hand to accept either line-level or speaker-level signals. Connect a JLINK™ TRX system (sold separately) to the onboard Wireless Link port and enjoy the freedom to position your Dominion® almost anywhere, up to 100 feet (30 meters) away from your source unit.

Design

To contain the immense pressures created by the Dominion® driver, each beautiful cabinet is carefully engineered and constructed using solid, CNC-cut, MDF material with extensive internal bracing and advanced assembly techniques. All Dominion® powered subwoofers are built with pride and precision in JL Audio’s U.S. factory to deliver years of listening enjoyment.

Specifications

  • Unbalanced Inputs: Stereo or Mono (two RCA jacks)
  • High-Level Inputs: Stereo or Mono (removable plug)
  • Input Grounding: Selectable (Isolated or Grounded)
  • Level Control: Variable – full mute to +15 dB over reference gain
  • Power On/Off: Automatic Signal-Sensing only
  • Low-Pass Filter: 24 dB per octave with Linkwitz-Riley alignment
  • Low-Pass Cutoff Frequency Range: Variable – 25 Hz-130 Hz
  • Polarity: 0 or 180 degrees
  • Phase: Variable from 0-280 degrees, referenced to 80 Hz
  • Enclosure Type: Sealed
  • Drivers: Single 8-inch (nominal diameter)
  • Frequency Response (anechoic):
    • 31-112 Hz (+/ 1.5dB)
    • -3 dB at 29 Hz/119 Hz
    • -10 dB at 21 Hz/143 Hz
  • Input Impedance:
    • Line Inputs: 20 k ohms
    • High-Level Inputs: 4.4 k ohms
  • Effective Piston Area: 32.18 sq. in. (0.0208 sq. m)
  • Effective Displacement: 80 cu. in. (1.3 liters)
  • Amplifier Power: 500 watts RMS short-term
  • Dimensions (W x H x D): 10" x 11.37" x 13.23"
  • Net Weight: 26.4 lbs. (12 kg)

What's In The Box

  • Dominion d108 8" Powered Subwoofer - Each
  • Power Cord
  • Manual
