JBL

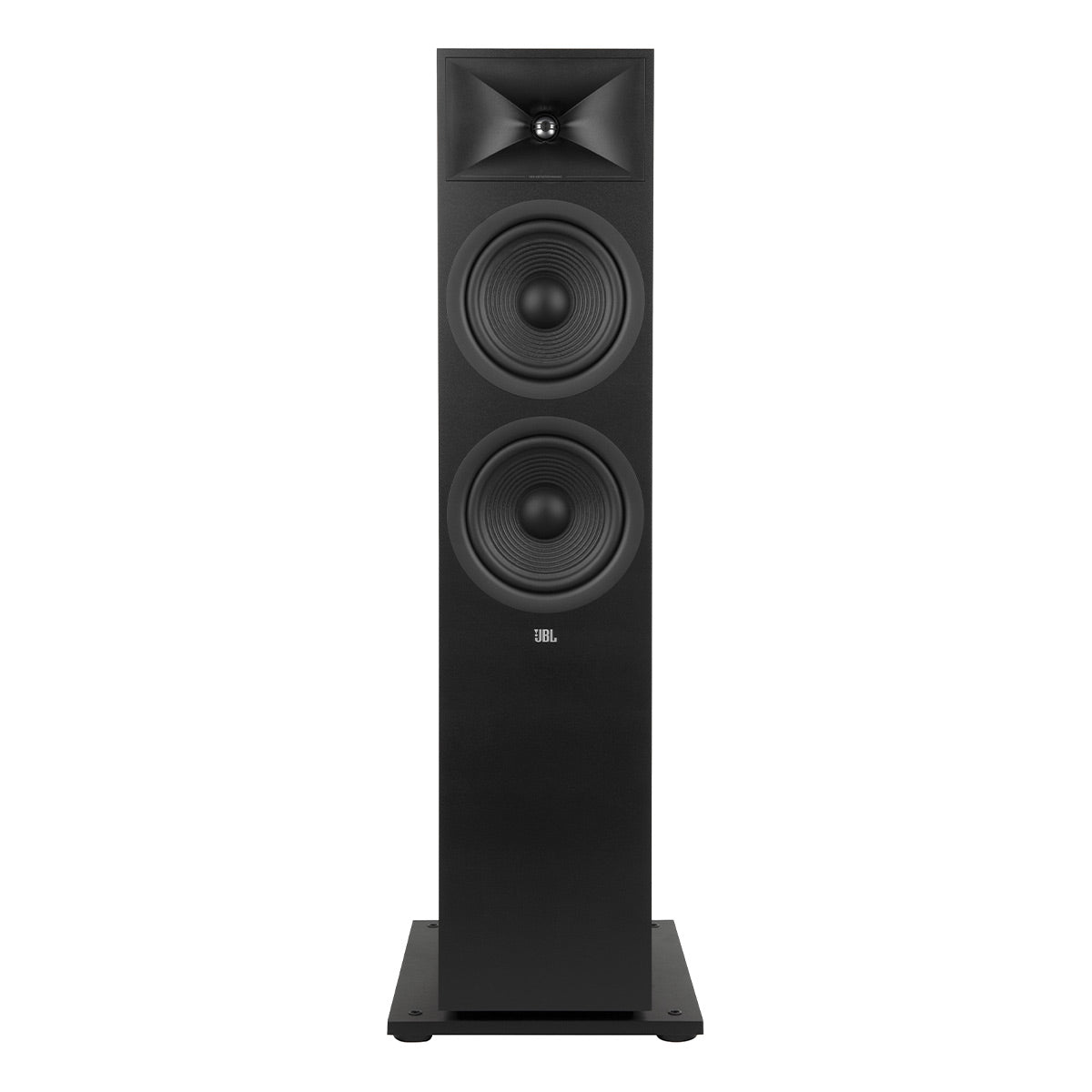

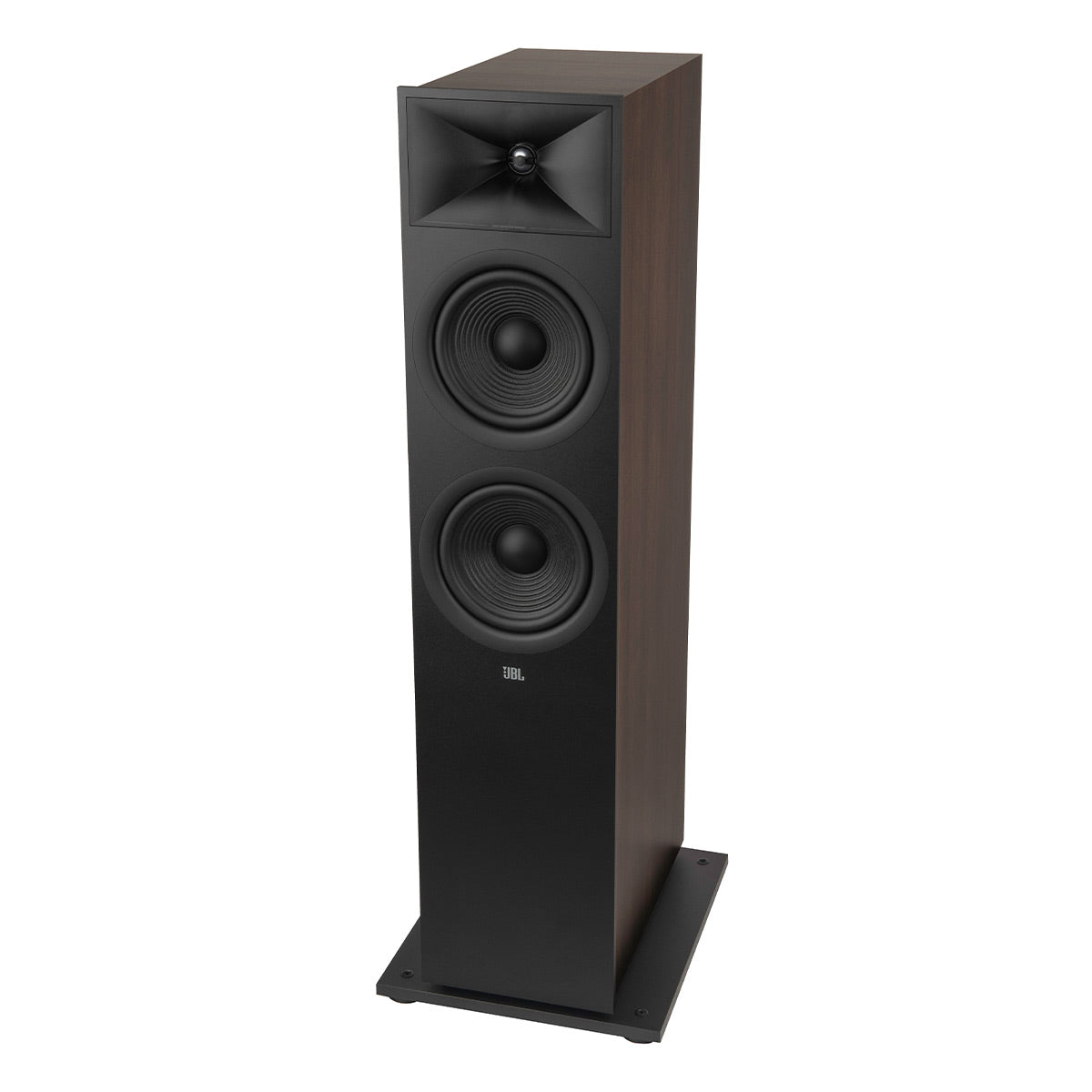

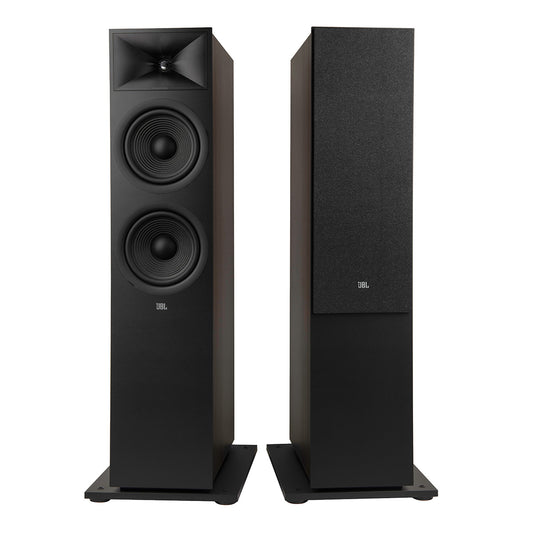

JBL Stage 280F Dual 8" Floorstanding Speaker - Each (Black)

Regular price $599.95
Sale price $599.95 Regular price
Save $-599.95 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

JBL Stage 280F Overview

Product Information

Model: JBL280FBLKAM | UPC: 050036401791

Specifications

What's In The Box

Product Information

Model: JBL280FBLKAM | UPC: 050036401791

Designed and engineered at JBL’s world-famous Acoustic Engineering Center of Excellence in Northridge, California, the Stage 280F is the flagship of the JBL Stage Series. This floorstanding loudspeaker features a 2.5-way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1” Anodized Aluminum dome tweeter, and dual 8” Polycellulose ribbed cone woofers that provide deep, signature JBL bass.

Features

  • Dual 8” Woofers & 1” Tweeter
  • 2.5-Way Design
  • Dedicated ATMOS 5-Way Binding Posts
  • Wide Soundstage & Signature JBL Bass
  • Compatible with the 240H Atmos Module

Dual 8” Polycellulose Ribbed Cone Woofers

The 280F features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.

1” Anodized Aluminum Tweeter

Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity, reduced diffraction, and an overall neutral frequency response both on and off axis. The Stage 2 HDI Horn is coupled to an anodized aluminum dome tweeter to enhance efficiency and dynamics.

Precision 2.5-Way Crossover

The 280F floorstanding model features a unique two and a half-way crossover design. This unique design crosses over the top woofer right below the tweeter's output, while the other woofer is crossed over at a lower frequency. This creates a dynamic mid-range but both woofers still extend as deep as they can go for powerful bass. This produces cohesive balanced output with a robust low end that can be both heard and felt. Premium components are used to construct the crossovers fitted to the Stage 2 line. The High frequency section features air core inductors and mylar capacitors that reduce distortion and improve sonic performance. The low frequency section includes laminate core inductors and electrolytic capacitors. These premium materials can handle more power and transmit energy faster elevating system performance.

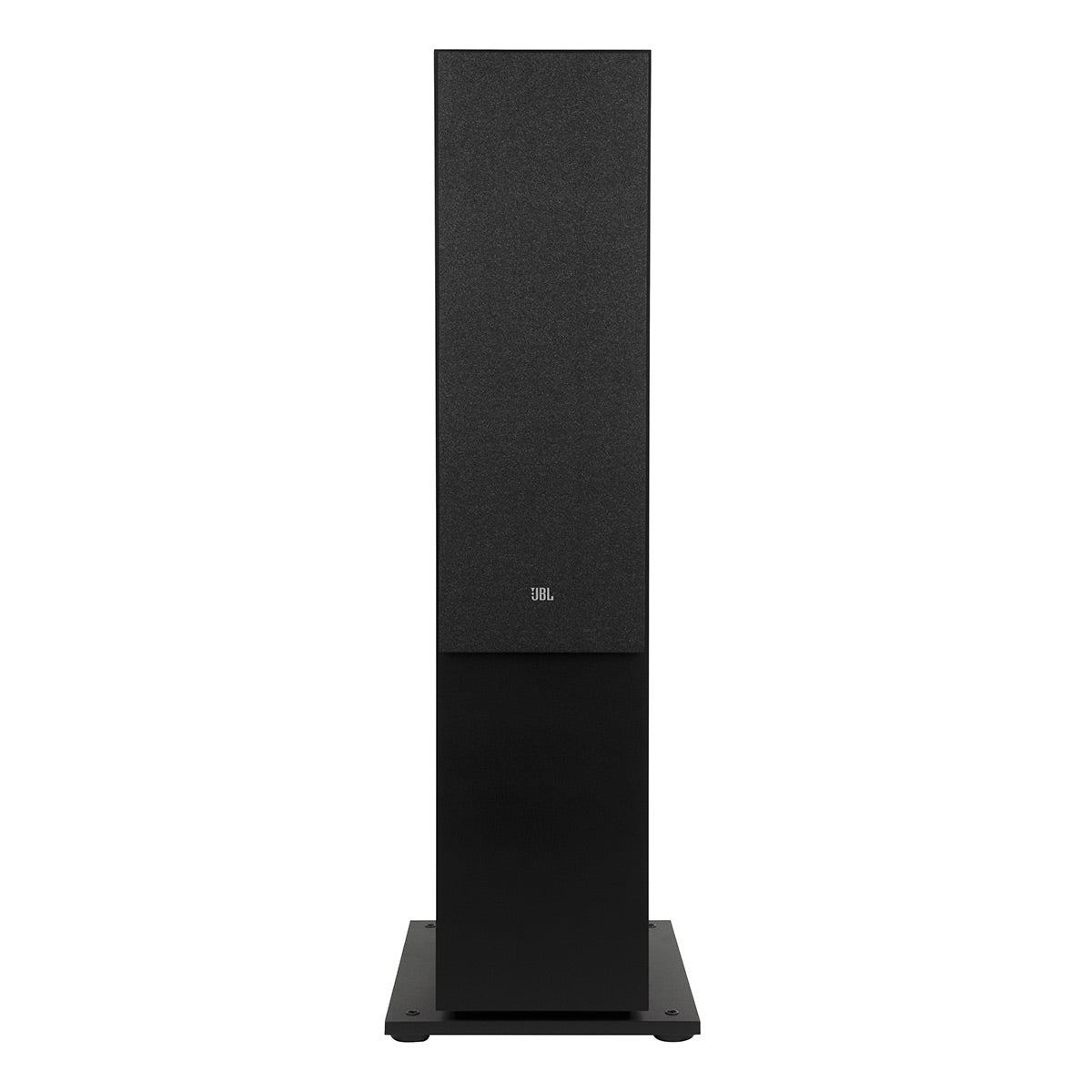

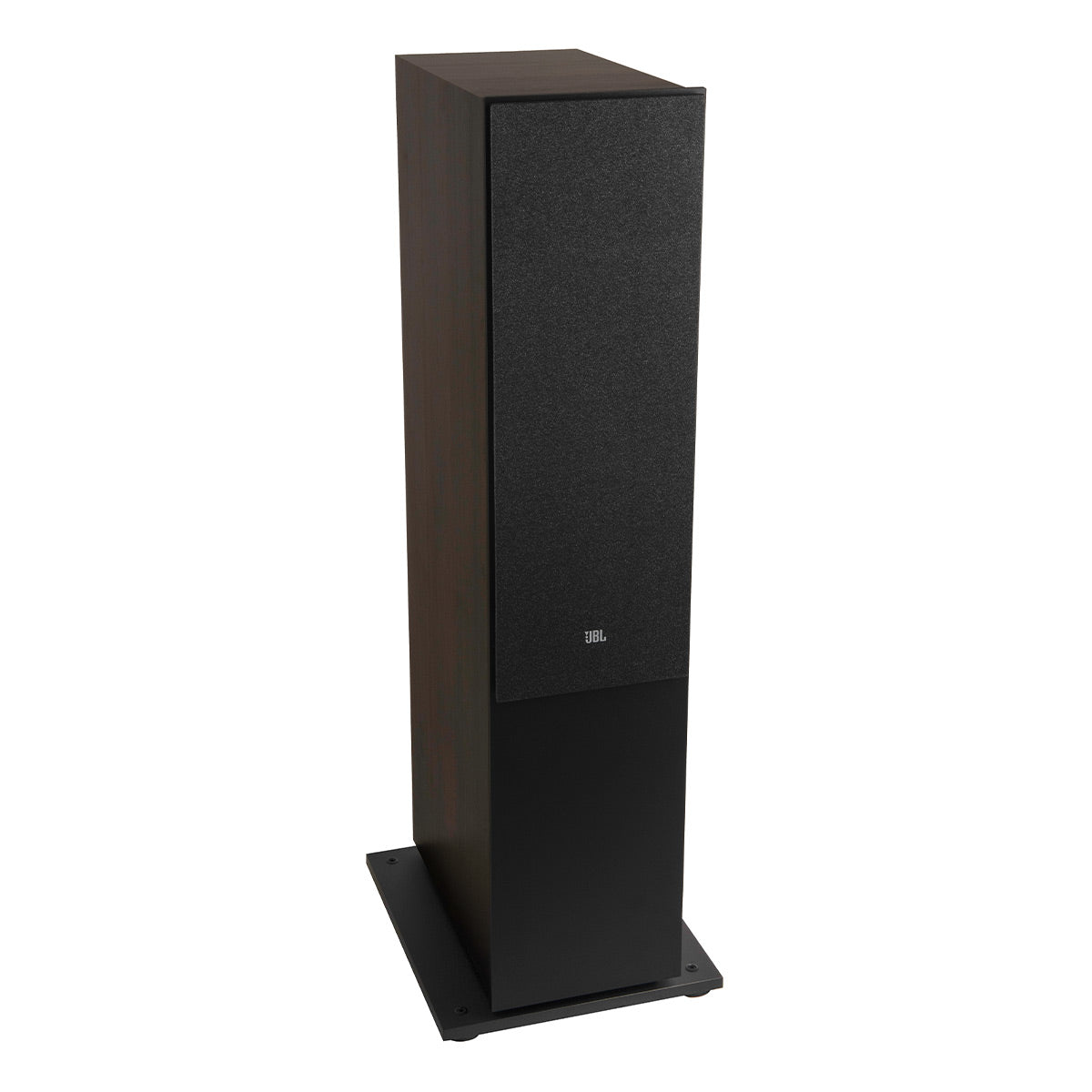

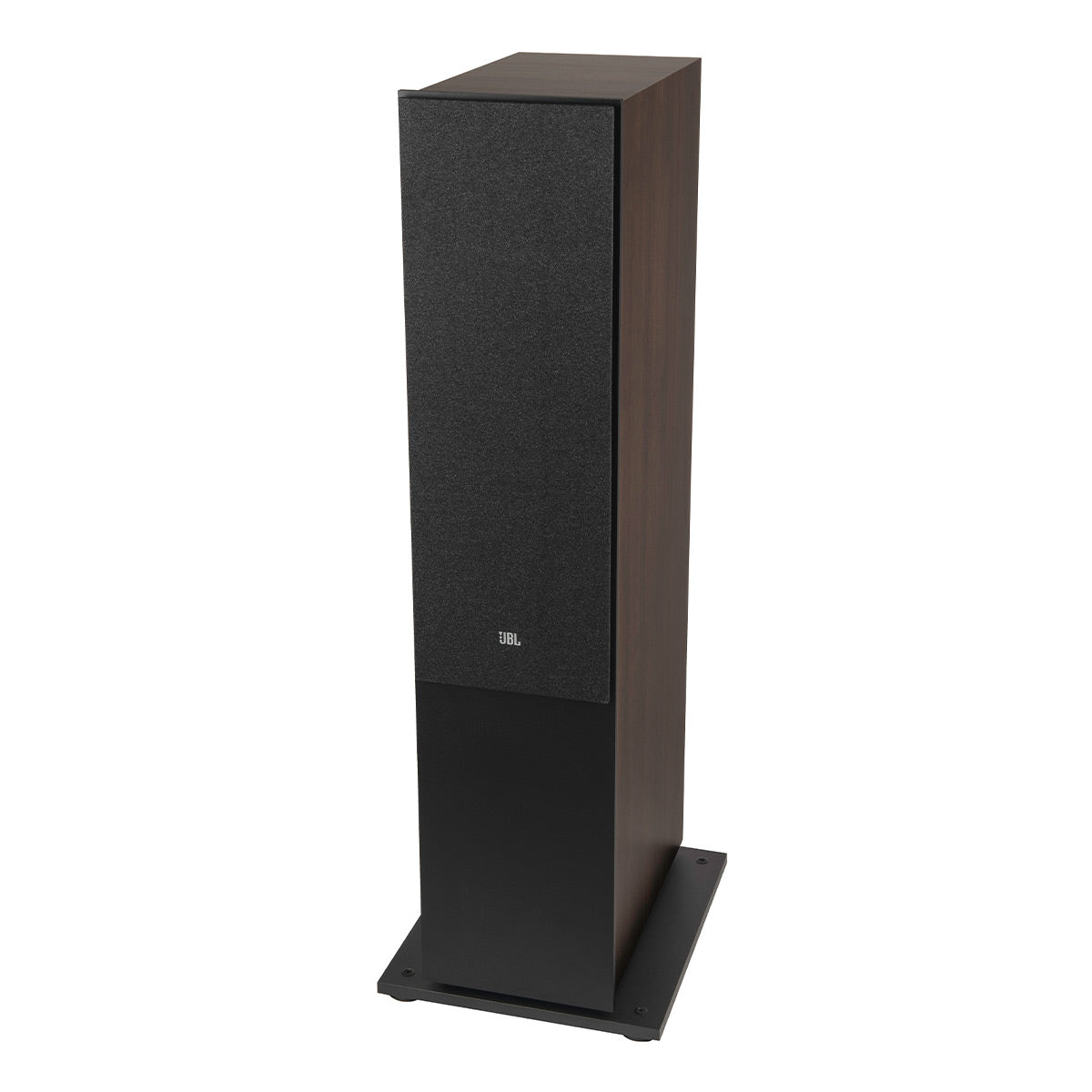

Magnetically Attached Grilles

Stage 2 has premium details throughout the line including magnetically attached grilles, unique trim rings and the floating front baffle design - upscale features not typically found on loudspeakers in this price range.

Dedicated ATMOS 5-Way Binding Posts with Integrated Wire Management

The 280F features dedicated Atmos 5-way biding posts at the bottom and top of the speaker. This unique design hides the wiring providing a clean uncluttered look. If the Atmos terminal are not used a cover is provided.

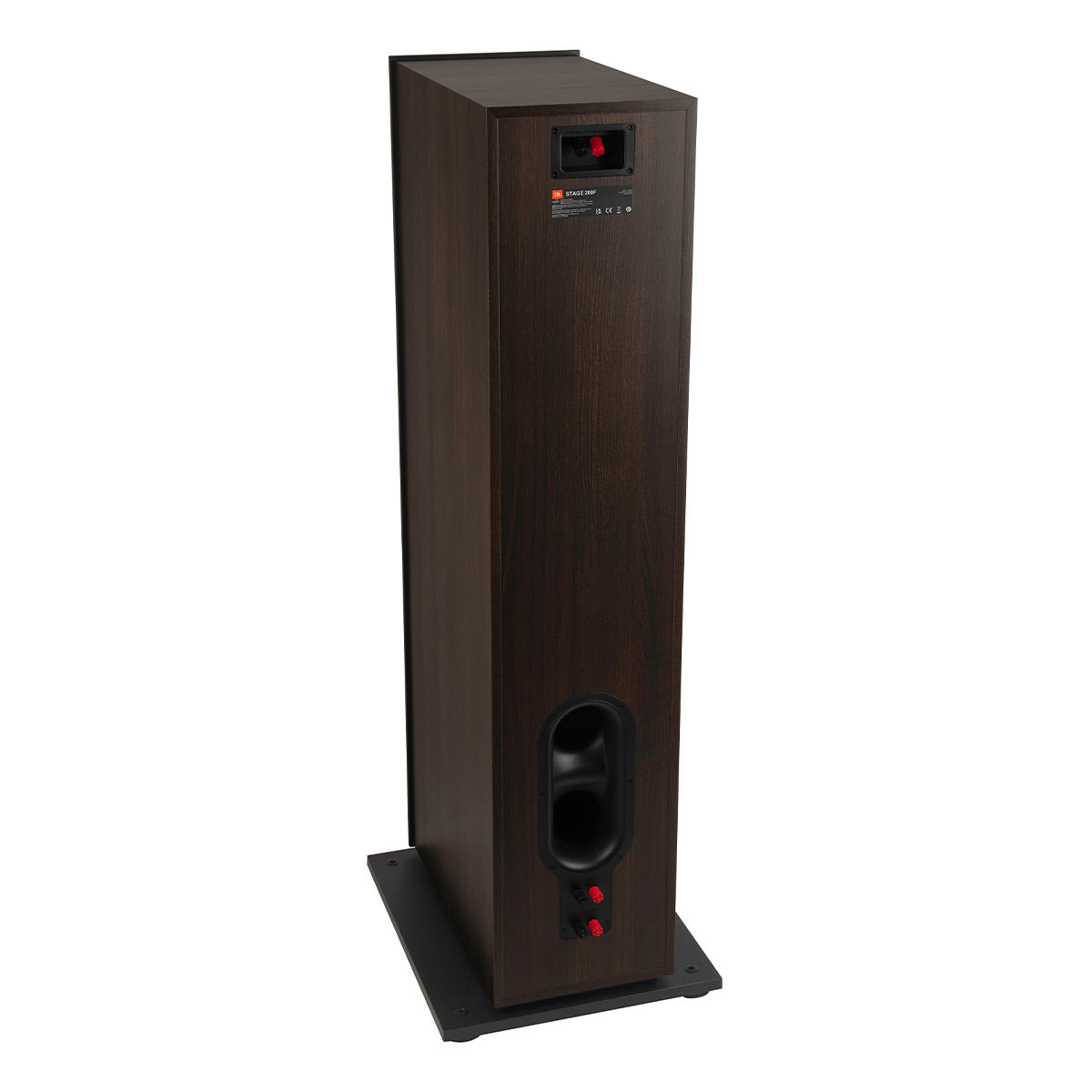

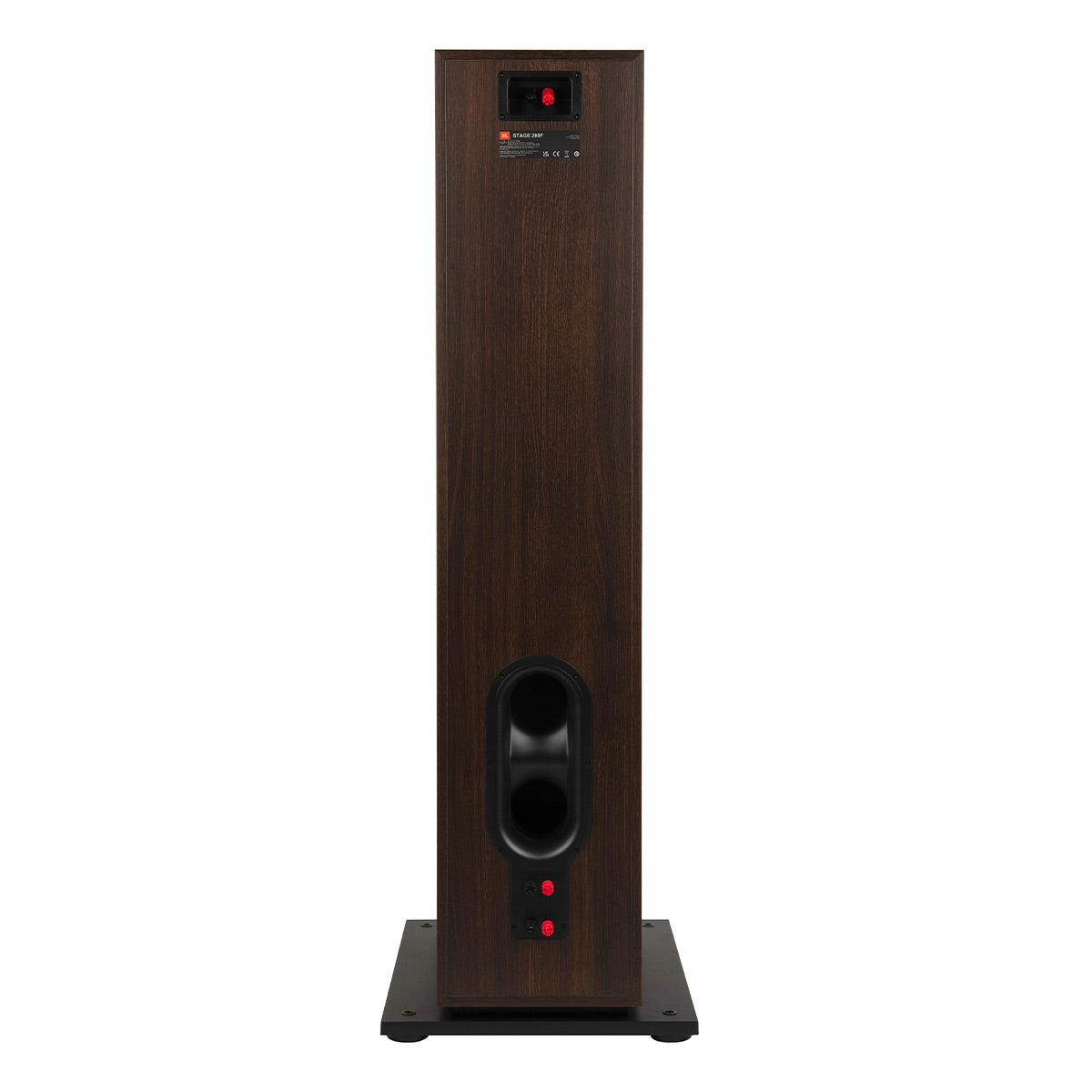

Dual Flared Racetrack Rear-Firing Tuned Ports

Dual Racetrack flared ports are featured on the 280F. This new flared design reduces the velocity of the air when exiting the speaker cabinet, eliminating any chuffing or coloration of output.

Compatible with 240H Atmos Module

The 280F mates perfectly with the 240H to add Dolby Atmos to your system for an enhanced listening experience. Dedicated Atmos 5-way binding posts hide the wiring and create a seamless appearance.

Specifications

  • Type: Floorstanding Loudspeaker System
  • Low Frequency Driver: Dual 8-inch (200mm) Polycellulose Ribbed Cone
  • High Frequency Driver: 1-inch (25mm) Anodized Aluminum
  • Waveguide: Next Generation HDI™
  • Recommended Amplifier Power: 20-225W
  • Frequency Response ± 6dB: 33Hz-25kHz
  • Sensitivity @ 1M, 2.83V: 91dB
  • Nominal Impedance: 6 Ohms
  • Crossover Frequencies: 1.1kHz/2.1Khz
  • Enclosure Tuning: Bass Reflex via Dual Flared Racetrack Rear-Firing Tuned Ports
  • Dimensions & Weight
    • Dimensions (W x H x D): 14.1” x  43.8” x 16.5”
    • Dimensions without Base (W x H x D): 7.9” x 40.8” x 13.9”
    • Product Weight: 55.2 lbs.

What's In The Box

  • Stage 280F Dual 8" Floorstanding Speaker - Each
  • Plinth
  • (4) Mounting Screws
  • (4) Floor Spikes
  • Tool
  • Speaker Grille
  • Safety Sheet
  • Quick-Start Guide
