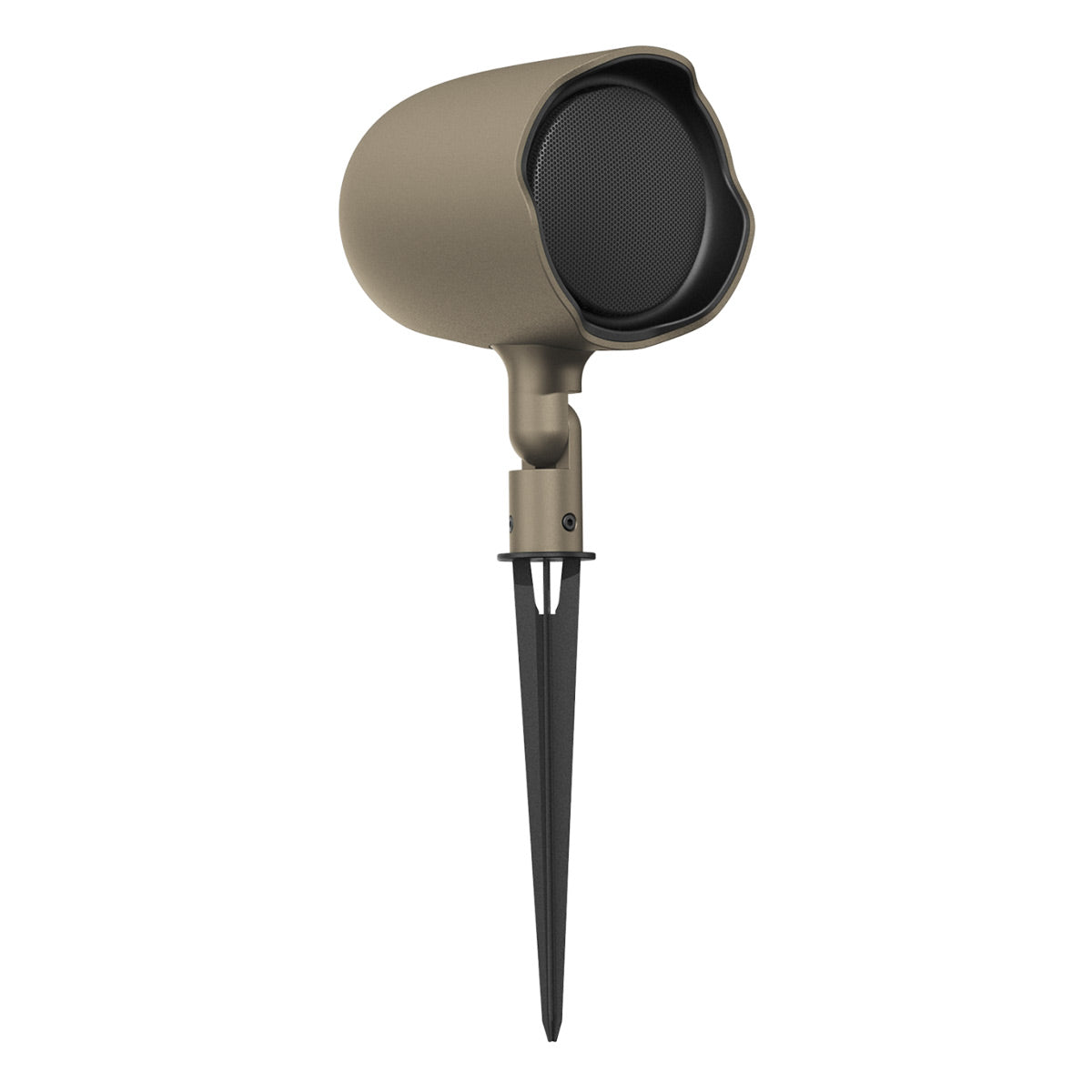

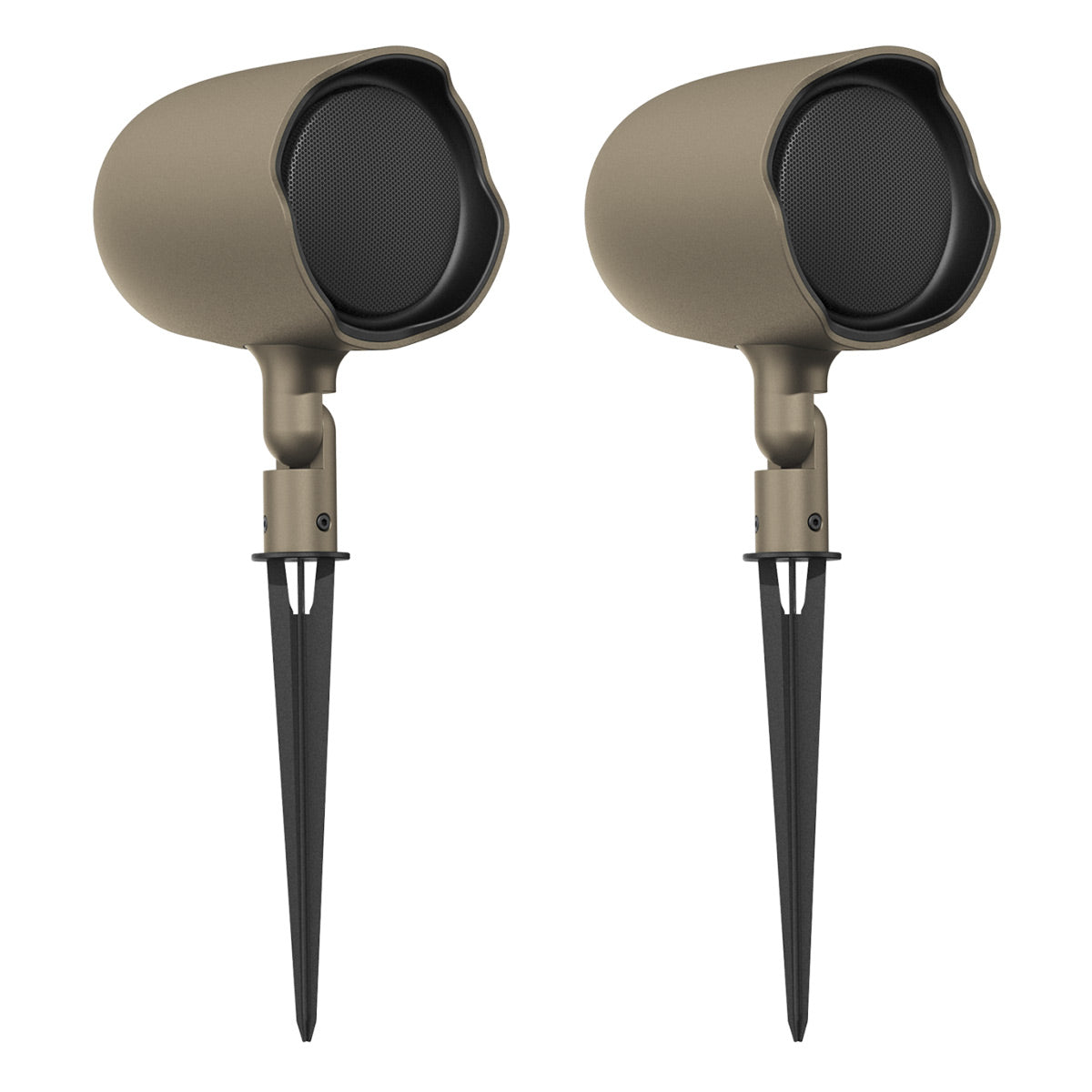

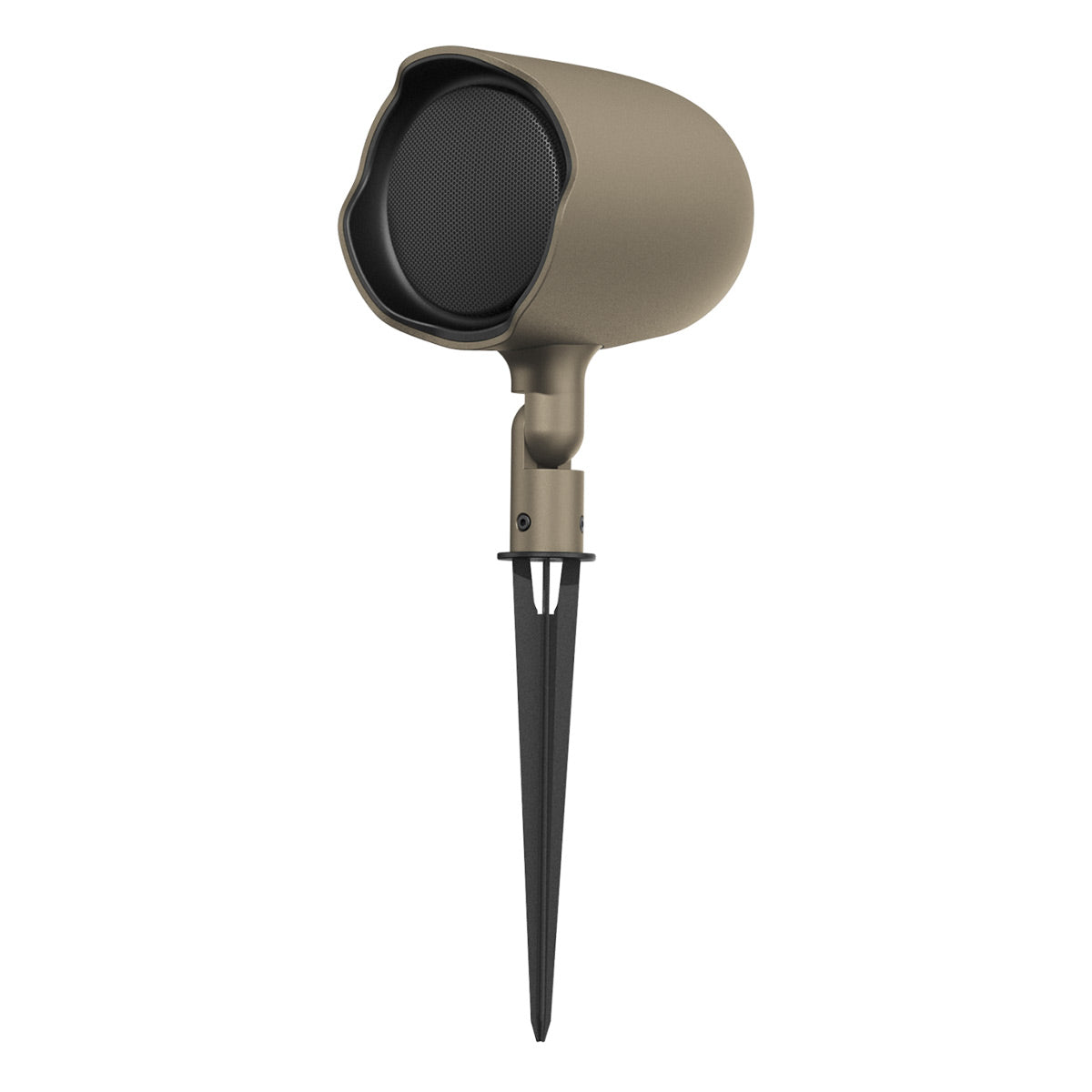

JBL Pro GSF3 3 Inch Landscape Satellite Speaker - Pair (Tan)

Now on demo at:

1 of 4

JBL Pro GSF3 3 Inch Landscape Satellite Speaker - Pair (Tan)

Regular price $444.00
Sale price $444.00 Regular price
$0.00 Save $-444.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

JBL Pro GSF3 3 Overview

Product Information

Model: JBL-GSF3-TN | UPC: 691991039317

Specifications

What's In The Box

Product Information

Model: JBL-GSF3-TN | UPC: 691991039317

The compact, weather-resistant JBL GSF3 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 3-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 15-watt multi-tap transformer for use on 70V/100V distributed systems, and is switchable for 8-ohm direct operation.

Features

  • 3” Woofer, 1” Voice Coil, & 0.8” Titanium Dome Tweeter
  • IP66 Water and Dust Rating
  • Multi-Tap 15W Transformer
  • Frequency Range: 90 Hz–20 kHz
  • Power Handling (at 8Ω setting): 30 watts
  • Includes Ground Stake & L-Bracket for Surface Mounting

Flexible Installation & Seamless Design

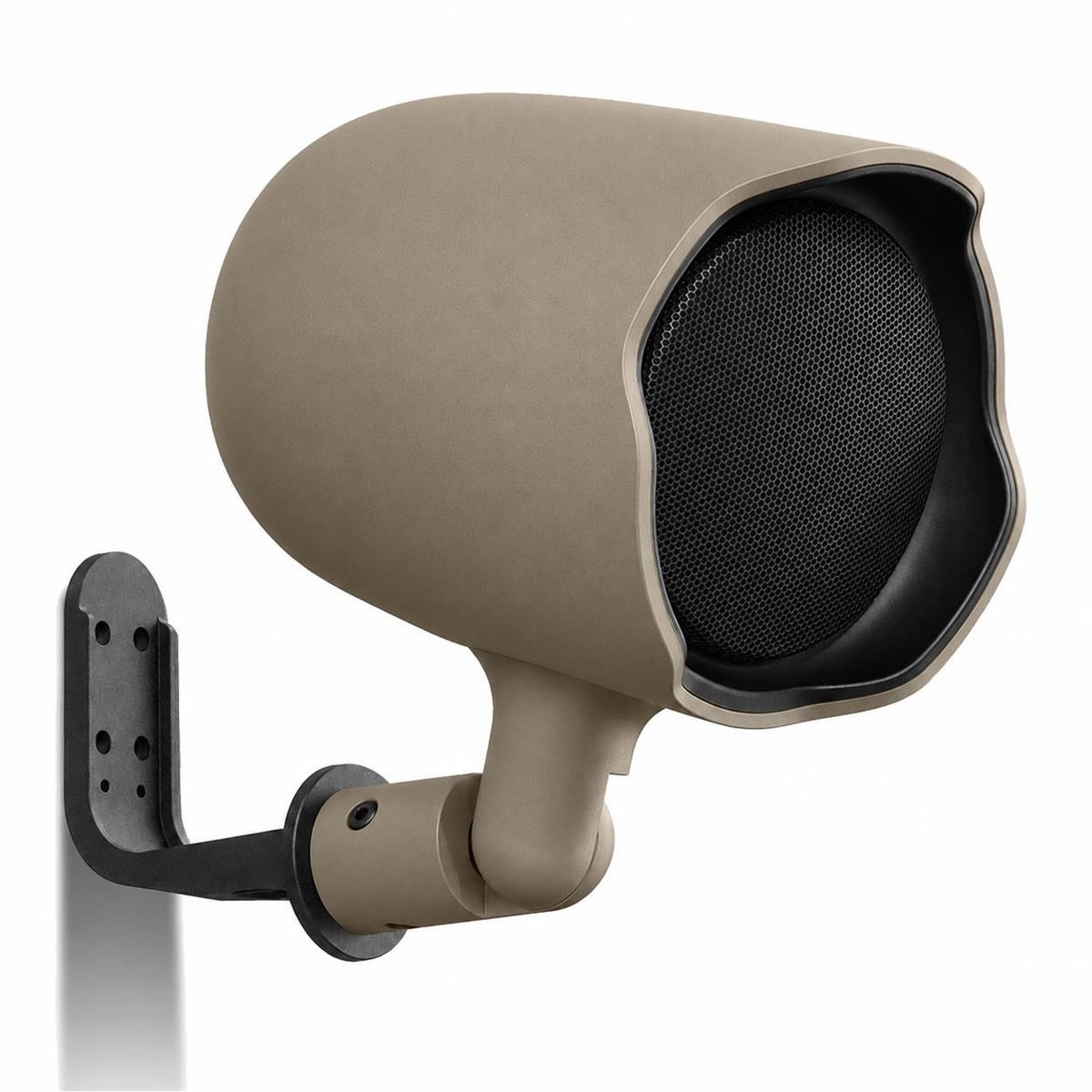

Versatile mounting options include an included ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces. A low-profile, unobtrusive speaker, the GSF3 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.

Award-Winning Outdoor Audio Solution

The elegant, discreet GSF3—winner of international design awards for industrial design excellence—is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.

Specifications

  • Frequency Range (-10dB): 74 Hz – 20 kHz
  • Frequency Response (+/-3 dB): 120 Hz – 15 kHz
  • Power Rating: 60 W Continuous Program (2 hrs) ; 30 W (120 W Peak), Continuous Pink Noise (2 hrs) ; 20 W (80 W Peak), Continuous Pink Noise (100 hrs)
  • Sensitivity: 84 dB (43 Hz - 110 Hz)
  • Maximum SPL: 103 dB peak (95 dB continuous, 2 hr) @ 1m
  • Coverage Pattern: 90° conical
  • Nominal Impedance: 8 Ω (at 8Ω tap)
  • Transformer Taps: 70V = 15 W, 7.5 W, 3.75 W ; 100V = 15 W, 7.5 W
  • Drivers
    • 3" Woofer, polypropylene cone
    • 1" Voice coil on Kapton™ voice coil former
    • 0.8" Titanium dome, Neodymium magnet assembly, Kapton™ voice coil former
  • Dimensions
    • Cabinet (Diameter x Depth): 5.2 x 6.6"
    • Assembly Height with L-Bracket Base: 11.4" (at 90°)
    • Assembly Height with Ground Stake Base: 17.0"
    • Net Weight: 3.8 lbs.

What's In The Box

  • GSF3 3 Inch Landscape Satellite Speaker - Pair
  • (2) Ground Stake Brackets
  • (2) L-Brackets
  • Manual
