JBL Pro GSB8 8 Inch Landscape Subwoofer (Green)

Now on demo at:

1 of 5

JBL Pro GSB8 8 Inch Landscape Subwoofer (Green)

Regular price $530.00
Sale price $530.00 Regular price
$0.00 Save $-530.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

JBL Pro GSB8 8 Overview

Product Information

Model: JBL-GSB8-GN | UPC: 691991037795

Specifications

What's In The Box

Product Information

Model: JBL-GSB8-GN | UPC: 691991037795

The JBL GSB8 in-ground 8-inch landscape subwoofer augments the low frequency performance of JBL GSF full-range landscape speakers to provide rich, full-range sound in lawn and garden areas of hospitality, corporate and retail spaces.

Features

  • 8” Polypropylene Woofer & 1.5” Voice Coil
  • Frequency Response: 35 Hz – 130 Hz
  • Built-In Steep, Multiple-Slope Lowpass Filter

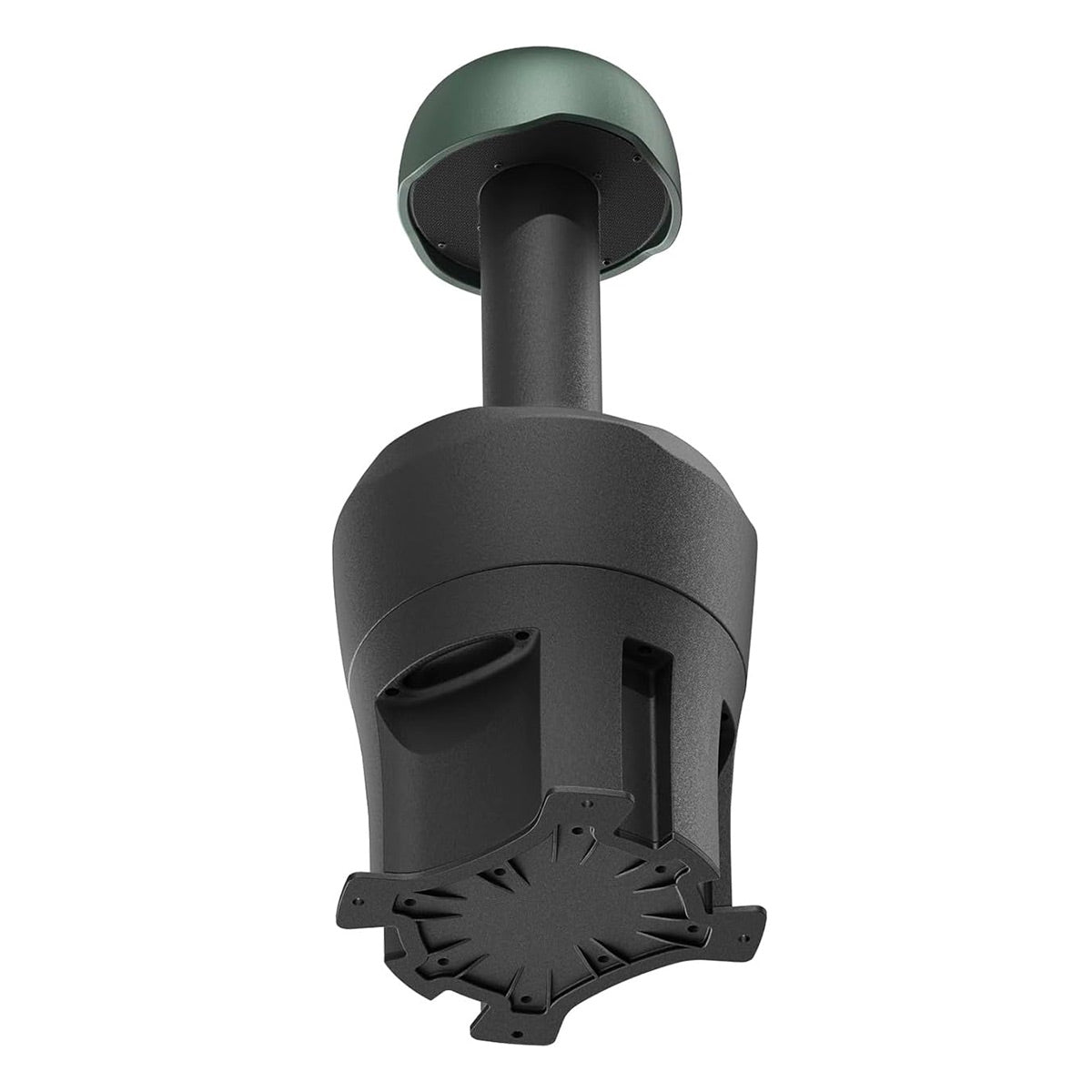

  • Anchor Points for Secure Installation
  • Low-Impedance Direct Operation & Transformer for 70V/100V Systems

Subwoofer Fidelity & System Compatibility

The GSB8 focuses on fidelity, with true subwoofer extension down to 35 Hz and a steep, multiple-slope lowpass filter for superior sound. Its premium-grade, 100-watt subwoofer-band transformer allows use in 70V/100V systems or can be connected for low-impedance direct operation.

Underground Installation & Weather Resistance

This sleek, ultra-low-profile speaker—winner of the international awards for industrial design excellence—installs underground, with only the audio port visible. It’s designed to withstand the elements: Its chamber is oriented directly below the audio port to prevent accidental damage from landscaping, which can be a problem with side-located chambers. Grab handles allow easy installation and tabs secure the subwoofer to blocks or anchors.

Outdoor Applications

Add the GSB8 to landscape areas of hotels, shopping complexes, restaurants, public spaces, theme parks or any application that demands legendary JBL sound with deep, rich, powerful bass.

Specifications

  • General
    • Frequency Range (-10dB): 35 Hz – 130 Hz
    • Frequency Response (+/-3 dB): 43 Hz – 120 Hz
    • Power Rating: 500 W Continuous Program (2 hrs) ; 250 W (1000 W Peak), Continuous Pink Noise (2 hrs) ; 150 W (600 W Peak), Continuous Pink Noise (100 hrs)
    • Sensitivity: 84 dB (ave. 43 Hz – 110 Hz)
    • Maximum SPL: 114 dB peak (108 dB continuous, 2 hr) @ 1m
    • Coverage Pattern: Omnidirectional
    • Nominal Impedance: 6Ω (at 6Ω tap)
    • Transformer Taps: 70V = 100 W, 50 W, 25 W ; 100V = 100 W, 50 W
  • Drivers
    • 8" driver, polypropylene injection cone, thermoplastic vulcanizate surround
    • 2" voice coil on glass fiber former
  • Terminals: Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 7 wires with 14 AWG)
  • Enclosure Material: LDPE Polyethylene plastic, 6 mm minimum wall thickness, color throughout
  • Dimensions
    • Dimensions (Height x Diameter): 30.1 x 12.2”
    • Net Weight: 20.5 lbs.

What's In The Box

  • GSB8 8 Inch Landscape Subwoofer
  • Hardware
  • Manual
