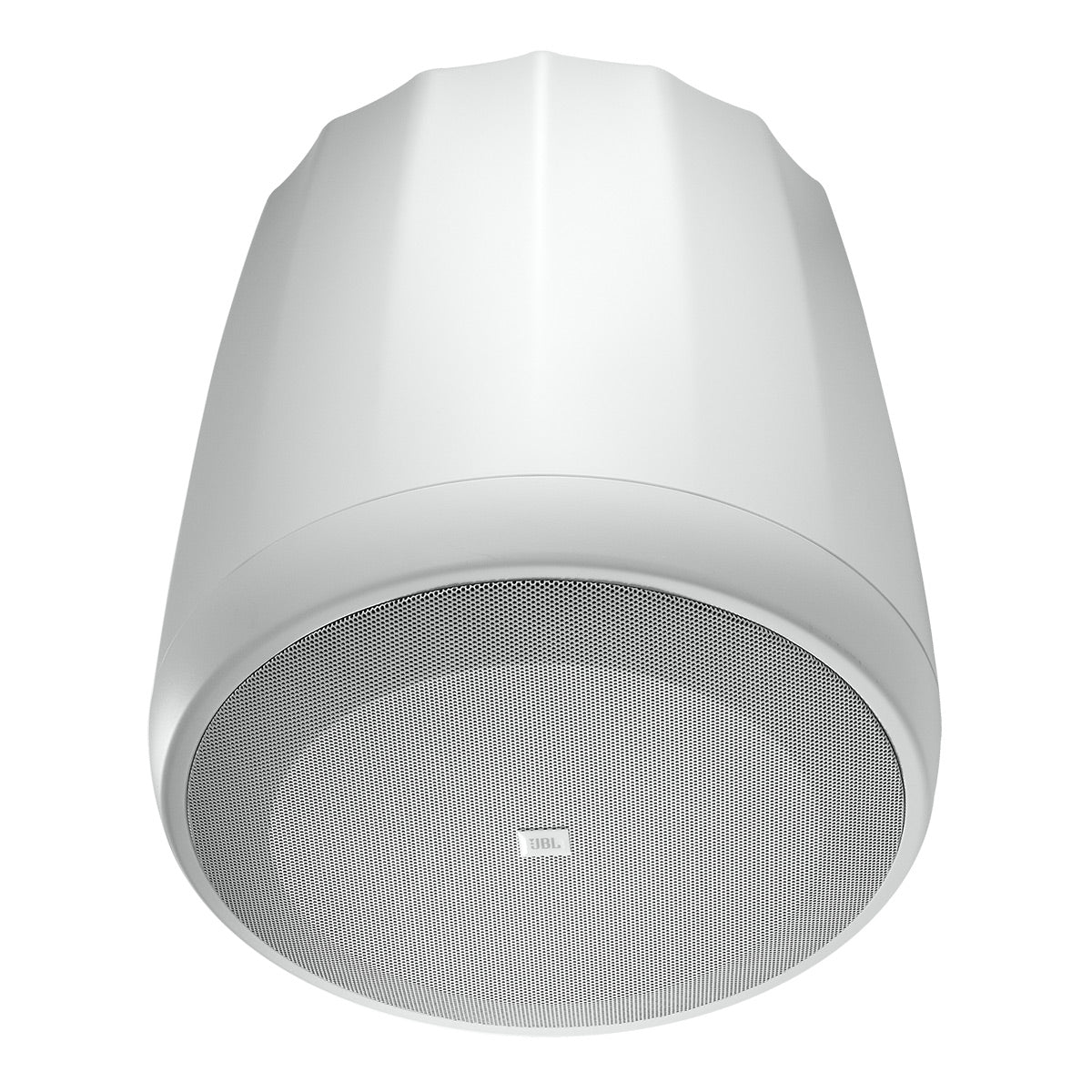

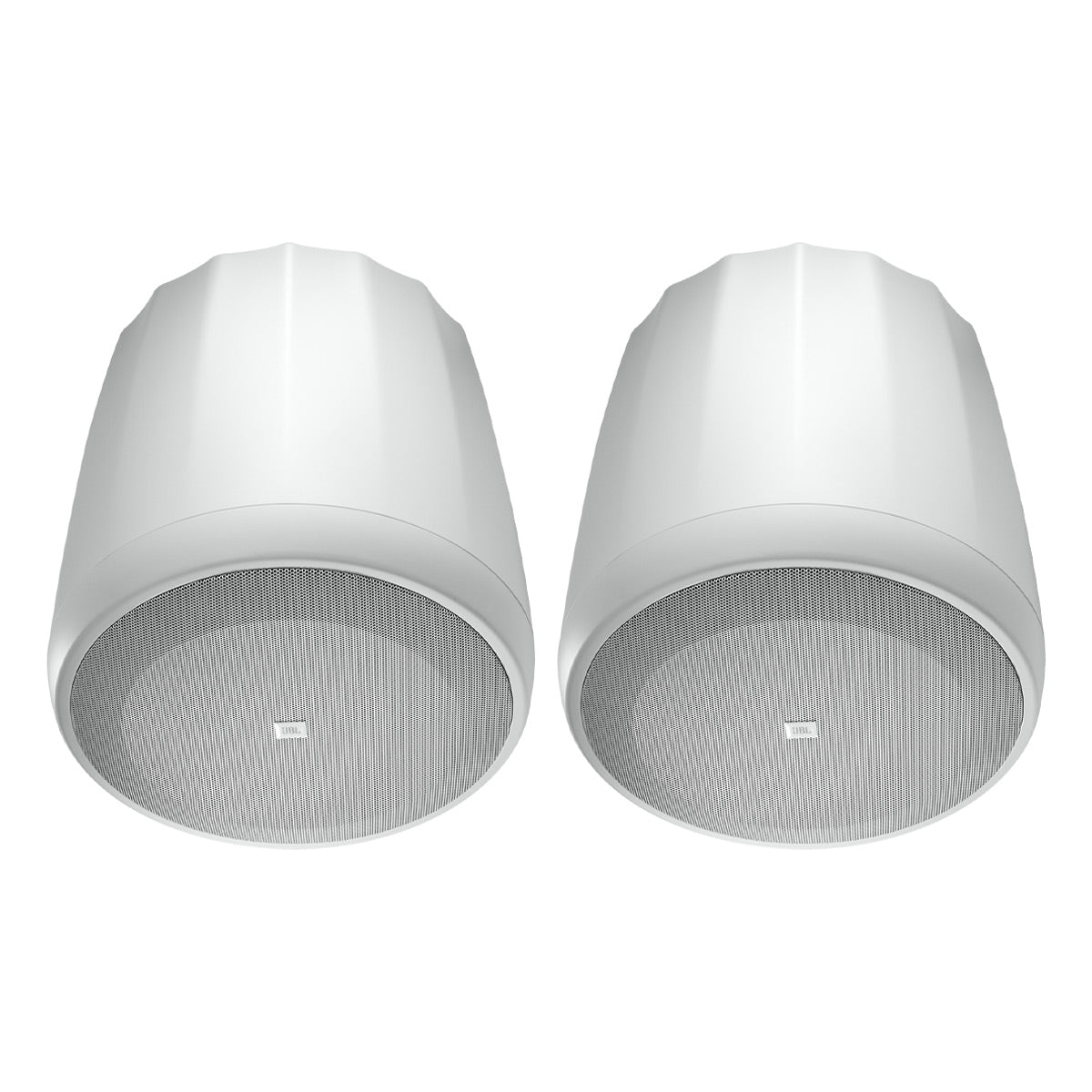

The Control 67P/T is a high output, full-range, two-way pendant-type loudspeaker that provides superb sound reproduction and very consistent, wide coverage for rooms with open architecture ceilings and other locations where a pendant form factor is desired.
Features
- Wide 120° coverage with Radiation Boundary Integrator® (RBI) Technology
- Coaxial Design with 6.5” Woofer & 1” Soft-Dome Tweeter
- Hanging hardware with Galvanized Steel Cables (15ft.)
- UL Listed (speaker and hanging cable system).
- 8 Ohm & 70V/100V Operation
JBL Radiation Boundary Integrator® Technology
JBL’s patent-pending Radiation Boundary Integrator® (RBI) technology, adapted from the groundbreaking VERTEC™ Series of line array loudspeakers, delivers consistent coverage of the listening area. Combining an extra-large 280 mm (11 in) diameter waveguide with low-frequency projection apertures, the two coaxially-mounted drivers provide a seamless integration of coverage, resulting in extremely even pattern control and coverage where all listeners hear a consistent, high-fidelity sound quality.
Wide Coverage for Cost-Effective Installations
The wide 120° coverage pattern allows for the use of fewer speakers, reducing the cost of the installed system without sacrificing performance. Excellent sound quality coupled with stylish design and easy installation makes the Control 67P/T ideal for a wide variety of applications including retail, restaurants, hotels, casinos, fitness centers, convention centers, exhibit spaces, conference rooms, atriums, museums, transit centers and other open-ceiling applications.
Single-Point Suspension System

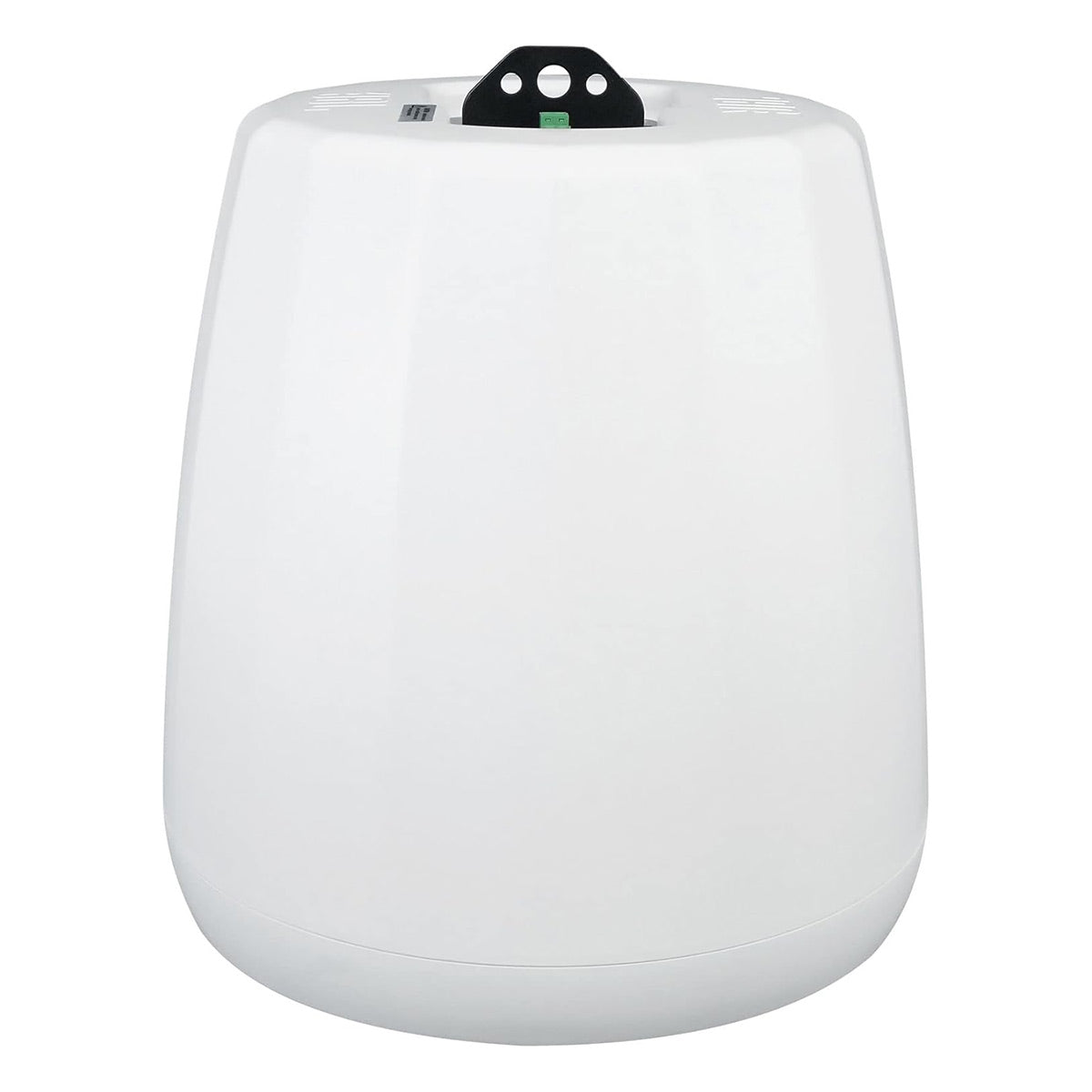

The Control 67P/T includes a single-point mounting system for easy and secure suspension in open-ceiling applications. Two complete hanging cable systems are included, providing both main and safety suspension cables. Included are extra-long 4.5 m (15 ft) high-tensile galvanized steel wire ropes with spring clips for the loudspeaker end of the cable and UL-listed cable fasteners for infinitely adjustable suspension height.
High-Performance Low-Frequency Driver
The system’s 165 mm (6½ in) low-frequency driver features a polypropylene-coated cone and 25 mm (1 in) copper voice coil with vented fiberglass resin coil-former for high power handling and improved long-term reliability.
Coaxially Mounted High-Frequency Driver
The coaxially-mounted 25 mm (1 in) textile soft-dome high-frequency driver features internal damping for smooth extended response, along with an aluminum voice coil former and neodymium magnet assembly with ferro-fluid cooling, for high-fidelity sound quality with enhanced long-term sound level capability.
70V/100V Transformer & 8-Ohm Operation
The Control 67P/T contains a high-quality 60 Watt multi-tap transformer for use on 70V/100V distributed loudspeaker lines and is switchable for 8-ohm voice-coil direct operation.
Easy Wiring & Outdoor Protection

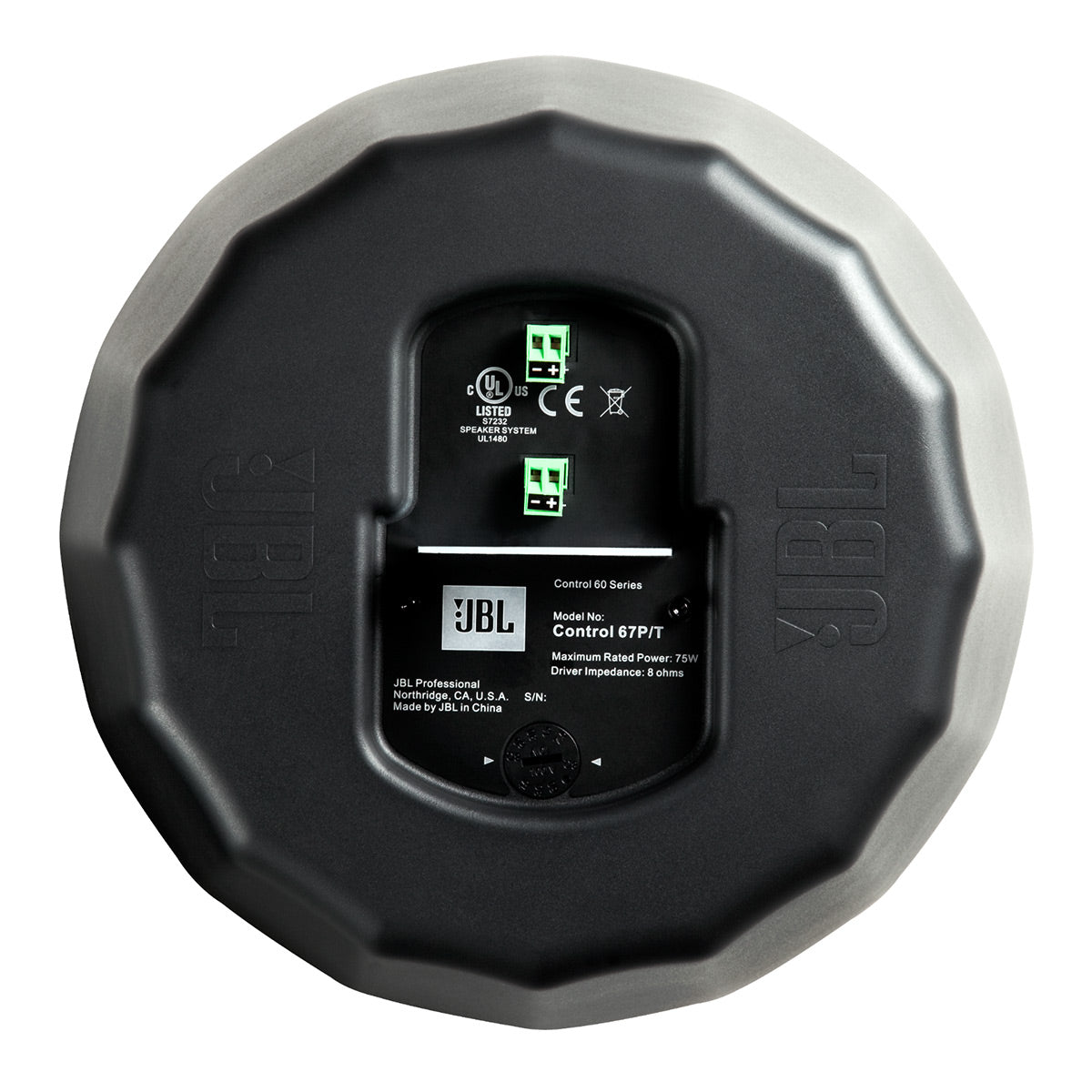

Euro-style clip-in connectors allow for easy wiring. For protected outdoor applications, rubber boots are included to cover the input connectors, and an optional terminal cover is available for harsher locations.
