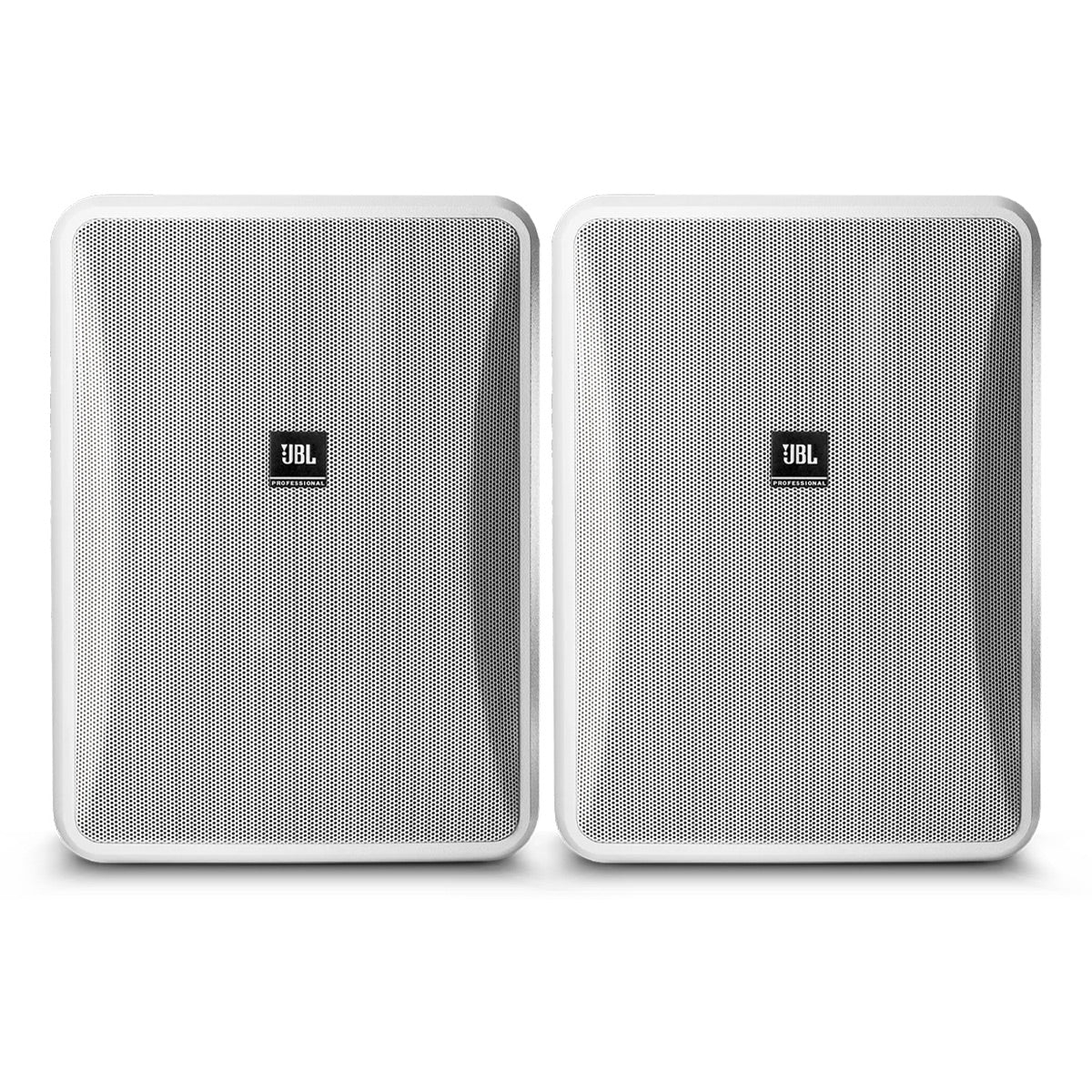

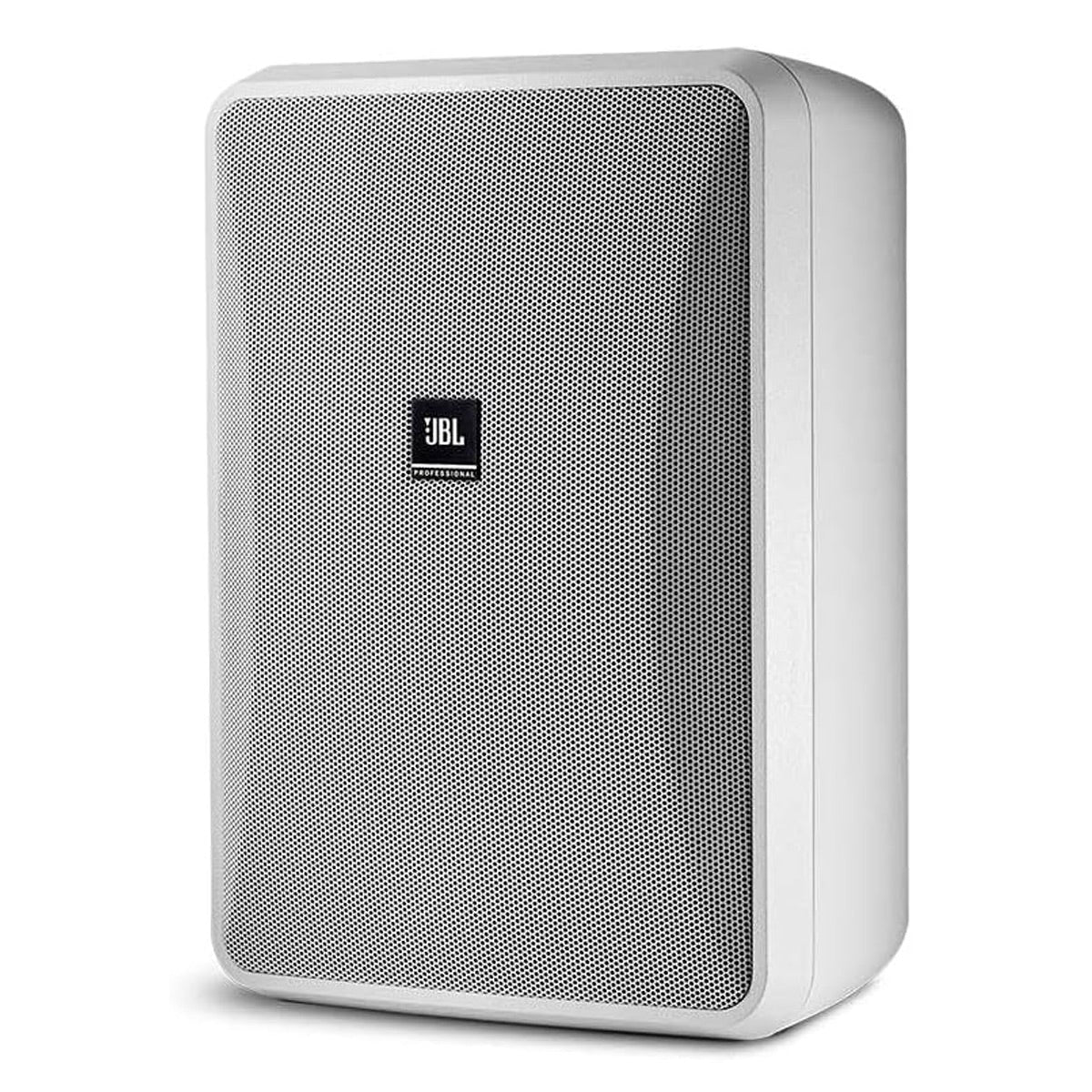

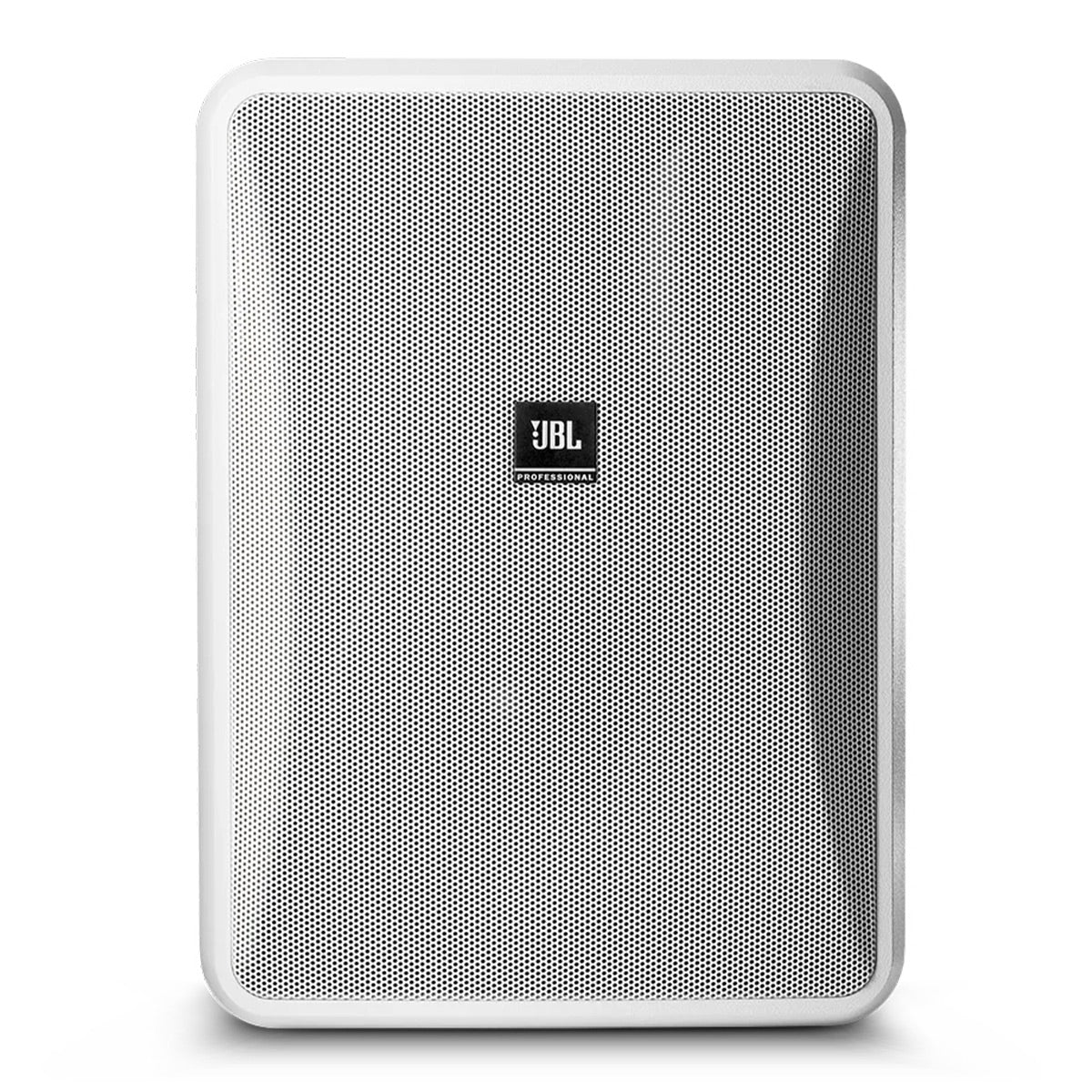

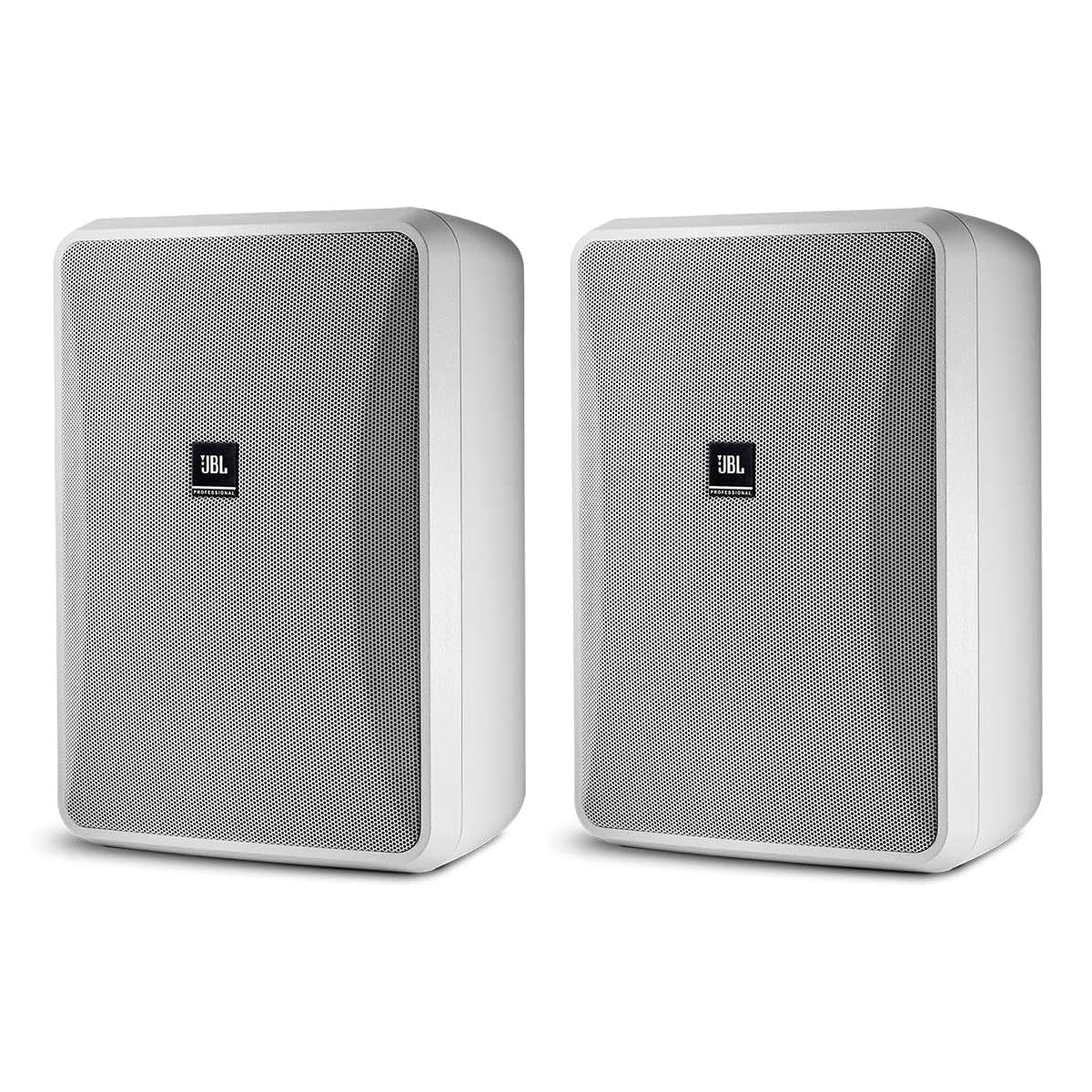

JBL Professional Control 28-1 2-Way 8 Inch Indoor/Outdoor Speakers - Pair (White)

✕

Now on demo at:

1 5
JBL PROFESSIONAL

JBL Professional Control 28-1 2-Way 8 Inch Indoor/Outdoor Speakers - Pair (White)

$762.00
$762.00
$0.00 Save $-762.00 (%)
OR
World Wide Stereo 60-Day Returns World Wide Stereo Price Match Guarantee
In Stock & Ready to Ship
Free Shipping Get it between Tue, Jun 30 – Tue, Jul 7
Other Options
Black
Black $752.00

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Overview

Product Information

Model: CONTROL 28-1-WH | UPC: 691991002052

Specifications

What's In The Box

WARNING: California Residents - Proposition 65. This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Product Information
Model: CONTROL 28-1-WH | UPC: 691991002052

The Control® 28-1 is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary high-design look that fits into a wide range of decors, This makes Control 28-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

Features

  • 8” Woofer with Woven Fiberglass Cone
  • 1” PEI Diaphragm Tweeter with Fluid Cooling
  • Contemporary, High-Design Appearance
  • Built-In InvisiBall® Mounting Hardware
  • Weather Resistant Enclosure & Transducers
  • Wide 100° x 100° Coverage
  • 120 Watt Power Handling (240 Watt program) In Direct 8Ω Setting
  • Built-In 60 Watt 70V/100V Multi-Tap Transformer
  • Broad Frequency Response: 45 Hz – 20 kHz

Specifications
  • General
    • Frequency Range (-10 dB): 45 Hz to 20 kHz
    • Frequency Response (+/-3 dB): 62 Hz - 16 kHz
    • Power Rating: 240 W Continuous Program (2 hrs) ; 120 W (480W peak), Continuous Pink Noise (2 hrs) ; 90 W (360W peak) Continuous Pink Noise (100 hrs)
    • Maximum Input Voltage: 27.5 V RMS (2 hrs), 55.0 V peak
    • Maximum SPL: 112 dB ave. Continuous Pink Noise (118 dB peak)
    • Sensitivity: 91 dB, 1W/1m (ave. 100 Hz – 10 kHz)
    • Coverage Angle: 100° x 100°
    • Directivity Factor (Q): 7.3 (averaged 1kHz – 16kHz)
    • Directivity Index (DI): 8.3 dB (averaged 1kHz – 16kHz)
    • Nominal Impedance: 8 ohms (THRU setting)
    • Crossover Type: 2nd order low-pass, 1st order high-pass, plus conjugate shaping
    • Transformer Taps: 70V = 60W, 30W, 15W, 7.5W ; 100V = 60W, 30W, 15W ; Insertion Loss = <0.94 dB at any tap setting ; Thru Setting = 8Ω nominal
    • Recommended Protective High-Pass: 45 Hz high-pass (24 dB/oct) for 8Ω operation plus 15W and 7.5W taps; 55 Hz for 30W tap; 65 Hz for 60W tap.
    • Low Frequency Driver: 200 mm (8 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
    • High Frequency Driver: 25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
  • Dimensions
    • Dimensions (H x W x D): 11.1" x 15.2" x 8.6”; 10.9” deep total when mounted on InvisiBall wall-mount bracket.
    • Net Weight: 15.0 lbs.
  • Design
    • Enclosure Material: High Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
    • Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-28WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
  • Installation
    • InvisiBall wall-mounting system included.
    • Two 6 mm attachment points on top and bottom for optional MTC-28WMG-1 (&-WH) U-bracket.
    • Secondary safety attachment loop point on back panel.
  • Environmental
    • IP-44 per IEC529.
    • IP-55 when installed with the optional MTC-28WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.
    • Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV.
    • Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray.
  • Termination
    • Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers.
    • Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire up to 12 AWG / 2.5 mm².
  • Agency Rating
    • ROHS-compliant; Transformer UL Recognized per UL1876

What's In The Box
  • Control 28-1 2-Way 8 Inch Indoor/Outdoor Speakers - Pair
  • InvisiBall Wall-Mounting System
  • Hex Key
  • Manual
