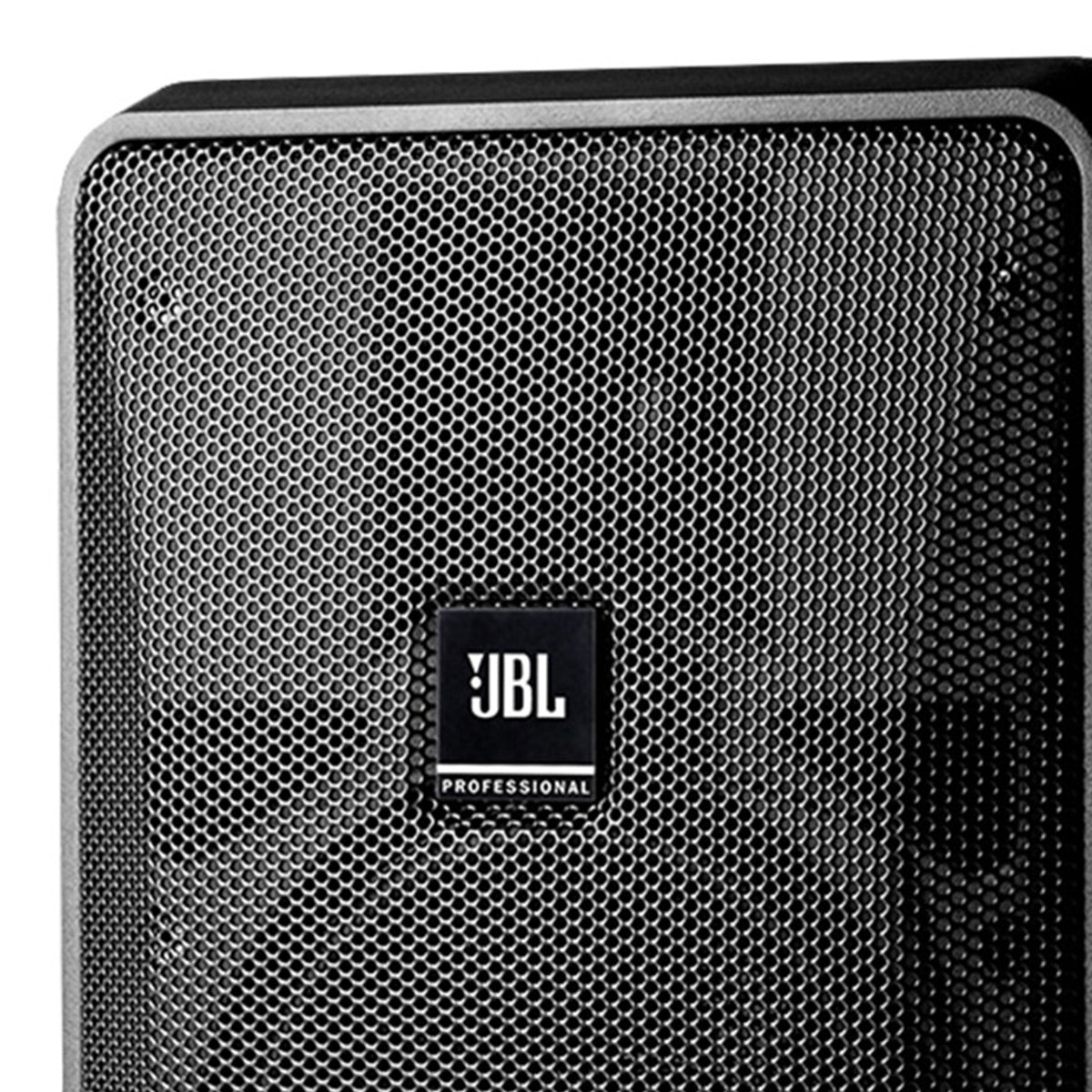

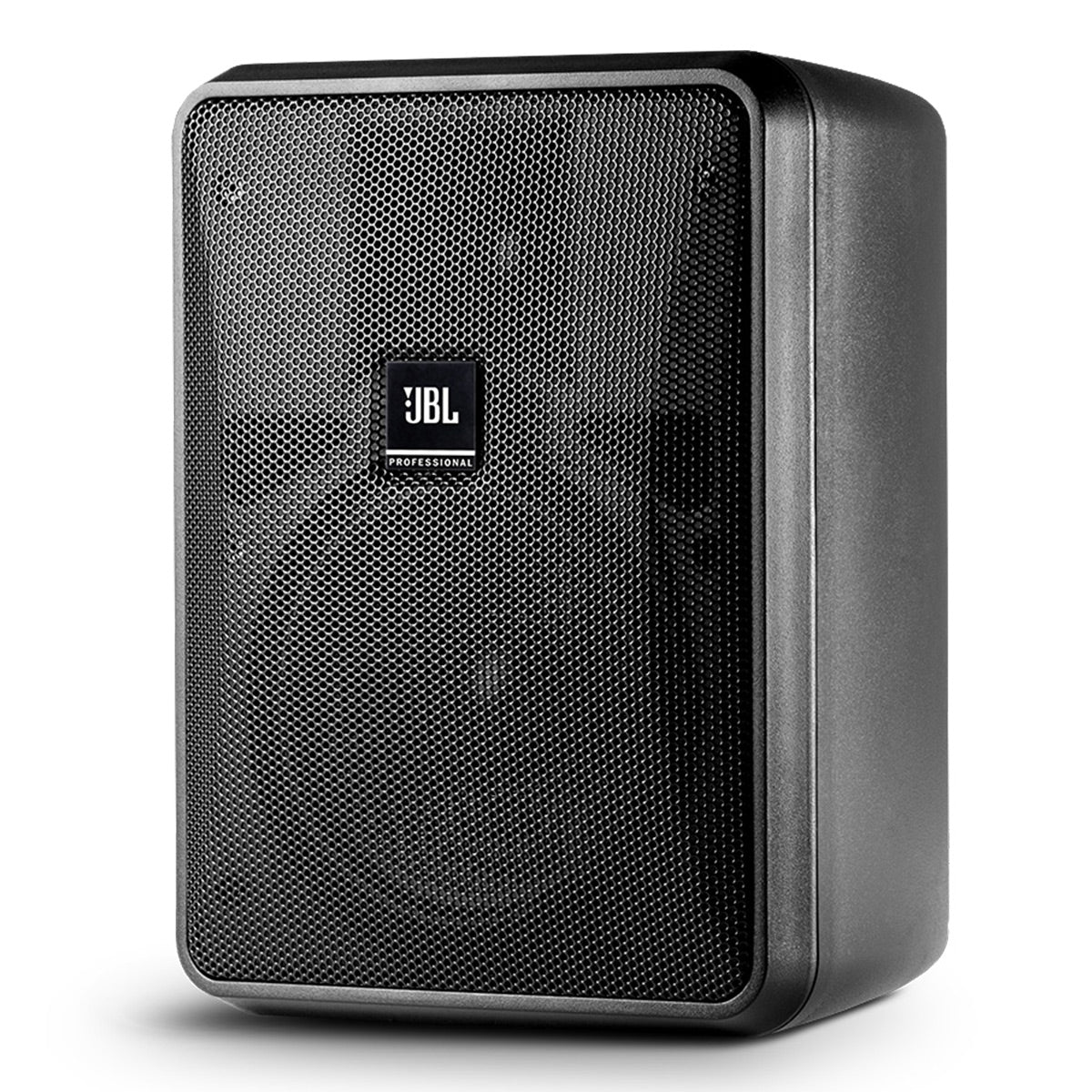

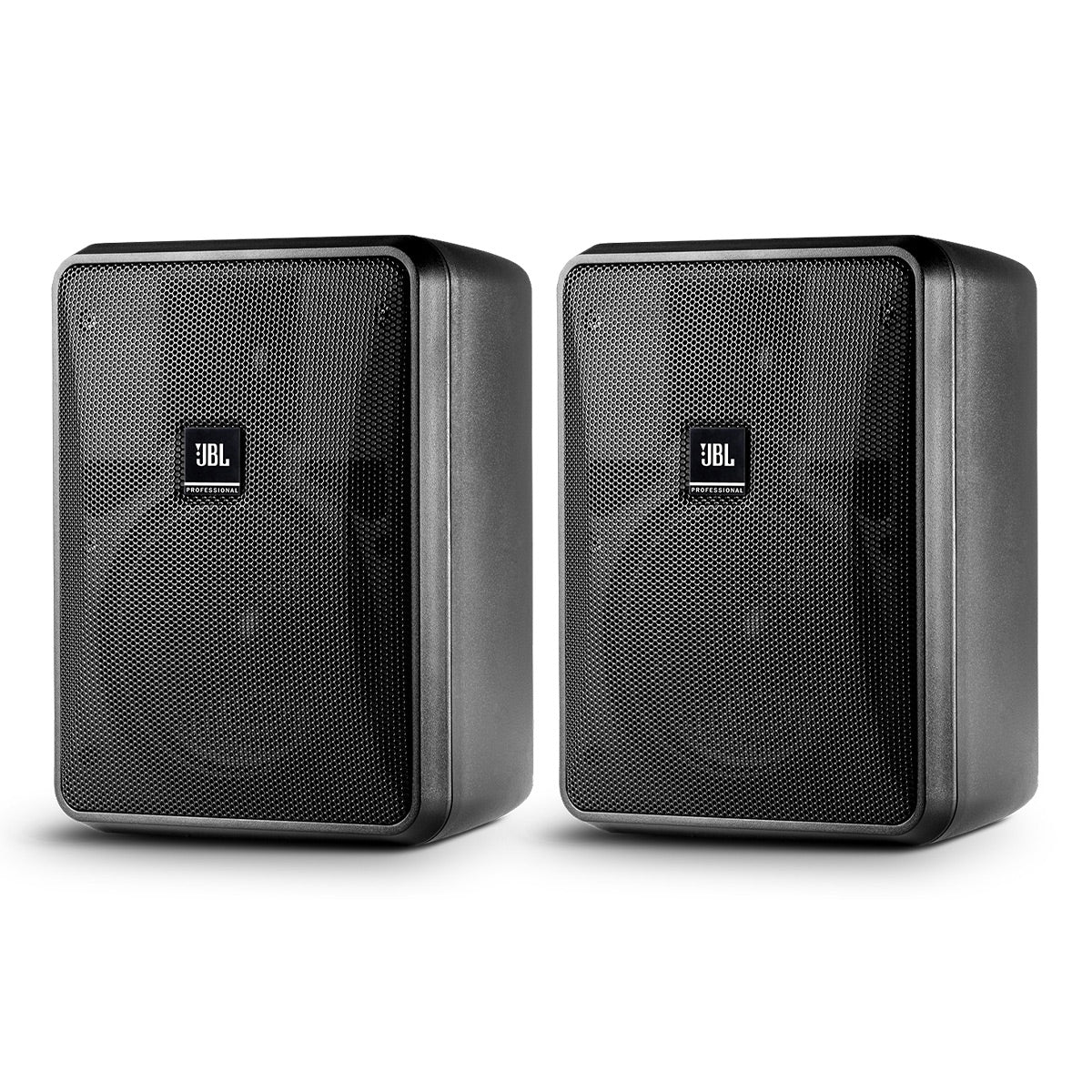

JBL Professional Control 25-1L 8-Ohm 2-Way 5.25 Inch Indoor/Outdoor Speaker - Pair (Black)

Name: JBL Professional Control 25-1L 8-Ohm 2-Way 5.25 Inch Indoor/Outdoor Speaker - Pair (Black)
Brand: JBL Professional
SKU: 185113
Price: 412.0 USD
Availability: InStock

$412.00

$0.00 Save $-412.00 (%)

60-Day Returns

Price Match Guarantee

In Stock & Ready to Ship

Free Shipping Get it between Tue, Jun 30 – Tue, Jul 7

JBL Pro Control 25-1L 2-Way 5.25 Overview

Product Information

Model: CONTROL 25-1L | UPC: 691991005114

Specifications

What's In The Box

Product Information

Model: CONTROL 25-1L | UPC: 691991005114

The Control® 25-1L is a two-way 5-¼” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1L an excellent choice for a wide variety of applications, including retail, restaurants, hospitality, education & other compact indoor/outdoor music or paging applications.

Features

5-¼” Woofer with Woven Fiberglass Cone
3/4” PEI Diaphragm Tweeter with Fluid Cooling
Built-in InvisiBall® Mounting Hardware
Weather Resistant Enclosure & Transducers
Wide 100° x 100° Coverage
100 Watt Power Handling (200 Watt Program)
Broad Frequency Response of 60 Hz – 20 kHz

Specifications

General
- Frequency Range (-10 dB): 60 Hz to 20 kHz
- Frequency Response (+/-3 dB): 85Hz - 17 kHz
- Power Rating: 200 W Continuous Program (2 hrs) ; 100 W (400W peak), Continuous Pink Noise (2 hrs) ; 75 W (300W peak) Continuous Pink Noise (100 hrs)
- Maximum Input Voltage: 25.3 V RMS (2 hrs), 50.6 V peak
- Maximum SPL: 110 dB ave. Continuous Pink Noise (116 dB peak)
- Sensitivity: 90 dB, 1W/1m (ave. 100 Hz – 10 kHz)
- Coverage Angle: 100° x 100°
- Directivity Factor (Q): 6.04 (averaged 1kHz – 16kHz)
- Directivity Index (DI): 7.6dB (averaged 1kHz – 16kHz)
- Nominal Impedance: 8 ohms
- Crossover Type: 2nd order low-pass, 3rd order high-pass
- Recommended Protective High-Pass: 60 Hz high-pass (24 dB/oct)
- Low Frequency Driver: 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
- High Frequency Driver: 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
- Included Accessories: InvisiBall™ wall-mounting system, 6 mm x 100 mm hex key
- Optional Accessories: MTC-25UB-1 – Yolk-type U-bracket (&-WH) ; MTC-25WMG-1 – WeatherMax grille with backing (&-WH) ; MTC-28/25CM – Ceiling-Mount InvisiBall adapter (&-WH)
Dimensions
- Dimensions (H x W x D): 243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall wall-mount bracket.
- Net Weight: 3.0 kg (6.7 lbs)
Design
- Enclosure Material: High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
- Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
Installation
- InvisiBall wall-mounting system included.
- Two 6 mm attachment points (on top and bottom) for optional MTC-25UB-1 (&- WH) U-bracket.
- Secondary safety attachment loop point on back panel.
Environmental
- IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.)
- Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV.
- Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray.
Termination
- Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers.
- Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2).
- Agency Rating: ROHS-compliant

What's In The Box

Control 25-1L 8-Ohm 5.25 Inch Indoor/Outdoor Speaker - Pair (Black)
InvisiBall Wall-Mounting System
Hex Key
Manual
