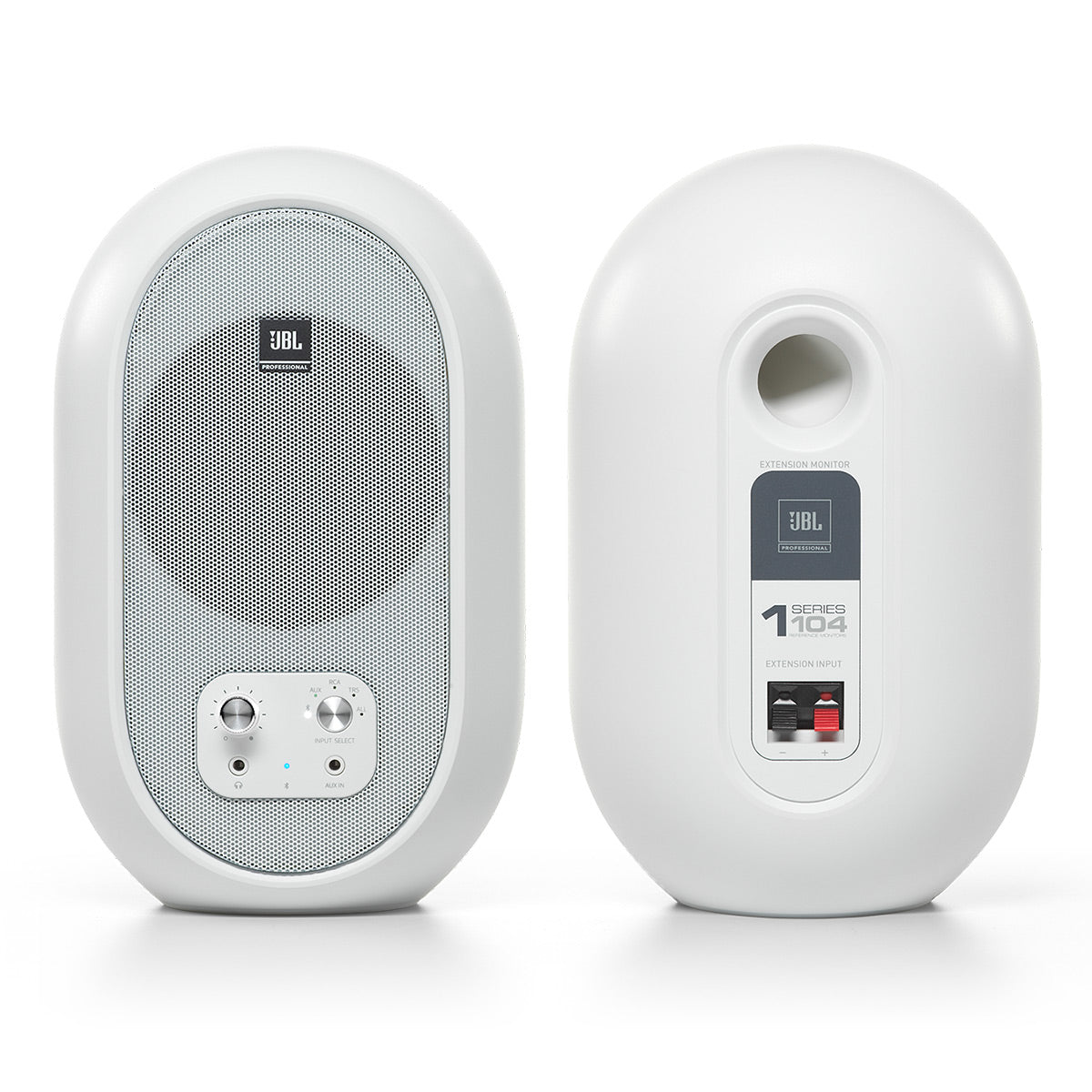

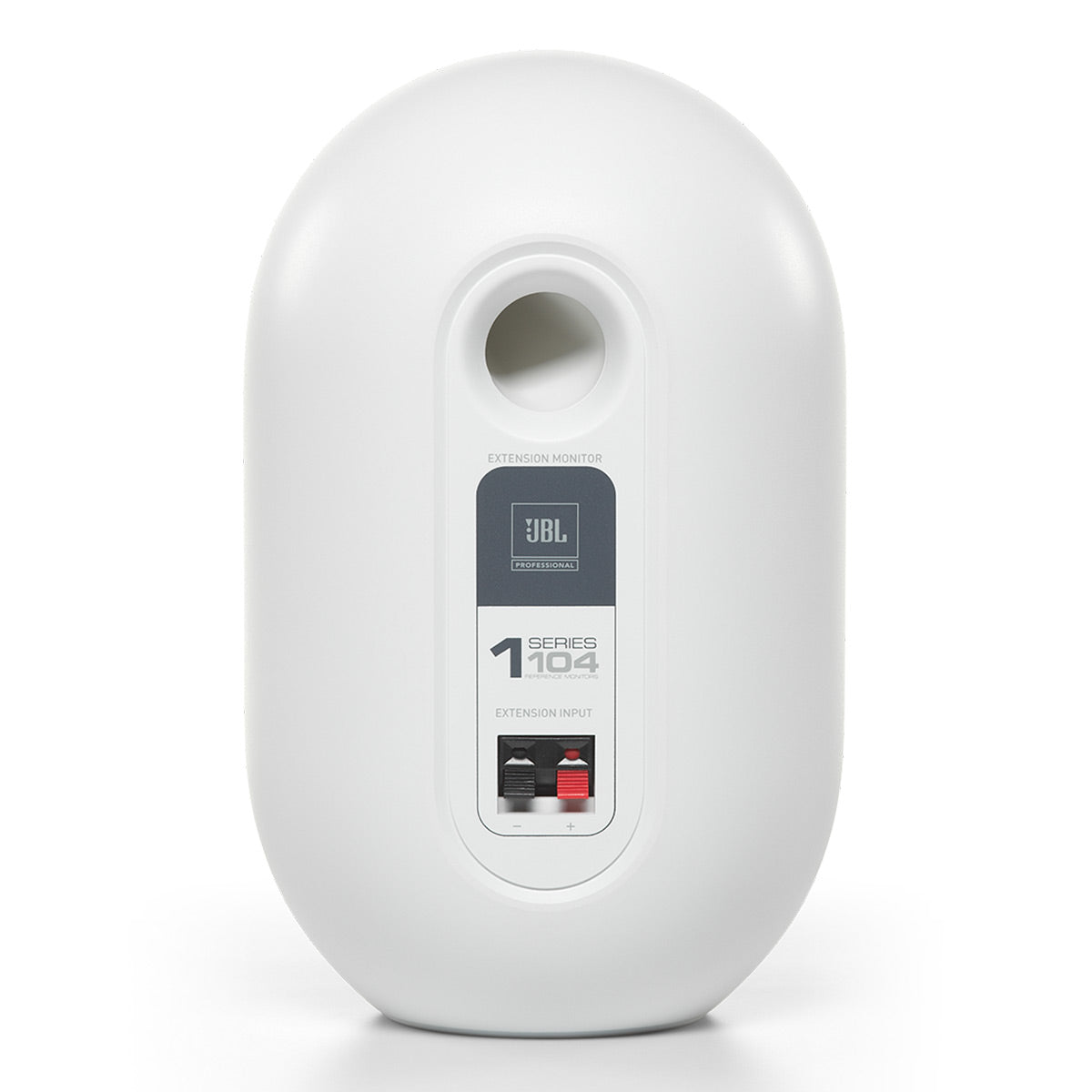

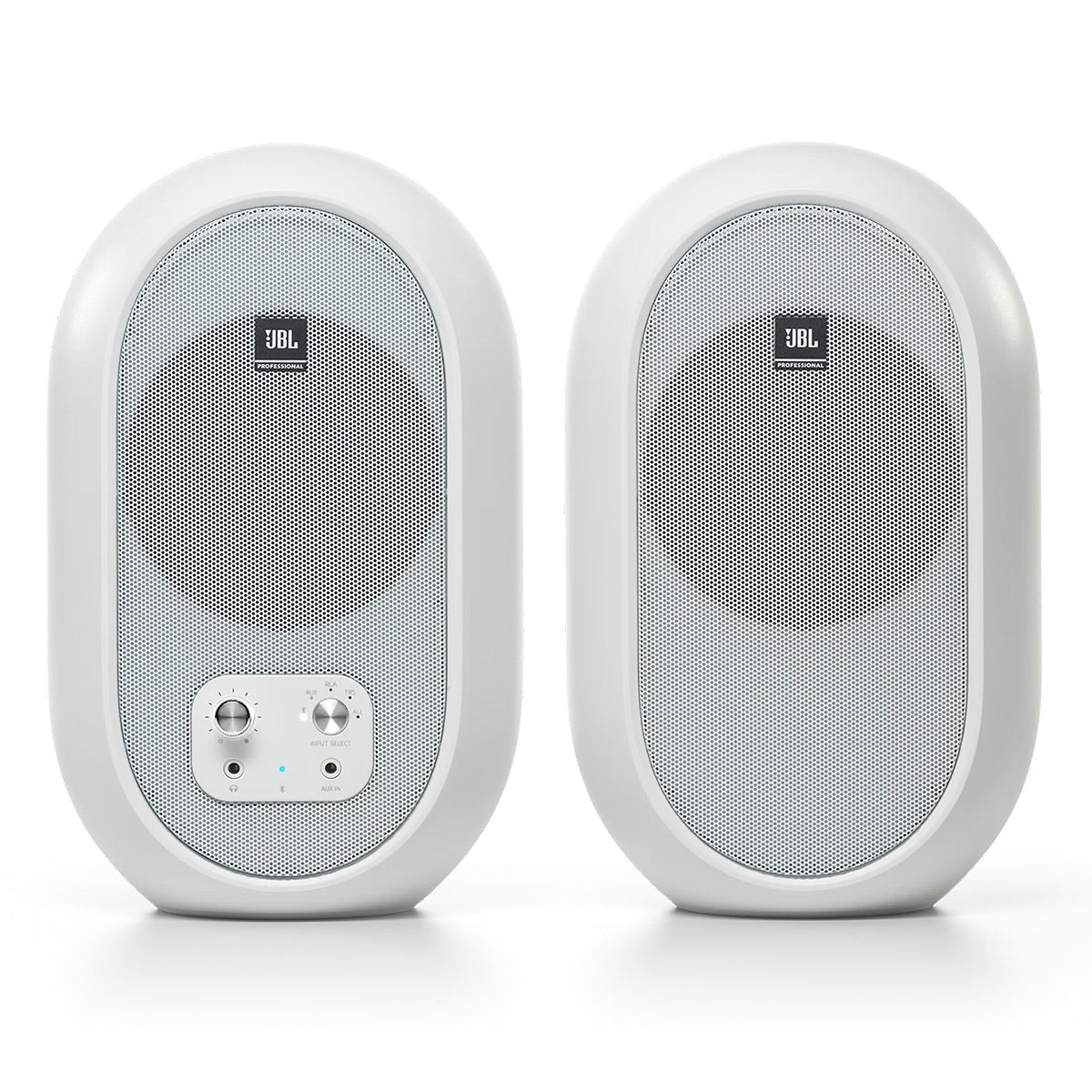

JBL Pro 104-BT 4.5 Inch Compact Desktop Reference Monitors with Bluetooth - Pair (White)

Now on demo at:

1 of 6

JBL Pro 104-BT 4.5 Inch Compact Desktop Reference Monitors with Bluetooth - Pair (White)

Regular price $199.00
Sale price $199.00 Regular price
$235.00 Save $36.00 (15%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

JBL Pro 104-BT Overview

Product Information

Model: 104SET-BTW-US | UPC: 691991033704

Specifications

What's In The Box

Product Information

Model: 104SET-BTW-US | UPC: 691991033704

JBL 104-BT and 104-BTW compact reference monitors with Bluetooth, the newest models in the 1 Series line, draw from seven decades of JBL Professional engineering to deliver the truest, most accurate sound in their class. They’re perfect for recording musicians, producers, podcasters and vloggers, as well as professional audio engineers seeking an accurate portable reference with Bluetooth streaming.

Features

  • Coaxial Driver Design
  • Bluetooth 5.0 Streaming
  • 60-Watt Class D Amplifier
  • Desktop Placement Optimized
  • Multiple Wired Inputs
  • Headphone Jack Speaker Mute

Trust The Transparency

Great mixes start with honest mix references. With JBL 104-BT(W), you’ll hear the content you’ve created in true clarity and detail, with none of the coloration that can compromise your mix decisions. 104-BT(W)s are optimized for desktop placement, and their smooth off-axis response means you can reference your mixes confidently across a wide sweet spot.

Pro Performance, Scaled To Size

The world’s top recording studios and touring artists rely on JBL Professional monitors to deliver unparalleled fidelity and performance. With JBL Professional's 1 Series, we’ve optimized that technology in JBL Professional's smallest form factor ever. The 104-BT(W) Reference Monitor’s innovative coaxial driver design features a high-frequency driver aligned with a woofer cone precisely contoured to deliver accurate response, exceptional detail and impressive off-axis performance. The result: neutral, accurate sound, anywhere. The cabinet’s precisely contoured low-frequency port works with the driver to deliver powerful, tight bass at any volume level.

The Bluetooth Advantage

The 104-BT(W) offers the convenience of Bluetooth streaming, which gives audio engineers the ability to check their mixes over Bluetooth to ensure they translate well to common listening scenarios.

Streamline Your Sessions

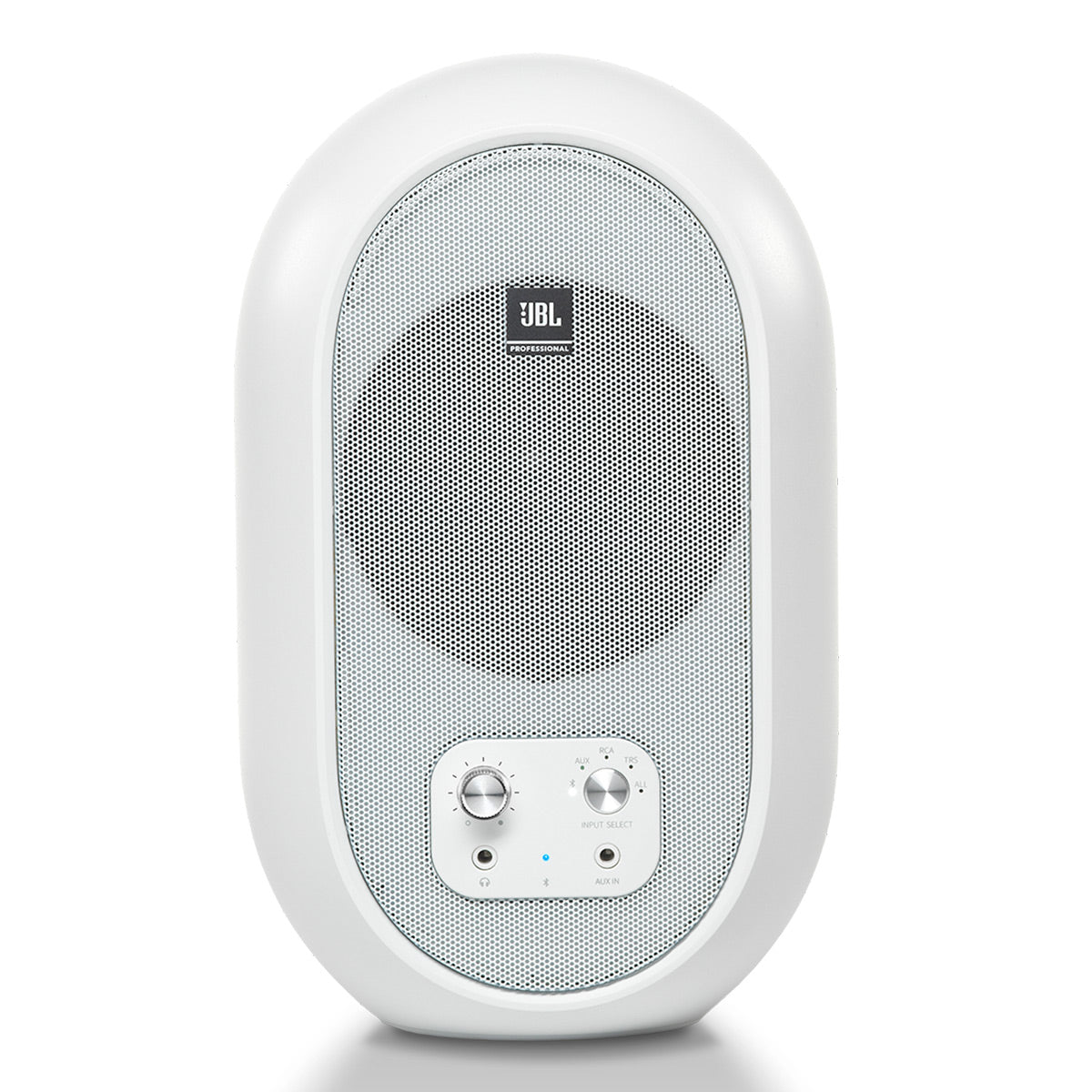

JBL 104-BT(W) Reference Monitors integrate smoothly into any production workspace, thanks to smart features like a front-panel input control that selects Bluetooth, Aux, RCA, TRS or combines all inputs—quickly check references or switch easily between tasks like playing back your tracks and staying attentive to phone notifications. Or, select all inputs for a simplified experience. Front-panel volume control allows convenient level adjustments without straying from the sweet spot, and a front-panel headphone jack automatically mutes the speakers, giving you isolation in one simple step. And, JBL 104-BT(W) Reference Monitors’ dual 1/4-inch balanced, dual RCA and single 1/8-inch inputs accommodate a wide range of signal sources.

Specifications

  • Bluetooth Version: 5.0
  • Low Frequency Transducer: 4.5 in (118 mm)
  • High Frequency Transducer: 0.75 in (19 mm), soft dome
  • Crossover: 1725 Hz, 1st order
  • Power Amp: 60 W (30 W each speaker), Class D
  • Sensitivity: 87 dB SPL @ 1 m with -10 dBV Aux In (Volume = Max)
  • Maximum Continuous SPL: 89 dB
  • System Peak SPL: 102 dB (pink noise, 12 dB crest factor)
  • Maximum SPL, Momentary Peak: 104 dB
  • Maximum Peak Input Level (-10 dBV / +4 dBu): +6 dBV / +20.3 dBu
  • Frequency Range (-3 dB SPL): 88 Hz – 20 kHz
  • Frequency Range (-10 dB SPL): 60 Hz – 20 kHz
  • System Rated Impedance: 8 Ω
  • Minimum Impedance: 7.8 Ω @ 260 Hz
  • Cabinet Tuning Frequency: 72 Hz
  • System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement
  • Electrical Distortion Criteria: <0.2% THD @ 1 kHz, 2.83 VRMS output; <1% THD @ 1 kHz, full rated output
  • Signal To Noise Ratio: 75 dBA (A-Weighted), 70 dBr (unweighted), relative to 2.83 VRMS output on HF
  • Coverage (Horizontal x Vertical): 120º x 60º
  • Acoustic Test Specification: ATS# 1000340443
  • Dimensions (W x H x D): 6.02 x 9.72 x 4.88"
  • Net Weight: Primary Monitor = 4.54 lb; Secondary Monitor = 3.81 lb
  • Enclosure Type: Ported
  • Enclosure Material: ABS with metal grille
  • Enclosure Finish: Matte black acrylic paint (104-BT) ; Matte white acrylic paint (104-BTW)
  • System Output Type: 1/8" stereo headphone with auto speaker mute

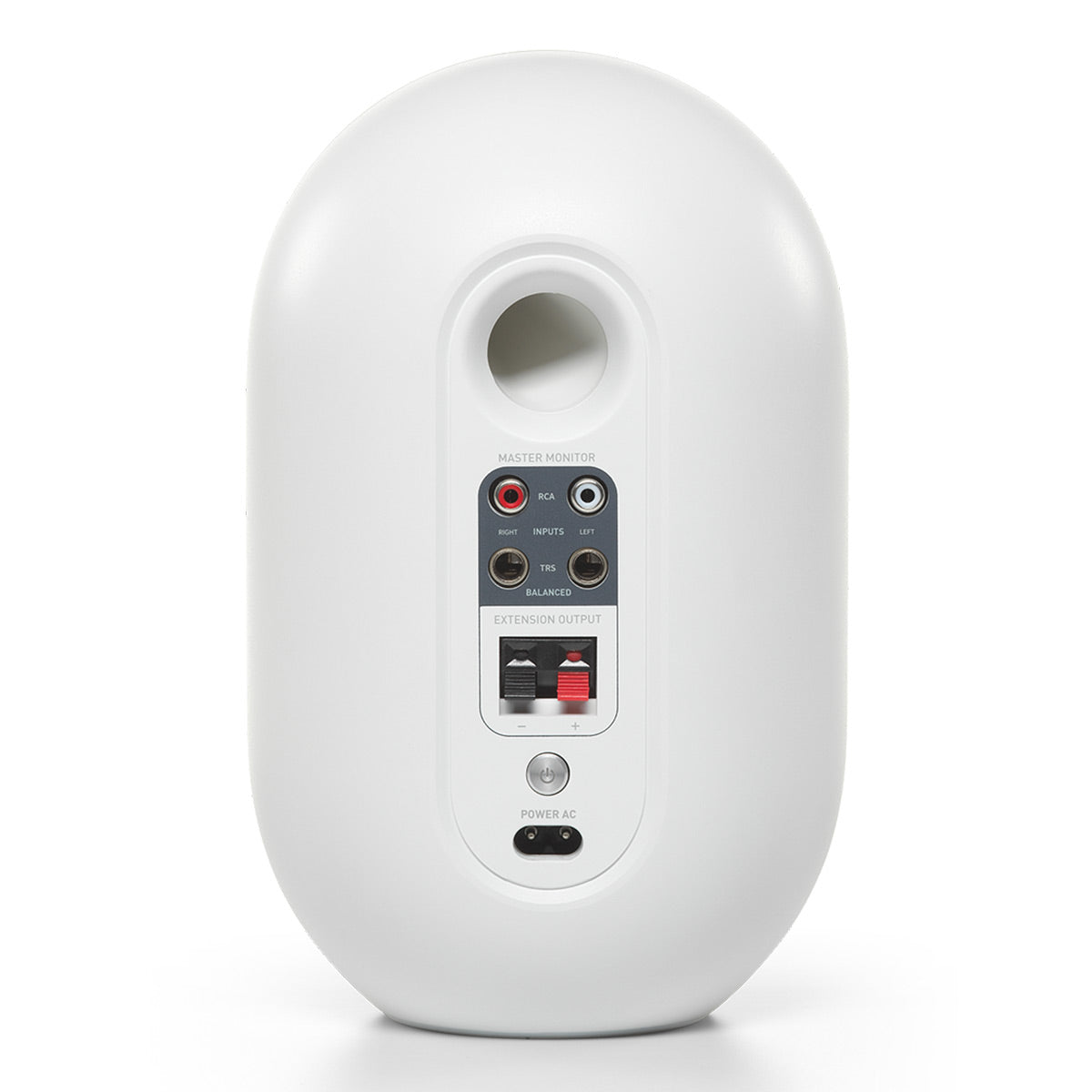

  • System Input Type: Bluetooth, 1/8" Aux, RCA, 1/4" TRS balanced
  • Input Selection Options: Bluetooth, Aux, RCA, TRS, All
  • System Power Handling: 30 W x 2 @ 100 hours, IEC/SMS
  • System Polarity: EIA
  • AC Input Voltage: 100 – 240 VAC (± 10%), 50/60 Hz
  • Current Draw: 85 watts
  • Electrical Current Draw (W) Idle 100 / 240 VAC: 3.52 / 3.70
  • Electrical Current Draw (W) Max Power 100 / 240 VAC: 80 / 80
  • Electrical Current Draw (W) Low Power Standby Mode 100 / 240 VAC: 0.34 / 0.46

What's In The Box

  • 104-BT 4.5 Inch Compact Desktop Reference Monitors with Bluetooth - Pair
  • Extension Monitor Speaker Wire (2m)
  • 3.5 mm to RCA Audio Cable
  • Power Cable
  • Manual
