JBL MA9100HP 9.2-Channel 8K AV Receiver (White)

Regular price $1,599.95
Sale price $1,599.95 Regular price
Save $-1,599.95 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

JBL MA9100HP Overview

Product Information

Model: JBLMA9100HPWHTAM | UPC: 050036400732

Specifications

What's In The Box

Product Information

Model: JBLMA9100HPWHTAM | UPC: 050036400732

Bring Both Music & Movies to Life with True High Fidelity

The JBL MA9100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 9-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience.

Features

  • Dolby Atmos and DTS:X Decoding
  • 6 HDMI Inputs & 2 Outputs, Plus eARC
  • Bluetooth & Network Streaming (Apple Airplay 2, Google Chromecast)
  • Dirac Live Ready

Seamless Integration

Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 2 outputs, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity.

Class D Amplification

The MA9100HP features nine channels of low noise Class D amplification for real world power to all channels.

Versatility

In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive.

Dirac Live Ready

Taking performance to the next level, the MA9100HP comes “Dirac Live Ready” for automatic room correction, assuring audiophile-quality sonics and allowing integrators and power-users to optimize the system to their personal room acoustics.

Multi-Zone

Featuring a secondary HDMI video output and audio Zone, content can be made available in a secondary location. In addition to physical controls, the MA9100HP allows for IP control for third party control system integration.

Specifications

  • General
    • HDMI eARC: Yes
    • HDMI Audio Return Channel: Yes
    • 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 3
    • HDMI 2.1 enhanced gaming features: Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
    • HDR 10+, Dolby Vision: Yes , Yes
    • File format: MP3 / MPEG-4 AAC
    • Pure Analog: Yes
    • EZ Set EQ: Yes
    • Front channel bi-amp: Yes
    • Digital signal processing: up to 24-bit/192kHz
    • Mains voltage: 110 – 240V, 50–60Hz
    • Max. power consumption: 900W
    • Standby power consumption: <0.5W
  • Audio
    • Channels: 9.2
    • FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8O): 140W
    • Rated Power @ 8O (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 140 W RMS
    • Rated Power @ 4O (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 240 W RMS
  • Control & Connection
    • HDMI Input/Output: 6/ 2
    • Wi-Fi: Yes (2.4/5GHz)
    • Bluetooth receiver: Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
    • Bluetooth transmit: Yes
    • Digital Audio Input: 1 Coax, 1 Optical, 1 17.0" USB
    • Stereo analog input: 2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground
    • Pre-Out (single ended RCA): Stereo Zone 2, Subwoofer 1, Subwoofer 2
    • Ethernet: RJ45 Gigabit, WiFi Onboard
  • Dimensions
    • Including feet and speaker terminals (W x H x D): 17.0" x 5.3" x 15.6"
    • Weight: 16.8 lbs.

What's In The Box

  • MA9100HP 9.2-Channel 8K AV Receiver

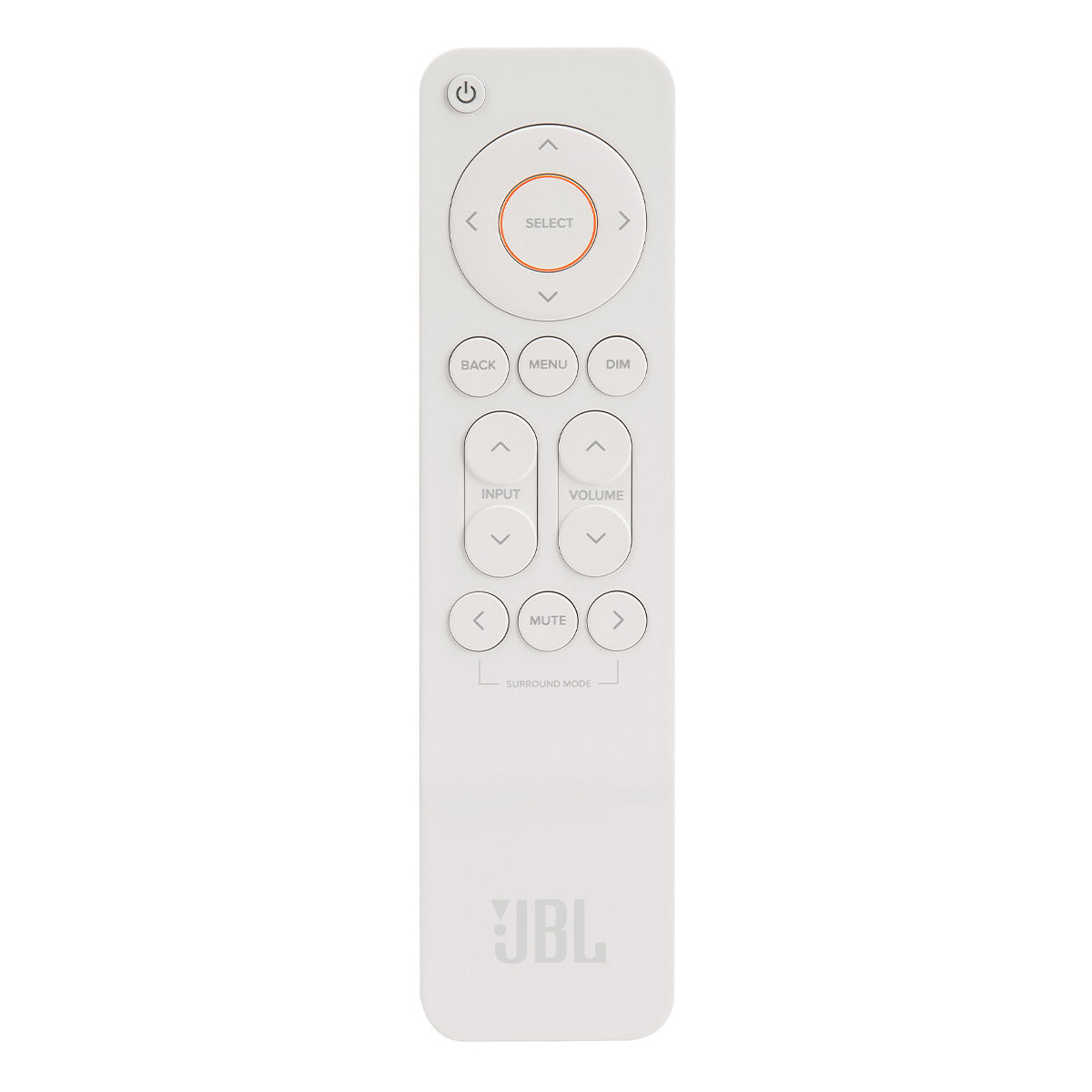

  • IR Remote
  • Bluetooth Antenna
  • (2) Wi-Fi Antenna
  • Power Cord
  • Quick-Start Guide
  • Safety Sheet
