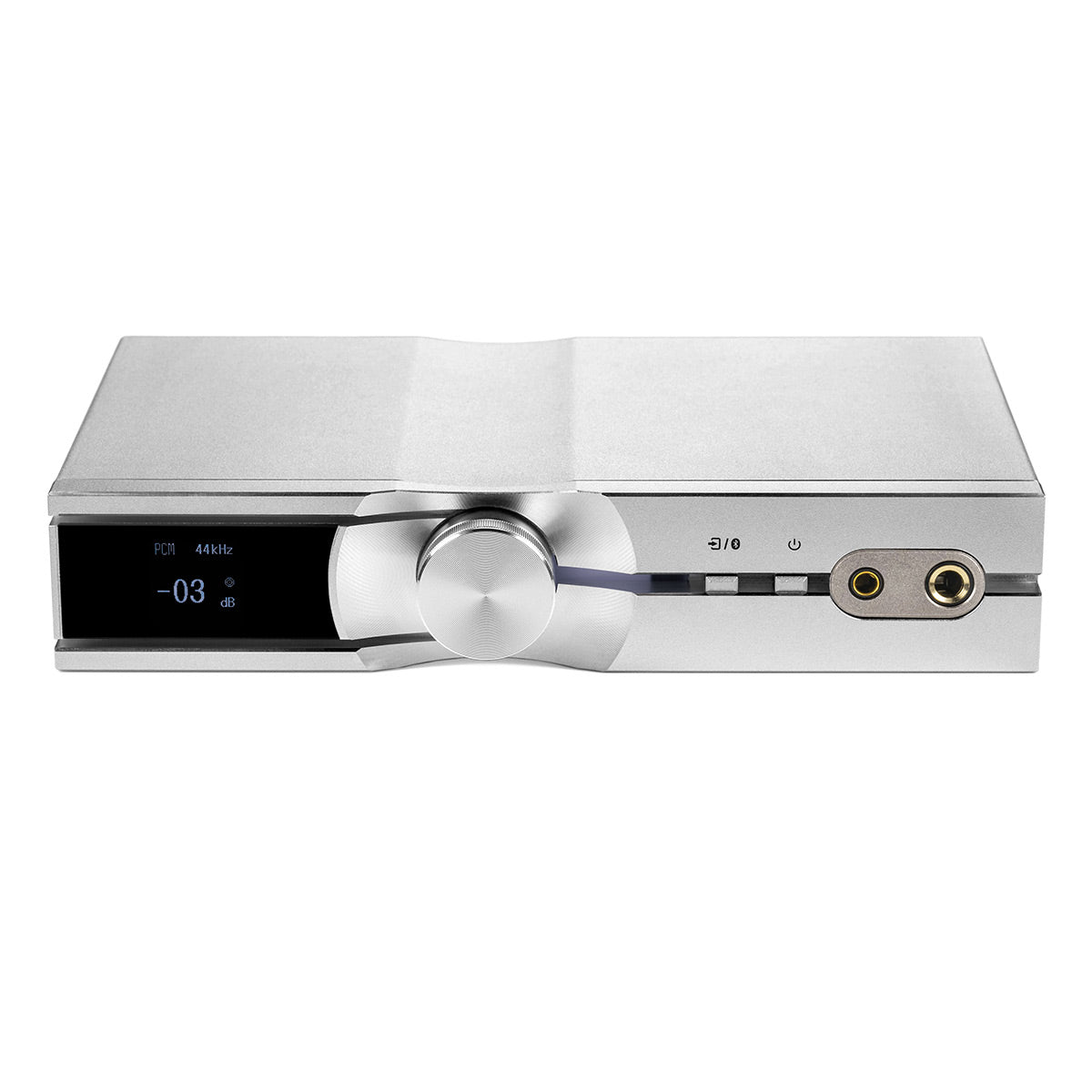

iFi Audio NEO iDSD Desktop USB DAC/Headphone Amp with Bluetooth

Regular price $799.00
Sale price $799.00 Regular price
Save $-799.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Wed, Oct 23 – Wed, Oct 30

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 313001 | UPC: 5060738783458

Specifications

What's In The Box

Product Information

Model: 313001 | UPC: 5060738783458

The New Wave of Digital Sound

The NEO iDSD is the new 3-in-one DAC/amp. Since its release, iFi Audio has made some upgrades to the original version to create the NEO Performance Edition. With balanced 'PureWave' circuitry, unbeatable hi-res Bluetooth 5.1, and MQA, the NEO is the ultimate in hi-res playback. Team it with Qobuz to get access to an eclectic catalog of more than 70 million hi-res quality tracks.

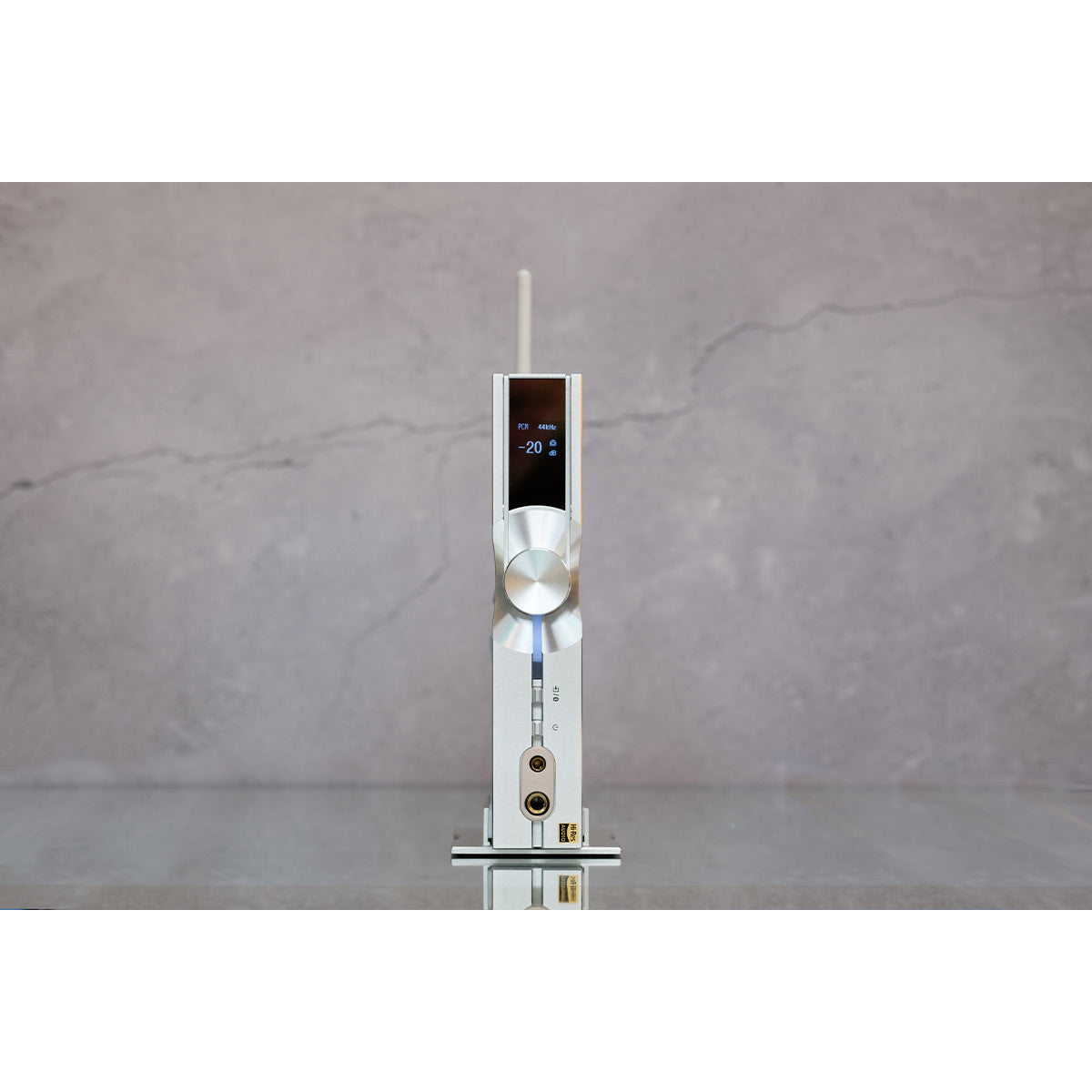

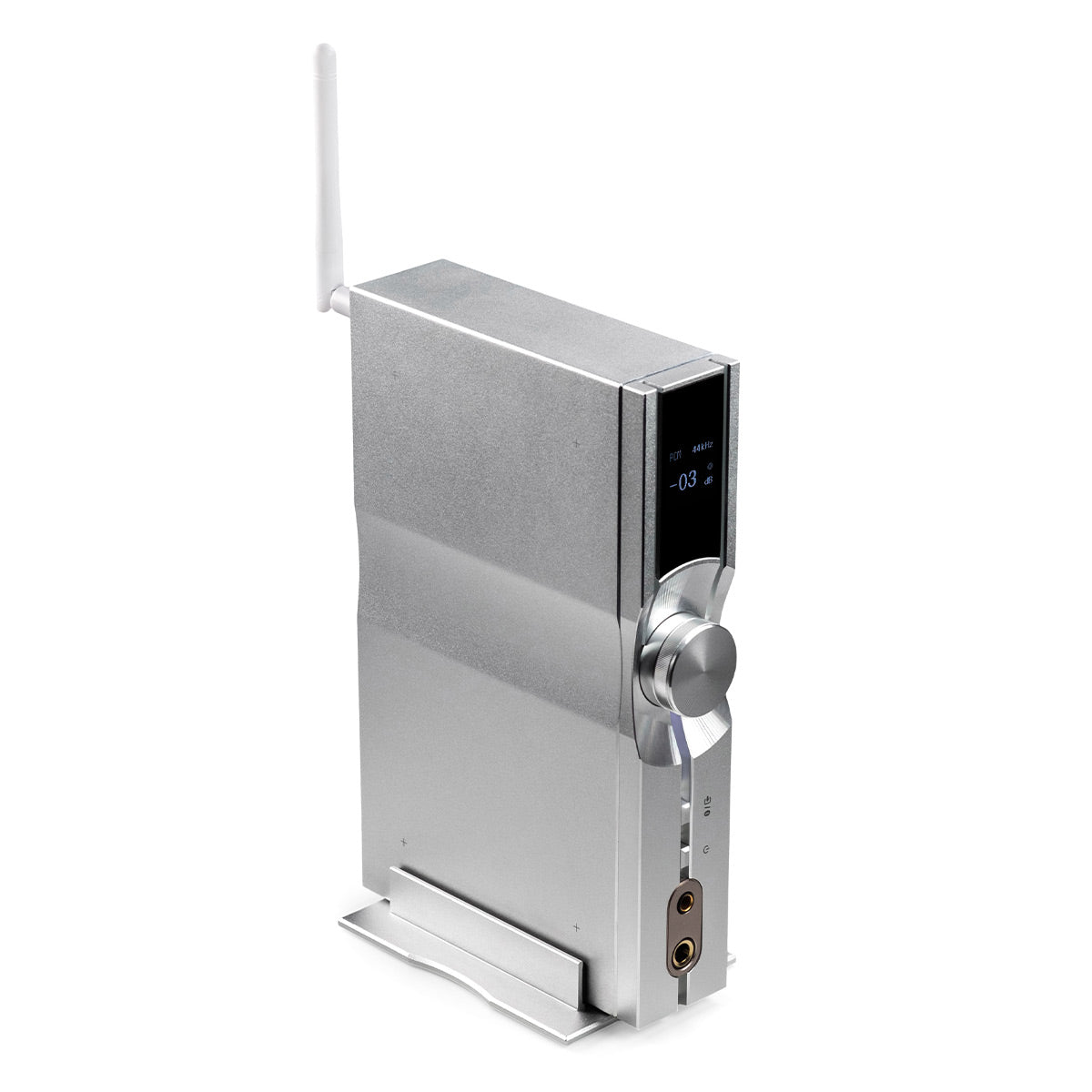

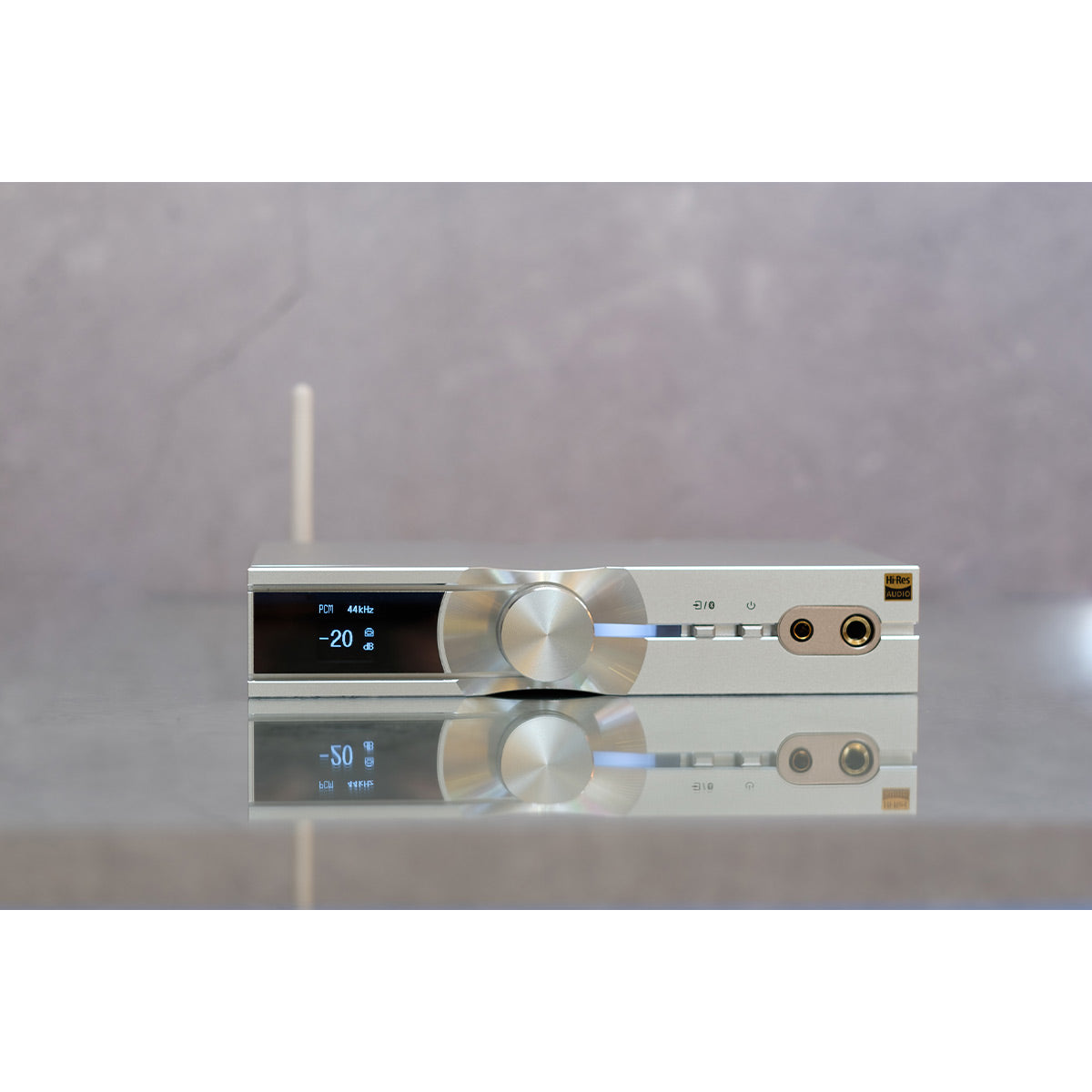

Place it horizontally or vertically to suit its surroundings. The OLED display flips to match the orientation and the latest firmware provides a high requested "Display Dim" function.

Features:

  • Full MQA decoder
  • MQA over S/PDIF
  • Completes all 3 unfolds to deliver the highest possible sound quality
  • Uses state-of-the-art Qualcomm QCC5100 chip
  • Bluetooth 5.1
  • All hi-res codecs
  • Fully symmetrical dual-mono design - PureWave
  • Low noise/distortion op-amps
  • Max. 1033mW output

All Bases Covered

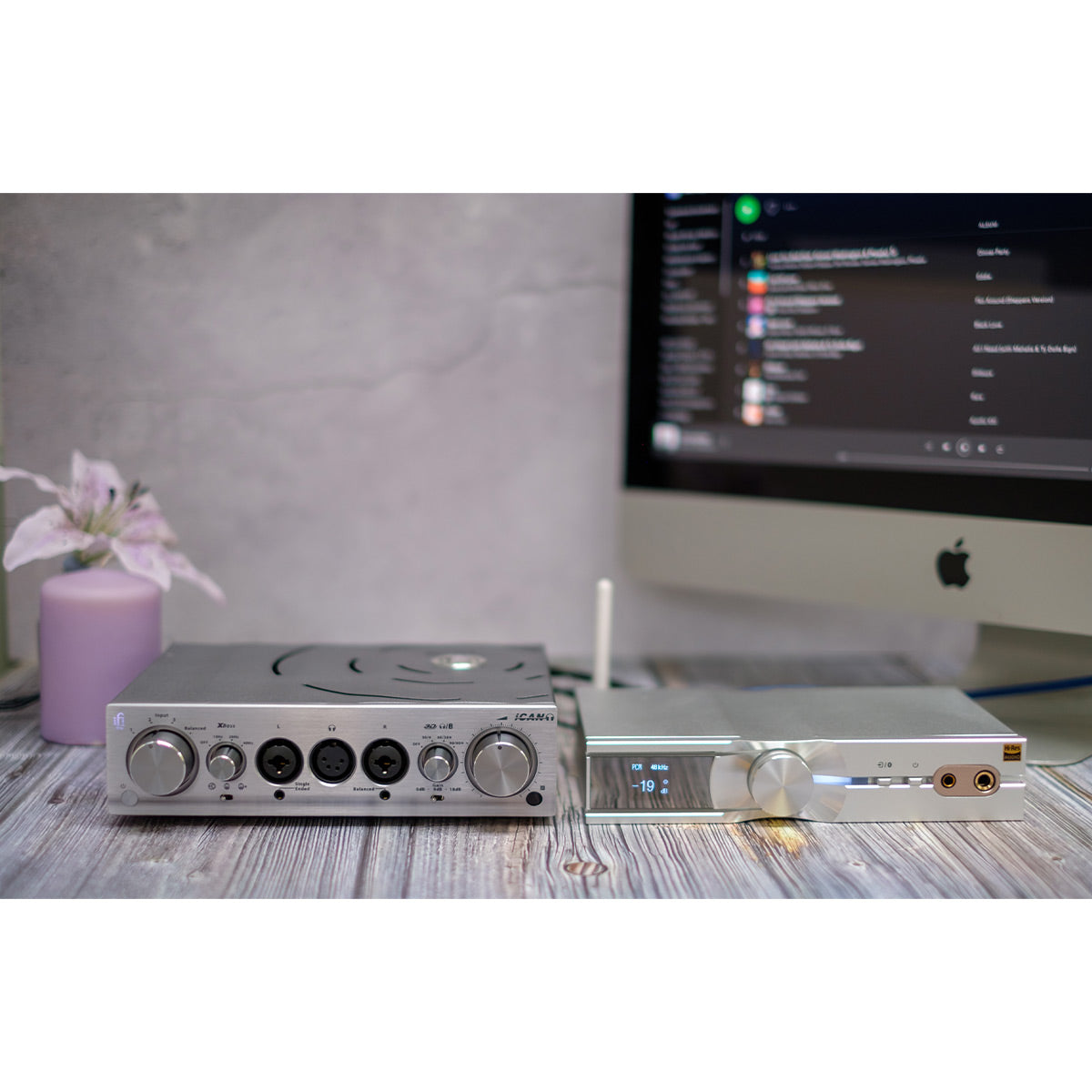

Enjoy the NEO iDSD as a pure DAC. Connect it to a separate integrated amp or preamp using the fixed-level analog output. Or treat it as a DAC/preamp with a variable output. The ideal companion to a power amp or active speakers. And headphone users will love using the excellent amp stage to create a fabulous 'head-fi' system.

Movies and Gaming 'upsampled'

The NEO iDSD Performance Edition will enhance your movie and gameplay experience even further. Add the included S/PDIF iPurifier2 to make movie or game audio match the amazing picture quality of your 4K TV. Feel more immersed than ever before as sound finally matches the picture in spectacular fashion.

Pair the NEO with the PS4 or Xbox One X for the ultimate gaming experience.

Hi-Res Heaven

The NEO iDSD supports PCM up to 32-bit/768kHz, DSD up to 512, and DXDx2. All remain 'bit-perfect'.

The NEO provides full MQA decoding to ensure the best possible sound quality.

Specifications

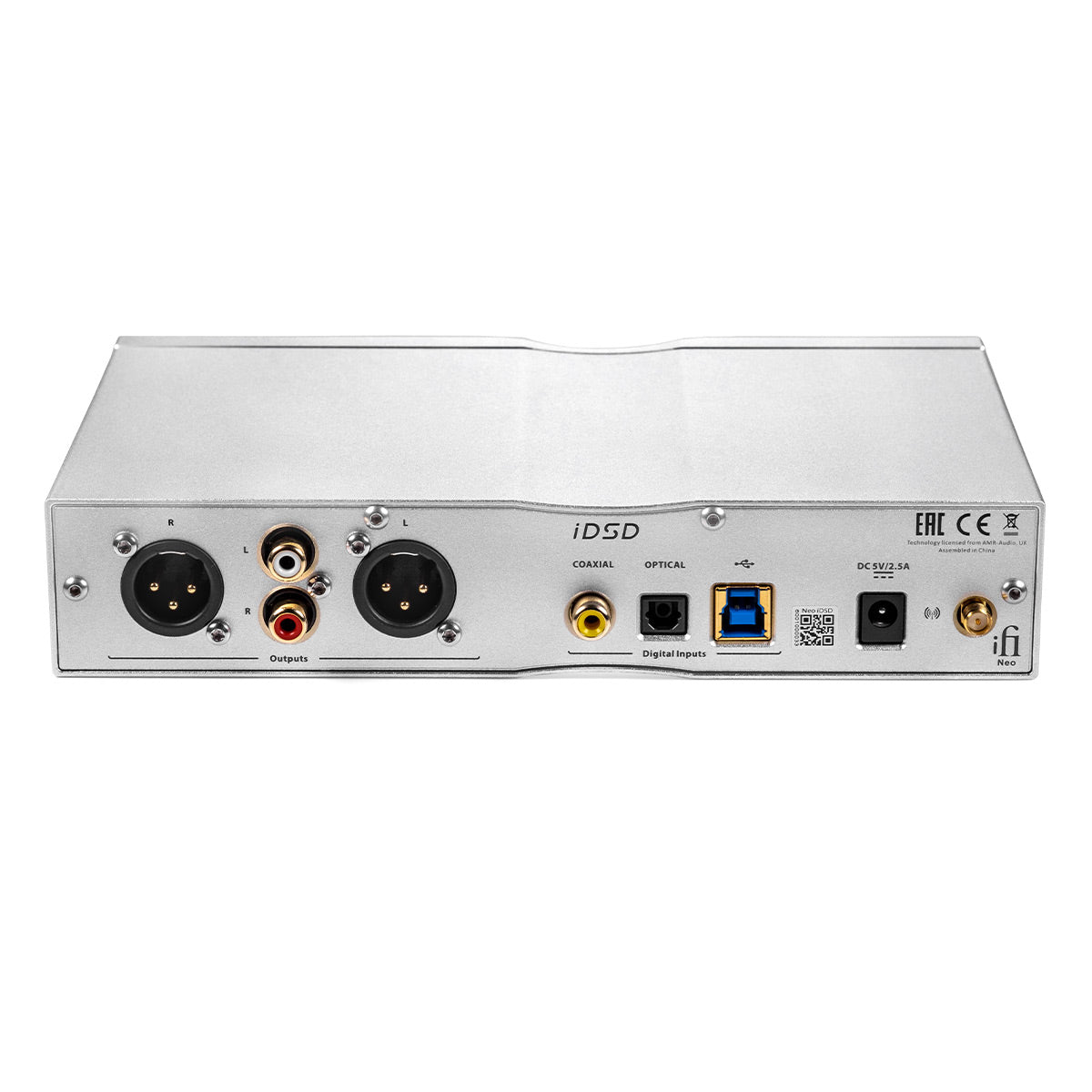

  • Inputs
    • Digital: USB 3.0 B (USB2.0 compatible)/S-PDIF (coaxial/optical), Bluetooth 5.1™ (AAC, SBC, aptX, aptX HD, aptX Adaptive, aptX LL, LDAC, LHDC/HWA Codec)
    • Formats: DSD512/256/128/64, Octa/Quad/Double/Single-Speed DSD, DXD (768/705.6/384/352.8kHz), Double/Single-Speed DXD, PCM (768/705.6/384/352.8/192/176.4/96/88.2/48/44.1kHz), MQA, Bluetooth 96kHz
  • Outputs
    • Balanced XLR: 6.3V / 7.7V max. (variable), 4.4V fixed
    • Unbalanced RCA: 3.2V / 3.9V max. (variable), 2.2V fixed
  • Zout
    • Balanced: ⇐100Ω
    • Unbalanced: ⇐50Ω
    • SNR: -112dB(A) @ 0dBFS (Unbalanced/balanced)
    • DNR: >116dB(A) @ -60dBFS (Unbalanced/balanced)
    • THD + N: <0.0015% @ 0dBFS (Unbalanced/balanced)
  • Headphone Section
    • Output
      • Balanced
        • >64V/68.6 mW (@ 600Ω)
        • >5.77V/1040 mW (@ 32Ω)
      • Unbalanced
        • >3.25V/17.6 mW (@ 600Ω)
        • >3V/295 mW (@ 32Ω)
    • Output Impedance: <1Ω (Unbalanced/balanced)
    • SNR: -112dBa (3.3V Unbalanced/6.2V balanced)
    • THD+N: <0/0015% (125mW @ 32Ω)
    • Power Consumption
      • No Signal ~0.5W
      • Max Signal ~2.5W
    • Dynamic Range: -120dB(A)
    • Input Voltage: DC 5V/2.5A, AC 100 -240V, 50/60Hz (with iPower)
    • Dimensions (W x H x D): 8.4" x 5.7" x 1.6"
    • Weight: 2.14 lbs
    • Warranty Period: 12 months

What's In The Box

  • NEO iDSD DAC
  • Power Adapter
  • Wireless remote control
  • CR2025 Lithium battery (installed in remote)
  • 3.5" Bluetooth antenna
  • 3.5mm-to-6.3mm Adapter
  • 20" RCA patch cord (male stereo RCA plug on each end)
  • 20" USB 3.0 cable
  • 4 Adhesive-backed rubber feet
  • Vertical base
  • User manual
  • Warranty card
