Features
- Dual ES9027PRO DACs support PCM 32-bit/768 kHz and DSD512
- Dedicated amp drives high-impedance headphones

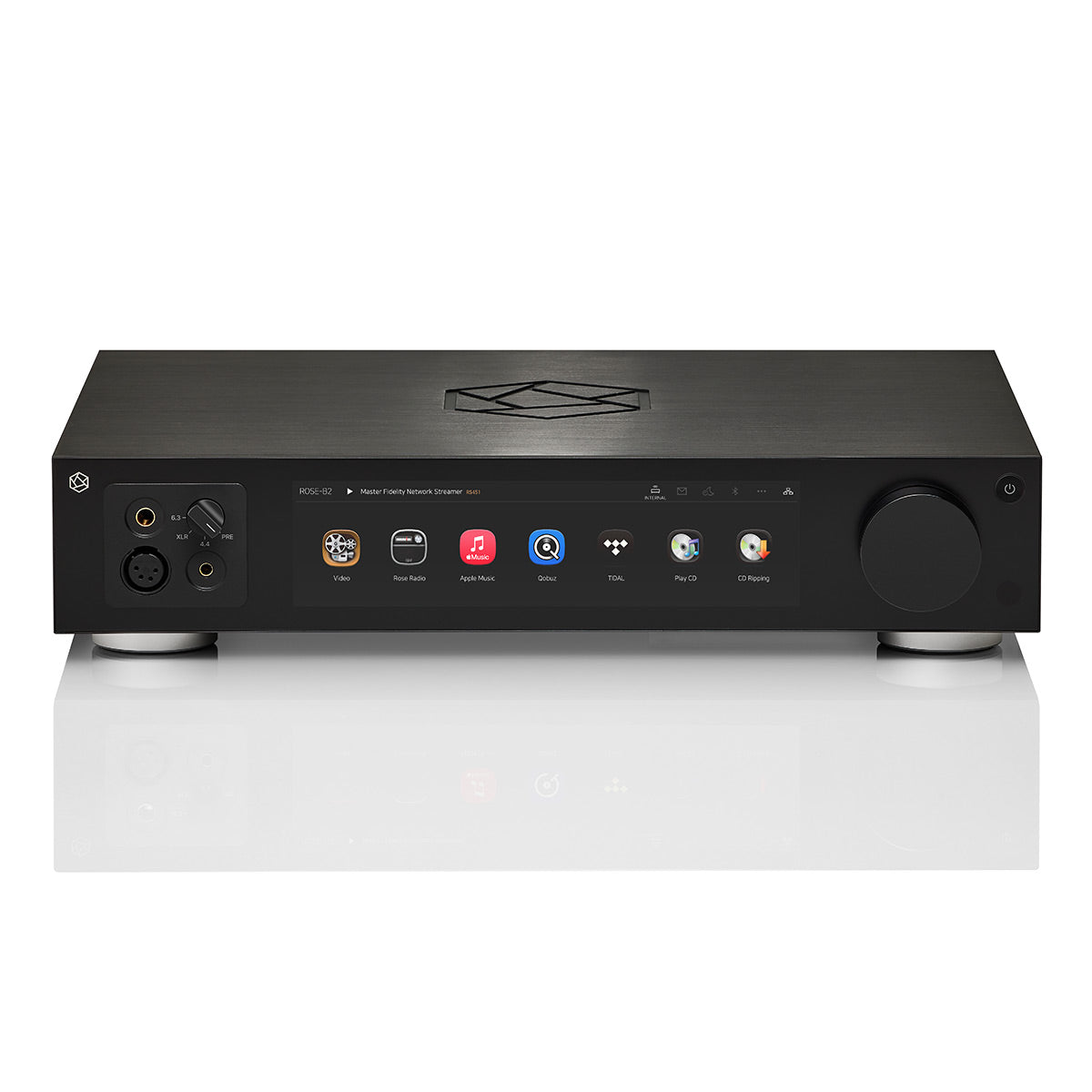

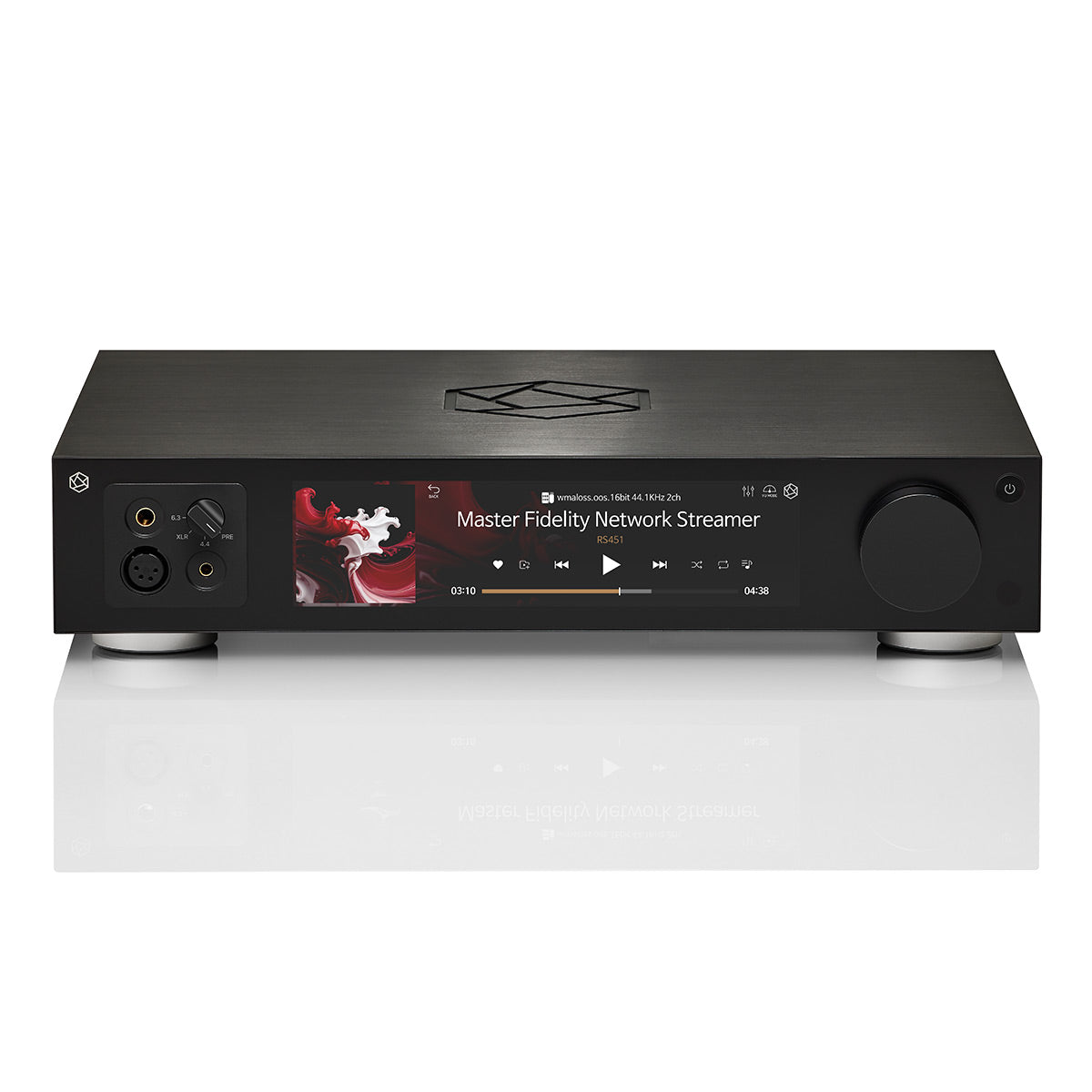

- 8? IPS touchscreen with Visible Audio interface
- Eight-core CPU with 8 GB RAM and 32 GB storage

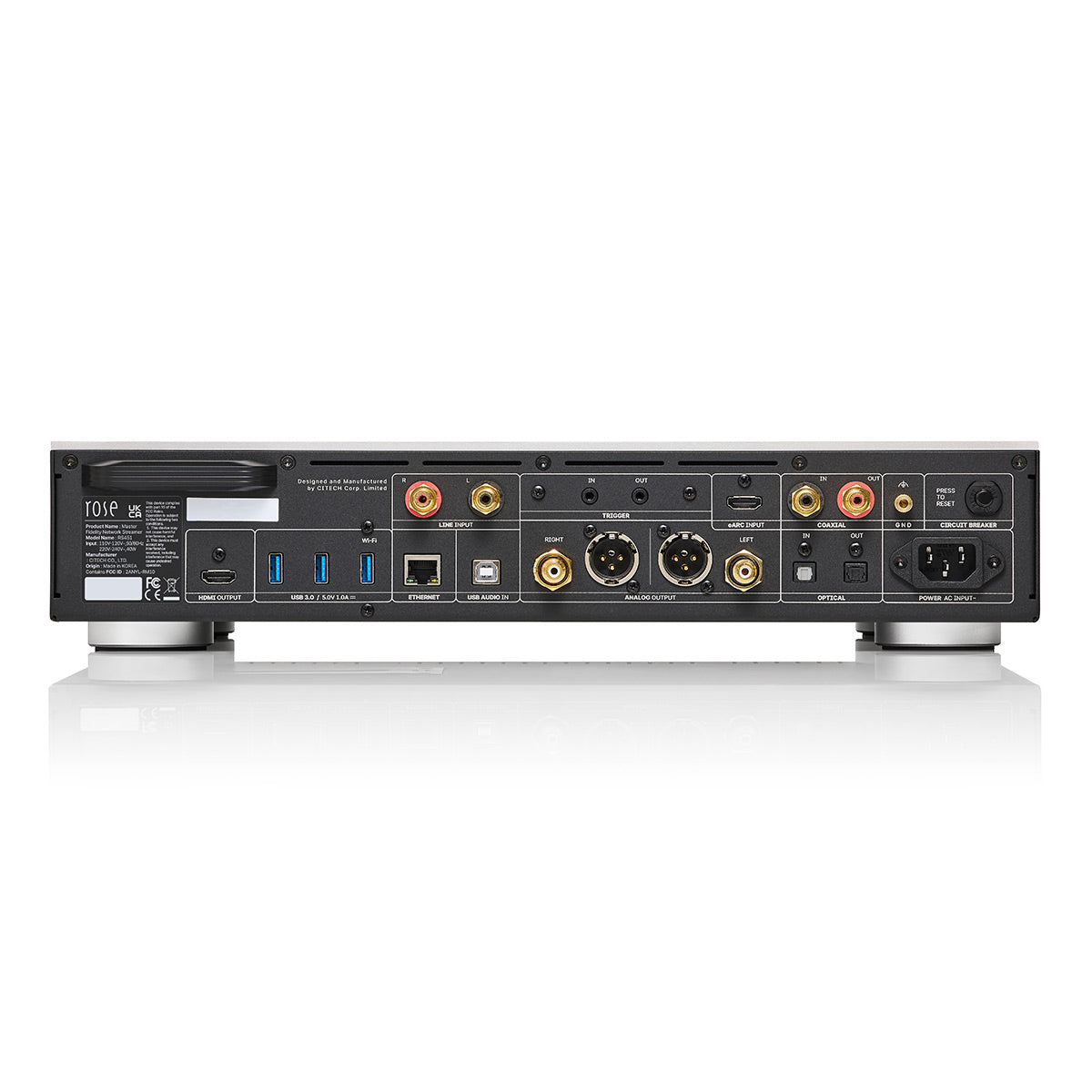

- HDMI eARC, HDMI 2.0, analog/digital I/O, Wi-Fi, Bluetooth 5.4, and streaming support
- Toroidal power supply, NRA filter, and independent DAC paths for low noise
Advanced DAC Architecture
The ES9027PRO used in the RS451 is a high-end 32-bit, 8-channel DAC chip designed with ESS’s HyperStream® architecture, delivering precise performance optimized for Hi-Fi audio applications. It offers an impressive dynamic range of up to +124dB and a THD+N of 114dB, enabling delicate and clean sound reproduction. Supporting PCM up to 768kHz and DSD512, it ensures perfect compatibility with high-resolution audio formats. With seven built-in digital filters, users can fine-tune the sound signature to match their preferences. In the RS451, the DAC’s eight channels are configured in a 4-channel parallel structure for stereo output, achieving even greater dynamic range and ultra-low noise performance.
Advanced Headphone Amplifier Architecture
The RS451 is equipped with two ES9027PRO DACs, with one dedicated to the pre-out and the other to the headphone output. This ensures that the analog audio signal paths are completely separated. Each DAC has its own independent power supply and grounding, which effectively blocks interference and minimizes noise, resulting in clean audio output. The high-performance headphone amplifier section consists of four individually driven amplifiers that provide strong and stable output even for low impedance headphones. The completely isolated power supply design for each channel helps suppress crosstalk, while the ultra-low-noise circuitry maintains linear response across the full frequency range. This design guarantees consistent driving performance under various impedance conditions and delivers outstanding transparency and tonal balance, even when playing high-resolution audio content.
Measured Precision in Headphone Performance
The RS451’s headphone amplifier applies four high-output amplifier ICs in a parallel configuration, delivering stable drive capability even with high-impedance headphones exceeding 600O. Its ultra-fast slew rate of 1300V/µs minimizes signal distortion and enables highly responsive performance, accurately reproducing transients and dynamic changes in music. The THD+N remains consistently low across all impedance ranges, demonstrating the RS451’s ability to deliver balanced, high-resolution sound with precision and clarity in any headphone environment.
ROSE NRA (Noise Reduction Analog)™ Filter
The analog stage of the RS451 features the ROSE NRA™ filter, which eliminates noise and enables flat frequency response even in the very low-frequency range. As a result, the RS451 maintains a consistent frequency characteristic across the entire spectrum without roll-off, delivering original sound information from high-resolution sources with clarity and fidelity.
Enhanced Processing with Next-Gen 8-Core CPU
The RS451 features the next-generation 8-core CPU RK3588, offering a 4x increase in information processing performance and an 8x boost in graphics performance compared to its predecessor. In addition, the DRAM capacity has been upgraded from 4GB to 8GB, and the eMMC storage has been expanded from 8GB to 32GB, resulting in a processing speed that is more than twice as fast. This allows for smooth playback of large audio files as well as 4K high-resolution videos in HDR, while the media library capacity has grown by approximately three times, supporting over 1 million tracks.
