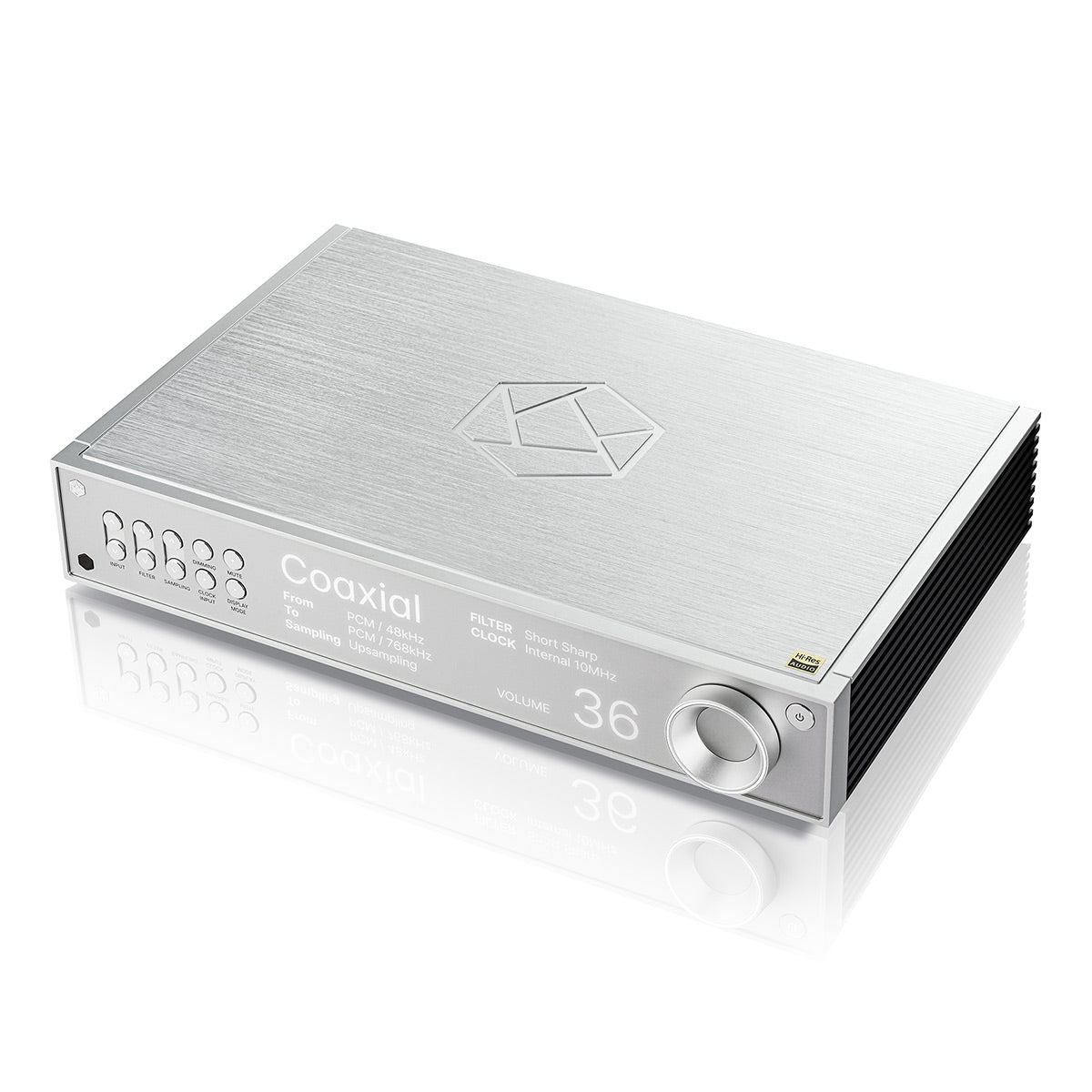

HiFi Rose RD160 DAC (Silver)

Regular price $5,295.00
Sale price $5,295.00 Regular price
Save $-5,295.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: RD160DAC | UPC: 8809756420210

Specifications

What's In The Box

Product Information

Model: RD160DAC | UPC: 8809756420210

RD160 is a DAC that has undergone meticulous tuning processes in collaboration with AKM and MUSES to achieve peak performance. Designed with separate DAC modules for each channel and utilizing 2-chip solution, it completely isolates the digital signal processing and analog conversion stages, ensuring transparent and precise reproduction of the original sound information contained in Hi-Res music files without any alteration. Additionally, three independently customized reference linear power supply units for the digital input and analog output stages effectively block noise originating from the power source. With exceptional balance, extremely low distortion, and noise floor, RD160 promises to deliver a vibrant, lifelike sound.

Features

  • Balance-Designed DAC
  • Fiber Optic USB
  • Hidden Screen
  • (4) Upsampling Options & (6) Digital Filters
  • External Master Clock Input

Upsampling & Filter

The RD160 offers various options. For upsampling, it provides four options: NOS, PCM, DSD, and ALL. PCM supports up to 32bit/768kHz, and DSD supports up to DSD512. Additionally, the digital filter offers six different types of impulse responses, allowing users to select according to their preferences. These two features can be easily configured using the button located on the left side of the front panel, and the changes are instantly reflected on the Hidden Screen without any delay.

Fiber Optic USB

The SFP USB, featuring optical converting functionality, completely blocks digital noise from the source device. When connected to RS130, which supports SFP USB ports, you can receive pure data without any noise interference, ensuring the cleanest transmission possible.

External Master Clock Input

Audio sources require a master clock input that outputs synchronized audio data with the master clock. By applying this method, jitter from optical, coaxial, and AES/EBU connections from the audio source to the DAC can be eliminated, supporting perfect synchronization between devices tailored to the operating environment.

Hidden Screen

Designed with simplicity and sophistication to convey coherence with HiFi ROSE network devices, RD160 features a Hidden Screen on its front panel. When powered on, the circuit-like design flow chart, sound waves, and volume curve displayed on the screen intuitively present various information at a glance. Additionally, immediate responses to button and know operations without any delay, offers a sensation of controlling an analog device. Thus, the RD160 not only enhances the pleasure of listening but also adds the visual satisfaction plus enjoyment of manipulation.

Design

The RD160 utilizes a specially processed aluminum case, machined from high-purity aluminum as a single piece with minimized assembly joints, to minimize vibrations that could adversely affect sound quality. Additionally, the side panels with heat sink design efficiently dissipate heat, ensuring stable operation even during prolonged use.

Specifications

  • Design
    • Size: 16.92" x 12.87" x 3.42”
    • Weight: 22.04 lbs.
    • Body: Solid Aluminum, Rust-proof Steel
    • Display: 2 x Polycarbonate AMOLED hidden screen (MIPI-DSI)
  • Power
    • Input Voltage: AC100-120V, 220-240V, 50/60Hz
  • H/W
    • CPU: Quad-core ARM Cortex-A7MP
    • RAM: 1GB DDR3 (1866Mhz Data Rate)
    • Flash: 8GB eMMc
    • Oscillator: OCXO (Oven Controlled Crystal Oscillators)
  • Feature
    • PCM Filter: Sharp Roll-off, Slow Roll-off, Short Delay Sharp Roll-off (default), Short Delay Slow Roll-off, Super Slow Roll-off, Low Dispersion Short Delay
    • PCM/DSD Upsampling: PCM 44.1kHz to 705kHz, PCM 48.0kHz to 768kHz, DSD64 to DSD512
  • Connectivity
    • Digital Input
    • 1 x USB SFP Module (32bit / 768kHz, Native DSD512)
    • 1 x USB Type-B 2.0 (32bit / 768kHz, Native DSD512)
    • 1 x HDMI I2S (32bit / 768kHz, Native DSD512)
    • 1 x OPTICAL RX (24bit / 192kHz, DoP64)
    • 1 x COAXIAL RCA (32bit / 384kHz, DoP128)
    • 1 x COAX BNC (32bit / 384kHz, DoP128)
    • 1 x AES/EBU XLR (32bit / 384kHz, DoP128)
    • Analog Output: 2 x Balanced XLR, 2 x Unbalanced RCA
    • External Clock (10MHz): 1 x 75ohm BNC, 1 x 50ohm SMA
  • Remote Control
    • IR: 38kHz IR Receiver
  • Measurement
    • Sensitivity: 9Vrms @ 1kHz 0dBF (TBC)
    • Frequency Response: 10Hz ~ 70kHz @ +1/-3dB (TBC)
    • SNR: 132dB A-wt (TBC)
    • THD: 0.0002% / 113dB (TBC)
    • Dynamic Range: 129dB (TBC)

What's In The Box

  • RD160 DAC
  • Remote
  • Power Cord
  • Manual
